High-quality results, every time.
Delivering speed, precision, and ease of use with every cleave.

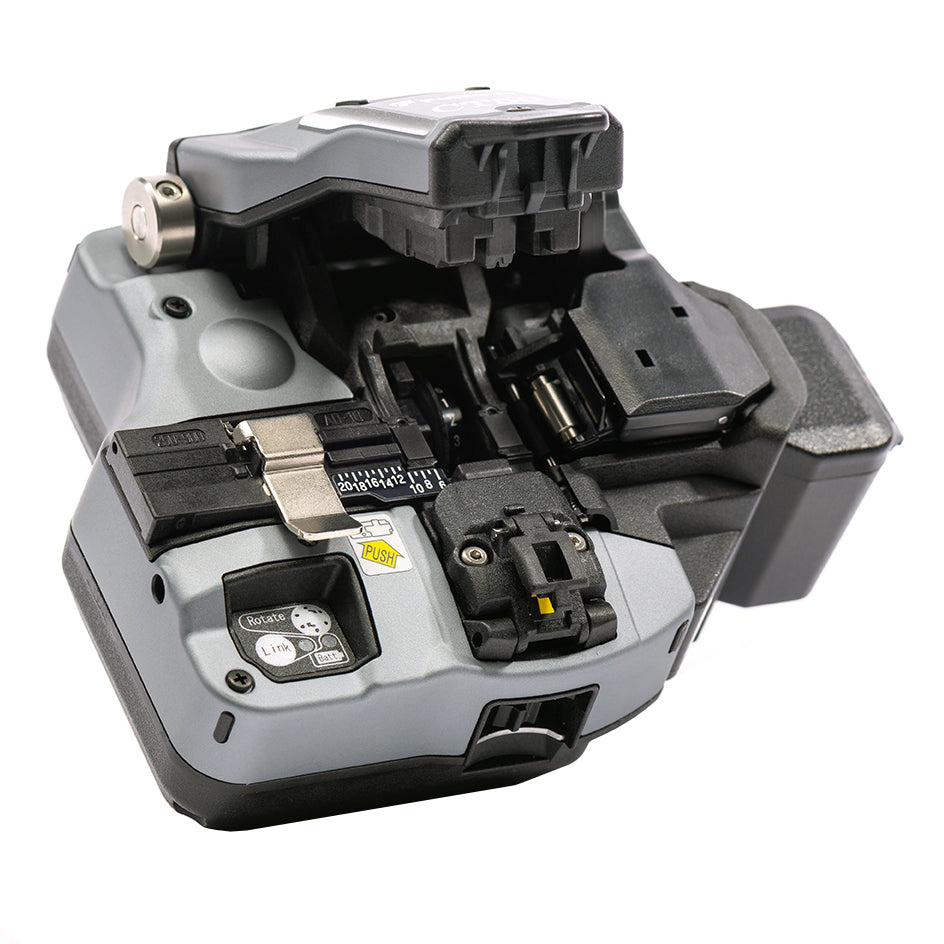

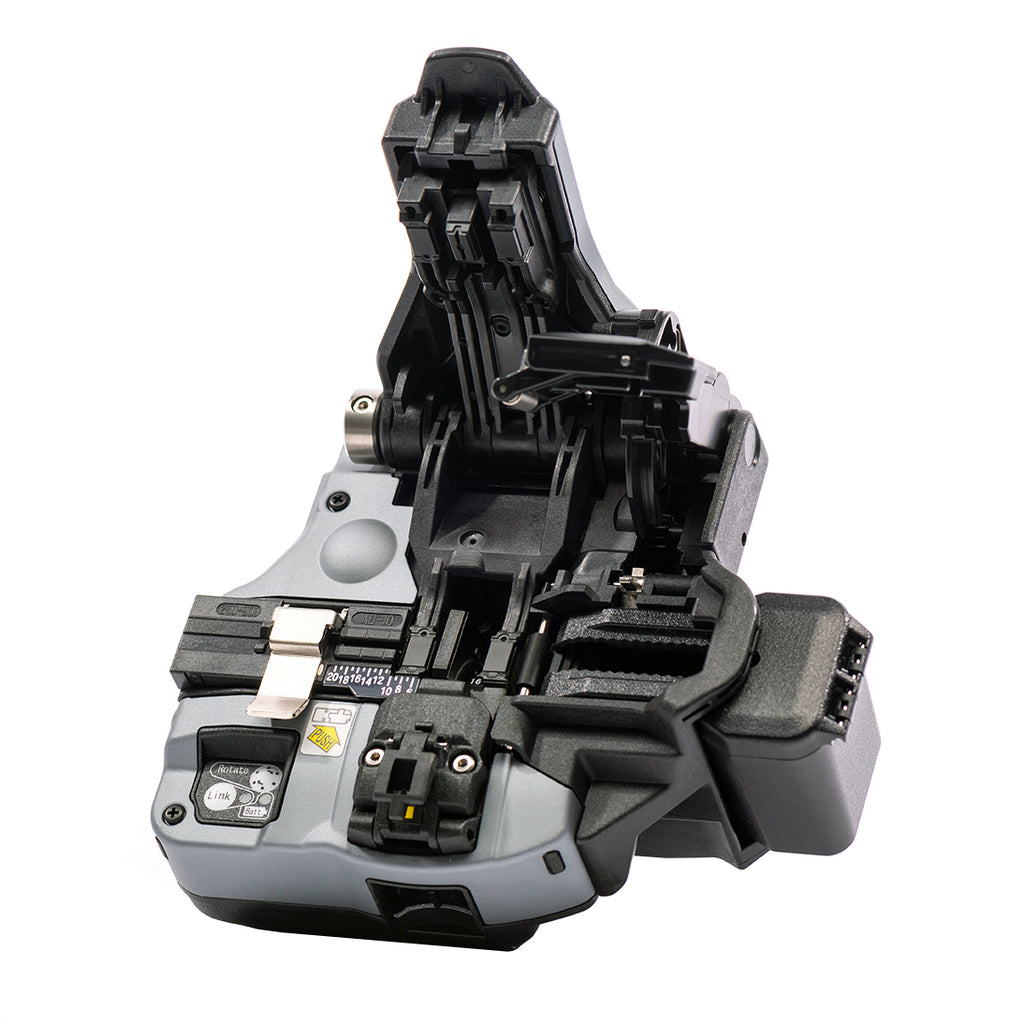

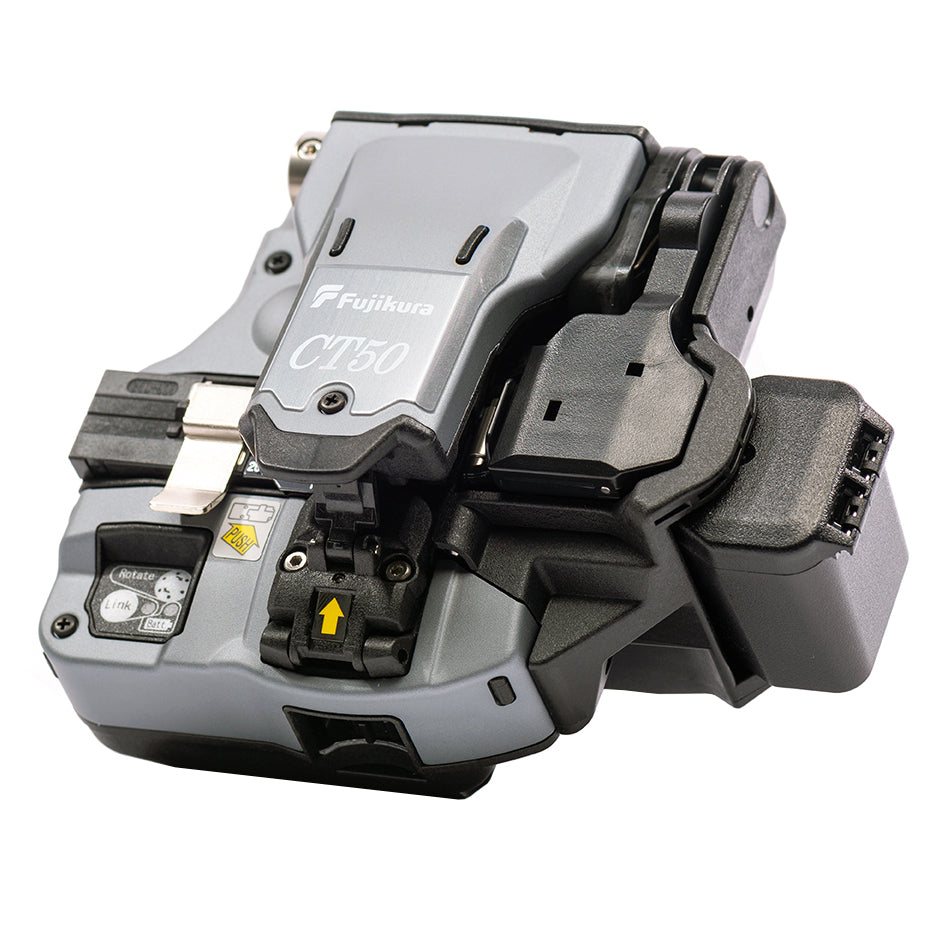

Thanks to enhanced drop and impact resistance compared to existing cleavers, the CT50 is as robust as it is functionally exceptional. It delivers speed, precision, and ease of use for customers like never before thanks to its clever design, which allows users to replace the cleaver blade, resulting in a reduction in handling time and maintenance costs.
The CT50 can cleave single fibres and ribbons of up to 16 fibres and because it is Bluetooth enabled, can easily be integrated into existing splicing process for customers looking to invest in a future-proof cleaving solution.
Thanks to the CT50s ability to wirelessly connect to Fujikura fusion splicers, the CT50 is able to change the position of the cleaving blade automatically and in response to the cleave quality of the optical fibres as seen and communicated by the fusion splicer. The fusion splicer will then rotate the blade once it deems the quality is poor. In addition, the CT50 completes cleaving of the fibre and scrap collection in the same step.
Specification
| Fibre type |
Single-mode and multi-mode optical fibre |
| Number of fibres |
Single and up to 16-fibre ribbon |
| Cladding Diameter |
Approx. 125μm |
| Coating Diameter |
Max. 900μm, max. 3mm cord and drop cable |
| Cleaving length - AD-50 |
5mm to 20mm (250μm coating diameter) and 10mm to 20mm (coating diameter less than 250μm) |
| Cleaving length - AD-10-M24 |
5mm to 20mm (250μm coating diameter) and 10mm to 20mm (coating diameter less than 250μm) |
| Cleaving length - fibre holder |
10mm (from the edge of FH: 13mm) |
| Cleaving angle |
Single-fibre: avg. 0.3° to 0.9°, fibre ribbon: avg. 0.3° to 1.2° |
| Blade life |
60,000 fibres (1,250 fibre at three heights over 16 positions) |
| Wireless connectivity |
Wireless technical standard: Bluetooth®4.1 LE |
| Power supply |
2 AAA (LR03) dry battery |
| Dimensions |
117mm [W] x 94mm [D] x 59mm [H] |
| Weight |
360g |
| Operating temperature |
-10° to 50°C |
| Operating humidity |
0 to 95% RH non-condensing |
| Storage temperature |
-40 to 80°C |
| Storage humidity |
0 to 95% RH non-condensing |
| Screw hole for tripod |
1/4-20 UNC |
| Other features |
Blade rotation (motorised rotation, manual rotation dial), replaceable parts (blade, clamp arm) |
