Description

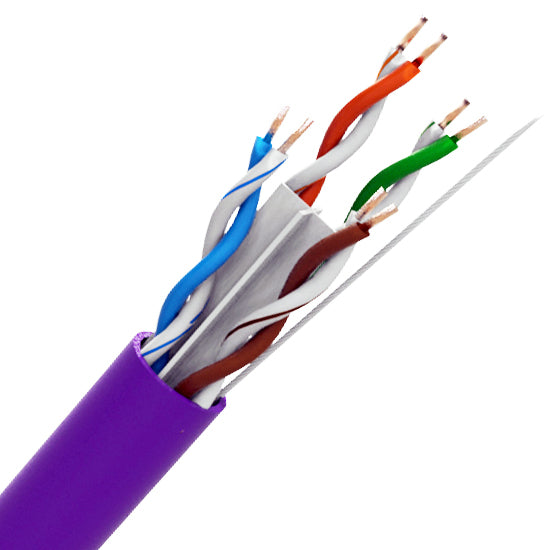

CQR Professional Cat6 UTP LSZH Cable is a solid copper data cable supplied in a 305m pull box for structured cabling and fixed network installations. Designed for internal use, it is suitable for commercial, education, residential and public sector installations requiring Cat6 network performance.

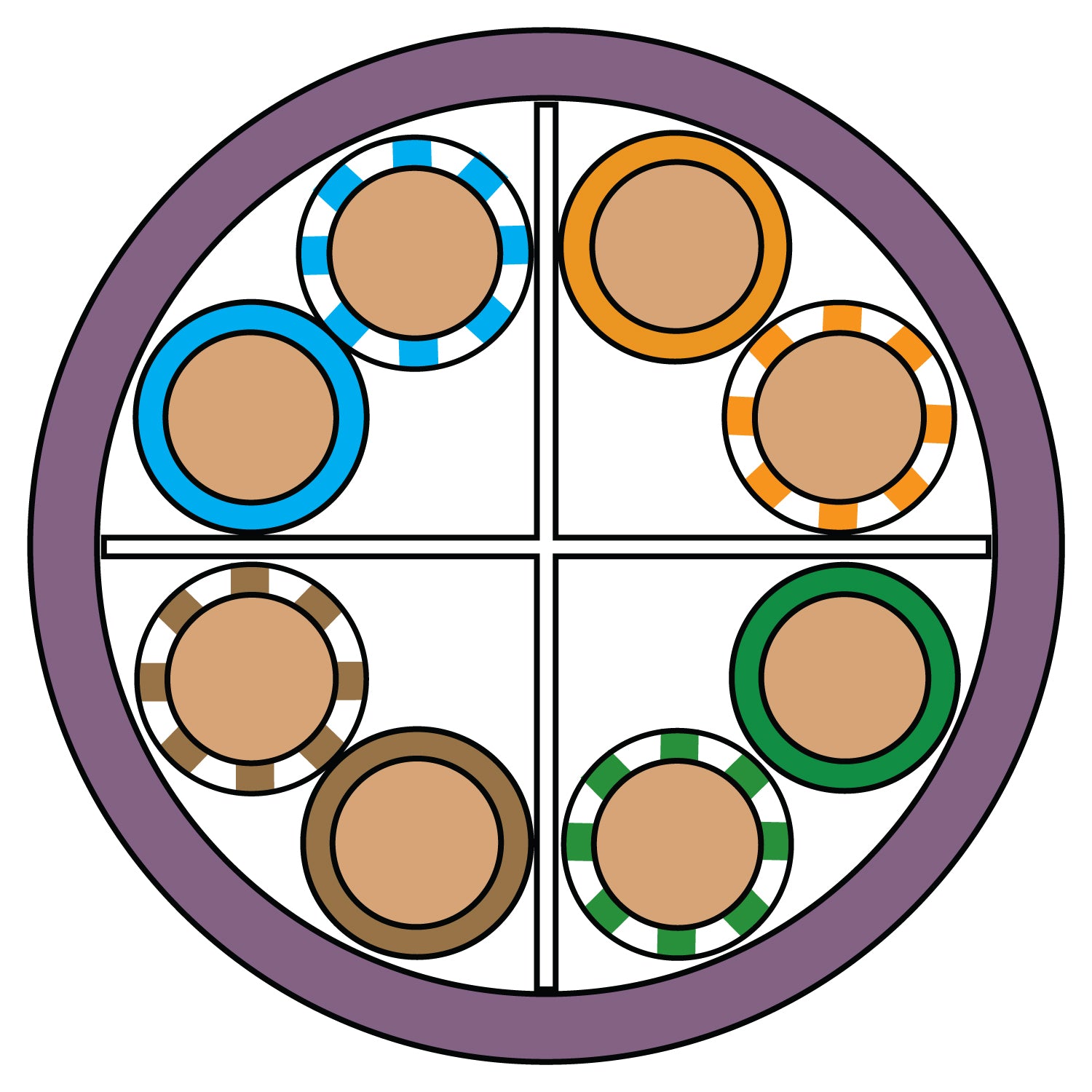

Manufactured with 4 unshielded twisted pairs and solid copper conductors, this cable supports Gigabit Ethernet and other high-speed data applications including IP CCTV, VoIP, wireless access points and structured data networks. The LSZH (Low Smoke Zero Halogen) sheath is suited to installations in enclosed or public environments where reduced smoke and corrosive emissions are required in the event of fire.
The violet outer sheath assists with cable identification within cabinets, risers and containment systems.
Compatible with standard Cat6 RJ45 modules, keystone jacks, patch panels and network outlets. The solid conductor construction is intended for permanent installation work and fixed cabling runs rather than flexible patch lead assembly. Suitable for standard Cat6 network infrastructure and PoE-enabled devices where Cat6 cabling is specified.
Specification
| Number of cores | 8 |
| Multi or solid | Solid |
| Euroclass | Eca |
| Length (mtrs) | 305 |
| Sheathing | LSZH |
| Sheathing colour | Purple / Violet |
| Screened | No |
| Conductor type | Copper |
| Conductor size | 0.53 |
| Number of strands in core | 1 |
| Insulation material | HDPE |
| Insulation colour | BL-BL/WH-OR-OR/WH-GR-GR/WH-BR-BR/WH |
| Insulation resist @ 20C | 5000 |
| Nylon rip cord colour | White |
| Nominal diameter | 6 |
| Operating temperature | -10C to +80C |
| Maximum voltage | 50V |
Downloads
| Datasheet | Download |
| Declaration of Performance | Download |
