Description

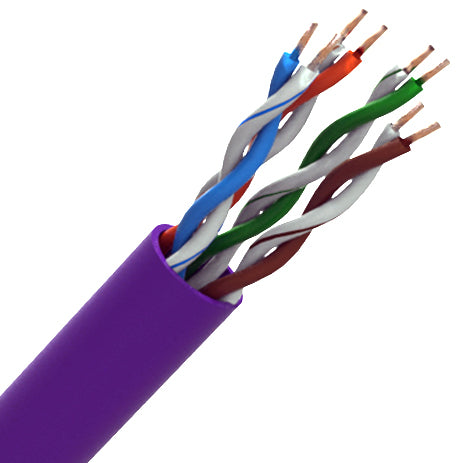

CQR Professional Cat5e UTP LSZH Cable is a solid copper data cable supplied in a 305m box for structured cabling and fixed network installations. Suitable for internal use, it is commonly installed in offices, schools, retail units, residential developments and other commercial environments requiring Cat5e network infrastructure.

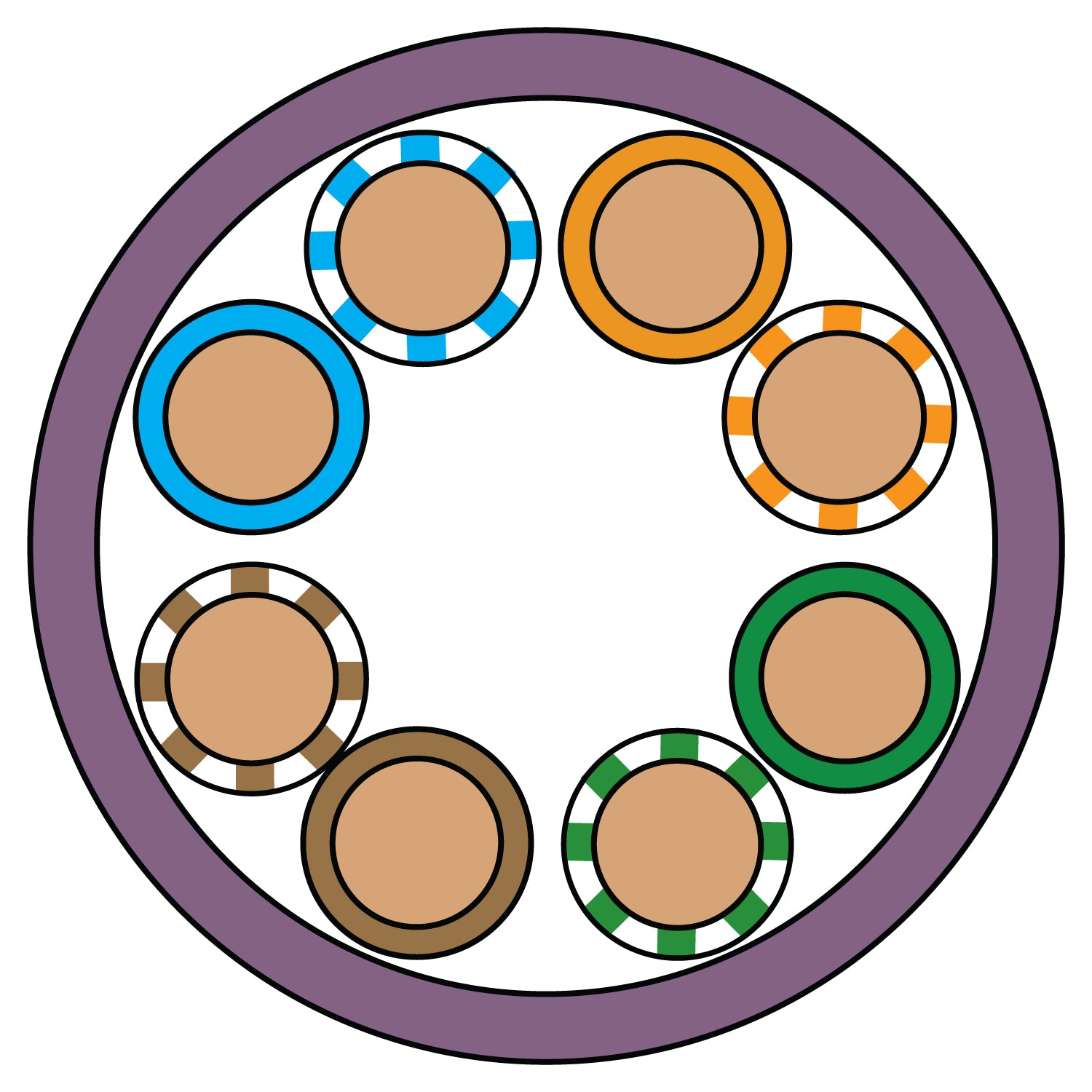

Manufactured with 4 unshielded twisted pairs and solid copper conductors, this cable is designed for Ethernet, voice and IP-based systems including CCTV, VoIP and data distribution. The LSZH (Low Smoke Zero Halogen) sheath helps reduce smoke and harmful emissions in enclosed areas during fire conditions, making it suitable for public buildings and compliant installations where LSZH cable is specified.
The violet outer sheath allows for straightforward identification within cabinets, containment and multi-cable installations.
Compatible with standard Cat5e RJ45 modules, keystone jacks, patch panels and network outlets. The solid conductor design is intended for permanent installations and fixed cabling runs rather than flexible patch leads.
Specification
| Number of cores | 8 |
| Multi or solid | Solid |
| Euroclass | Eca |
| Length (mtrs) | 305 |
| Sheathing | LSZH |
| Sheathing colour | Purple / Violet |
| Screened | No |
| Conductor type | Copper |
| Conductor size | 0.47 |
| Number of strands in core | 1 |
| Insulation material | HDPE |
| Insulation colour | BL-BL/WH-OR-OR/WH-GR-GR/WH-BR-BR/WH |
| Insulation resist @ 20C | 5000 |
| Nylon rip cord colour | White |
| Nominal diameter | 5 |
| Operating temperature | -10C to +80C |
| Maximum voltage | 50V |
Downloads
| Datasheet | Download |
| Declaration of Performance | Download |
