Description

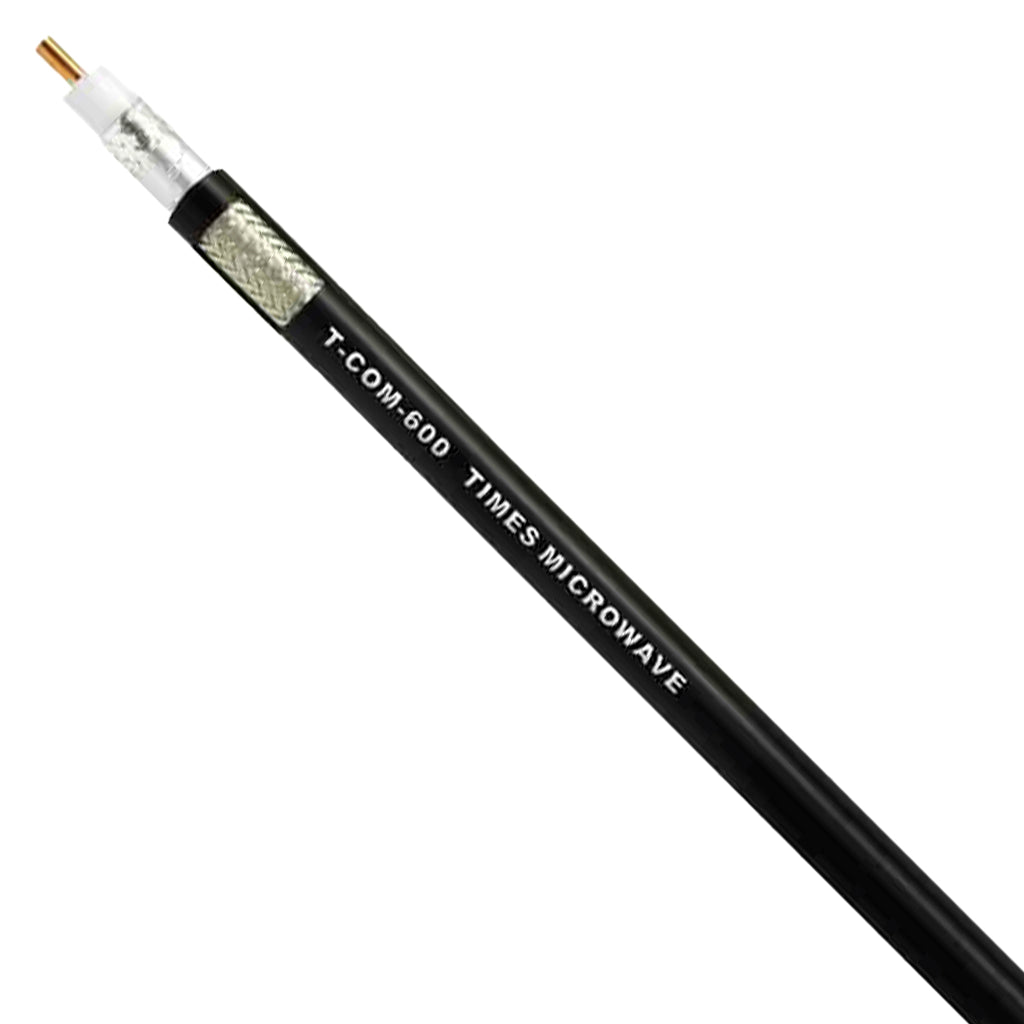

Featuring the same attenuation as LMR, these TCOM cables feature a multi-layer shield to deliver a flexible, rugged, low loss, low PIM coaxial option. TCOM family is perfect for low PIM applications requiring handling or movement after initial installation and the need for optimized shielding effectiveness in harsh environment survival. The TCOM-600 features a black polyethylene jacket.
Specification
| Environment | Outdoor |
| Jacket | PE |
| Overall diameter (mm) | 14.986 |
| Overall diameter (in) | 0.59 |
| Weight Kg/m | 0.2381 |
| Weight lb/ft | 0.16 |
| Operating temp | -40° to 85°C (-40° to 185°F) |
| Min. bend radius (mm) | 38.1 |
| Min. bend radius (in) | 1.5 |
| Bending moment (Nm) | 3.76 |
| Bending moment (ft-lb) | 2.75 |
| Max frequency (GHz) | 6 |
| Impedance (ohms) | 50 |
