This Excel Cat6 U/UTP LSZH Cable (CPR Dca) is a premium-grade solid copper network cable designed for professional structured cabling installations.
Manufactured with solid copper conductors and an internal PE cross separator, this Cat6 cable delivers reliable Gigabit Ethernet performance (1Gbps / 250MHz) making it ideal for use in commercial environments, offices, schools and hospitals.
Key Features
-
Category 6 performance - Supports up to 1Gbps Ethernet
-
LSZH sheath - Low Smoke Zero Halogen for safer installations
-
Solid copper conductors - Full copper cores for maximum performance & PoE reliability
-
U/UTP construction - Unshielded twisted pair for standard internal installations
-
Central PE spline - X-shaped separator reduces crosstalk and maintains pair geometry
Built For Reliable Network Performance

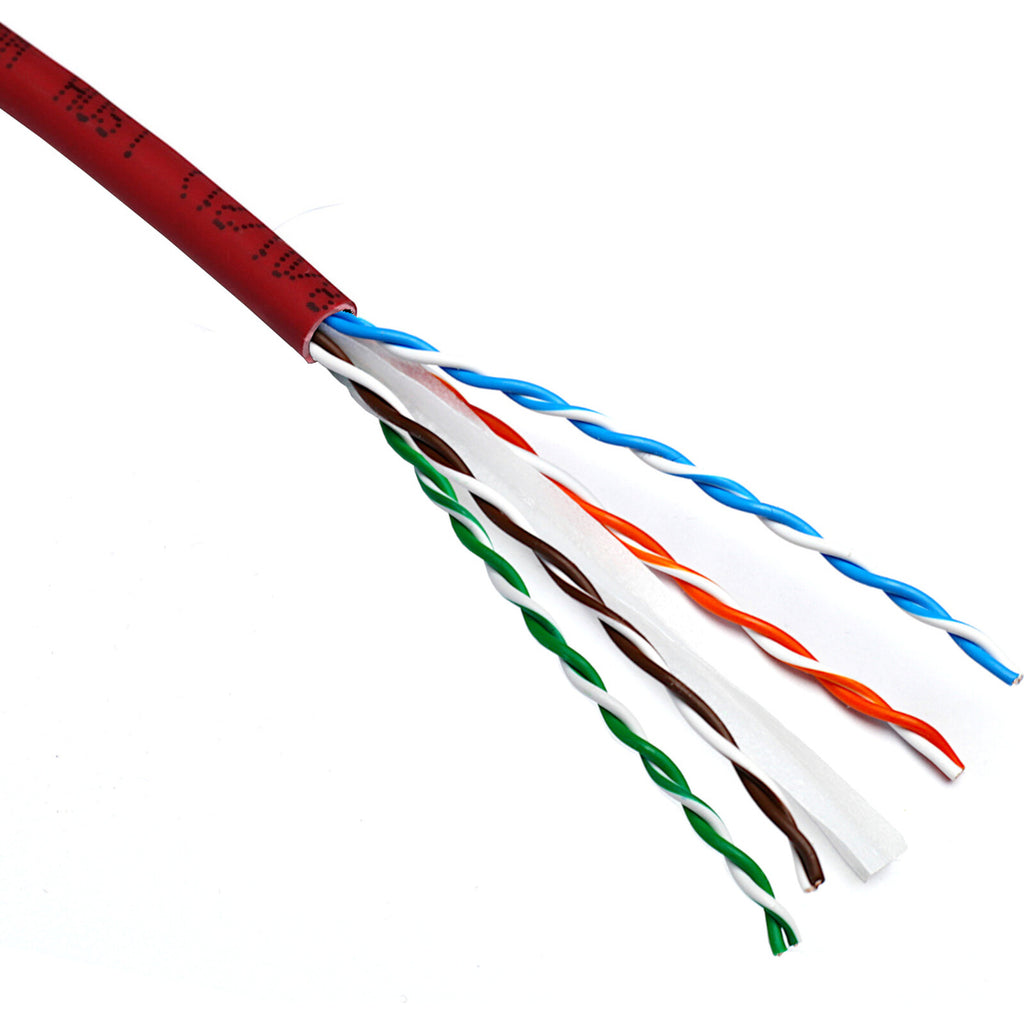

Each cable contains four twisted pairs (8 colour-coded solid copper cores) arranged around a central X-shaped polyethylene separator. This internal design:
- Reduces near-end crosstalk (NEXT)
- Improves signal consistency
- Maintains Cat6 performance over distance
- Supports PoE and PoE+ applications
Ideal For:
- Office network installations
- Schools & healthcare facilities
- New build & refurbishment projects
- Structured cabling systems
Why Choose Solid Copper Cat6?
Unlike cheaper CCA (Copper Clad Aluminium) alternatives, solid copper Cat6 cable provides:
- Better conductivity
- Improved heat resistance for PoE
- Greater reliability
- Compliance with industry standards
- When performance and compliance matter, solid copper is the professional choice.
Specification
| Conductor surface |
Bare |
| AWG size |
23 |
| Conductor category |
Class 1 = solid |
| Total number of cores |
8 |
| Stranding element |
Pairs |
| Specification core insulation |
PE |
| Core identification |
Colour |
| Overall screening |
None |
| Conductor screening |
None |
| Outer sheath material |
Copolymer, thermoplastic (LSZH) |
| Outer sheath colour |
Red |
| Reaction-to-fire class according to EN 13501-6 |
Dca |
| Smoke development class according to EN 13501-6 |
s2 |
| Euro class flaming droplets/particles according to EN 13501-6 |
d2 |
| Euro class acidity according to EN 13501-6 |
a1 |
| Outer diameter approx. |
6.2 mm |
| Installation Temperature Range |
0 to 60C |
| Operating Temperature Range |
-20 to 75C |
| NVP Value |
69% |
