Description

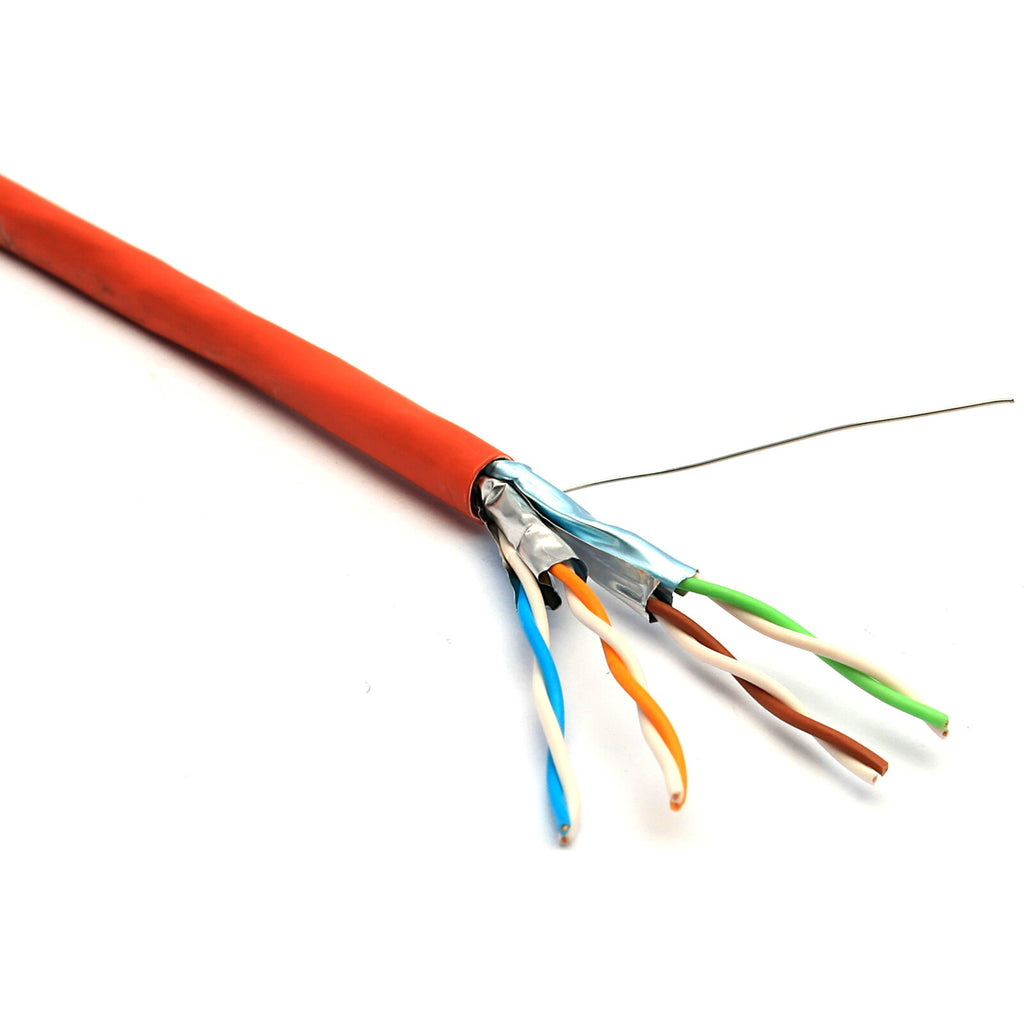

The Excel Cat6A U/FTP LSZH Cable is a premium 10 Gigabit Ethernet cable designed for professional structured cabling installations where both performance and fire safety compliance are critical.
Manufactured with a Low Smoke Zero Halogen (LSZH) outer sheath and certified to CPR Euroclass B2ca, this cable offers an extremely high level of reaction to fire performance, making it a far safer and more compliant choice than standard PVC-sheathed alternatives.
Key Benefits
- Cat6A performance - Supports 10Gb Ethernet (10GBASE-T) up to 500MHz
- CPR B2ca rated - One of the highest fire classifications available for data cabling
- LSZH outer sheath - Reduced smoke and zero halogen emissions in fire conditions
- U/FTP shielded construction - Individually foil-screened pairs for improved noise immunity
- Ideal for commercial & public buildings - Where safety regulations demand higher standards
Safer Than Standard PVC Cable
Unlike PVC cables, which can release dense smoke and corrosive gases during a fire, this Excel LSZH B2ca cable is designed to:
- Limit flame spread
- Reduce smoke output
- Improve safety in enclosed and high-occupancy environments
Specification
| Conductor surface | Bare |
| AWG size | 23 |
| Conductor category | Class 1 = solid |
| Total number of cores | 8 |
| Stranding element | Pairs |
| Specification core insulation | Polyethylene (PE) |
| Core identification | Colour |
| Overall screening | None |
| Conductor screening | Foil |
| Outer sheath material | Copolymer, thermoplastic (LS0H) |
| Outer sheath colour | Orange |
| Flame retardant according to IEC 60332-1-2 | yes |
| Reaction-to-fire class according to EN 13501-6 | B2ca |
| Smoke development class according to EN 13501-6 | s1a |
| Euro class flaming droplets/particles according to EN 13501-6 | d1 |
| Euro class acidity according to EN 13501-6 | a1 |
| Outer diameter approx. | 7.4 mm |
| Installation Temperature Range | 0 to 60 °C |
| Operating Temperature Range | -20 to 70 °C |
| NVP value | 76 % |
Downloads
| Datasheet | Download |
