Description

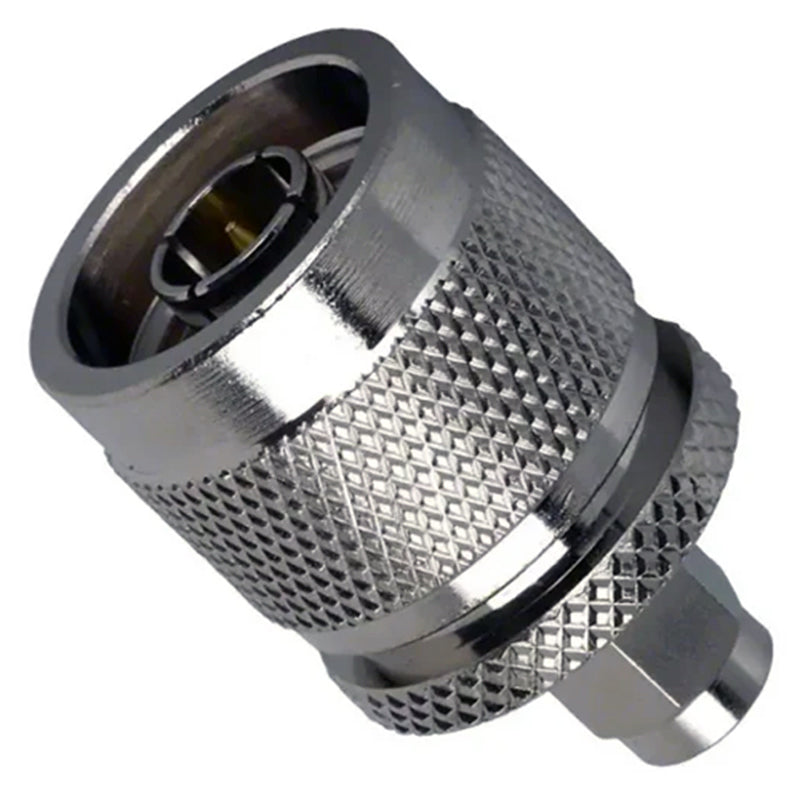

This N Male to SMA Male Adapter provides the ideal solution to join both an N Female and SMA Female connector and pass RF/Microwave frequencies to 6GHz, whilst offering an industry-leading low VSWR performance of 1.2:1 Maximum.
Electrical Specifications
Impedance | 50 Ω |
Frequency Range | DC-6GHz |
VSWR | ≤1.2 |
Withstand Voltage | 1000V rms |
Contact Resistance (Centre) | < 1mΩ |
Contact Resistance (Outer) | < 1mΩ |
Insulation Resistance | >5000MΩ |
Mechanical Specifications
Temperature Range | -55 / +155 °C |
Mating Cycles | >500 |
Connector A | N Male |
Connector B | SMA Male |
Material Specifications
Item | Base Material | Plating |
Body |
Brass | Nickel & Gold |
Centre Conductor | Brass |
Gold |
Gasket |
Silicone Rubber |
N/A |
Insulator | PTFE |
N/A |
