Description

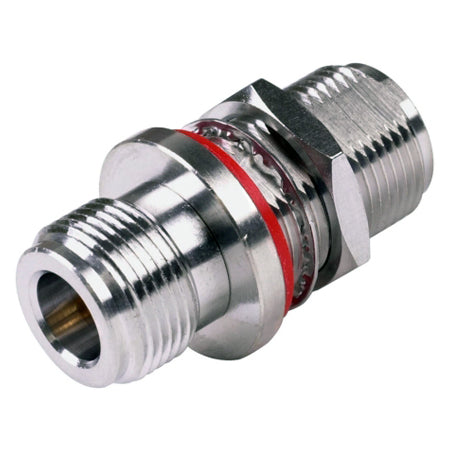

This N Female - N Female Bulkhead Adapter allows the passing of RF cables from outside to inside an enclosure, whilst sealing the enclosure from water and moisture ingress.
It can be used in a variety of other rack mount and panel mount applications and boasts a maximum VSWR of 1.15:1.
This RF adapter can also be used to solve an issue where 2 x N Male connections need to join. Simply screw the N Male connectors onto either end of the adapter and this will create the RF pathway.
Electrical Specifications
| Impedance | 50 Ω |
| Frequency Range | DC-3GHz |
| VSWR | ≤1.15 |
| Withstand Voltage | 500V rms |
| Contact Resistance (Centre) | < 1mΩ |
| Contact Resistance (Outer) | < 1mΩ |
| Insulation Resistance | >5000MΩ |
Mechanical Specifications
| Temperature Range | -65 / +165 °C |
| Mating Cycles | >500 |
| Connector A | N Female |
| Connector B | N Female |
Material Specifications
| Item | Base Material | Plating |
| Body |
Brass | Nickel |
| Centre Conductor | Brass |
Gold |
| Lock Nut | Copper Alloy |
Nickel |
| Sealing O Ring | 6146 Silastic | N/A |
| Insulator | PTFE |
N/A |
