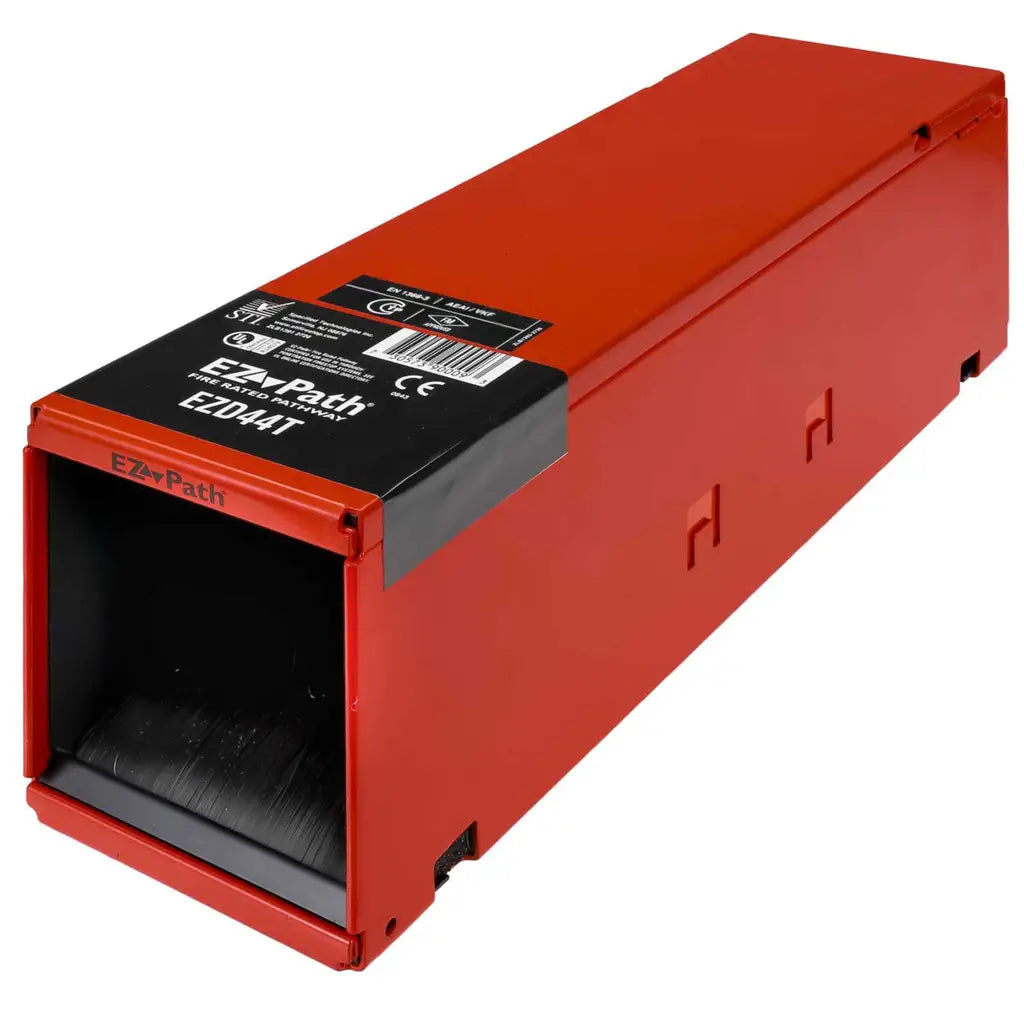

This fire-stopping device is approved for all types of cables (up to 50mm Ø). It is cable friendly with no sharp edges and features a mechanical system for easy installation.
It provides a fire and smoke barrier with 2 hours fire resistance. Fire rated by design with no firestop handling.
Extension box available separately (EZD44ES).
It is suitable for rigid walls, flexible walls and rigid floors.
Specifications
| Dimensions |
(L)356 mm x (H)116 mm x (W)102 mm
|
| Height |
116mm
|
| Standards |
EN 1366-3, EN 13501-2, EN13501-1
|
| Weight |
2.67600kg
|
| Width |
102mm |
