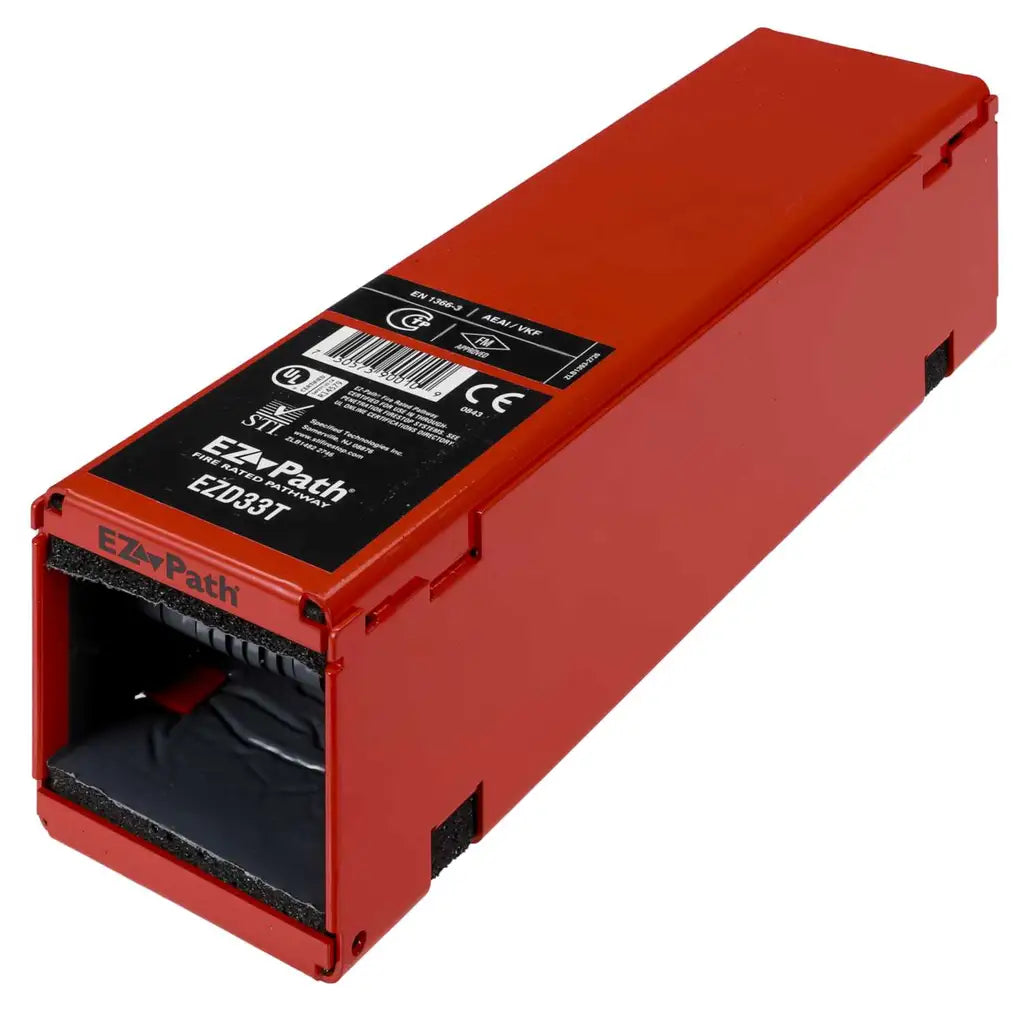

This firestopping device is approved for all types of cables (up to 50mm Ø). It is cable-friendly with no sharp edges.
The mechanical system allows for easy installation and provides a fire and smoke barrier for 2 hours fire resistance. It is fire rated by design, with no firestop handling.
An extension box is available separately (EZD33E).
Suitable for rigid walls, flexible walls and rigid floors.
Specifications
| Dimensions |
(L)267 mm x (H)76 mm x (W)76 mm
|
| Height |
76mm
|
| Length |
267mm
|
| Standards |
EN 1366-3, EN 13501-2, EN13501-1
|
| Weight |
1.33700kg
|
| Width |
76mm |
