Description
This 24AWG 3 pair screened cable is a Belden 9503 equivalent, designed for low-voltage signal and control applications where protection from electrical interference is required. It uses stranded tinned copper conductors with an overall foil screen and drain wire, making it suitable for installations in electrically noisy environments.
The LSZH (Low Smoke Zero Halogen) outer sheath is rated to Euroclass Eca, making it suitable for use in buildings where reduced smoke and corrosive emissions are required in the event of fire.
Typical applications include:
- Control and instrumentation wiring
- Building management systems (BMS)
- Audio and signal transmission
- Industrial control panels
- General low-voltage data and control circuits
The overall aluminium foil screen with integrated drain wire helps reduce electromagnetic interference (EMI), supporting consistent signal performance when installed alongside power cables or equipment.
Specification
| Physical Characteristics | |
| Conductor | Stranded Tinned Copper Wire |
| Size | 24AWG (8/0.19) |
| Number of Pairs | 3 Pairs |
| Insulation | PVC (0.32mm) Ø1.25mm |

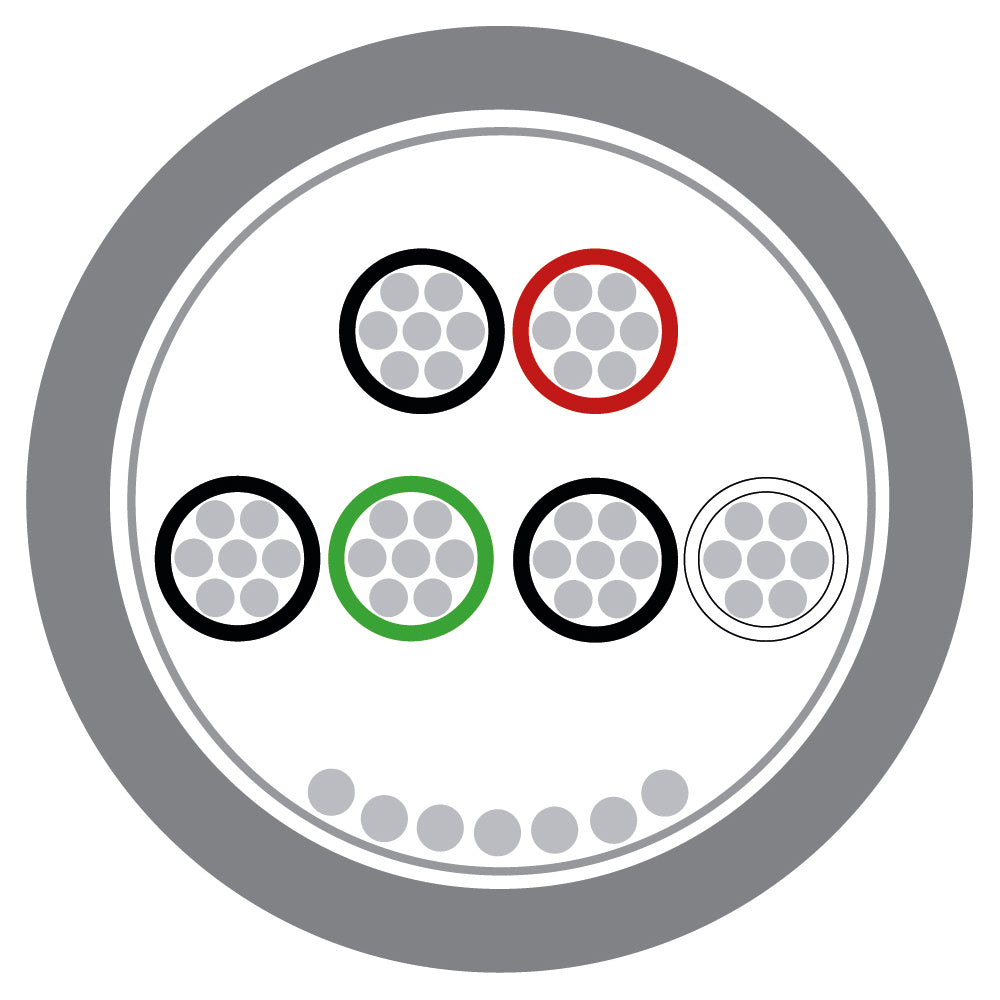

| Screening | Overall Aluminium Foil Screen [24AWG Drain Wire] |
| Outer Sheath | Grey Ø6.00mm |
| Electrical Characteristics | |
| Conductor DC Resistance | 83.6 [Ω/km] |
| Rated Temperature | 80°C |
| Rated Voltage | 600V |
| Insulation Resistance | >200 [MΩ/km] |
| Capacitance Core to Core | 98pF/mtr |
| Capacitance Core to Screen | 164pF/mtr |
| Colour Code | |
| Pair 1 | Black/Red |
| Pair 2 | Black/White |
| Pair 3 | Black/Green |
This cable provides a practical alternative to Belden 9503 for installations requiring a 3 pair screened signal cable with LSZH sheath and Eca fire classification.
