Description
This 24AWG 2 pair screened data cable is a Belden 9842 equivalent, designed for reliable signal transmission in industrial and building control systems. It features a low smoke zero halogen (LSZH) outer sheath with Euroclass Eca rating, making it suitable for installations where fire performance and reduced smoke emission are required.
Typically used for RS-485, Modbus, and other balanced data communication applications, this cable is well suited to BMS, HVAC controls, and general serial data networks in commercial and industrial environments.

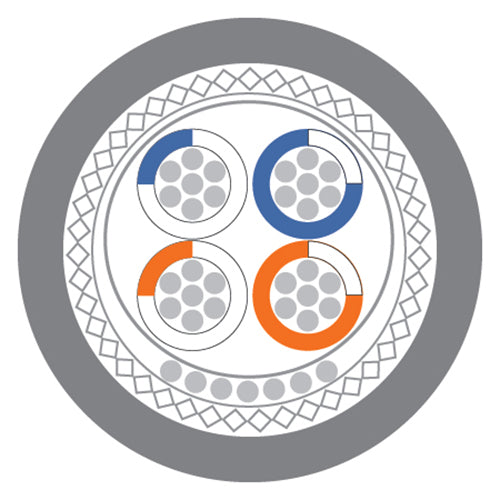

The cable construction combines both foil and braid screening to minimise interference and maintain signal integrity over longer runs.
Specification
| Physical Characteristics | |
| Conductor | Stranded Tinned Copper Wire |
| Size | 24AWG (7/0.20) |
| Number of Pairs | 2 Pairs |
| Insulation | PE (0.75mm) Ø 1.80mm |
| Screening 1 | Overall Aluminium Foil Screen [24AWG Drain Wire] |
| Screening 2 | Tinned Copper Wire Braid [91%] |
| Outer Sheath | Grey Ø7.50mm |
| Electrical Characteristics | |
| Conductor DC Resistance | 86.2 [Ω/km] |
| Rated Temperature | 80°C [PE 70°C] |
| Rated Voltage | 600V |
| Insulation Resistance | >200 [MΩ/km] |
| Nominal Capacitance | 42 pF/M |
| Capacitance Core To Core | 44-46pF/M |
| Capacitance Core To Screen | 84-87pF/M |
| Nominal Impedance | 120 [Ω/km] |
| Colour Code | |
| Pair 1 | White/Blue – Blue/White |
| Pair 2 | White/Orange – Orange/White |
Compatible with standard RS-485 and similar protocols requiring 120Ω impedance, this cable is a direct alternative to Belden 9842 for most installations. The dual screening (foil plus braid) provides improved protection against electromagnetic interference compared to foil-only cables, making it suitable for electrically noisy environments.
Downloads
| Datasheet | Download |
