Description
This 24AWG 2 pair screened cable (Belden 9502 equivalent) is designed for low voltage signal, control and instrumentation wiring where consistent performance and protection from electrical interference are required.
It is typically used in building management systems (BMS), control panels, audio and signal circuits, and general data transmission within commercial and industrial installations. The overall foil screen with drain wire helps reduce electromagnetic interference (EMI), making it suitable for use alongside power cabling or in electrically noisy environments.

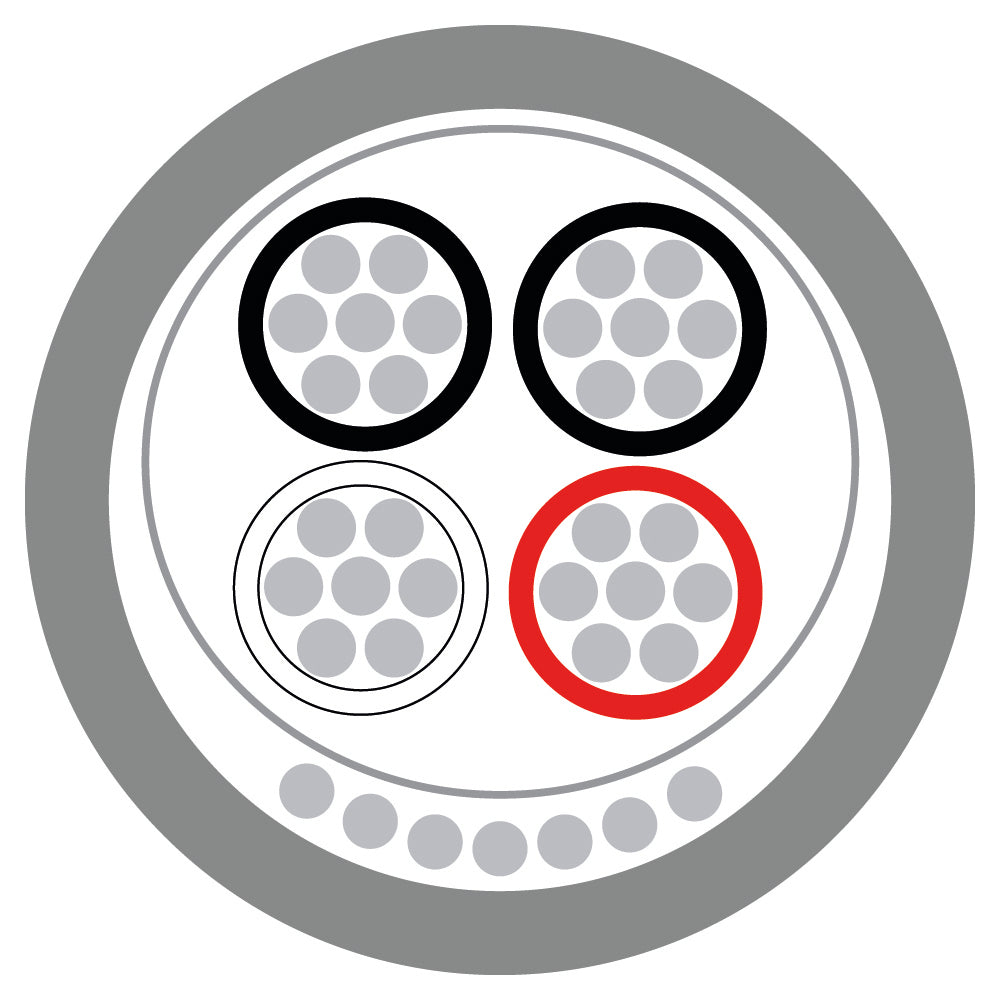

The cable uses stranded tinned copper conductors, allowing easier routing and termination compared to solid core, particularly within panels, trunking and containment. A PVC insulated core supports stable electrical characteristics, while the LSZH outer sheath is rated to CPR Euroclass Eca, making it suitable for use in buildings where reduced smoke and halogen emissions are required.
Specification
| Physical Characteristics | |
| Conductor | Stranded Tinned Copper Wire |
| Size | 24AWG (8/0.19) |
| Number of Pairs | 2 Pair |
| Insulation | PVC (0.32mm) Ø1.25mm |
| Screening | Overall Aluminium Foil Screen [24AWG Drain Wire] |
| Outer Sheath | Grey Ø5.60mm |
| Electrical Characteristics | |
| Conductor DC Resistance | 83.6[Ω/km] |
| Rated Temperature | -20 to 80°C |
| Rated Voltage | 600V |
| Insulation Resistance | >200 [MΩ/km] |
| Capacitance Core to Core | 98pF/mt |
| Capacitance Core to Screen | 164 pF/mtr |
| Colour Code | |
| Pair 1 | Black/Red |
| Pair 2 | Black/White |
Suitable for a wide range of low voltage control and signal applications where a Belden 9502 type cable is specified. Compatible with standard control and instrumentation systems used across commercial and industrial projects.
Downloads
| Datsheet | Download |
