Description

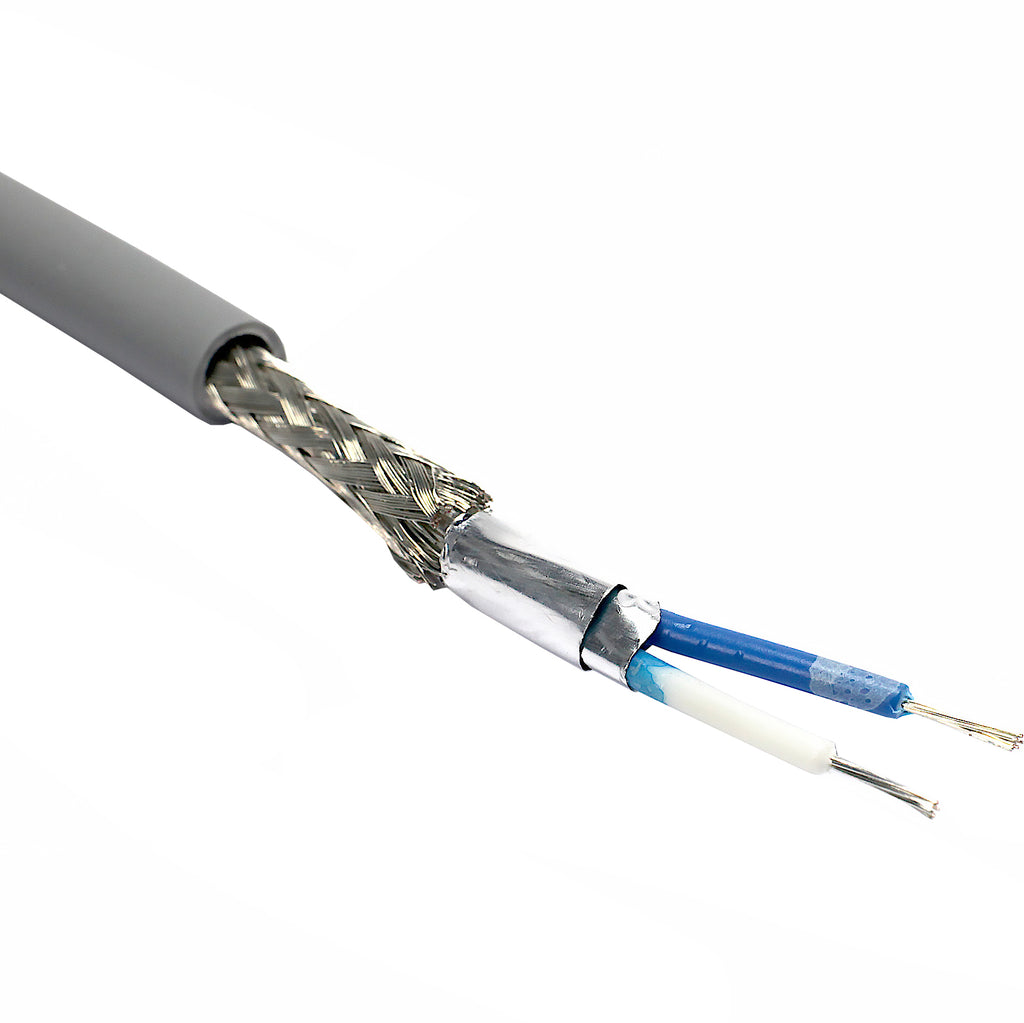

This 24AWG 1 pair cable is a Belden 9841 equivalent, designed for low-voltage data and serial communication applications where screened twisted pair cable is specified.
It is commonly used for RS-485 and RS-422 networks, building management systems (BMS), industrial control panels, and other balanced data transmission circuits. The construction supports stable signal performance in environments where electrical interference is present.
Note: this product is suitable for BS6701 installations.
Specification
| AWG Size | 24 |
| Overall Screening | Foil & 90% Braid Screen |
| Outer Sheath Material | LSZH |
| CPR Rating | Euroclass Cca-s1,d2,a1 |
| Equivalent To | Belden 9841LW, Trend TP/1/1/24/HF/305-600V, Honeywell NC2021, BTCL C1189 MODBUS Plus / DMX-512® |
Construction
- 24AWG stranded tinned copper conductors - corrosion resistant and easier to terminate
- Twisted pair configuration - supports balanced data transmission
- Overall foil screen with braid - enhanced protection against EMI and noise
- Drain wire - simplifies grounding and termination
- LSZH outer sheath - suitable for indoor installations requiring low smoke, zero halogen materials
- CPR rated Euroclass Cca-s1,d2,a1 - compliant for use in public and commercial buildings where this classification is specified
Typical Applications
- RS-485 / RS-422 communication networks
- Modbus and other fieldbus systems
- Access control and security systems
- HVAC and BMS controls
- Industrial automation and process control
As a Type 9841 Belden equivalent, this cable is suitable for projects specifying that standard, subject to confirmation of conductor size, screening type and CPR requirements. Designed for fixed internal wiring where 24AWG screened twisted pair data cable is required.
Downloads
| Datasheet | Download |
