Description

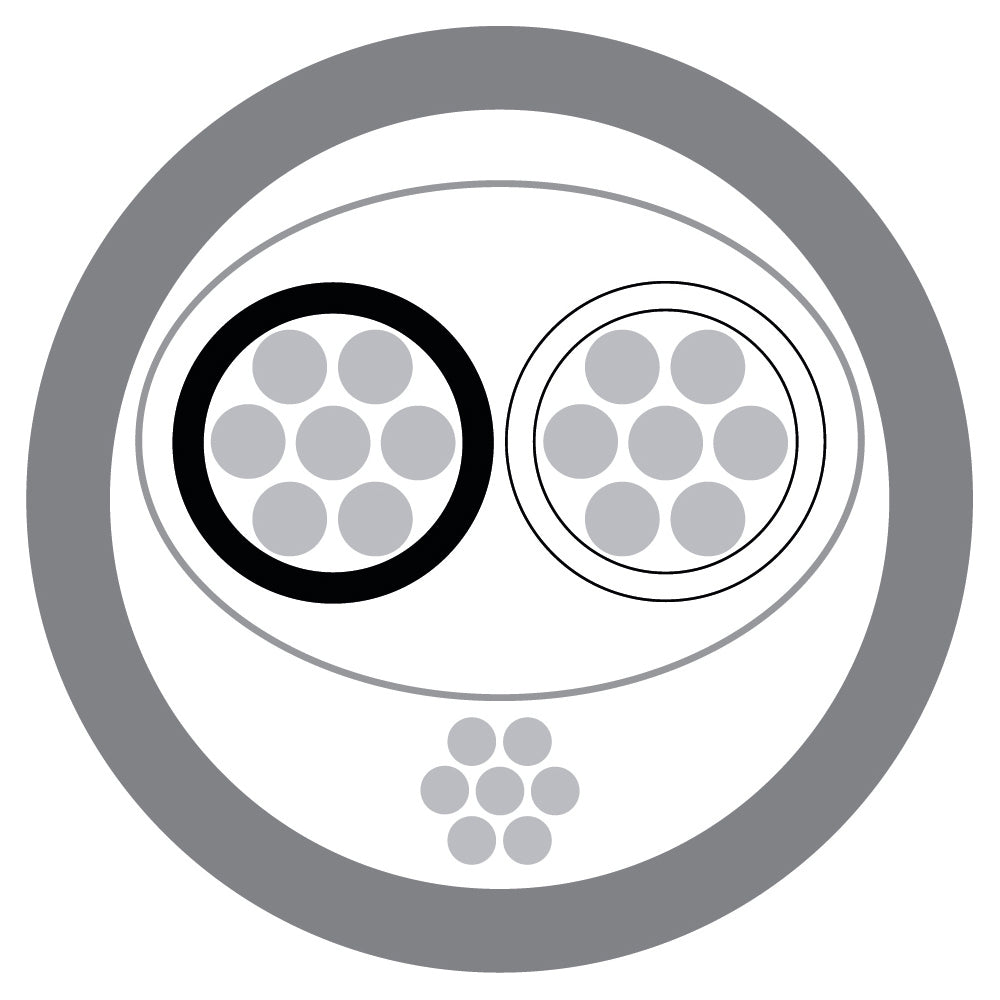

This 22AWG 1 pair cable is a Belden 8761 equivalent, designed for low voltage signal and control applications. It features a stranded tinned copper conductor with an overall foil screen, making it suitable for installations where protection against electrical interference is required.
The cable is commonly used in building management systems, audio control, instrumentation, and general data or signal transmission within commercial and industrial environments. The LSZH (Low Smoke Zero Halogen) outer sheath is rated to Euroclass Eca, making it suitable for use in public buildings where reduced smoke and toxic emissions are important in the event of fire.
The overall aluminium foil screen with drain wire helps minimise EMI and ensures stable signal integrity, particularly in environments with nearby power cabling or equipment.
Specification
| Physical Characteristics | |
| Conductor | Stranded Tinned Copper Wire |
| Size | 22AWG |
| Number of Pairs | 1 Pairs |
| Insulation | PE |
| Screening | Overall Aluminium Foil Screen [Drain Wire] |
| Outer Sheath | Grey Ø3.80mm |
| Electrical Characteristics | |
| Conductor DC Resistance | 54.1 [Ω/km] |
| Rated Temperature | 80°C |
| Rated Voltage | 600V |
| Insulation Resistance | >200 [MΩ/km] |
| Nominal Impedance | 64 [Ω/km] |
| Colour Code | |
| Pair 1 | Black/Clear |
This cable is compatible with typical Belden 8761 applications and can be used as a direct alternative where equivalent specifications are required. Suitable for fixed internal installations where a screened, low voltage control cable is specified.
Downloads
| Datasheet | Download |
