Description
This 20AWG 1 pair Belden 8762 equivalent cable is a screened low voltage cable designed for signal and control applications where noise protection and consistent performance are required.
It is typically used in building management systems, control panels, instrumentation, audio, and general low voltage signal transmission. The overall foil screen with drain wire helps minimise interference from external electrical sources, making it suitable for installations alongside other cabling.

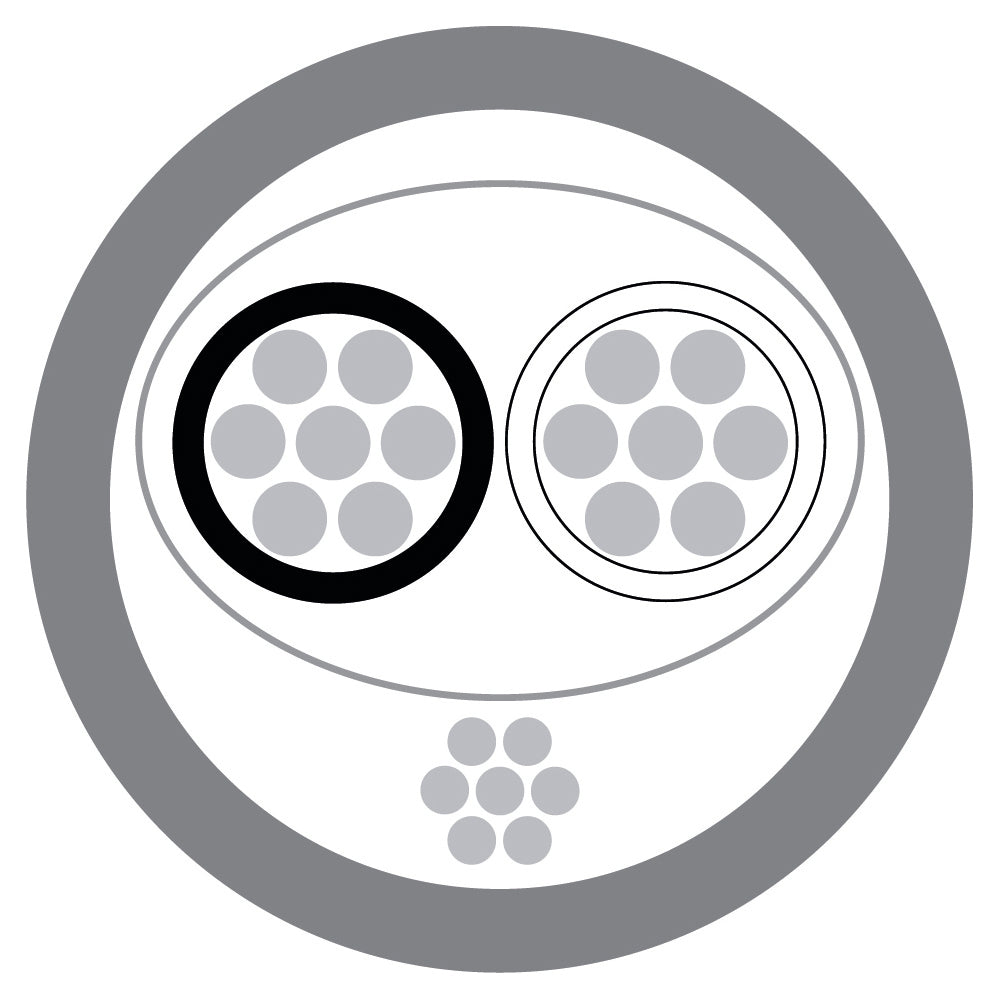

The cable is constructed with stranded tinned copper conductors, providing flexibility for installation and improved resistance to corrosion over time. A PE insulation layer supports stable electrical performance, while the LSZH outer sheath meets Euroclass Eca requirements, making it suitable for use in environments where reduced smoke and low toxicity are important.
Specification
| Physical Characteristics | |
| Conductor | Stranded Tinned Copper Wire |
| Size | 20AWG |
| Number of Pairs | 1 Pair |
| Insulation | PE |
| Screening | Overall Aluminium Foil Screen [Drain Wire] |
| Outer Sheath | Grey Ø4.80mm |
| Electrical Characteristics | |
| Conductor DC Resistance | 37.6 [Ω/km] |
| Rated Temperature | 80°C |
| Rated Voltage | 600V |
| Insulation Resistance | >200 [MΩ/km] |
| Nominal Impedance | 56Ω |
| Colour Code | |
| Pair 1 | Black/Clear |
This cable is compatible with a wide range of low voltage and control system applications where a screened 1 pair cable is specified. Suitable for indoor use in commercial and industrial environments in line with LSZH installation requirements.
