Description

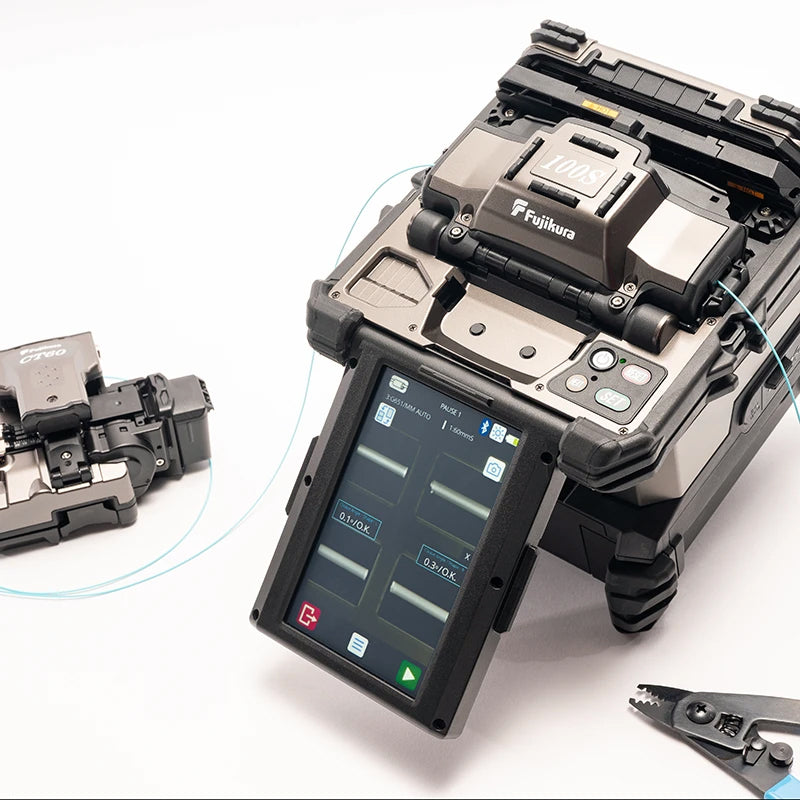

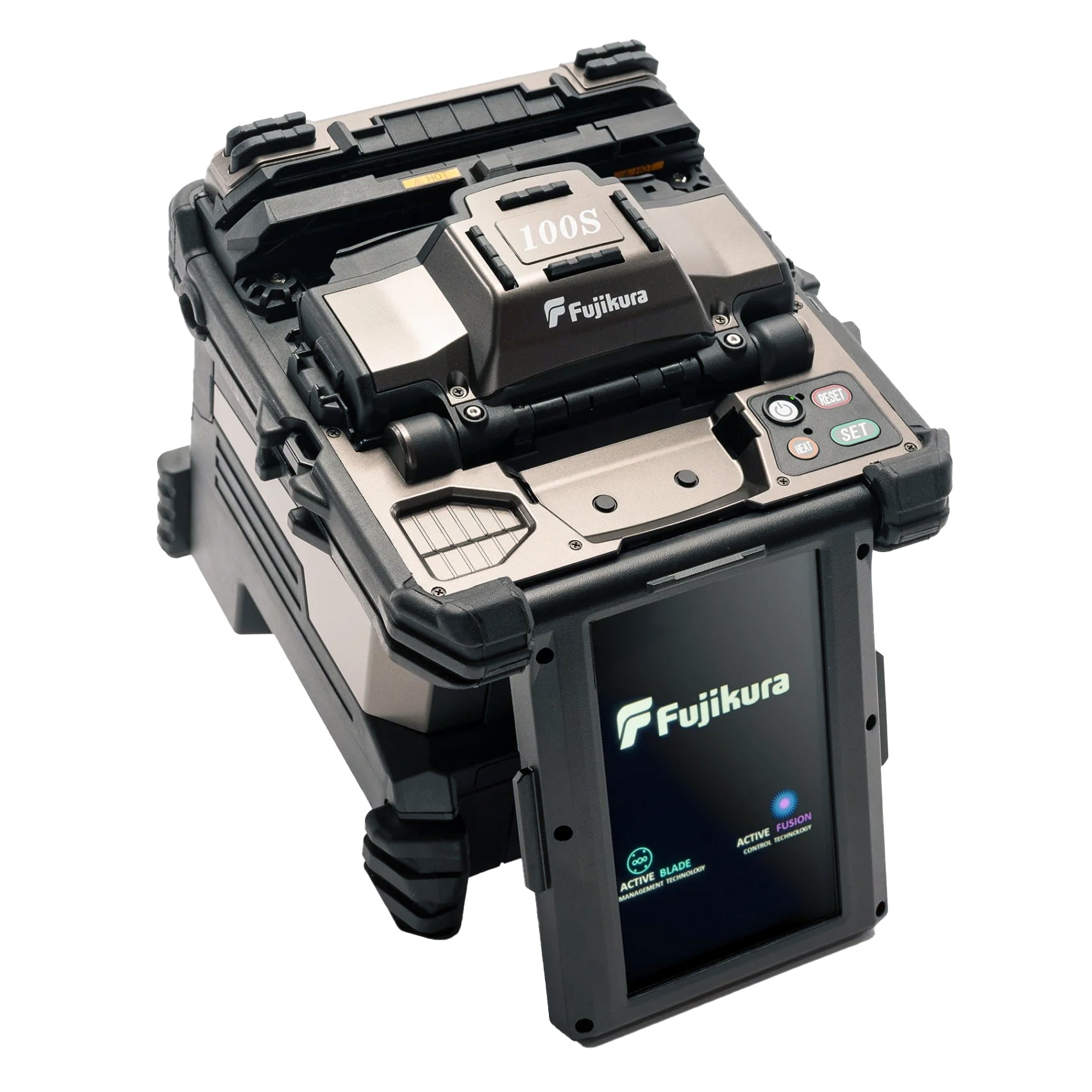

This 100S fusion splicer kit from Fujikura consists of the fusion splicer itself, which is used to splice multiple lengths of fibre optic cable, as well as a carrying case/tray and a separable work tray with space for the cleaver, stripper and battery packs.
This product features simultaneous fibre preparation via a unique dual preparation system. The SS05 strippers make it possible to strip two fibres at once. The fibres can be cleaved together with a single press of the CT60 cleaver. They can then be set in the splicer at the same time due to the 100S's simple and intuitive fibre clamp mechanisms.
The splicer also boasts 'Active Fusion Control Technology' which involves:
- Analysing the condition of both cleave end faces performing optimal fusion control, improving splice loss significantly.
- Analysing the fibre's brightness intensity during fusion, minimising effects from environmental changes.
- Automatically applying the optimum splice parameters depending on fibre type.
It also features 'Active Blade Management Technology' which means that the cleaver blade is automatically rotated when the splicer judges that the blade is worn (two cleavers can be connected at the same time). As well as this, the 100S displays the remaining blade life and informs the user when any changes have been made to height, position etc.
Other features of the 100S include:
- Simultaneous fibre preparation.

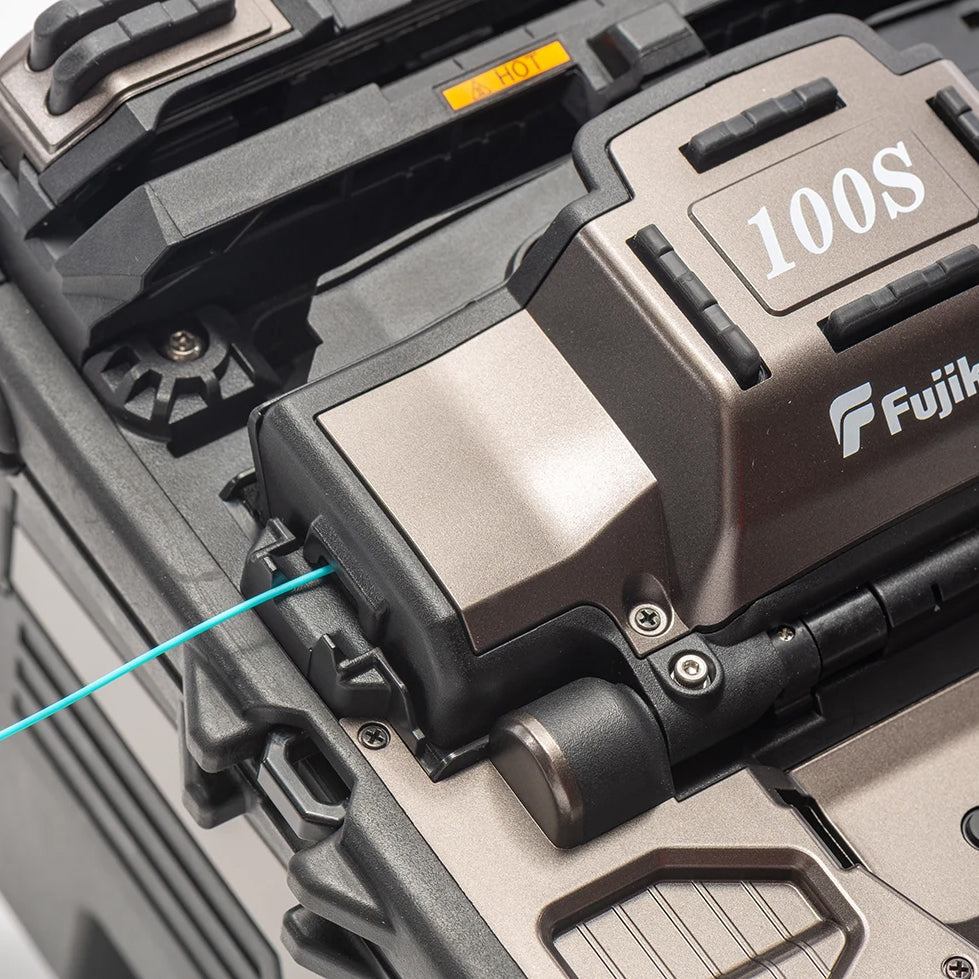

- Customisable automatic open-close wind protectors.
- New fibre placement guides
- Operation time reduction through easy centering and automatic heater clamp.
- Automated customisable fibre retention clamp.
- Loose tube compatibility.

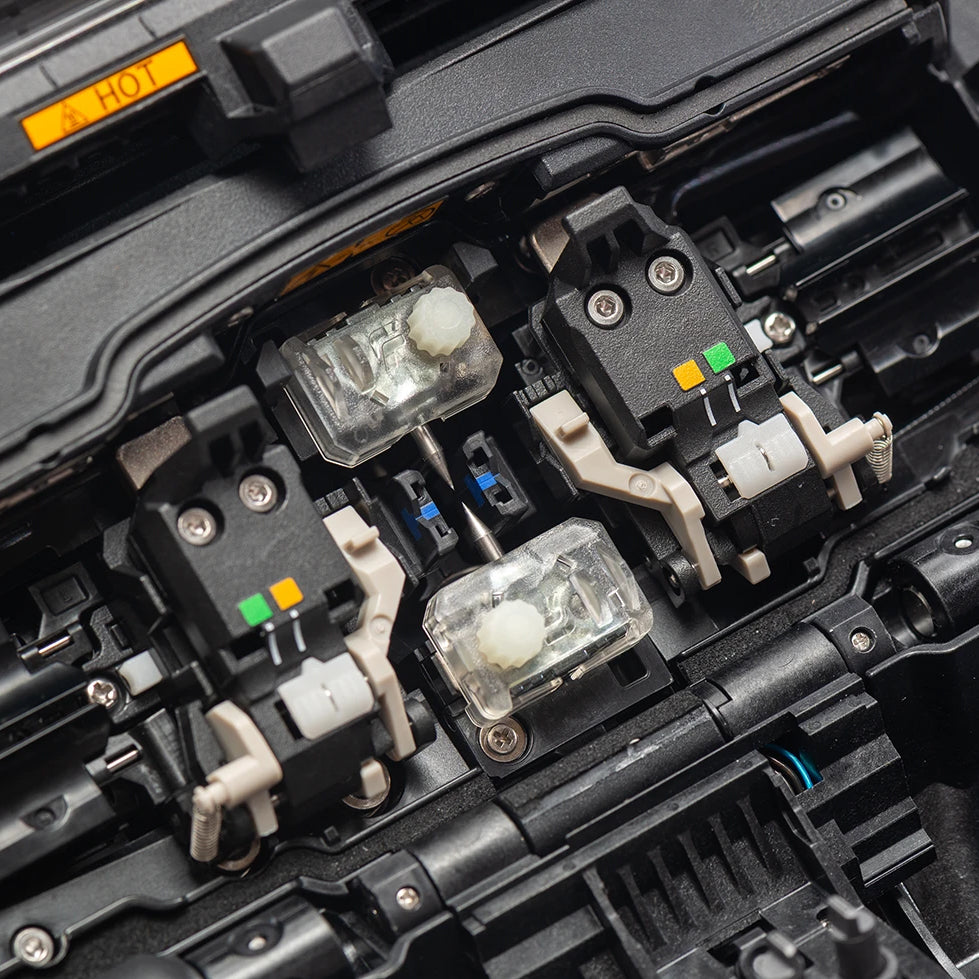

- Tool-less electrodes and illumination.
- Impact protection from rugged rubber bumpers.
- New splice coach step-by-step guided assistance.
- Built-in GPS.
Kit Includes
| 100S Core Alignment Fusion Splicer | Battery Pack |
| AC Adapter | AC Power Cord |
| USB Cable | Fusion Splicer Strap |
| Electrodes (Spare) | Fibre Holder Set Plate |
| Carrying Case | Work Tray Left |
| Work Tray Right | Work Tray J-Plate |
| Tripod Screw | Carrying Case Strap |
| Alcohol Dispenser | Instruction Manual |
| Single Fibre Stripper (SS05) | Optical Fibre Cleaver (CT60) |
| Fibre Scrap Collector | Fibre Setting Plate |
| Case For Cleaver | Hexagonal Wrench |
100S Specifications

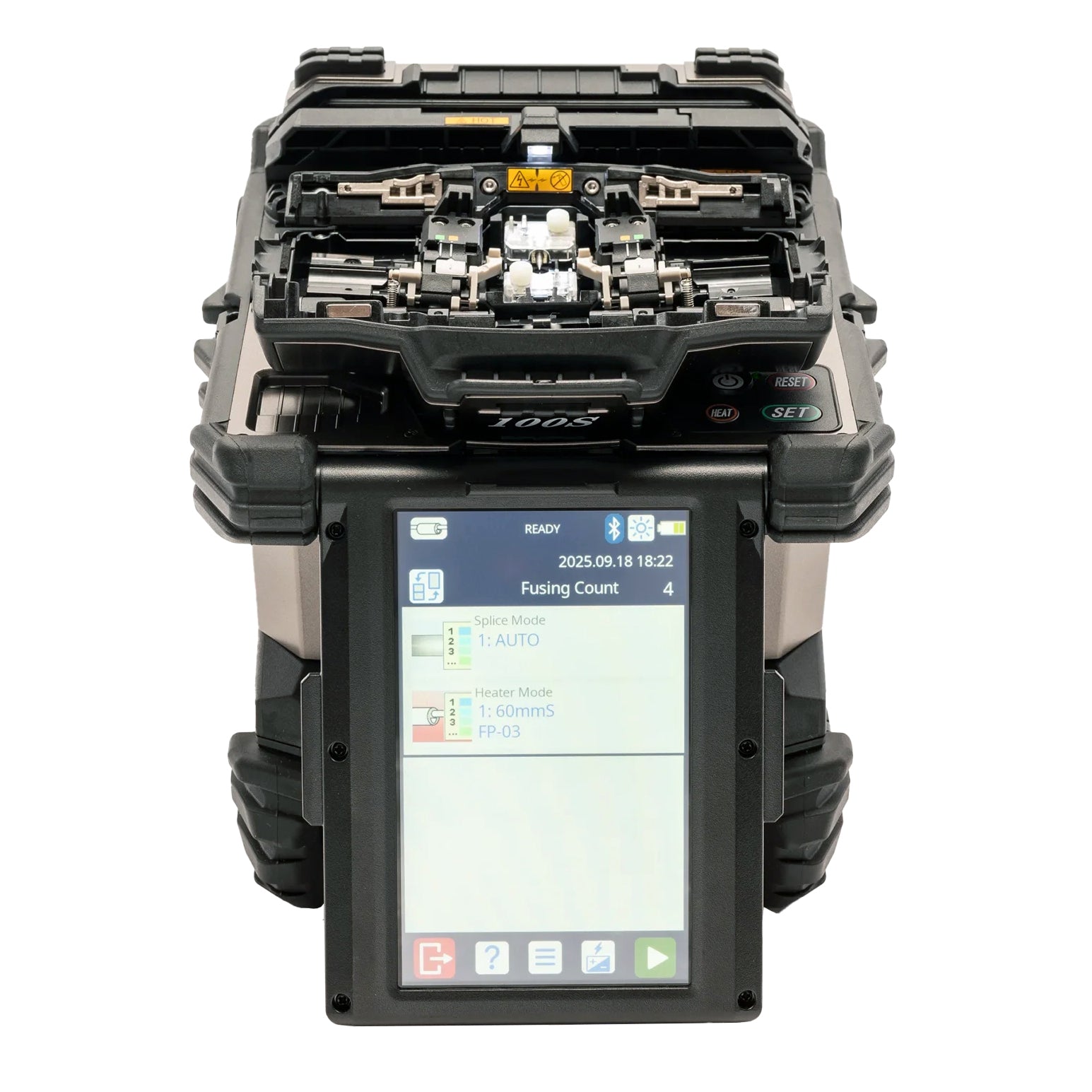

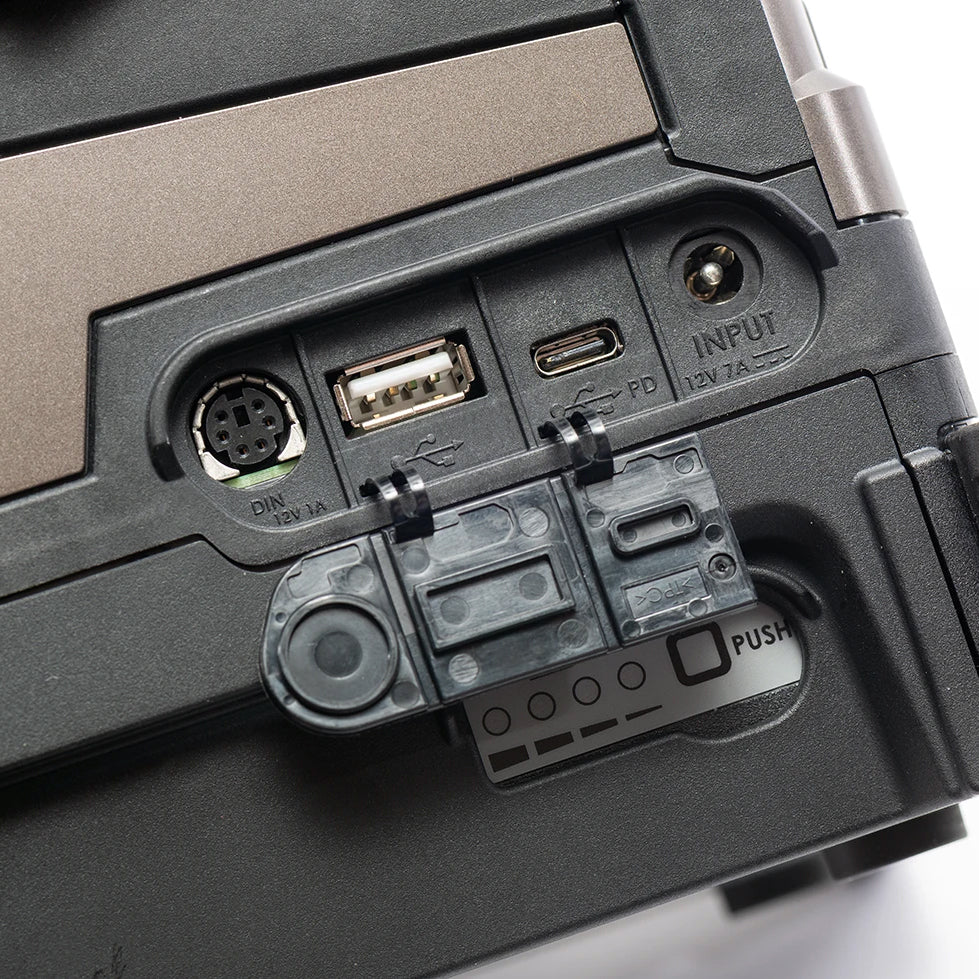

| Fibre Alignment Method | Active Core Alignment |
| Fibre Count Can Be Spliced | Single Fibre |
| Fibre Type | Singlemode, Multimode |
| Cladding Diameter | 80 to 150μm |
| Sheath Clamp Coating Diameter | Max. 3000μm |
| Sheath Clamp Cleave Length | 5 to 16mm (Depending on Type) |
| Splice Loss | ITU-T G.652 : Avg. 0.02dB ITU-T G.651 : Avg. 0.01dB ITU-T G.653 : Avg. 0.04dB ITU-T G.654 : Avg. 0.04dB ITU-T G.655 : Avg. 0.04dB ITU-T G.657 : Avg. 0.02dB |
| Splice Time | SM FAST mode: Avg. 7 to 9sec. AUTO mode: Avg. 14 to 16sec. |
| Sleeve Type | Heat shrinkable sleeve |
| Sleeve Length | Max. 66mm |
| Sleeve Diameter | Max 6.0mm before shrinking |
| Sleeve Heat Time | 60mm slim mode: Avg. 5 to 10sec. 60mm mode: Avg. 8 to 15sec. |
| Fibre Tensile Test Force | Approx. 2.0N |
| Electrode Life | Approx. 6000 splices |
| Dimensions (WxDxH) | Approx. 157mm x 178mm x 171mm |
| Weight | Approx. 2.7kg including battery |
| Operating Temperature | -10 to 50C |
| Storage Temperature | -40 to 80C |
| Max Altitude | 5000m |
| AC Adaptor | AC100 to 240V, 50/60Hz, Max. 1.5A |
| Battery Type | Rechargeable Lithium Ion |
| Battery Output | Approx. DC14.4V, 6380mAh |
| Battery Capacity | Approx. 300 splice and heat cycles |
| Battery Temperature | Recharge: 0 to 40C Storage: -20 to 20C |
| Battery Life | Approx. 500 recharge cycles |
| LCD Monitor | TFT 4.95" With Touch Screen |
| Display Magnification | Approx. 320x |
| Illumination | LED lamp |
| PC Interface | USB2.0 Type C |
| External LED Lamp | USB2.0 A Type Approx. DC5V, 500mA |
| Ribbon Stripper | Mini DIN 6pin DC12V, Max. 1A |
| Wireless Interface | Bluetooth 5.2 LE |
| Splice Mode Storage | 100 Modes |
| Heat Mode Storage | 30 Modes |
| Splice Result Storage | 20000 Splices |
| Splice Image Storage | 100 Images |
| Screw Hole For Tripod | 1/4-20UNC |
| Automatic Functions | Splice mode select by fibre type analysis Fusion Control Fully automated cleaver blade management Wind Protector: Open and Close Sheath Clamp: Open Heater Lid: Open Close Heater Clamp: Open and Close |
| Sheath Clamp | Easy Sleeve Positioning Clamp Close With Fibre Setting Guide for Fibre Setting |
| Electrode | Replaceable Without Tool |
| GPS | Records Location of Splice In Splicer |
