Description

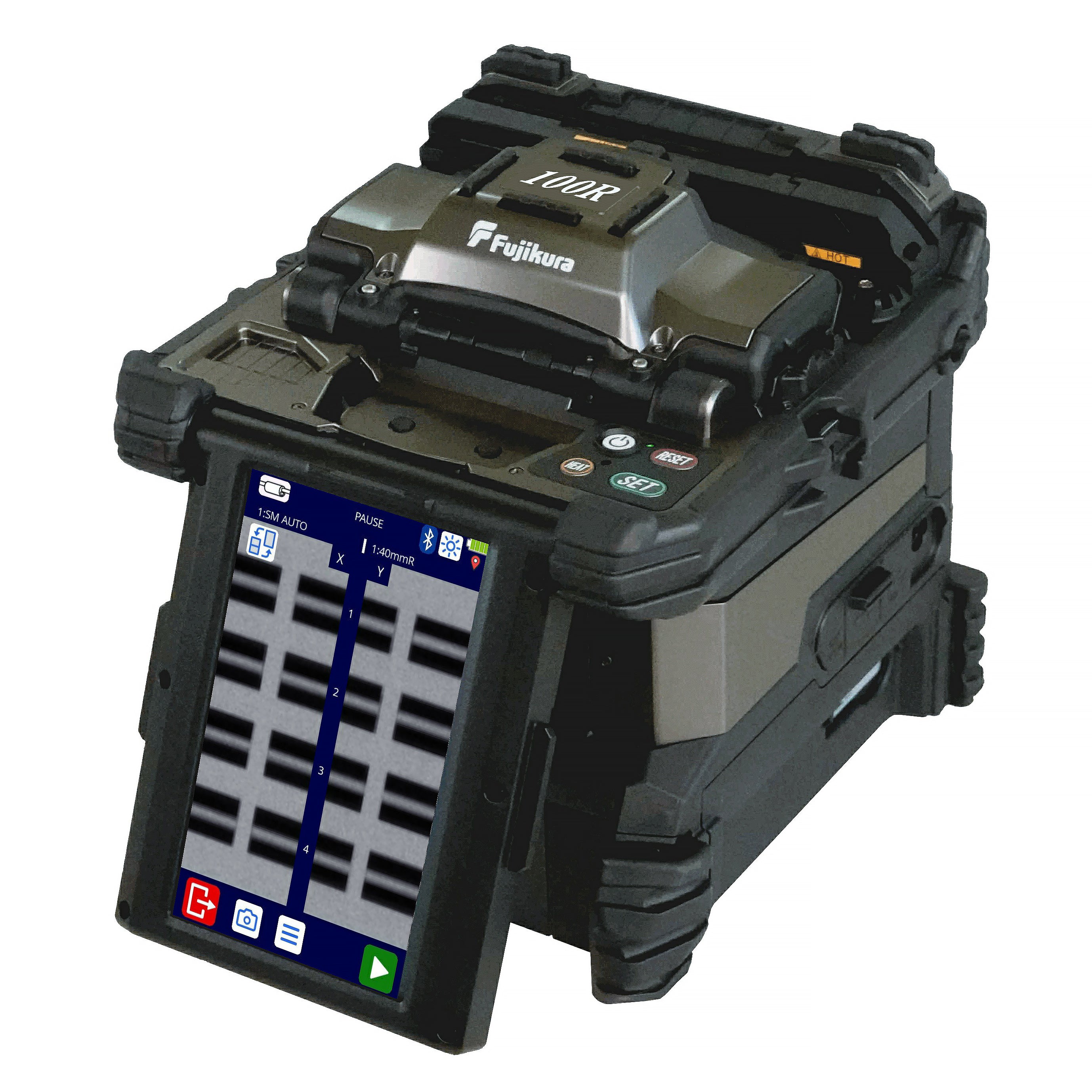

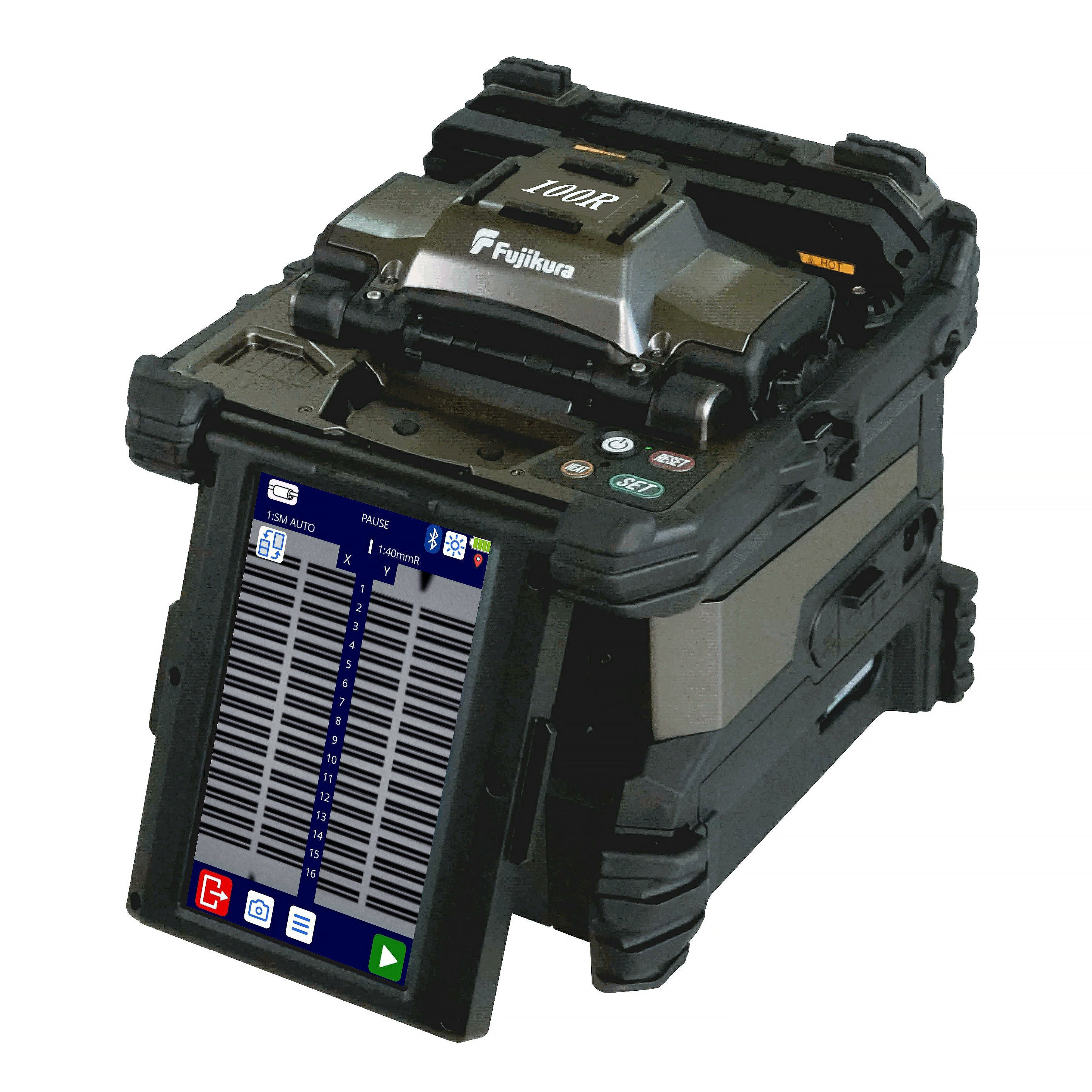

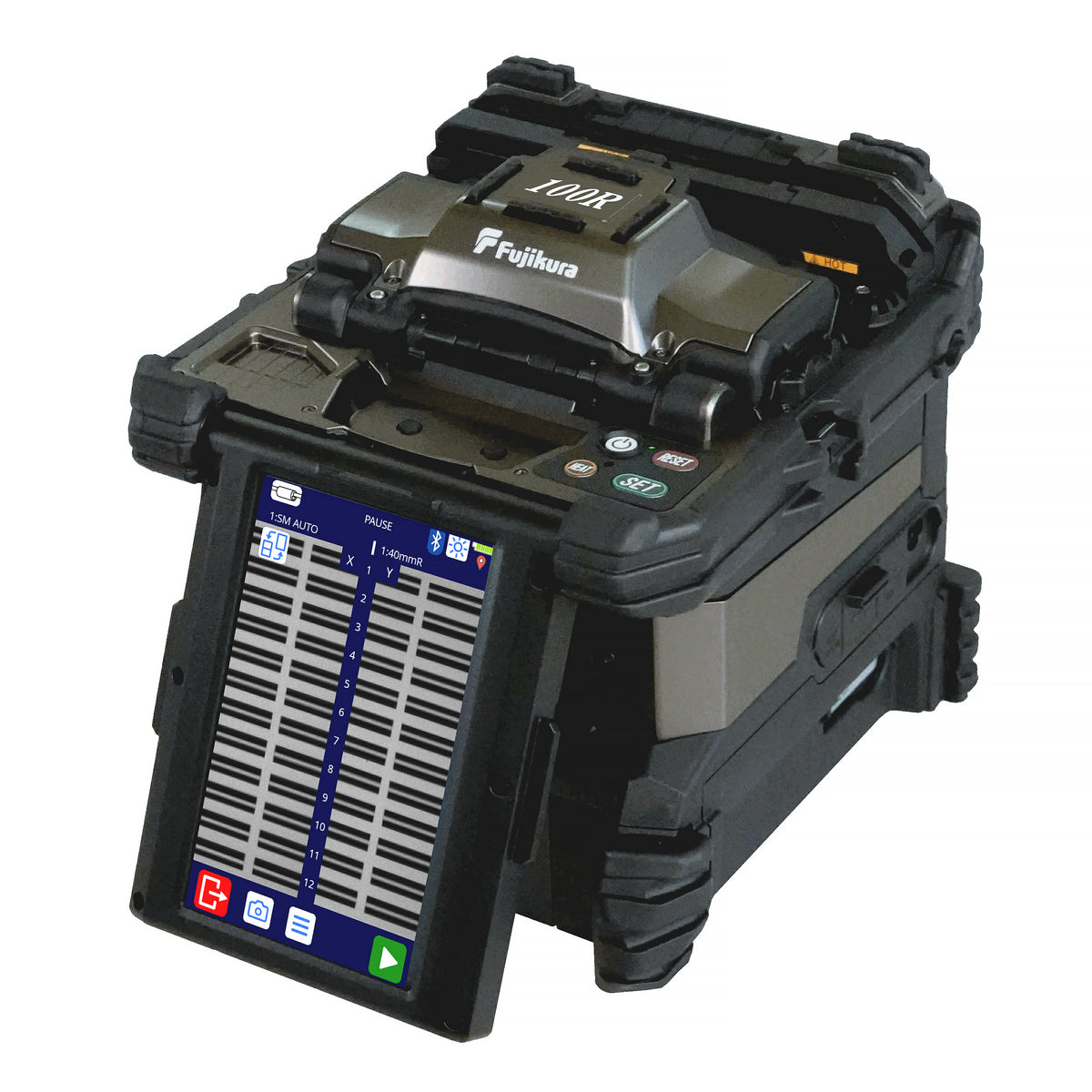

The Fujikura 100R is a high-performance ribbon fusion splicer designed for data centres, hyperscale infrastructure, metro networks, campus backbones and other high-fibre-count installations. It can splice single fibres or ribbon fibre, supporting up to 16 fibres when fitted with the appropriate optional V-groove and fibre holders.
Fujikura’s Intelligent Alignment Control automatically corrects common fibre preparation and positioning issues before fusion. Auto Placement Correction checks that fibres are seated correctly in the V-groove, Gap Alignment Correction reduces variation between fibre end faces, and Axis Offset Correction improves alignment across the complete ribbon. This helps produce more consistent mass-fusion splices while reducing manual adjustment and operator intervention.
The 100R uses self-cladding alignment with surface melting tension and provides typical splice losses from 0.02 dB for multimode fibre and 0.05 dB for G.652 singlemode fibre. Automatic operation covers fibre analysis, splice-mode selection, wind protector movement, clamping, fusion and heater operation.

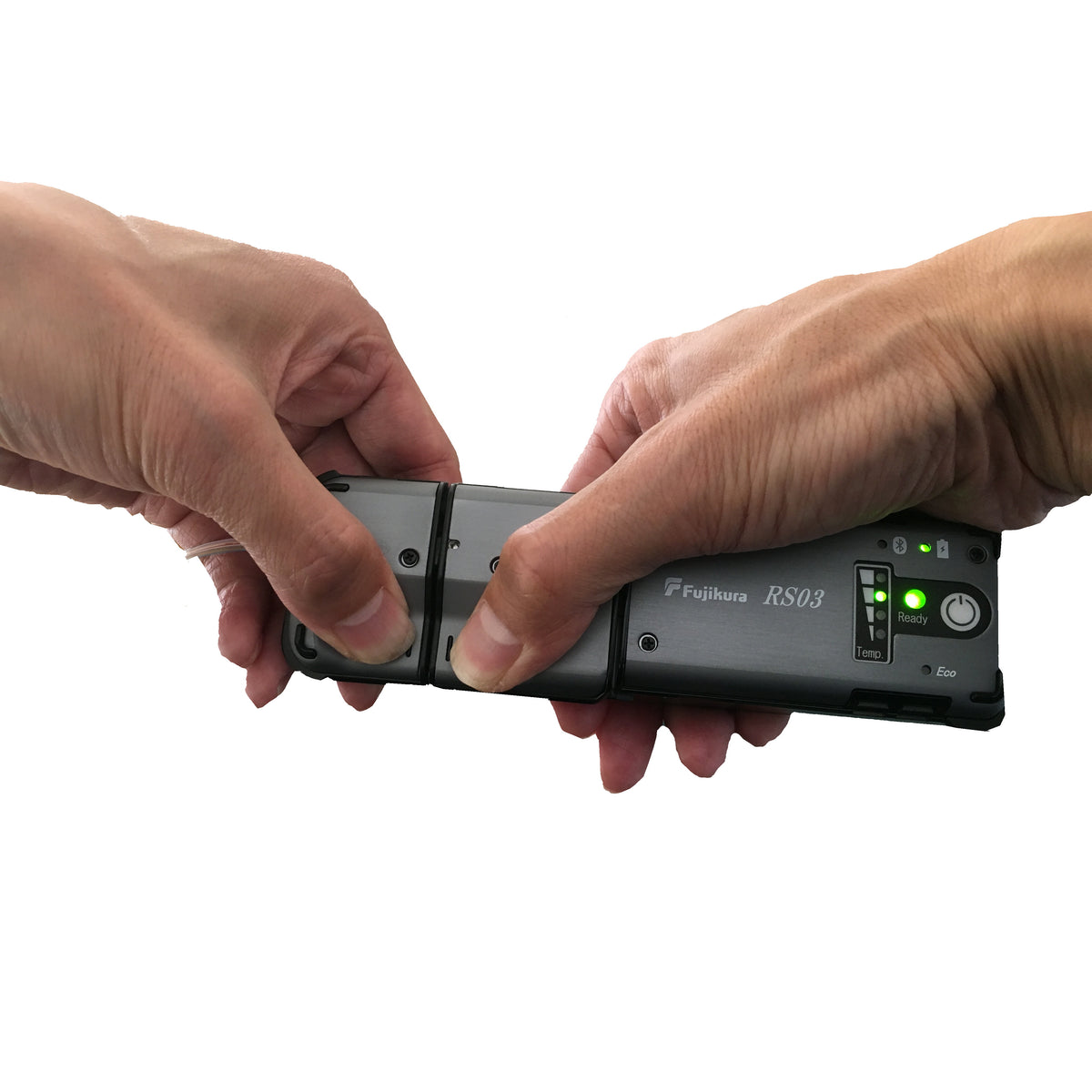

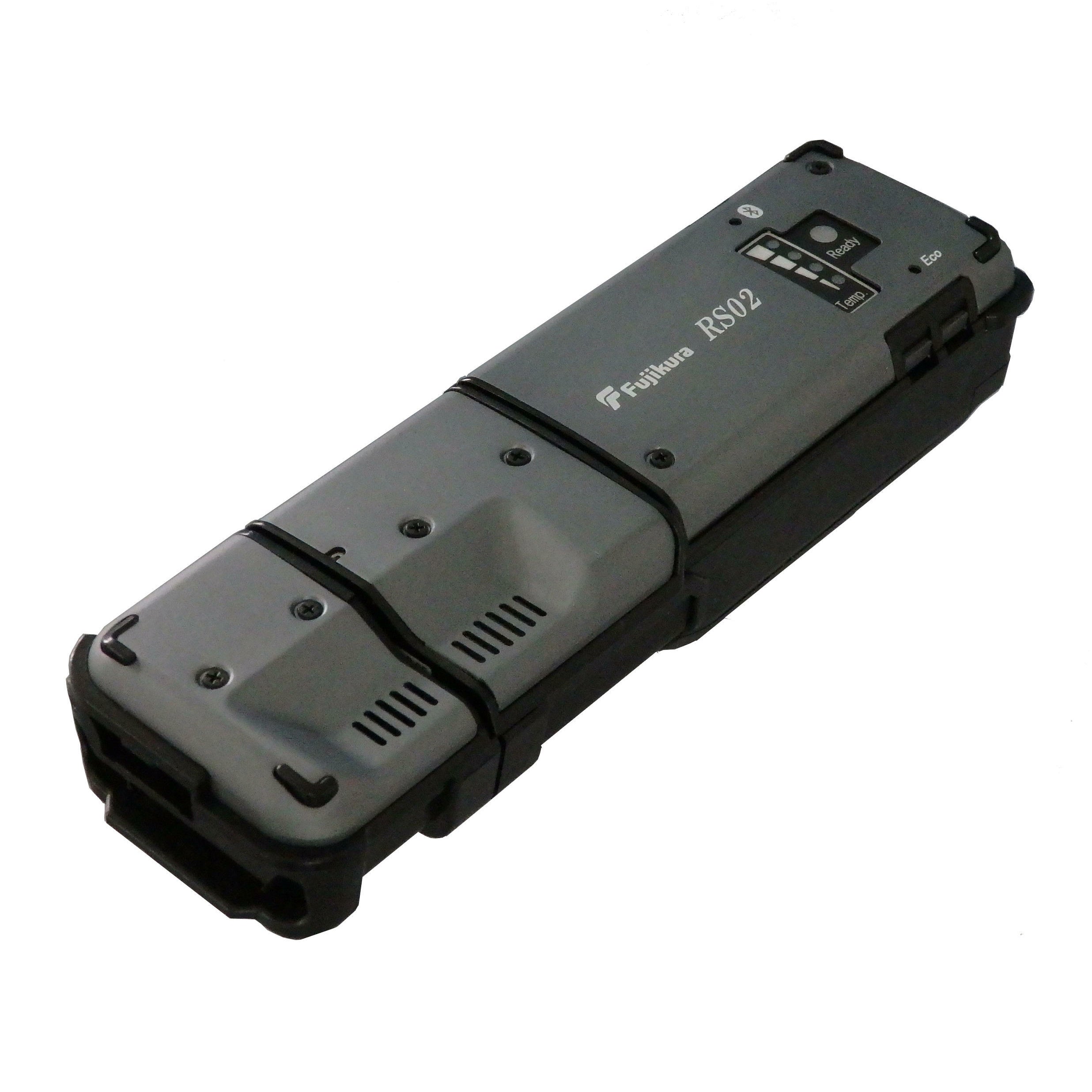

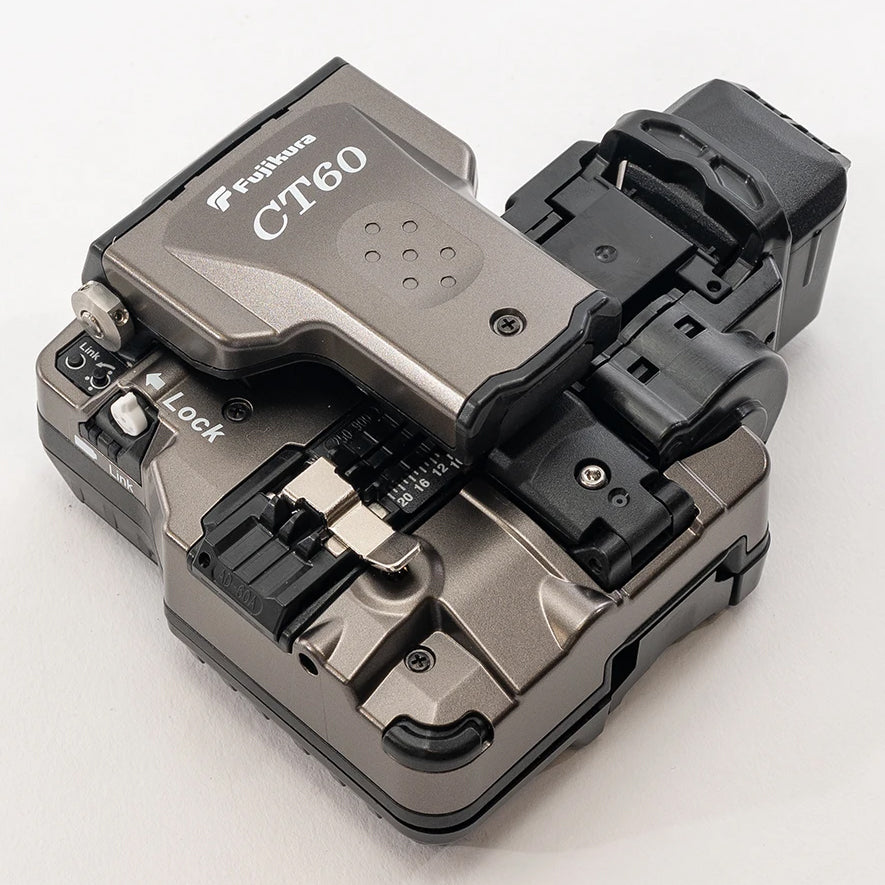

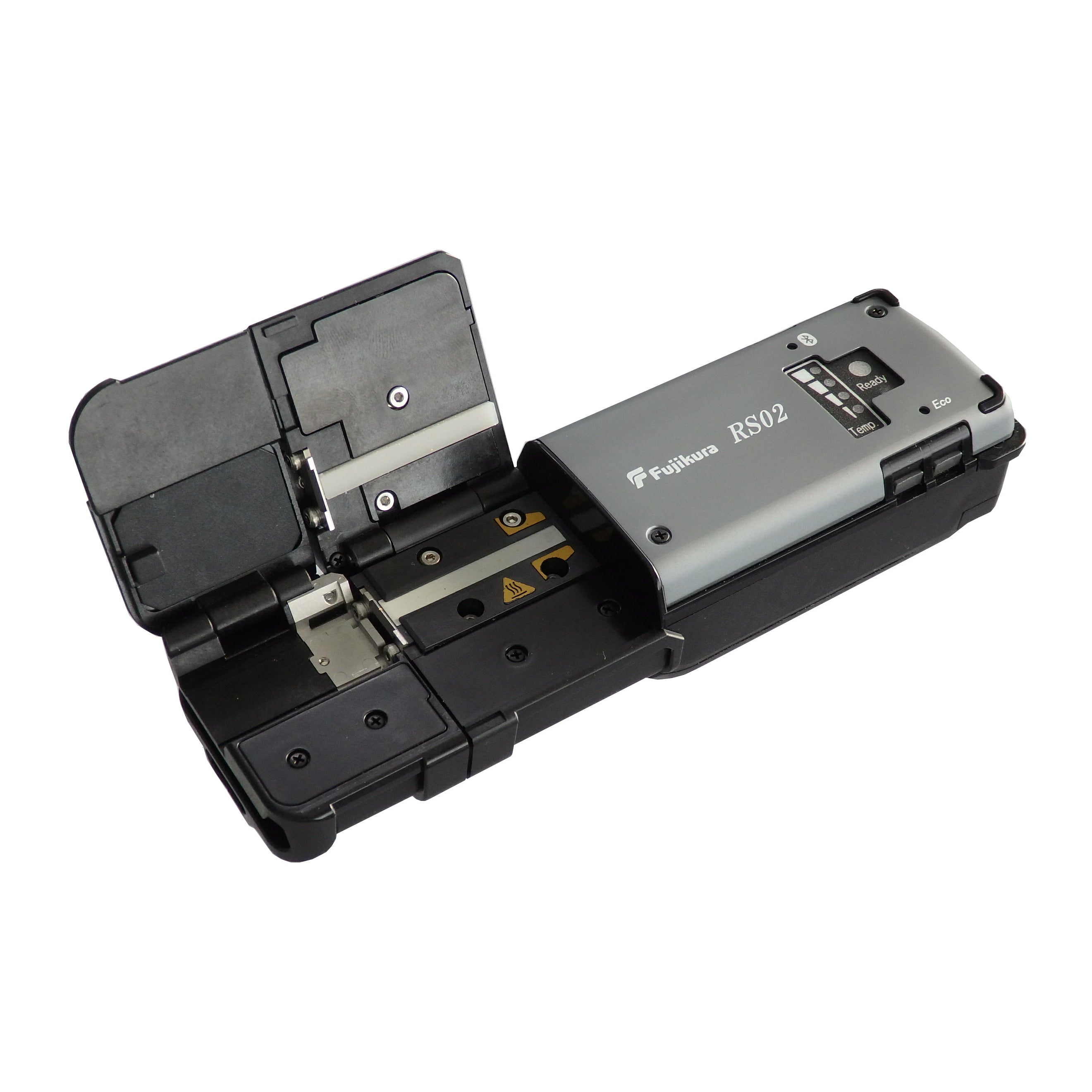

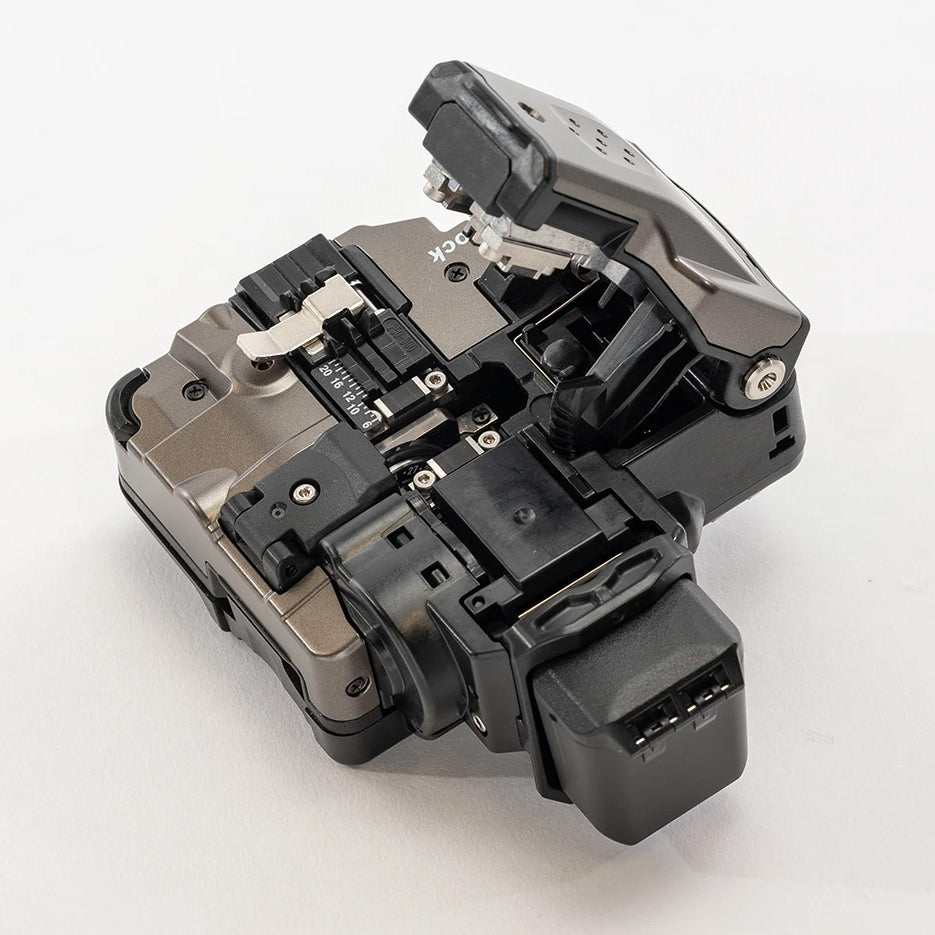

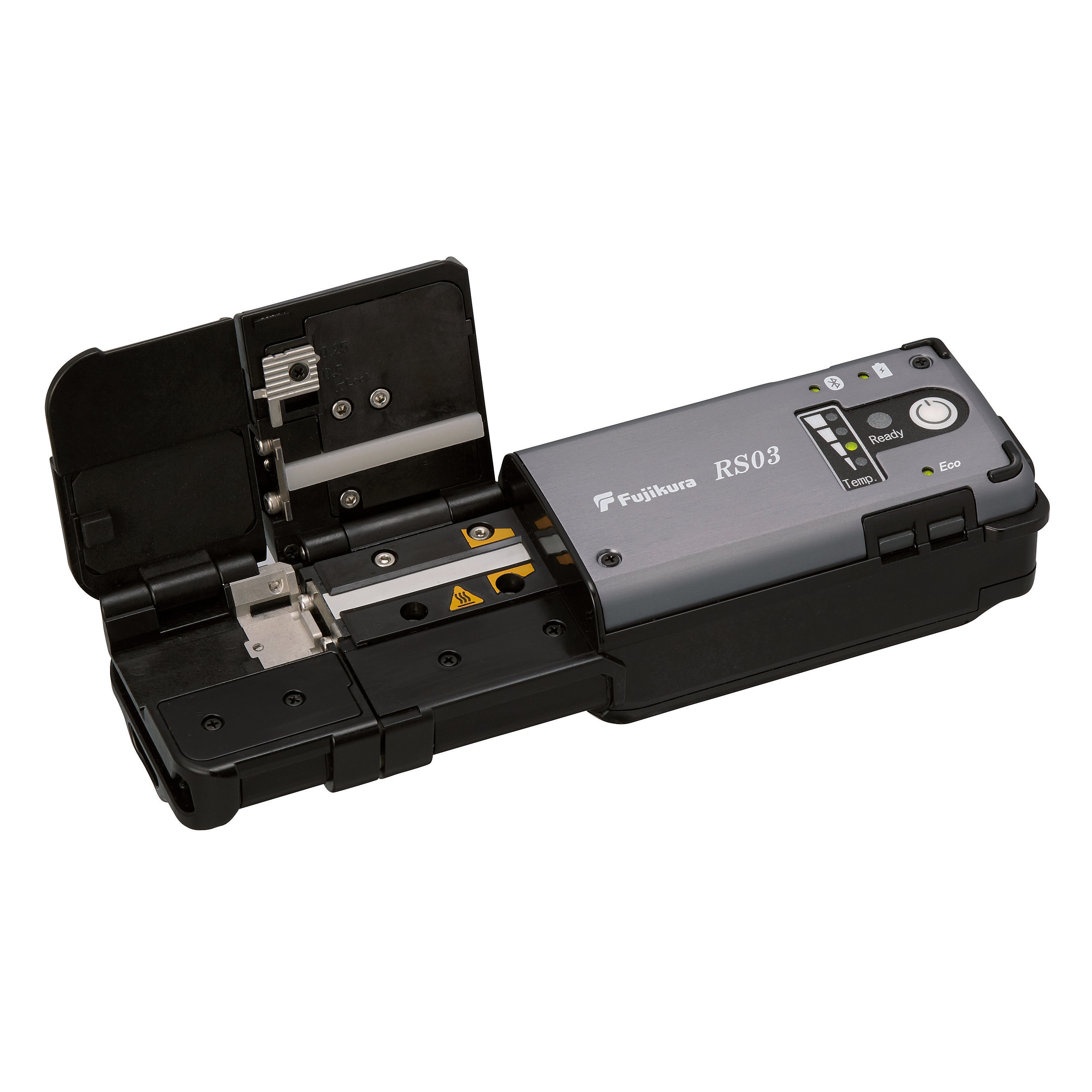

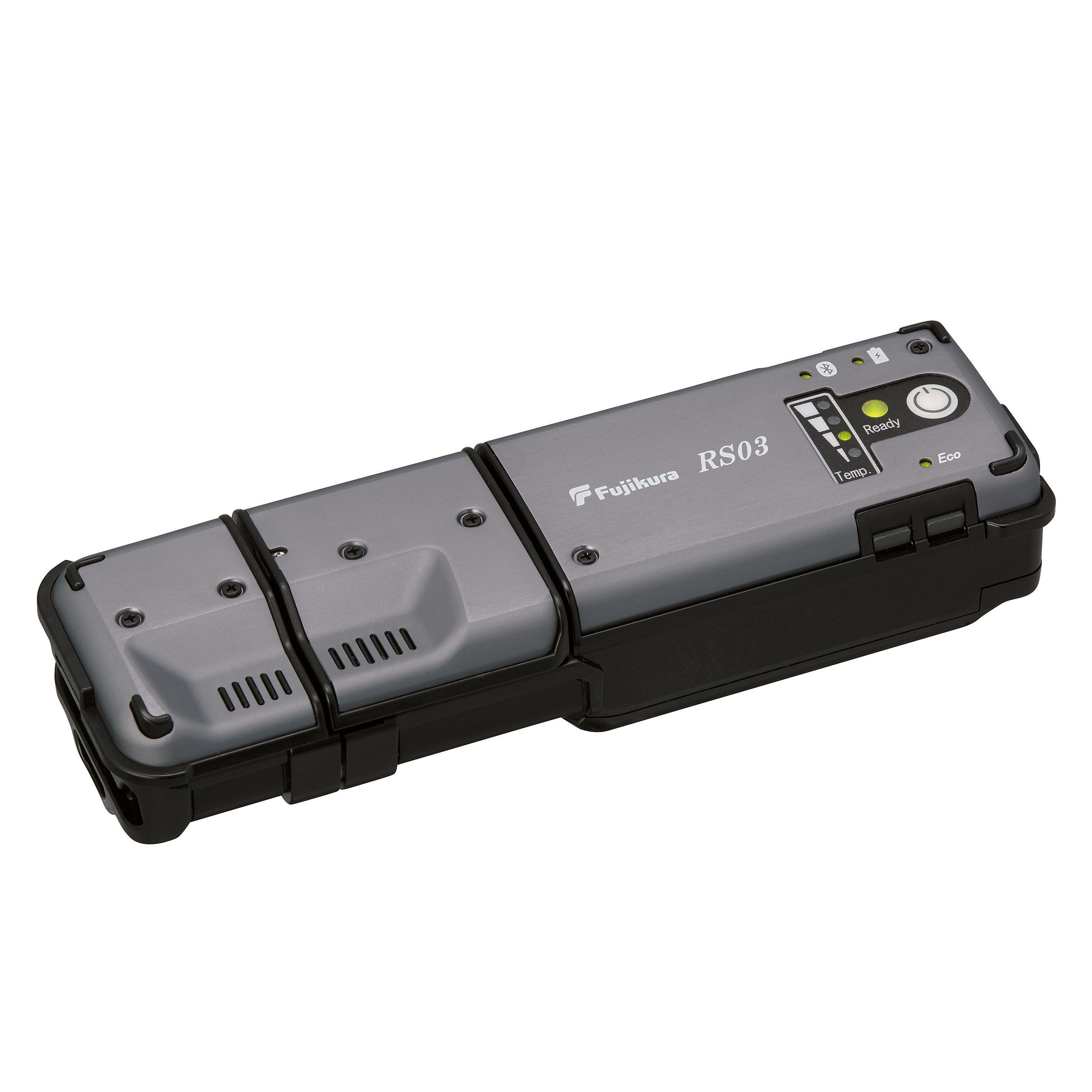

This standard kit includes the Fujikura CT60 fibre cleaver and RS03 thermal ribbon stripper, providing the core equipment required for professional ribbon fibre preparation and splicing.
Key Features
- Splices single fibre and ribbon fibre
- Supports up to 16-fibre ribbon with suitable optional accessories

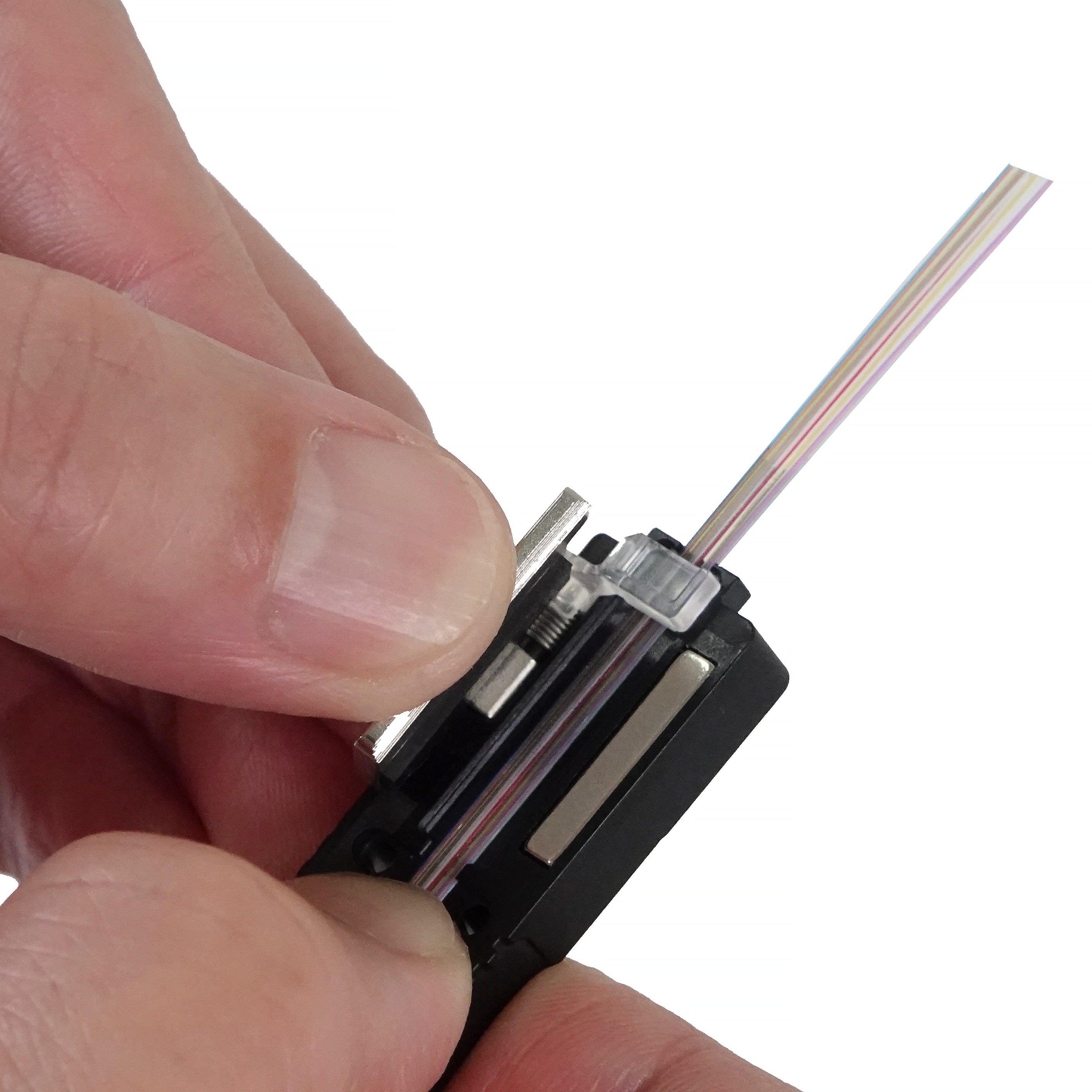

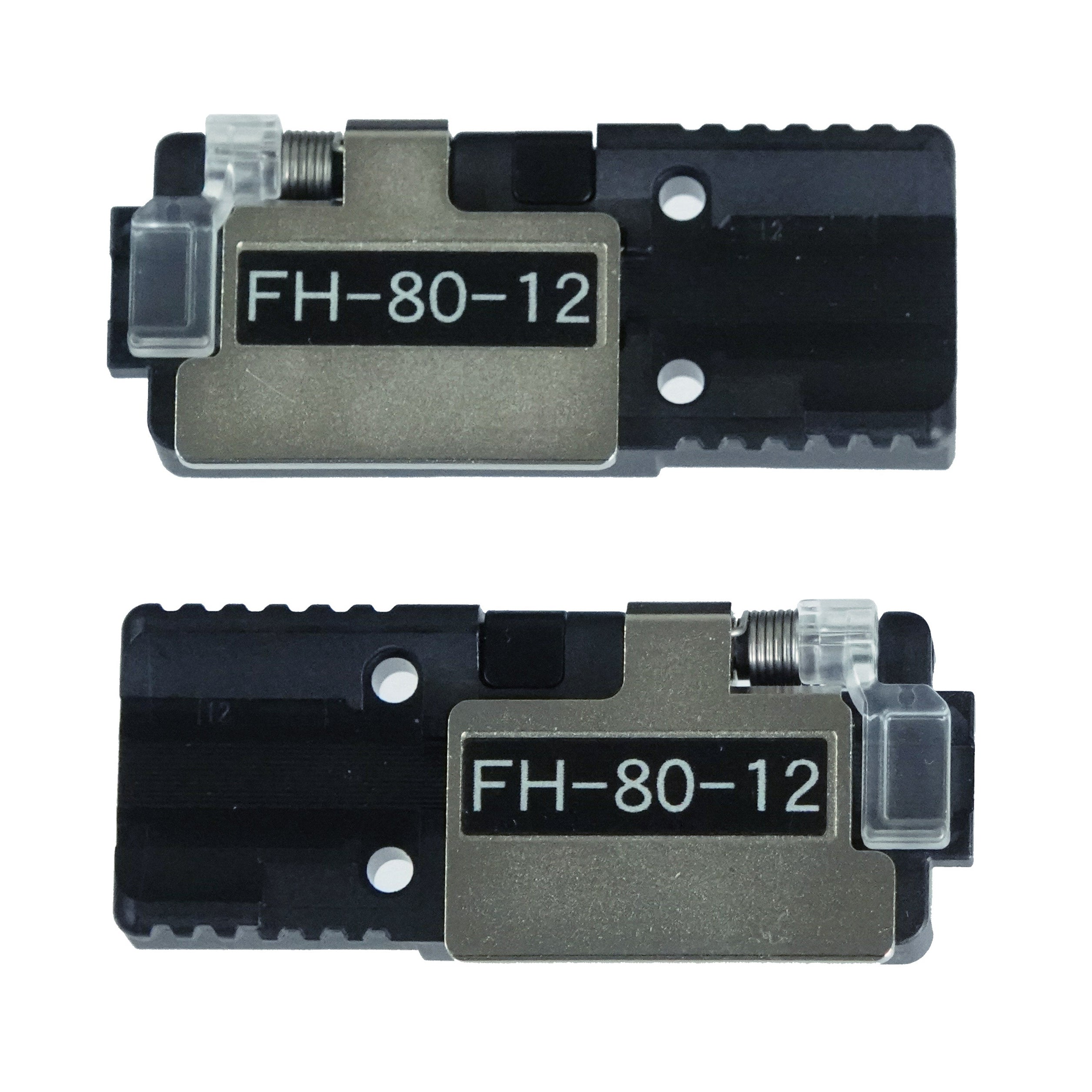

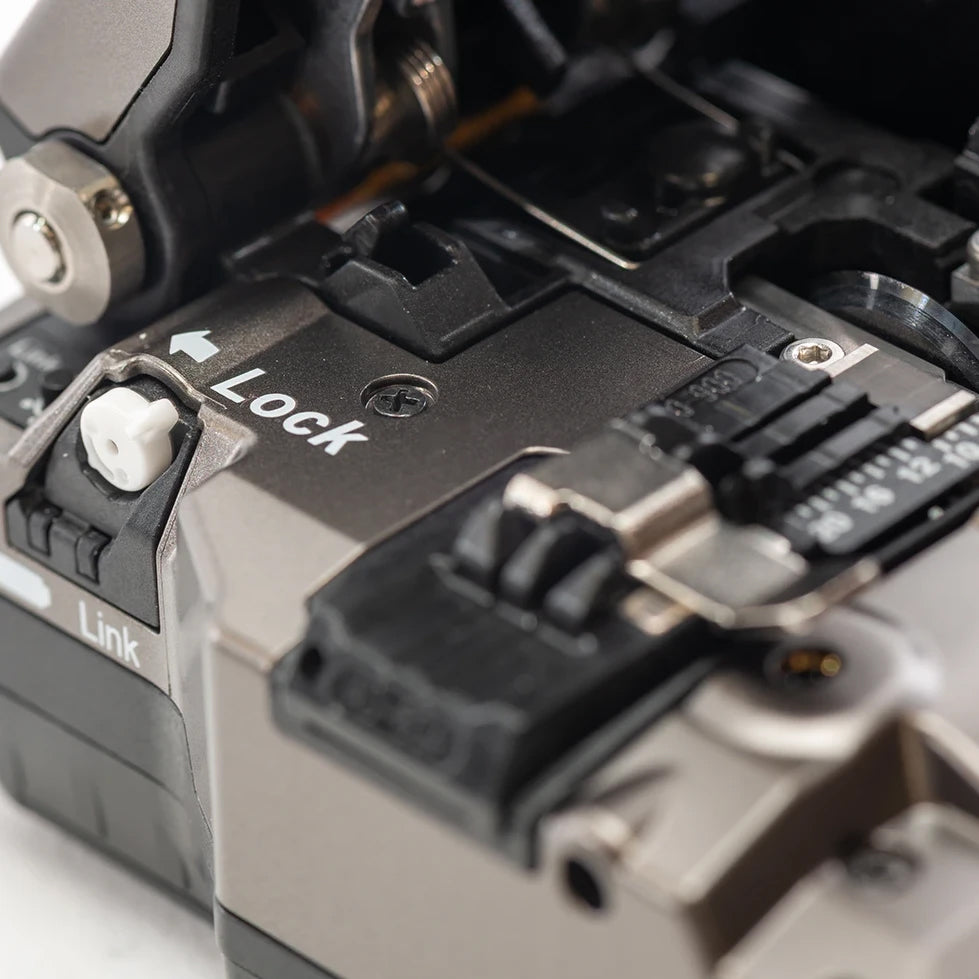

- 12-fibre V-groove and fibre holders included
- Intelligent Alignment Control
- Automatic fibre placement, end-face gap and axis correction
- Average singlemode splice time of 16 to 21 seconds
- Automated wind protector, clamps, splice cycle and tube heater
- Approximately 165 splice and heat cycles per battery charge

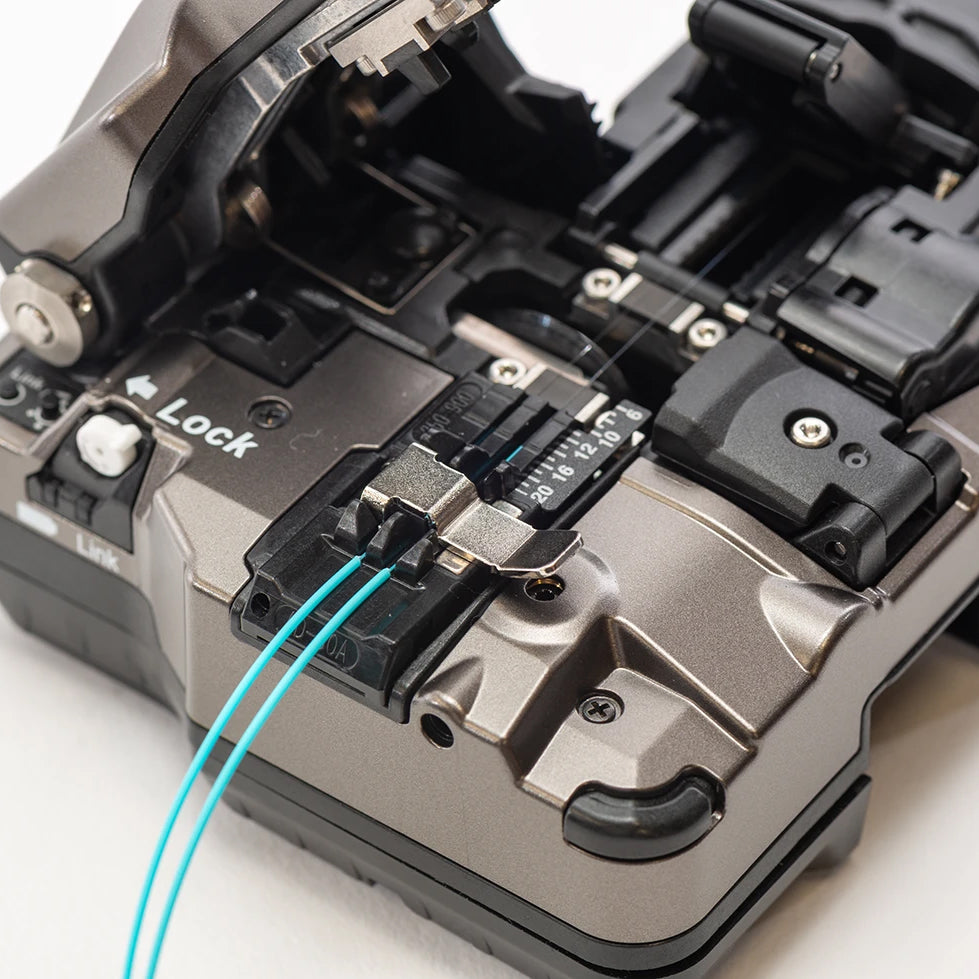

- Field-replaceable V-grooves and tool-free electrode replacement

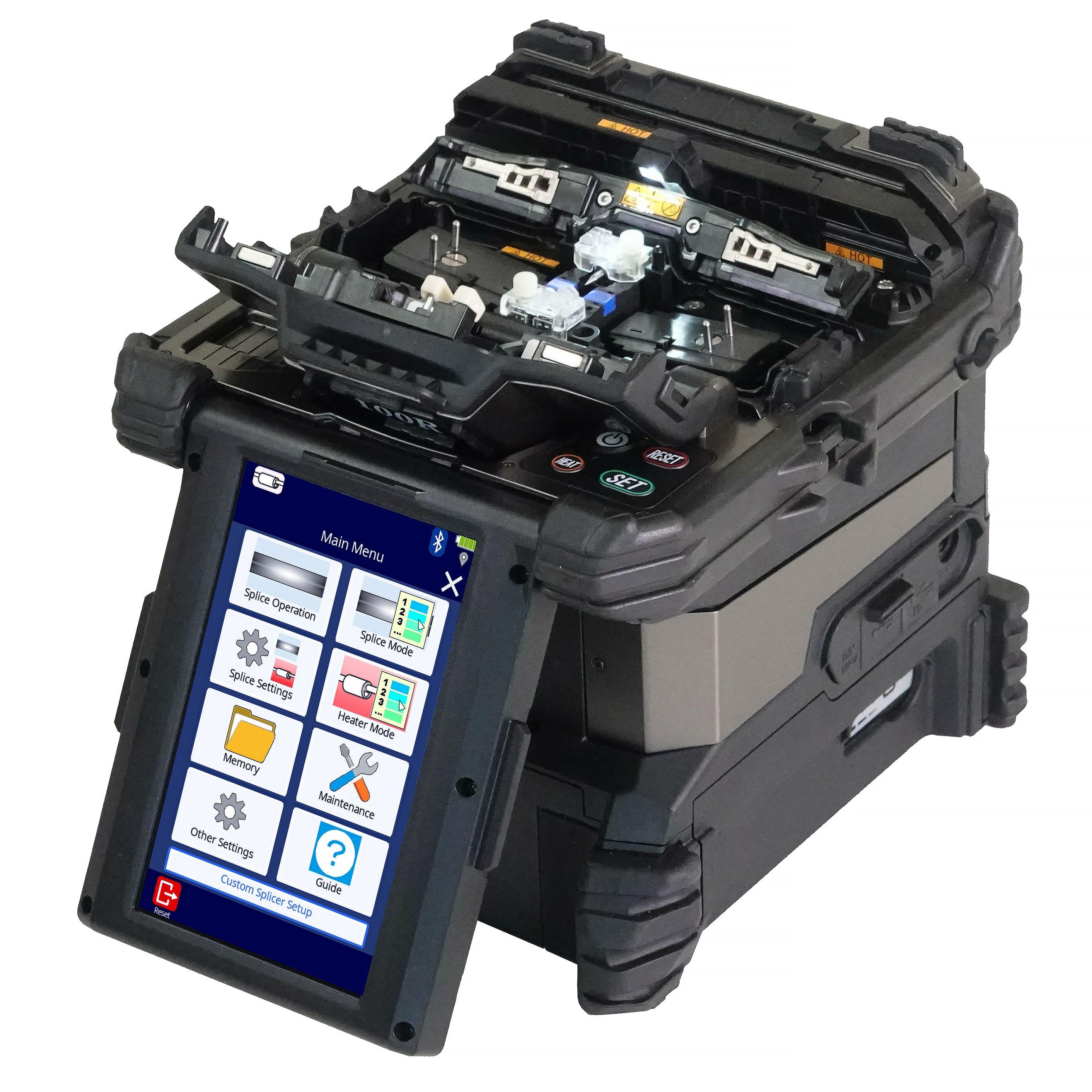

- 4.95-inch touchscreen with up to 90x magnification
- Stores 20,000 splice results and 100 splice images
- GPS splice-location recording and geofencing
- Wireless CT60 cleaver tracking and blade management
Typical Applications
- Data centre and hyperscale fibre installation
- High-fibre-count campus and metro networks
- Long-haul network installation and repair
- Ribbon fibre and 200 µm loose-fibre cabling
- Trunk cable repair using splice-on MPO connectors
Standard Kit Contents

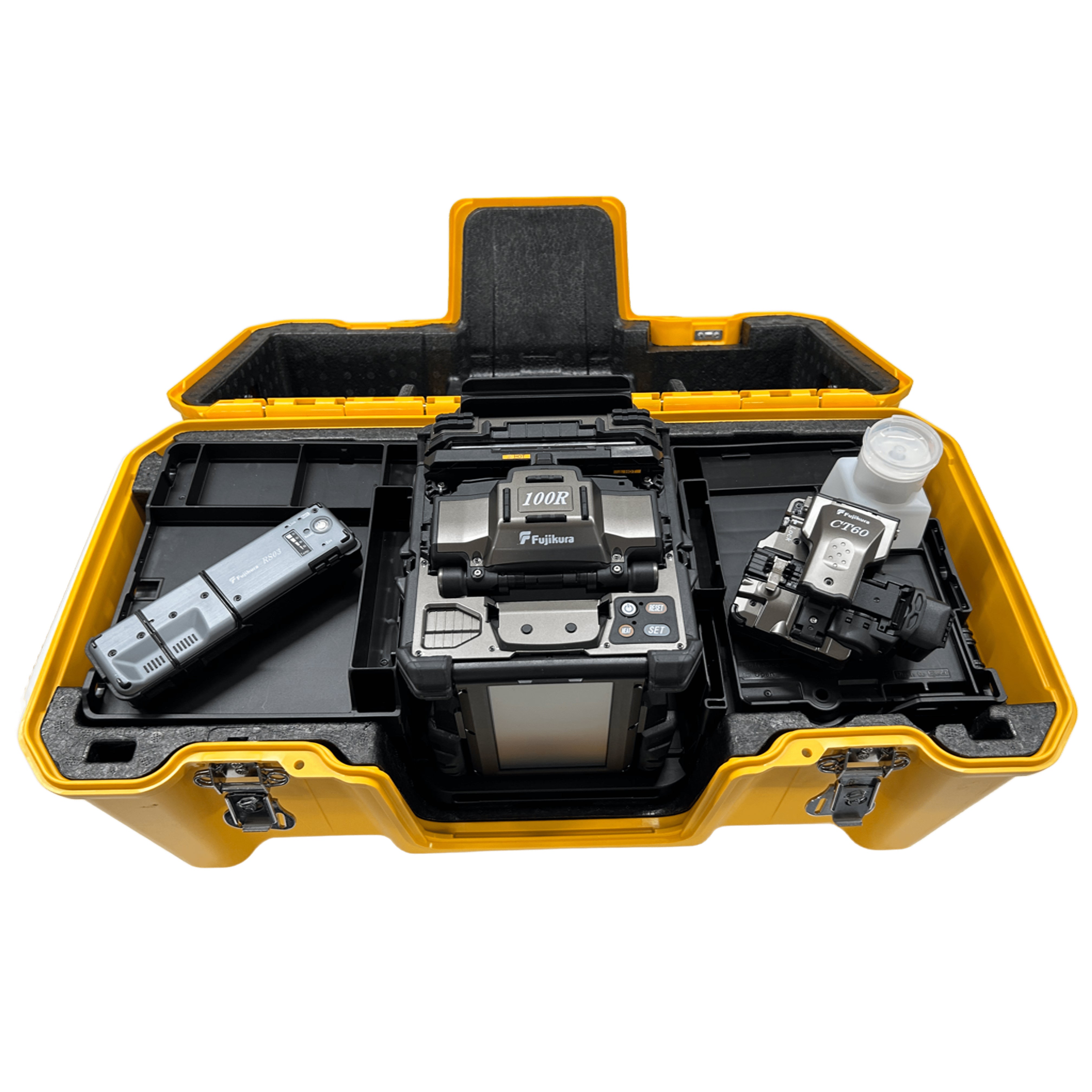

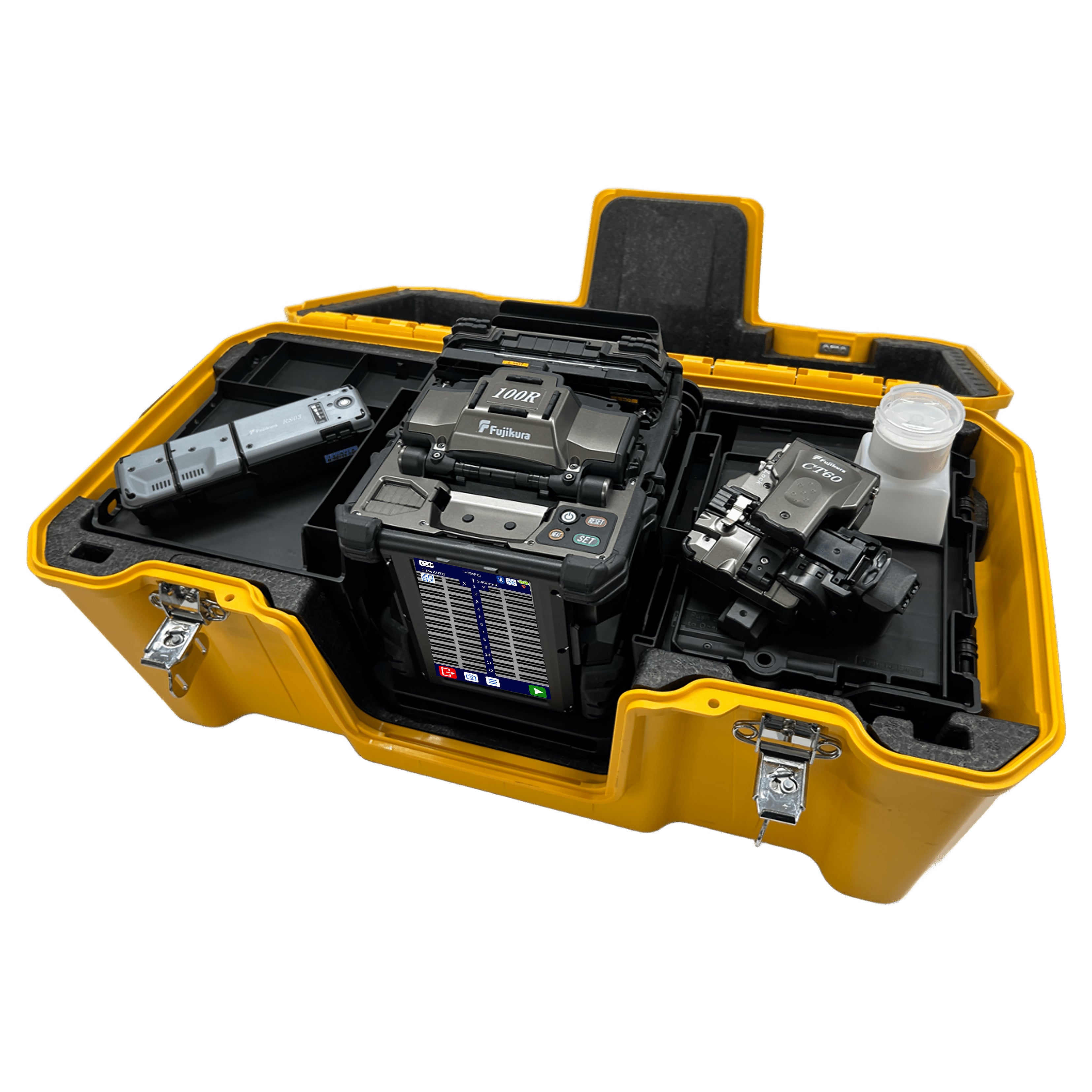

Supplied with the Fujikura 100R fusion splicer, CT60 cleaver, RS03 thermal stripper, rechargeable batteries and power supplies, 12-fibre holders, spare 12-fibre V-grooves, spare electrodes, transit case, splicer strap, alcohol dispenser, USB cable, tripod mounting screws and operating documentation.
Specifications

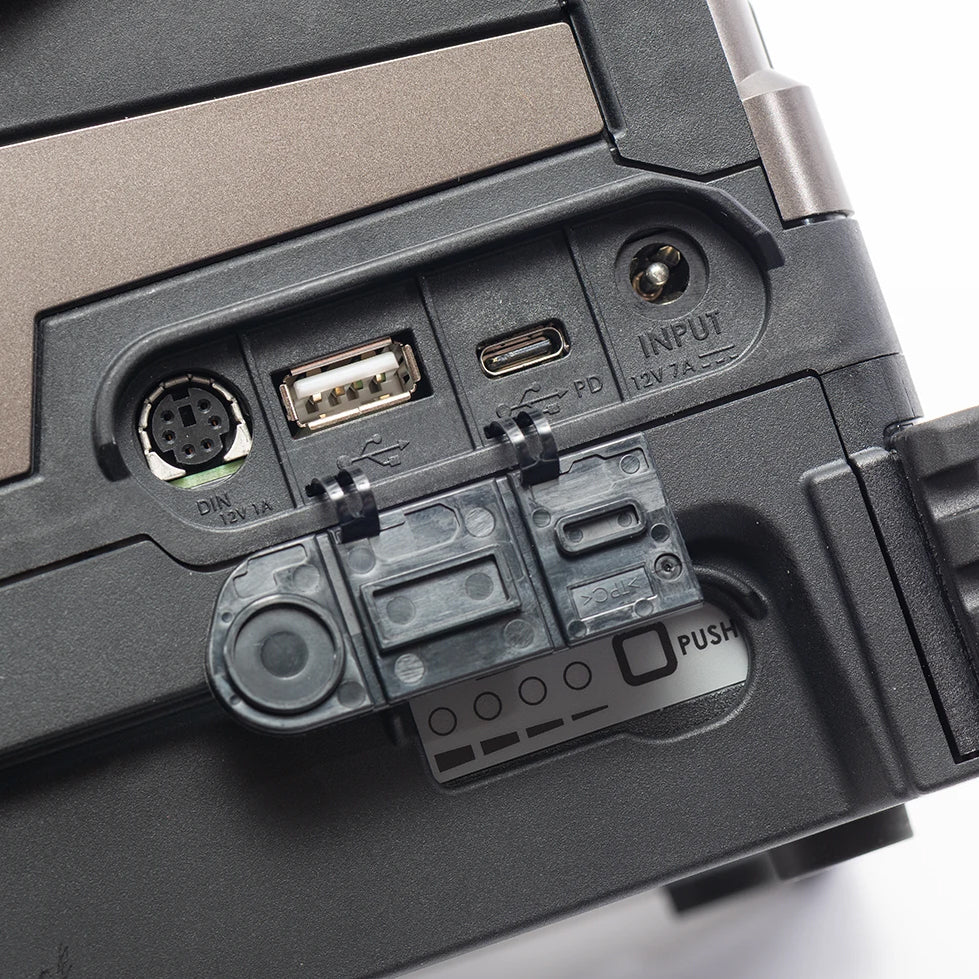

| Fibre Alignment Method | Self-Cladding alignment with Surface Melting Tension |
| Fibre Count Can Be Spliced | Single and up to 16 Fibre Ribbon with applicable V-groove |
| Applicable Fibre - Fibre Type | Single-mode Fibre Multimode Fibre |
| Applicable Fibre - Cladding Diameter | Approx. 125 μm |
| Applicable Coating - Fibre Holder | Coating Shape: Refer to Options Cleave stalls: Approx. 10 mm |
| Fibre Splice Performance - Splice Loss | ITU-T G.652: Avg 0.05 dB ITU-T G.651: Avg 0.02 dB ITU-T G.653: Avg 0.08 dB ITU-T G.655: Avg 0.08 dB ITU-T G.657: Avg 0.08 dB |
| Fibre Splice Performance - Splice Time | SM Fast Mode: Avg 16 to 18 Seconds SM Auto Mode: Avg 19 to 21 Seconds |
| Applicable Protection Sleeve - Sleeve Type | Heat Shrinkable Sleeve |
| Applicable Protection Sleeve - Sleeve Length | Max. 66 mm |
| Applicable Protection Sleeve - Sleeve Diameter | Max. 6.0 mm before Shrink |
| Sleeve Heat Performance - Heat Time | 40 mm FP-05 Mode: Avg 33 to 40 Seconds 40 mm FP-04T Fast Mode: Avg 19 to 26 Seconds Single 60 mm Mode: Avg. 8 to 15 Seconds |
| Fibre Tensile Test Force | Approx. 2.0 N |
| ElectrodenubululoJennbel meltoria Count | Approx. 1,500 Splices |
| Physical Description - Dimensions W | 157 mm |
| Physical Description - Dimensions D | 178 mm |
| Physical Description - Dimensions H | 171 mm |
| Physical Description - Weight | 2.6 kg including Battery |
| Environmental Condition - Temperature | Operating: -10 to +50°C Storage: -40 to +80°C |
| Environmental Condition - Humidity | Operating: 0 to 95% RH non-condensing Storage: 0 to 95% RH non-condensing |
| Environmental Condition - Altitude | Max. 3,700 m |
| AC Adapter - Input | AC100 to 240V, 50/60Hz, Max. 1.5A |
| AC Adapter - Output | Approx. DC 12V, Max. 7A |
| Battery Pack - Type | Rechargeable Lithium-Ion |
| Battery Pack - Output | Approximately DC 12 V, Max 5A |
| Battery Pack - Capacity | Approximately 165 Splices with Heat Shrink |
| Battery Pack - Temperature | Operating: -10 to +50°C Recharge: 0 to +40°C Storage < One (1) Year: -20 to +20°C Storage < Three (3) Months: -20 to +40°C Storage < One (1) Month: -20 to +50°C |
| Battery Pack - Recharge Time | ≤ Six (6) Hours from Empty |
| Battery Pack - Battery Life | Approximately 500 Recharge Cycles |
| Display - LCD Monitor | TFT 4.95 inch Touch Screen |
| Display - Magnification | Approx. 30x: 12-Fiber Ribbon Approx. 90x: Single Fibre |
| Illumination - V-Grooves | LED Lamp |
| Data Storage - Splice Mode | 100 splice modes |
| Data Storage - Heat Mode | 30 heat modes |
| Data Storage - Splice Result | 20,000 splices |
| Data Storage - Splice Image | 100 images |
| Other Features - Automatic Functions | Splice-mode Select by Fibre Count Analysis Fusion Power Calibration Fully Automatic Cleaver Blade Management Wind Protector: Open and Close Clamp: Auto Clamping Force Adjustment Z-Holder Base: Auto Placement Correction Z-Holder Base: Gap Alignment Correction Splice Start Heater Lid: Open and Close Heater Clamp: Open and Close Heater Start |
| Other Features - Reference Guide | Video and PDF Store on Splicer |
| Other Features - Electrode | Replaceable without Tool |
| Other Features - Software for PC | Splicer Update via Internet Parameter Upload and Download Operating Splicer with PC Splice Image Download to PC |
| Other Features - GPS | Splice Location Recorded to Memory GEO Fencing |
| Other Features - Screw Hole for Tripod | 1/4-20 UNC |
