Description

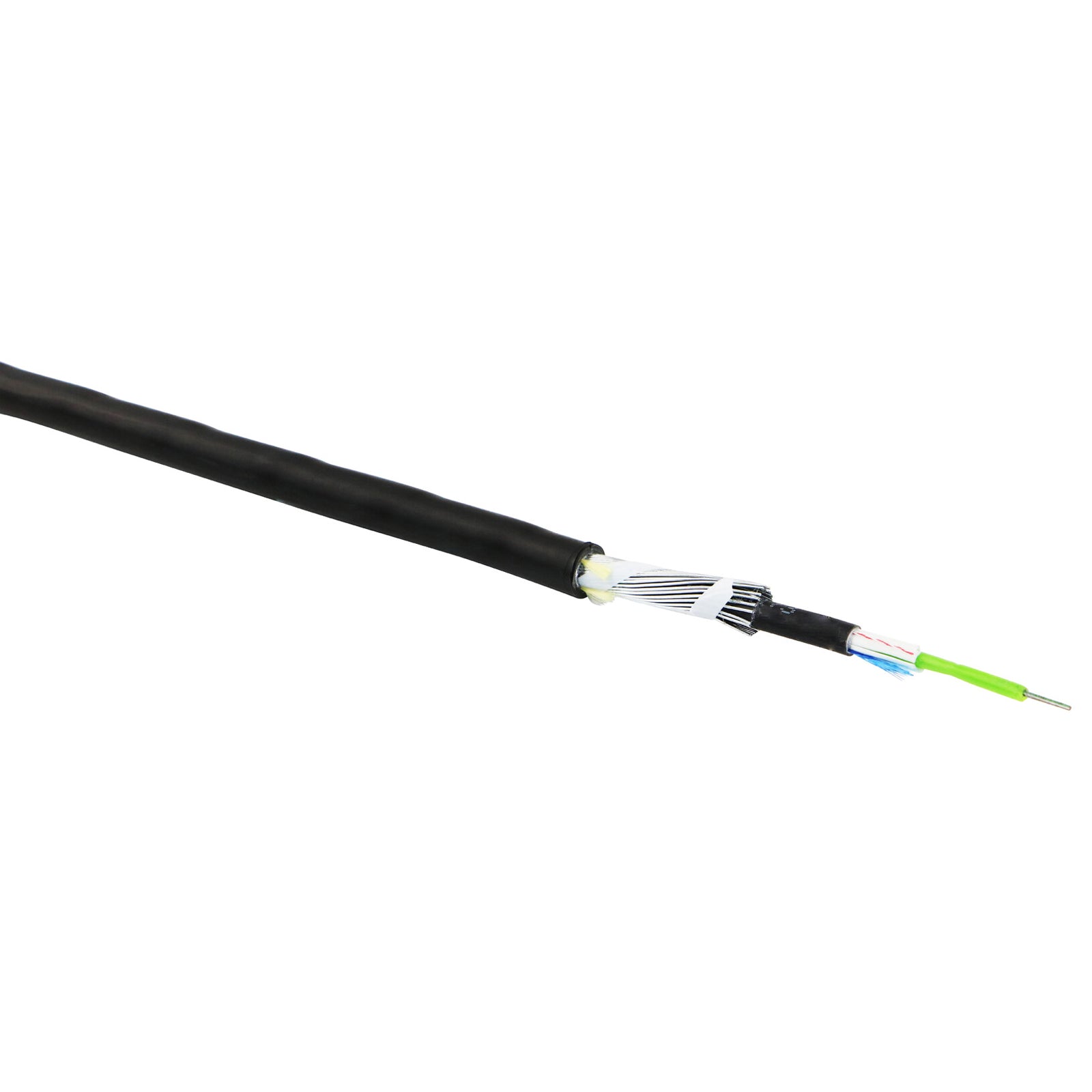

This OS2 single mode fibre optic cable is a steel wire armoured (SWA) loose tube design, built for external installations where mechanical protection and water resistance are required. It is suitable for direct burial, duct installation and outdoor runs between buildings.

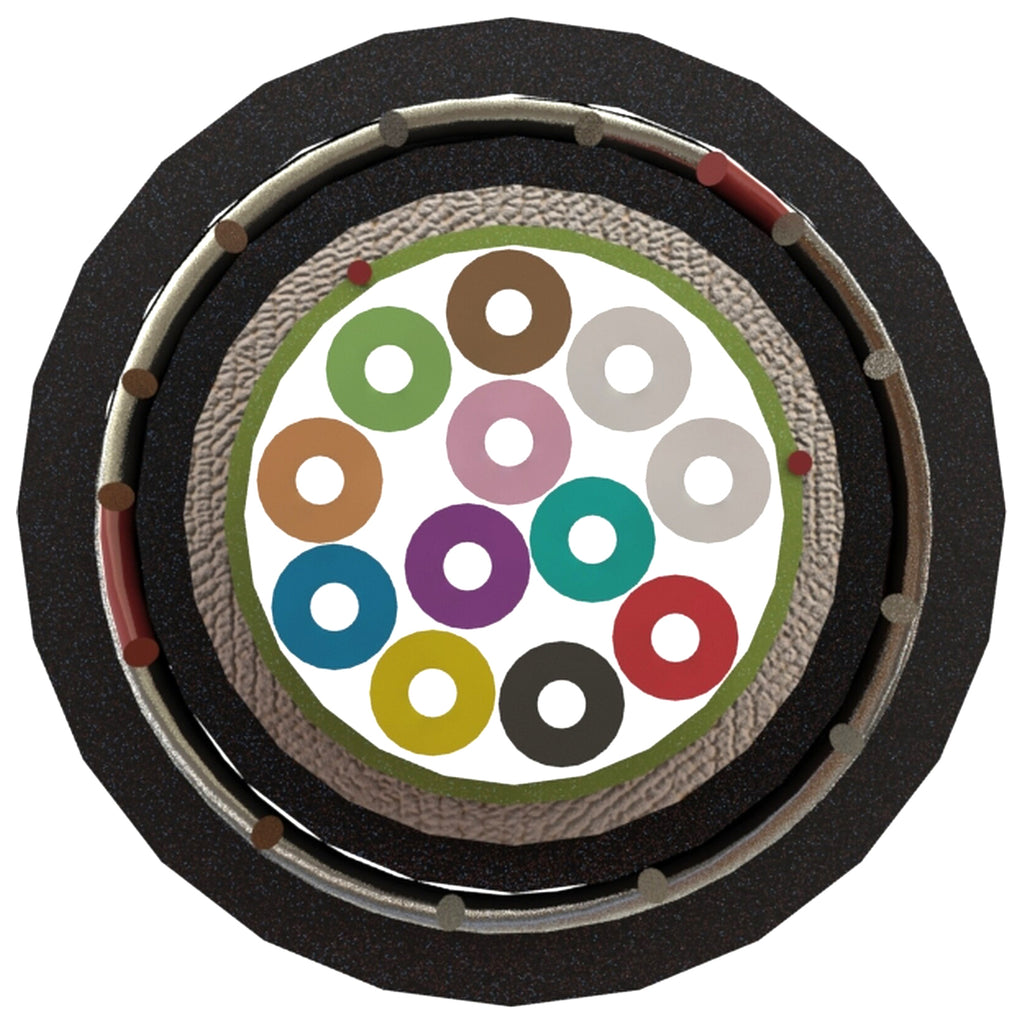

The construction uses a PBT loose tube containing 9/125µm single mode fibres, supported by glass yarn strength members and water blocking elements. An inner sheath with ripcord allows straightforward stripping on site, while the zinc coated steel wire armour provides protection against impact and rodent damage. The outer LSZH sheath supports safer installation in areas where low smoke and halogen free performance is specified.
Typical applications include campus networks, site-to-site links, industrial estates and infrastructure projects requiring OS2 fibre for long distance transmission.
This cable is compatible with standard single mode splicing, termination and jointing hardware. Suitable for use with external fibre enclosures, splice closures and patch panels designed for OS2 networks.
Designed for installers who need a robust, standards-compliant fibre cable for outdoor and underground deployment.
Specification
| Number of cores | 4, 8, 12, 16, 24, 48 |
| Type of tube | Loose tube |
| Fibre type | Single mode 9/125 |
| Category | OS2 |
| Rodent resistant | yes |
| Outer sheath material | Copolymer, thermoplastic (LS0H) |
| Outer sheath colour | Black |
| Flame retardant according to IEC 60332-1-2 | yes |
| Reaction-to-fire class according to EN 13501-6 | Eca |
| Outer diameter approx. | 10.5 mm |
| Colour coding | TIA-598-C |
| Tensile strength | 3000N |
| Crush resistance | 1500N/m |
| Torsion | ± 180 ⁰ |
| Temperature range (installation) | -30°C to +70°C |
| Temperature range (working) | -30°C to +70°C |
| Temperature range (storage) | -30°C to +70°C |
| Loose tube material | PBT |
| Loose tube ID/OD | 4-16 Cores 2.2/3.2 ± 0.1 mm 24 Cores 2.6/3.5 ± 0.1 mm |
| Peripheral Strength Member | Glass Yarn |
| Armouring thickness | 0.8mm |
| Armouring material | Soft Zinc Coated Steel Wires |
| Outer sheath thickness | 1.4mm (Nominal) |
| Outer sheath material | LSZH |
| Ripcord | 3 - Polyester |
| Overall cable diameter | 4-16 Cores: 10.0 ± 0.5 mm 24 Cores: 10.5 ± 0.5 mm |
| Cable weight | 4-16 Cores 165 ± 15 kg/km 24 Cores 180 ± 15 kg/km |
| Bending radius (short term) | 20 x diameter |
| Bending radius (long term) | 10 x diameter |
| Attenuation | @1310 nm ≤ 0.36 dB/km @1550 nm ≤ 0.23 dB/km |
| Cladding diameter | 125 ± 1 µm |
| Cladding Non-circularity | ≤1% |
| Core - Cladding Concentricity Error | ≤ 0.8 µm |
| Coating Diameter (Uncoloured) | 245 ± 10 µm |
| Chromatic Dispersion | 1285 - 1330 nm ≤ 3.5 ps/nm.km 1550 nm ≤ 18 ps/nm.km |
| Zero Dispersion Wavelength, λ0 | 1300 - 1324 nm |
| Zero Dispersion Slope | ≤ 0.092 ps/nm2.km |
| Cut-off Wavelength, λcc | ≤1260 nm |
| Mode Field Diameter | @1310 nm 9.2 ± 0.4 µm |
Downloads
| Datasheet (4 Core) | Download |
| Declaration of Performance (4 Core) | Download |
| Certificate of Conformity (4 Core) | Download |
Note: Documents for other core sizes available on request.
