Description
The Enbeam OS2 micro blown fibre cable is a singlemode 9/125 loose tube cable designed for installation into micro-duct systems using air-blown fibre equipment. It is typically used in FTTH, access networks, campus backbones and high-density fibre infrastructure where high core counts are required within limited duct space.

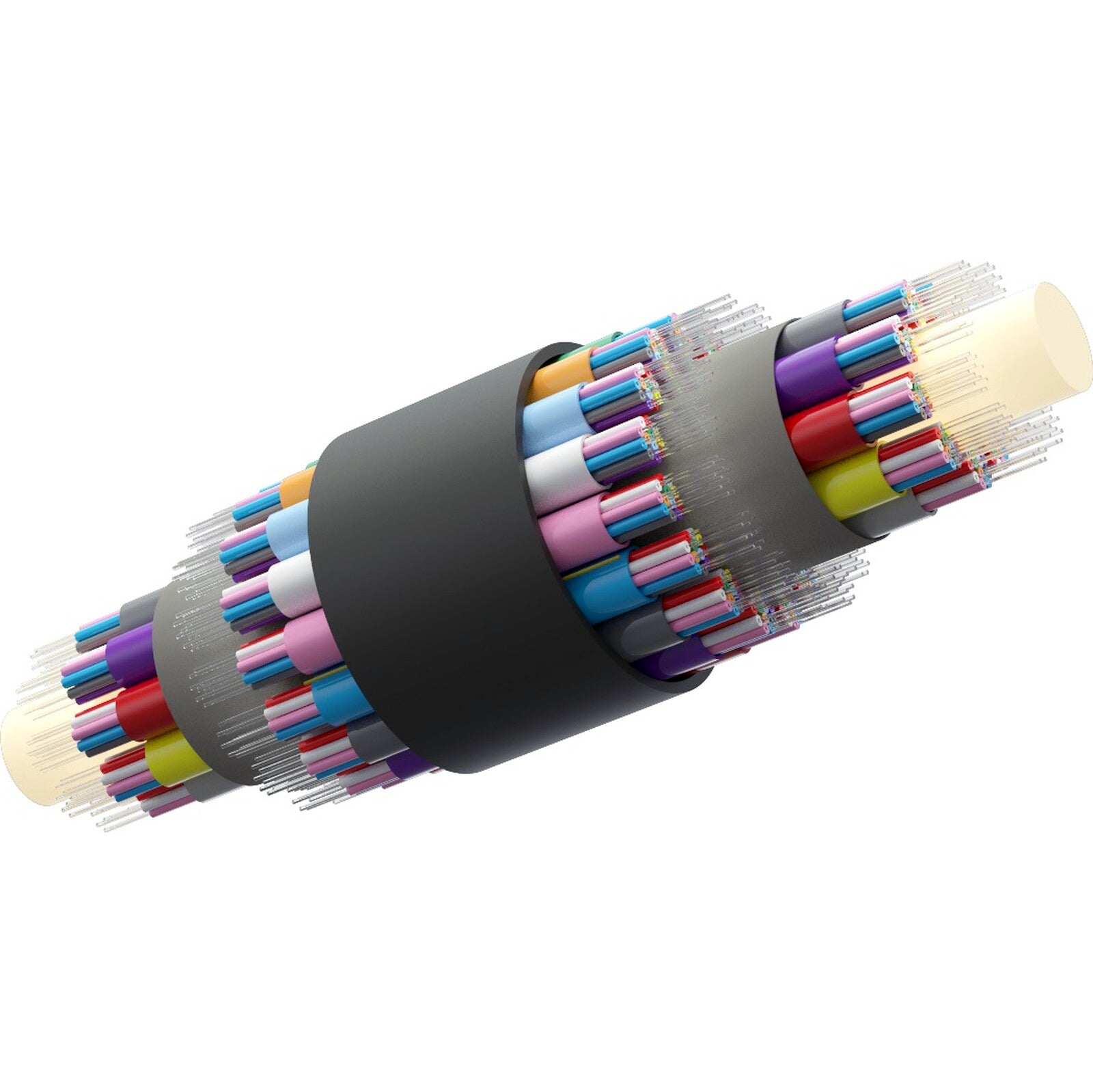

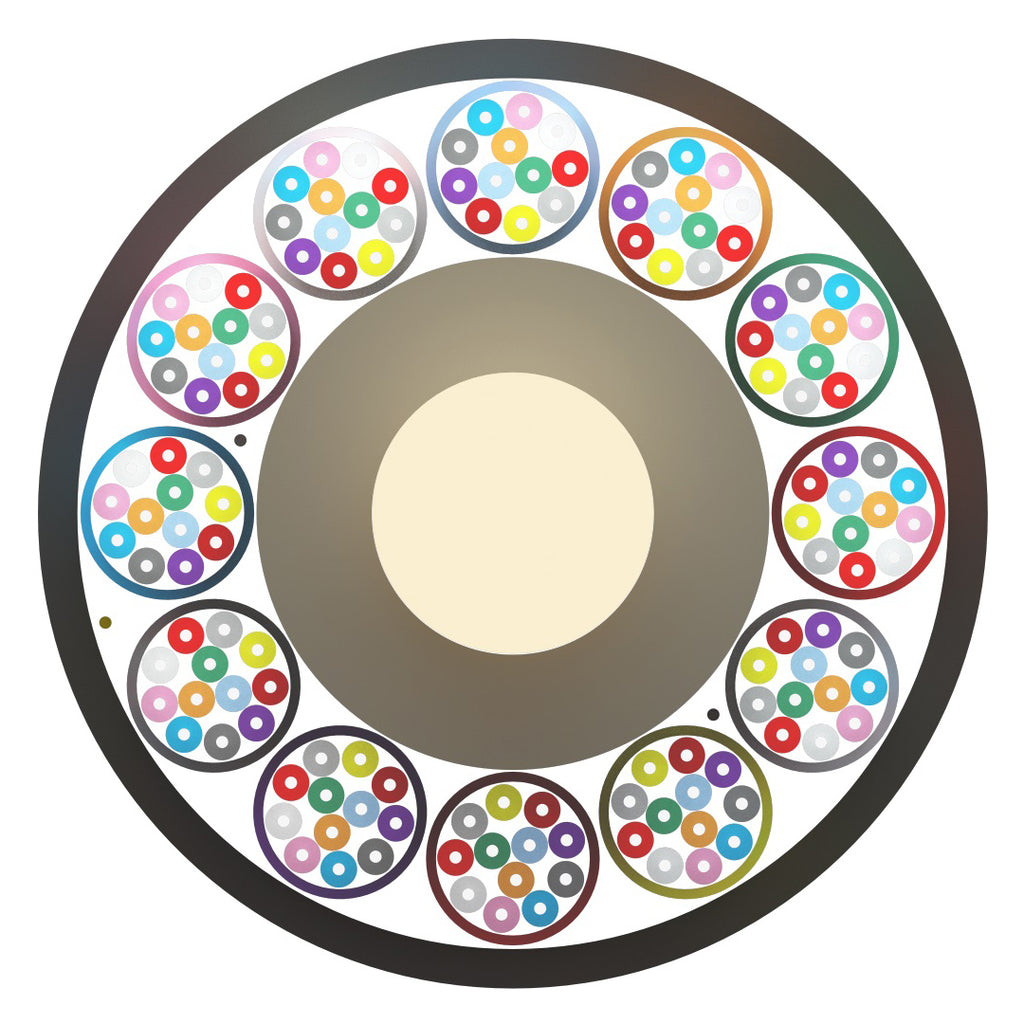

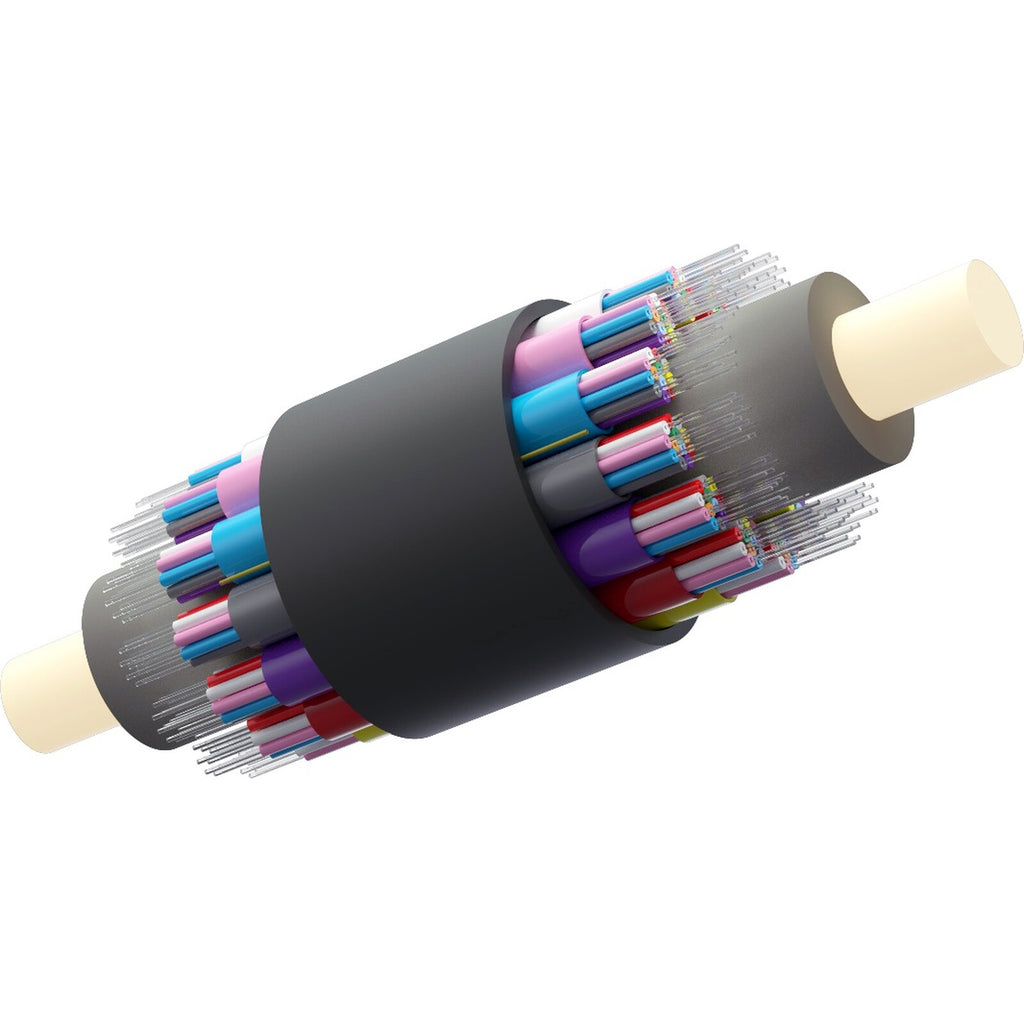

This OS2 G.657.A1 fibre cable is constructed with gel-filled PBT loose tubes around an FRP central strength member, with water blocking yarn and a black HDPE outer sheath for external duct installations. The compact 7.6 mm outer diameter allows installation into micro-ducts with internal diameters from 10 mm upwards, depending on core count and duct configuration.
The cable is intended for blown fibre systems only and should not be manually pulled into ducts.
Optical performance supports long-distance singlemode transmission with attenuation values of ≤0.38 dB/km at 1310 nm and ≤0.26 dB/km at 1550 nm, making the cable suitable for high-speed fibre network deployments requiring low signal loss and reliable long-term performance.
Specification
| Type of tube | Loose tube |
| Fibre type | Singlemode 9/125 |
| Category | OS2 |
| Outer sheath material | HDPE |
| Outer sheath colour | Black |
| Reaction-to-fire class according to EN 13501-6 | Fca |
| Outer diameter approx. | 7.6 mm |
| Blown system | Yes |
| Weight (kg/km) | 48-72 core 23 (nominal) 96-core 35 (nominal) 144-core 52 (nominal) 192-core 56 (nominal) 288-core 81 (nominal) 432-core 116 (nominal) |
| Loose tube material | PBT |
| Type of filling compound | Jelly |

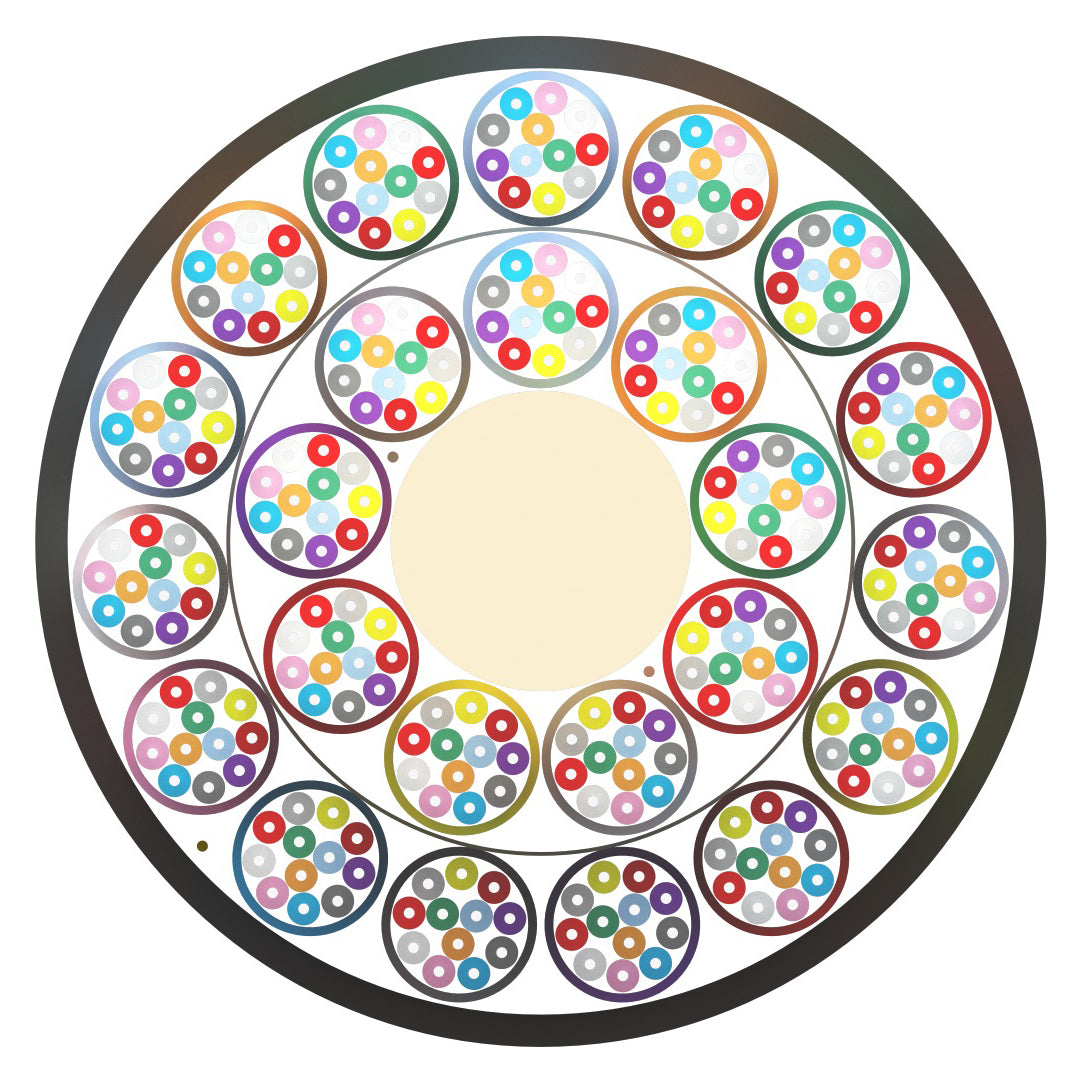

| Number of loose tubes/fillers | 48-core 4/2 72-core 6/0 96-core 8/0 144-core 12/0 192-core 16/2 288-core 24/0 432-core 18/0 |
| Central strength member type | FRP |
| Tensile performance (N) | Long term 150 N Short term 450 N |
| Crush resistance | Long term 150 N/100 mm Short term 450 N/100 mm |
| Minimum bending radius | During installation 20D After installation 10D |
| Temperature | Operating -20°C to +70°C |
| Attenuation | @1310nm ≤0.38 dB/km @1383nm ≤0.38 dB/km @1550nm ≤0.26 dB/km @1625nm ≤0.26 dB/km |
| Chromatic dispersion coefficient | 1285nm – 1330nm ≤3.5ps/km·nm @1550nm ≤18.0ps/km·nm |
| Zero Dispersion Wavelength, λ0 | 1300-1324nm |
| Zero Dispersion Slope | ≤0.092 ps/(km·nm2) |
| Cut-off Wavelength, λcc | ≤1260nm |
| Polarization mode dispersion | Individual fibre ≤0.2ps/√Km Design link value (M=20, Q=0.01%) ≤0.1ps/√Km |
| Macro bending loss | 10 turns, 15mm radius ≤0.25dB@1550nm ≤1.0dB@1625nm 1 turns, 10mm radius ≤0.75dB@1550nm ≤1.5dB@1625nm |
| Cladding diameter | 125.0±1.0μm |
| Cladding Non-circularity | ≤1.0% |
| Primary Coating Diameter | 250±15μm |
| Core concentricity error | ≤0.6μm |
| Coating-cladding concentricity error | ≤12μm |
| Fibre curl radius | ≥4m |
| Mode field diameter | @1310nm 9.2±0.4μm |
| Point discontinuity | ≤0.05db |
| Proof stress level | ≥100kpsi (0.69 GPa) |
| Coating strip force | Peak 1.3-8.9N |
