Description
This Excel OS2 singlemode loose tube fibre cable is designed for internal and external installations where higher fibre counts and environmental protection are required. It is typically used for campus backbones, external duct routes, and building-to-building links, as well as LAN and WAN infrastructure.

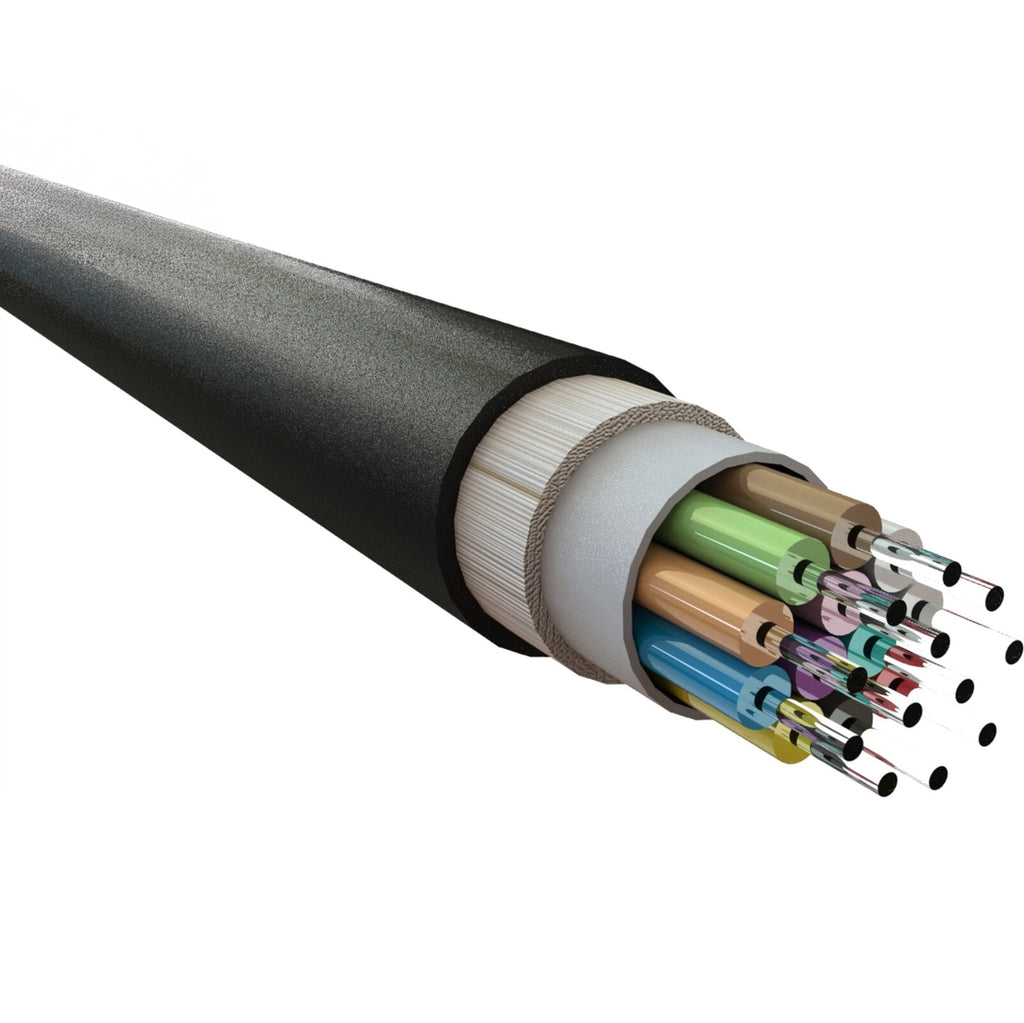

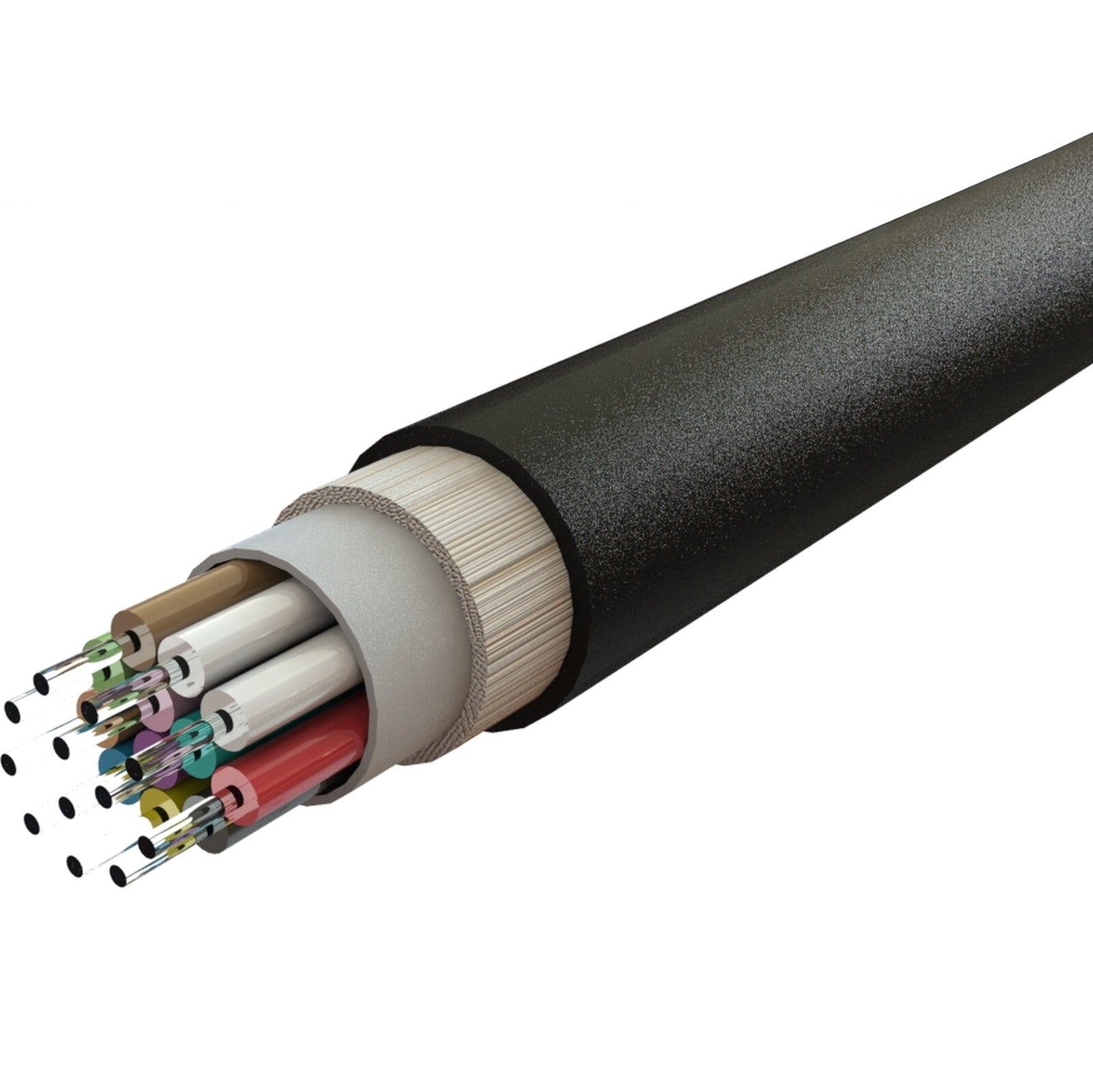

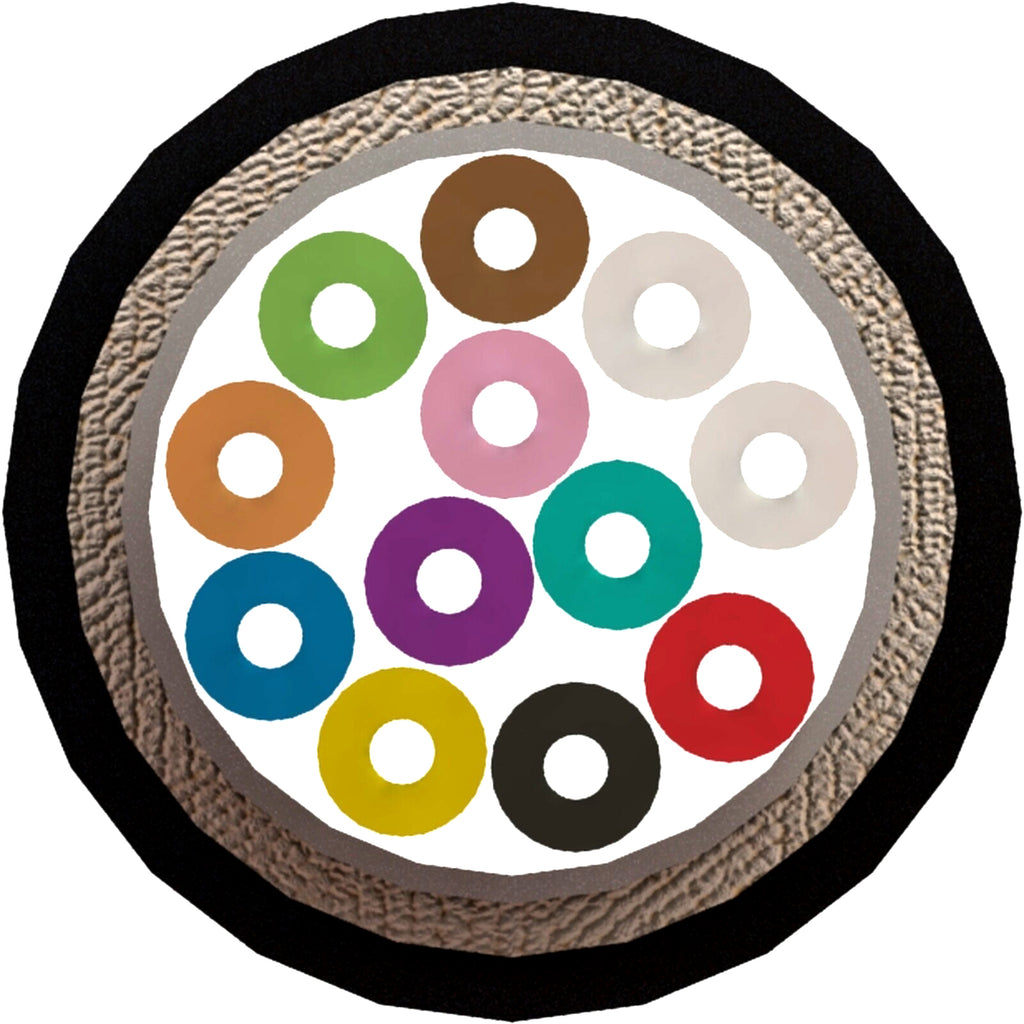

The cable is constructed with 9/125µm OS2 singlemode fibre housed within a PBT loose tube, filled with non-drip, silicone-free gel to prevent water ingress. Fibres are 250µm primary coated and colour coded to TIA-598-C, supporting standard identification and splicing practices. This construction isolates fibres from external stress, making it suitable for longer runs and outdoor routing.
An E-glass yarn strength member provides tensile support, while the black LSZH sheath offers low smoke emission and halogen-free performance. Rated to CPR Dca-s2,d1,a1, the cable meets fire performance requirements for general building installations while remaining suitable for external use.
Compatible with standard OS2 splicing, joints and termination hardware, this cable is suited to external and backbone installations where fibre protection and stable performance over distance are required.
Note: Price is per metre, use quantity box to select the length. This cable is cut to order and is non-returnable.
Specification
| Number of cores | 4, 8, 12, 16, 24, 48, 96 |
| Type of tube | Loose tube |
| Fibre type | Single mode 9/125 |
| Category | OS2 |
| Rodent resistant | yes |
| Outer sheath material | Copolymer, thermoplastic (LS0H) |
| Outer sheath colour | Black |
| Flame retardant according to IEC 60332-1-2 | yes |
| Low smoke (acc. IEC 61034-2) | yes |
| Reaction-to-fire class according to EN 13501-6 | Dca |
| Smoke development class according to EN 13501-6 | s2 |
| Euro class flaming droplets/particles according to EN 13501-6 |
d1 |
| Euro class acidity according to EN 13501-6 | a1 |
| Outer diameter approx. | 6 mm |
| Colour coding | TIA-598-C |
| Loose tube material | PBT |
| Loose tube diameter | 2.8±0.1mm(2-12 cores), 3.5±0.20mm(16-24 cores) |
| Loose tube thickness | 0.35±0.05mm |
| Strength member material | E-glass yarns |
| Sheath material | LSZH |
| Sheath thickness | Typical 1.1mm |
| Cable diameter | 6.0±0.20mm(2-16 cores), 6.5±0.20mm(18-24 cores) |
| Cable weight | Approx. 40kg/km(2-16 cores), 45kg/km(18-24 cores) |
| Tensile strength (installation) | 1000N |
| Tensile strength (working) | 300N |
| Cable impact | 1 J |
| Crush resistance (installation) | 1000N |
| Crush resistance (working) | 300N |
| Torsion | Change of Attenuation ≤ 0.10dB (SM fibre), Change of Attenuation ≤ 0.30dB (MM fibre) |
| Temperature range (installation) | -30°C to +60°C |
| Temperature range (working) | -30°C to +60°C |
| Temperature range (storage) | -40°C to +60°C |
| Bending radius (short term) | 20 x diameter |
| Bending radius (long term) | 10 x diameter |
| Water penetration | No water on free end |
| Attenuation | @1310nm: 0.39dB/km (Maximum) @1550nm: 0.25 dB/km (Maximum) For any 1000 metre Max. 0.1 dB/km |
| Reflex index | @1310nm 1.467 @1550nm 1.468 |
| Cladding diameter | 125.0 ± 0.7 μm |
| Cladding Non-circularity | ≤1% |
| Core - Cladding Concentricity Error | ≤0.6 μm |
| Primary Coating Diameter | 242 ± 7 μm |
| Primary Coating Non-circularity | ≤5% |
| Primary Coating - Cladding Concentricity Error |
≤12 μm |
| Chromatic Dispersion Coefficient | In 1285-1330nm ≤3.4 ps/km·nm @1550nm ≤18.0 ps/km·nm @1625nm ≤22.0 ps/km·nm |
| Zero Dispersion Wavelength, λ0 | 1300-1324 nm |
| Zero Dispersion Slope | ≤0.092 ps/(km·nm2) |
| Cut-off Wavelength, λcc | ≤1260 nm |
| Mode Field Diameter | @1310nm 9.0±0.5 μm @1550nm 10.4±0.5 μm |
| Macro Bending Loss (100 turns) | 25mm mandrel ≤0.05 dB @1310 nm & 1550 nm 30mm mandrel ≤0.05 dB @1625 nm |
| PMD Coefficient, Max. Uncabled | ≤0.5 ps/√km |
| PMDQ Link Design Value | ≤0.2 ps/√km |
| Proof Stress Level | ≥ 0.69 Gpa (≈1% strain) |
| Fibre Curl Radius | >4 m |
| Stripe Force(peak) | 1.3 ≤ Fpeak.strip ≤ 8.9 N |
| Dynamic Fatigue Resistance Aged and Unaged | ≥20 |
| Static Fatigue Resistance | ≥23 |
Downloads
| Datasheet (4 Core) | Download |
| Declaration of Performance (4 Core) | Download |
| Certificate of Conformity (4 Core) | Download |
Note: Documentation for other core sizes available on request.
