Description
The Excel Enbeam OM4 Distribution Fibre Cable is a tight-buffered 50/125µm multimode fibre optic cable designed for internal building and backbone network installations. Suitable for data centres, enterprise networks and structured cabling systems, it provides OM4 performance while maintaining backwards compatibility with OM3 infrastructure.

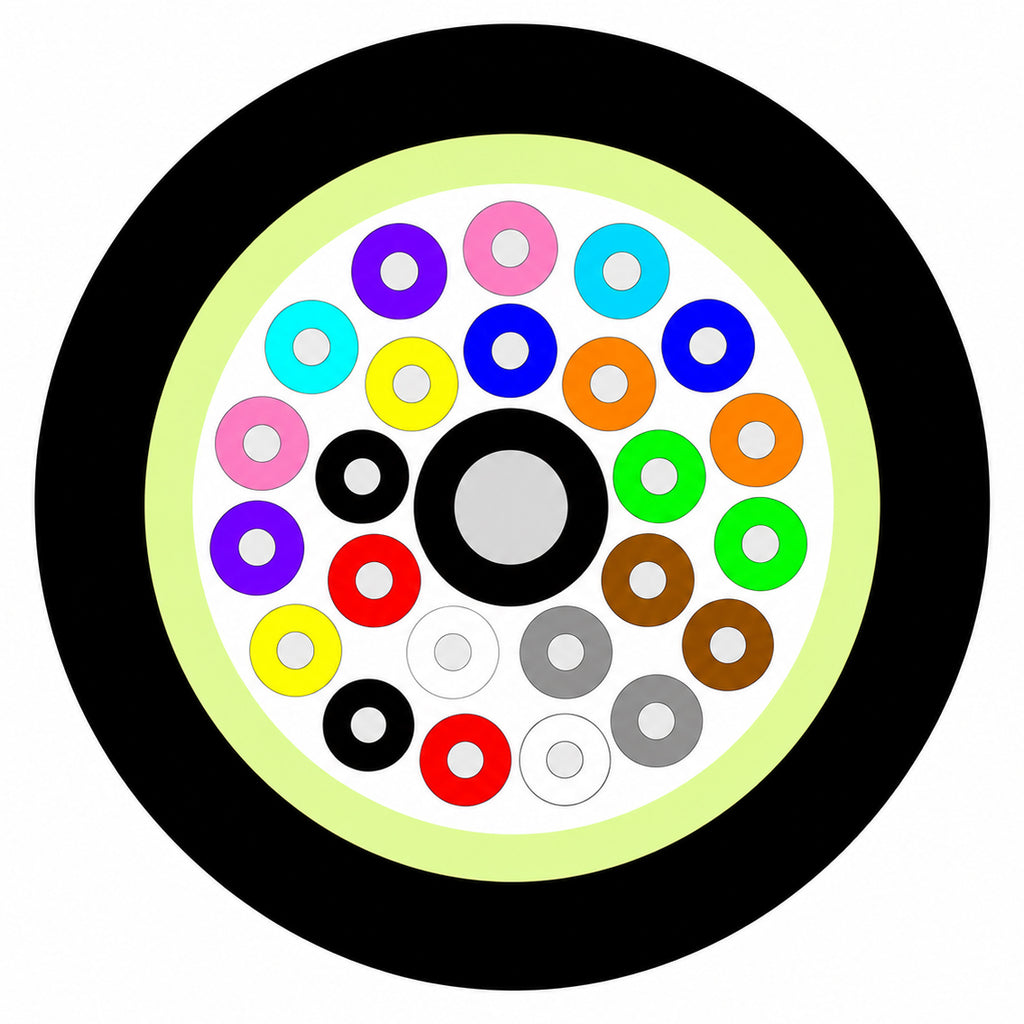

The cable construction uses between 4 and 24 colour-coded 900µm tight-buffered fibres, supported by aramid yarn and a central GFRP (Glass Fibre Reinforced Polymer) strength member. This design provides good tensile performance and simplifies termination compared to loose tube alternatives, making it well suited to indoor fibre distribution and riser applications.
A black LSZH (Low Smoke Zero Halogen) outer sheath helps minimise smoke and harmful emissions in the event of fire, while the cable's B2ca-s1a,d0,a1 CPR classification makes it suitable for installations requiring a high level of fire performance compliance.
Specification
| Type of tube | Tight |
| Fibre type | Multimode 50/125 |
| Category | OM4 |
| Outer sheath material | LSZH |
| Outer sheath colour | Black |
| Reaction-to-fire class according to EN 13501-6 | B2ca |
| Smoke development class according to EN 13501-6 | s1a |
| Euro class flaming droplets/particles according to EN 13501-6 |
d0 |
| Euro class acidity according to EN 13501-6 | a1 |
| Outer diameter approx. | 6.5mm |
| Tensile strength | Long term 300 N Short term 900 N |
| Crush resistance | Long term 300 N/m Short term 1000 N/m |
| Temperature performance | Installation -5⁰C to +70⁰C Operation -20⁰C to +70⁰C Storage -40⁰C to +70⁰C |
| Peripheral strength member | E Glass |
| Central strength member | GFRP |
| Outer sheath | Thickness 1.0 mm (Nominal) Material LSZH |
| Bending radius | Short term 20 x Diameter Long term 10 x Diameter |
| Attenuation | @850 nm ≤ 3.5 dB/km @1300 nm ≤1.5 dB/km |
| Core cladding concentricity error | ≤ 2 µm |
| Cladding diameter | 125 ± 1 µm |
| Cladding non-circularity | ≤ 6 % |
| Coating diameter | 250 ± 10 µm |
| Coating cladding concentricity error | ≤ 12.5 |
Downloads
| Datasheet | Download |
| Declaration of performance | Download |
| Certificate of conformity | Download |
