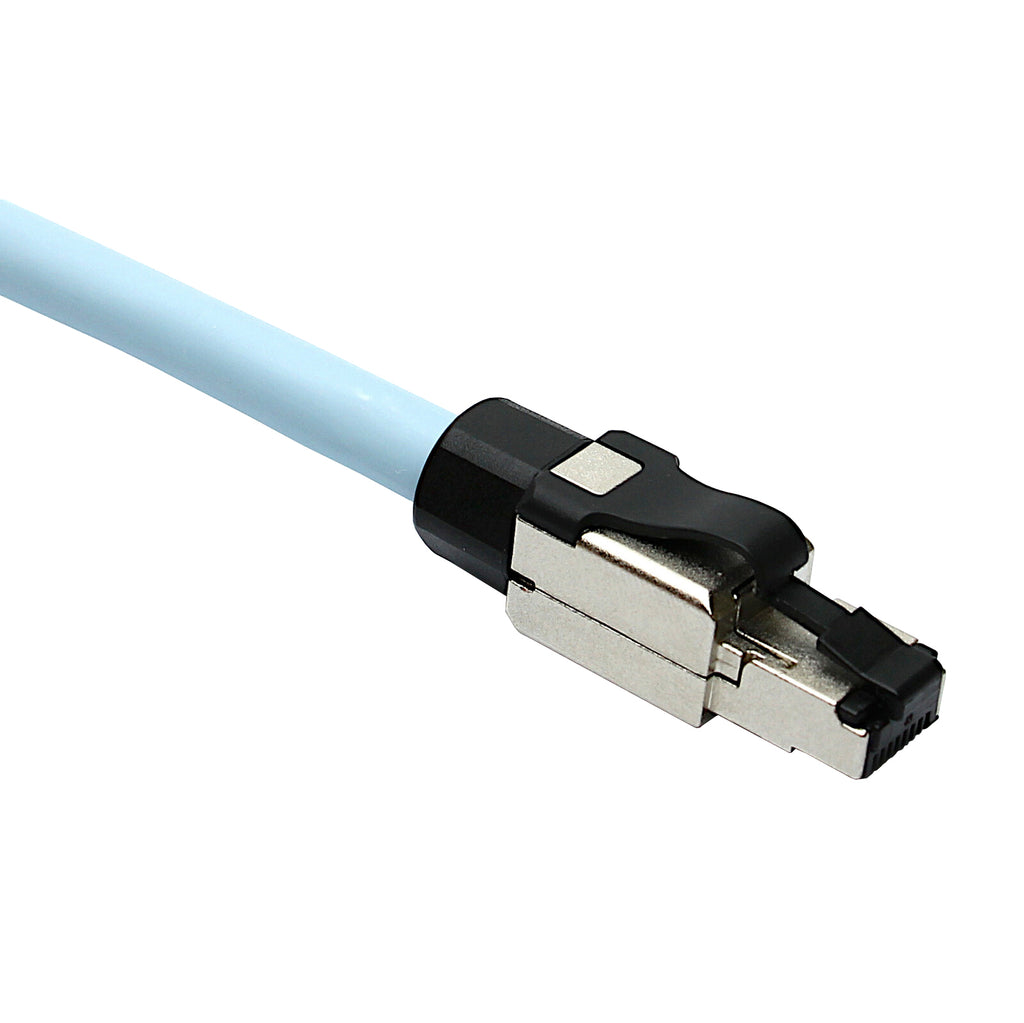

This mini screened field termination RJ45 plug from Excel offers easy, toolless termination and complies fully with ISO/IEC 11801, Cat6A, and ANSI/TIA-568-C.2 standards.
It offers a fully shielded die-cast zinc alloy, nickel-plated body and gold-plated phosphor bronze contact pins.

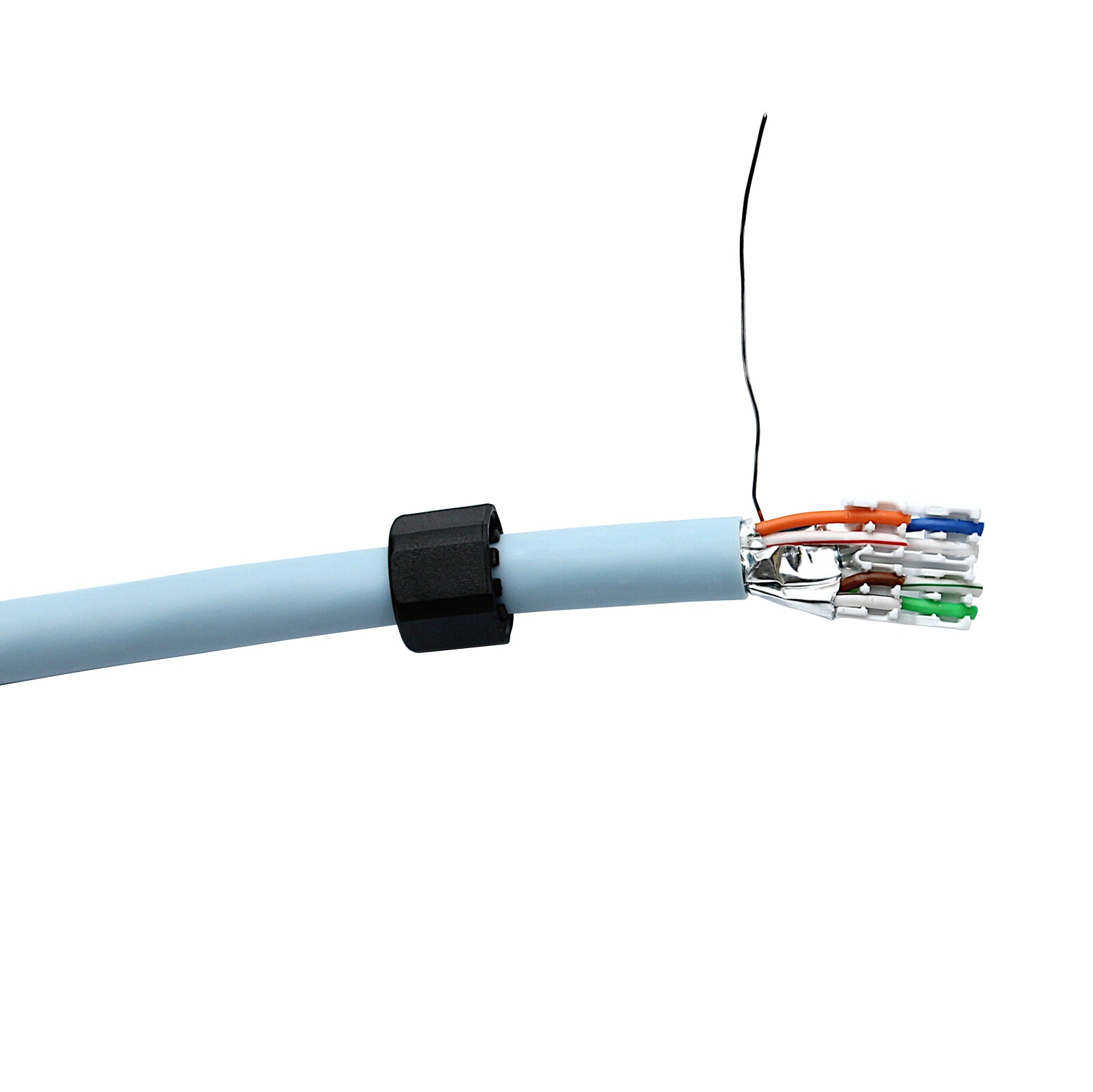

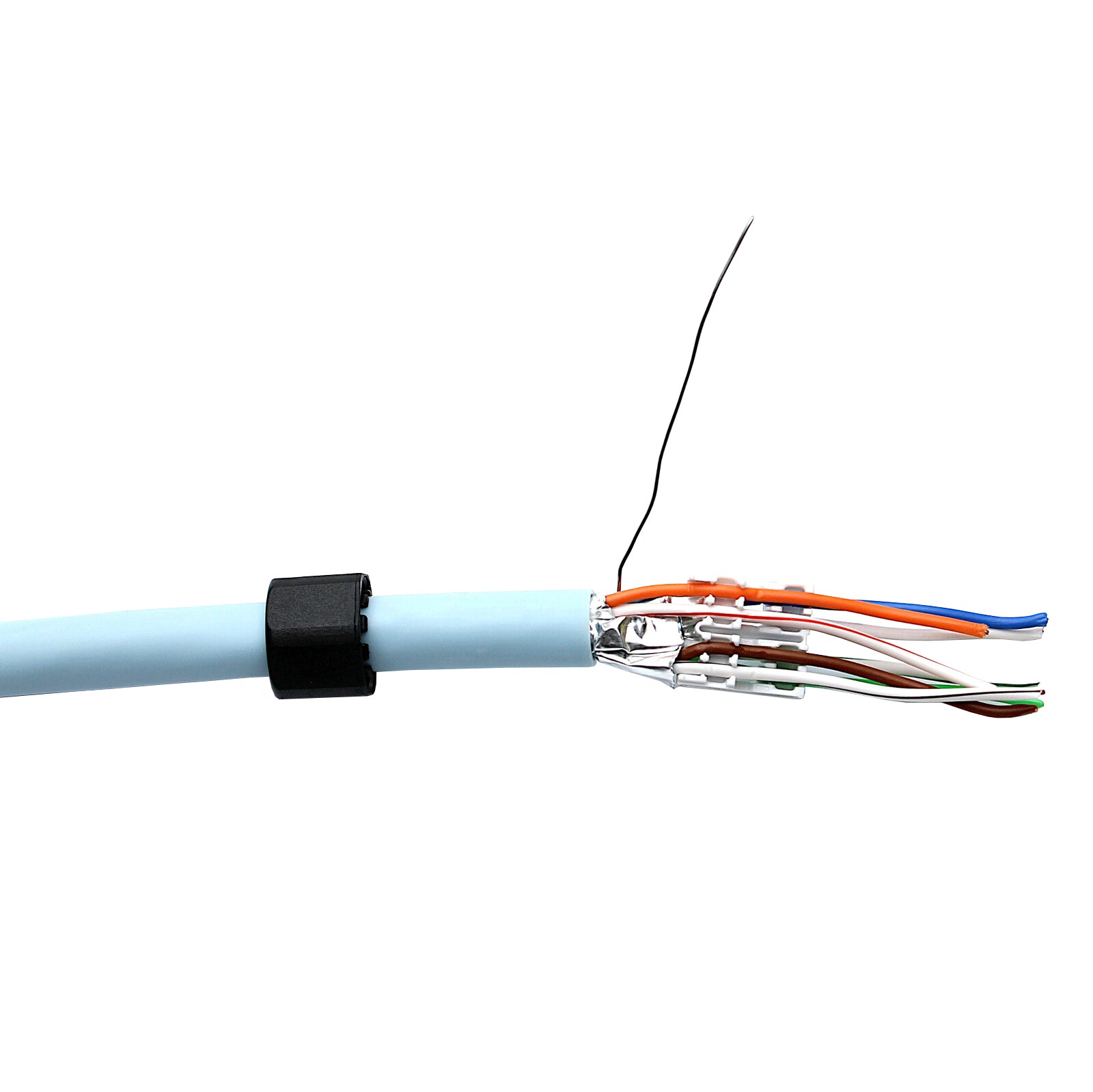

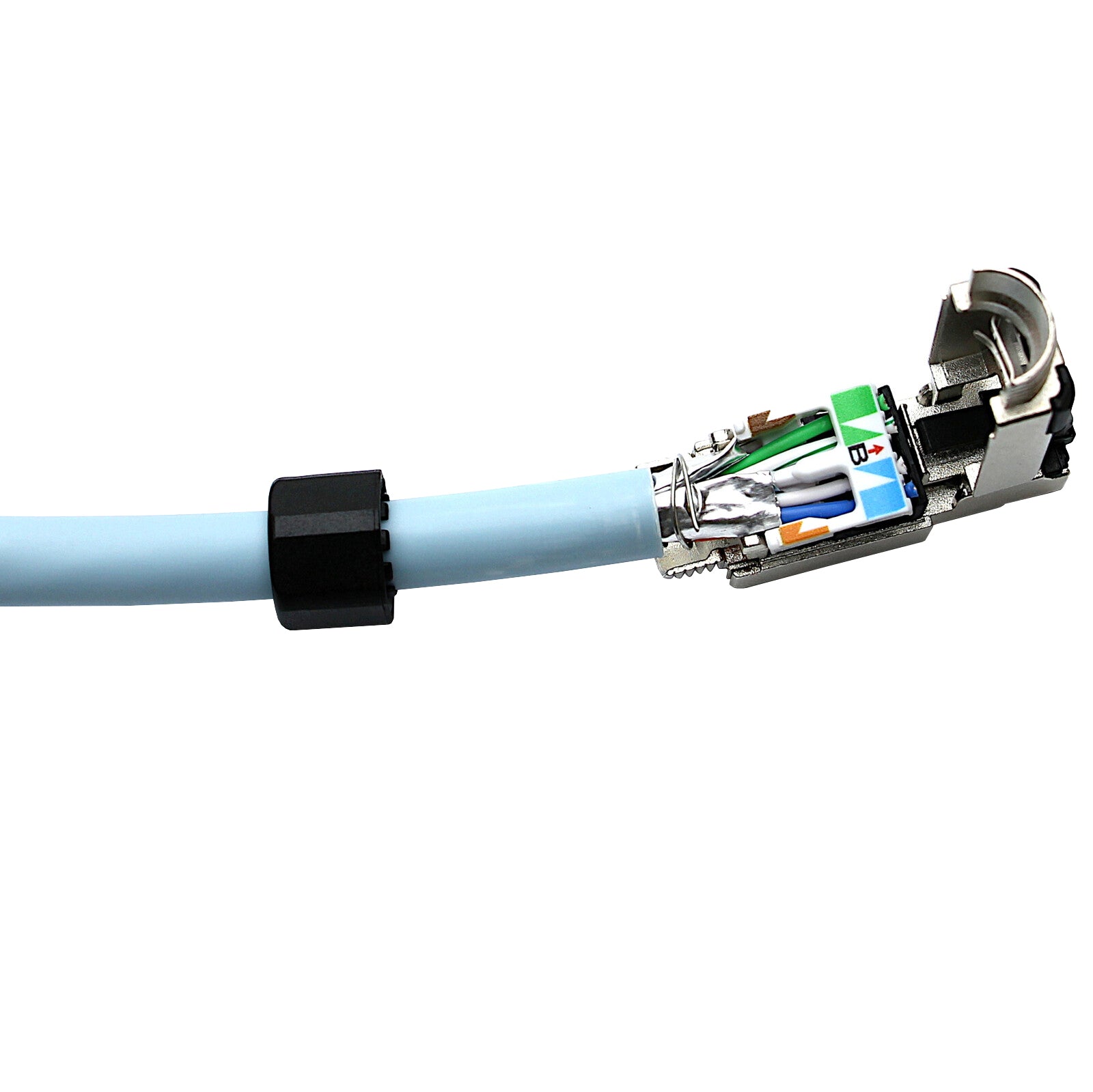

Suitable for cable diameters between 6 mm and 9.2 mm, strain relief is provided by the compression nut on the back of the connector. IDC termination accepts wire gauges from 22 to 26AWG as solid or stranded cable.
Features
| Full Screened Cat6a |
Supports 10 Gigabit Ethernet |
| Die-cast Zinc Alloy Construction |
Independently Verified |
| Toolless (Easy Termination) |
Can Be Re-Terminated Numerous Times |
Specifications
| Model |
Plug (Male) |
| Connector Type |
RJ45 8(8) |
| Shielded |
Yes |
| Category |
6A (IEC) |
| Connection Type |
Crimp |
| Requires Termination Tool |
No |
| Suitable For Round Cable |
Yes |
| Suitable For Flat Cable |
No |
| Suitable For Stranded Core |
Yes |
| Suitable For Solid Cores |
Yes |
| Colour |
Silver |
