Description
This Draka OS2 single-mode fibre optic cable is designed for backbone and high-capacity network infrastructure where long-distance transmission and low attenuation are required. It is commonly used in LAN and WAN backbones, data centre interconnects, and central office links.

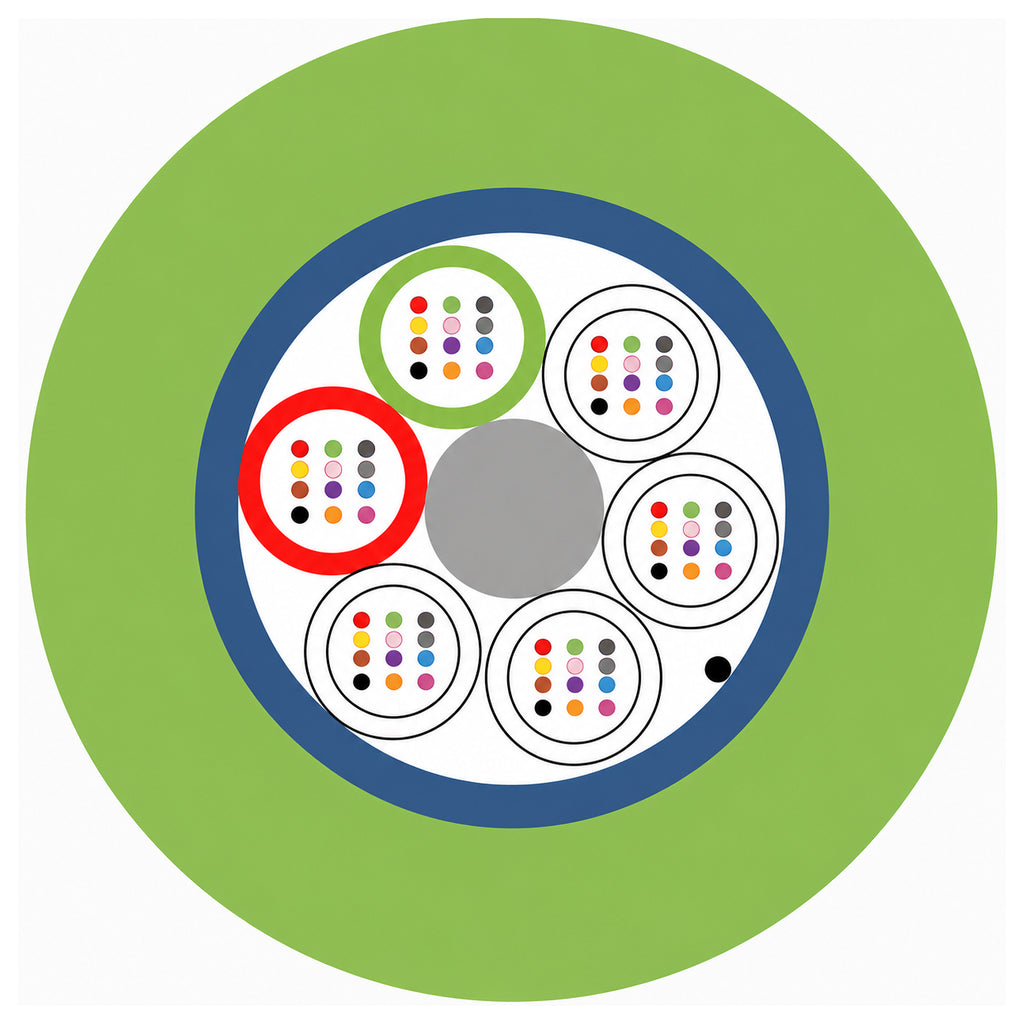

The cable features a loose tube construction with a central FRP strength member, making it suitable for external duct installation as well as internal tray routing. The gel-filled tubes and water-blocking elements provide protection against moisture ingress, supporting reliable performance in outdoor or mixed environments.
A FireRes® LSZH (low smoke, halogen-free) sheath allows the cable to be installed indoors while meeting fire safety requirements. It is UV stabilised, so it can also be used externally without additional protection.
This cable is suitable for installers requiring a CPR-compliant, indoor/outdoor fibre solution that supports standard single-mode applications, including splicing, patching, and termination with typical OS2 connectivity hardware.
Specification
| Standards | |
| Compliance | IEC 60794-1, IEC 60794-2, ISO 11801-1, EN 50173-1, EN 50575 |
| Flame Resistance | |
| LSHF (FRNC) | IEC 60332-1-2; IEC 60332-3-24; IEC 60754-2; IEC 61034; EN 50399 Class-B2ca-s1b-d1-a1 |
| Construction | |
| Central strength member | ⌀2.5mm FRP rod |
| Loose Tube | For ≤ 144 fibres, ø2.3 mm gel-filled loose tubes, with 12 fibres each For > 144 fibres, ø2.8 mm gel-filled loose tubes, with 24 fibres each |
| Water blocking | The core is water blocked using swellable tape and tread |
| Ripcord | Polyester ripcord for easy slitting of the sheath |
| Sheath | 1.5 mm FireRes® sheath, halogen free, flame retardant, UV stabilised, IEC 50290-2-27 |
| Physical Properties | |
| Fibre count and distribution | 48: 4 x 12F, 96: 8 x 12F, 144: 12 x 12F |
| Nominal diameter [mm] | 48F: 10.6, 96F: 11.8, 144F: 15.2 |
| Nominal weight [kg/km] | 48F: 105, 96F: 145, 144F: 240 |
| Short term tensile strength [N] | 1800 (fibre strain ≤ 0.6%) |
| Permanent tensile strength [N] | 600 (fibre strain ≤ 0.2%) |
| Crush (compressive strength) [N/100 mm] | 2000 |
| Impact [J] | 20 |
| Torsion | 5 cycles ± 1 turn |
| Kink | The cables do not form a kink when a loop is drawn together to a diameter of 12 times the cable nominal diameter |
| Minimum installation bending radius (loaded) [mm] | 48F: 212, 96F: 236, 144F: 304 |
| Minimum permanent bending radius (unloaded) [mm] | 48F: 106, 96F: 118, 144F: 152 |
| Temperature range | Installation -40°C to 70°C Operation -40°C to 70°C Storage -40°C to 70°C |
| Water penetration | No water on free end |
Downloads
| Datasheet | Download |
| Declaration of Performance (DoP) | Download |
