Description
Draka OM4 multimode fibre cable is designed for external and internal fibre optic installations including LAN and WAN backbones, fibre-to-the-business (FTTB), telecom access networks and building-to-building links. Its compact loose tube construction makes it suitable for installation in ducts, trays and containment systems where space and handling are important.

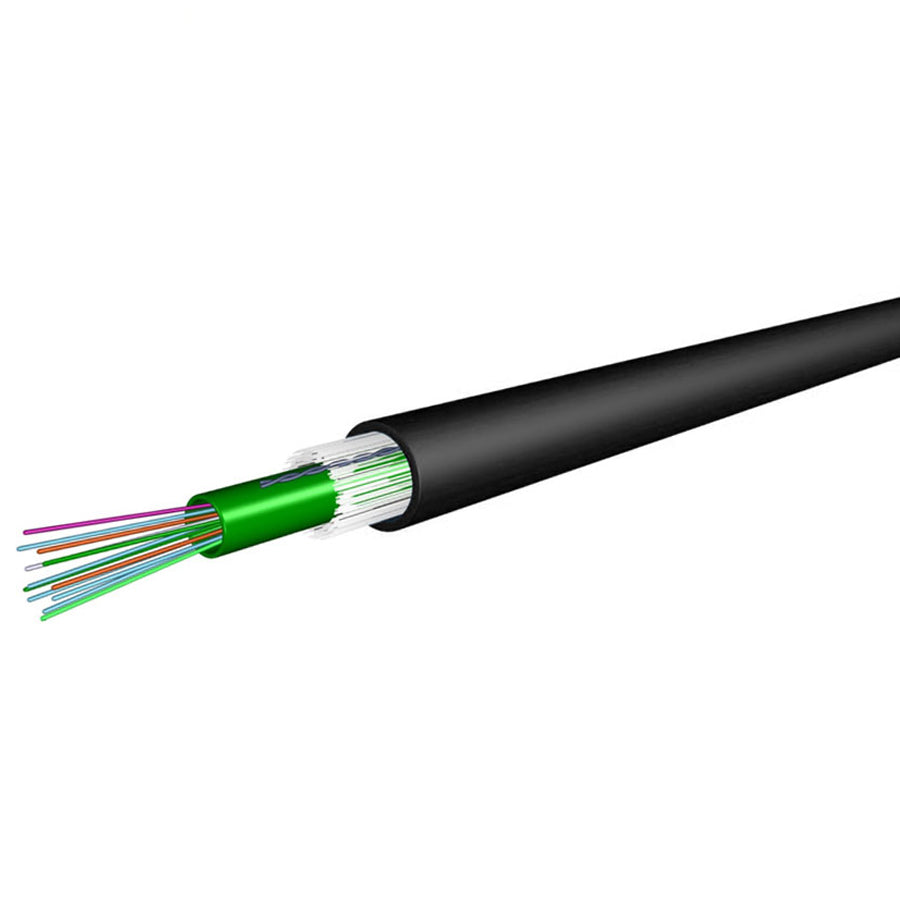

The cable uses a gel-filled loose tube containing 2 to 24 OM4 multimode fibres, protected by water-blocked E-Glass strength members and a UV-stabilised FireBur® LSZH sheath. The design provides moisture resistance and a degree of rodent protection, making it suitable for outdoor routing and exposed installations.
Manufactured to ISO 11801-1, EN 50173-1:2011 and IEC 60794-1 standards, the cable is compatible with standard OM4 multimode fibre systems used for 10Gb, 40Gb and 100Gb Ethernet applications.
The LSZH sheath complies with IEC 60332-1-2, IEC 60754-1, IEC 60754-2 and IEC 61034-2 for flame retardancy, low smoke emission and reduced corrosive gases. Suitable for use with standard multimode fibre splice closures, patch panels and termination hardware.
Specification
| Standards | |
| Compliance | ISO 11801-1, EN 50173-1:2011, IEC 60794-1 |
| Flame Resistance | |
| LSHF (LSOH) | IEC 60332-1-2, IEC 60754-1, IEC 60754-2, IEC 61034-2; Class Eca |
| Construction | |
| Loose tube | Ø2.8 mm gel-filled loose tube with 2 - 24 fibres |
| Strength member | Water-blocked E-Glass fibre elements |
| Sheath | 1.0 mm Blue (Black optional) FireBur® sheath, UV stabilised, IEC 50290-2-27 |
|
Physical Properties |
|
| Nominal outer diameter | 2 - 24 fibres: 5.8 mm |
| Nominal weight | 2 - 24 fibres: 40 kg/km |
| Maximum installation tensile strength | 2000 N (fibre strain ≤ 0.6%) |
| Permanent tensile strength | 750 N (fibre strain ≤ 0.2%) |
| Compressive strength (crush) | 2000 N / 100 mm |
| Impact | 15 Nm (no attenuation change, no broken cable elements) |
| Torsion | 5 cycles ± 1 turn |
| Kink | The cables do not form a kink when a loop is drawn together to a diameter of 100 mm |
| Minimum bending radius, unloaded (permanent) | R = 58 mm |
| Minimum bending radius, loaded (installation) | R = 116mm |
| Temperature range | Storage: -40C to +60C Installation: -30C to +40C Operation: -30C to +60C |
| Water penetration | No water on free end |
| Heat of combustion | 2-24 fibres: 630 MJ/km = 0.18 kWh/m |
