Description
This Draka OM4 multimode fibre optic cable is designed for internal and external network installations, including LAN and WAN backbones, fibre-to-the-building (FTTB) connections, telecom access networks and business connectivity projects.

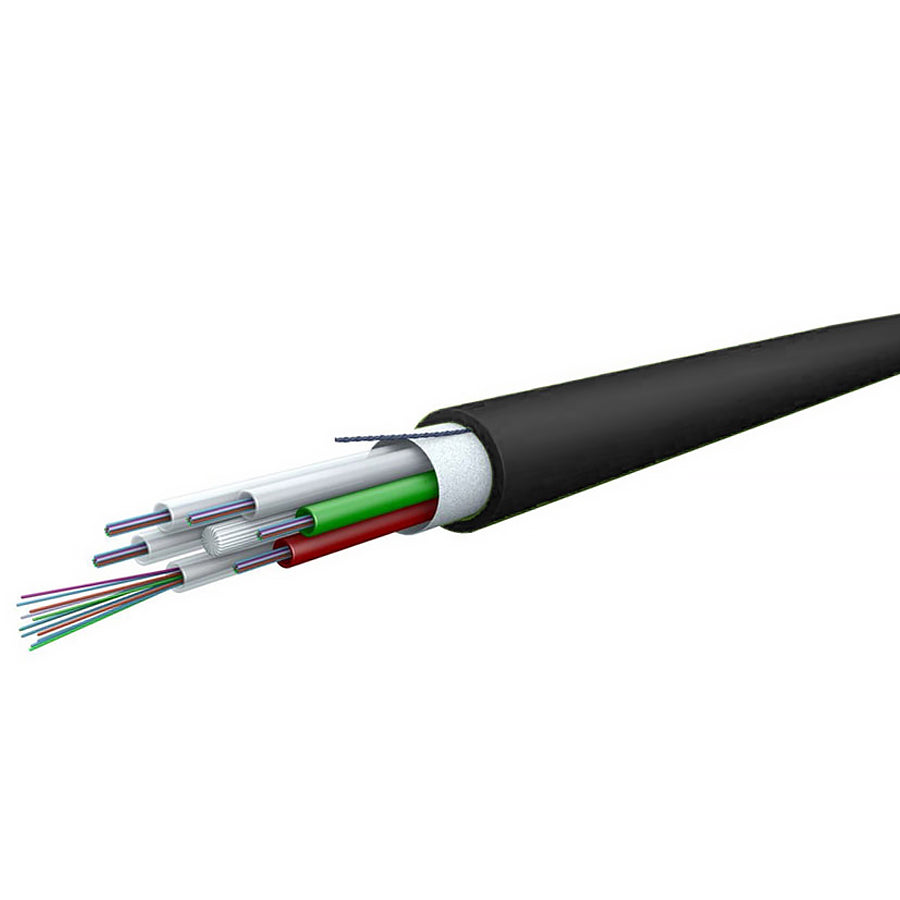

The cable features a stranded loose tube construction with gel-filled tubes containing up to 24 fibres per tube, providing protection against moisture ingress while supporting high-density fibre deployments. Its universal design makes it suitable for installation in ducts, cable trays and external network routes.
A UV-stabilised FireBur LSZH (Low Smoke Zero Halogen) outer sheath provides resistance to environmental exposure while meeting stringent fire performance requirements. The cable is CPR rated B2ca-s1a,d1,a1, making it suitable for installations where enhanced fire safety compliance is required.
E-Glass strength elements provide additional mechanical protection and a degree of rodent resistance for outdoor and underground applications.
Specification
| Application Properties | |
| Resistant to UV | UV Stabilised |
| Outdoor Installation with Rodent Protection | Yes |
| Operating Temperature | -40C to 70C |
| Installation Temperature | -20C to 60C |
| Storage Temperature | -30C to 60C |
| Bend Radius | During installation (loaded) = 20xOD, Permanent (unloaded) = 10xOD |
| Cable Construction | |
| Type of Tube | Stranded loose tube with 12 fibres gel-filled loose tubes of Ø2.3 mm for ≤144fo and 24 fibres gel-filled loose tubes of Ø2.8 mm for >144fo. |
| Longitudinal Water Blocking Cable and Radial Water Blocking Cable | Yes |
| Rip Cord | Yes |
| Material Outer Sheath | 1.5mm, Low Smoke Zero Halogen, FireRes® |
| Cable Shape | Round |
| Mechanical Properties | |
| Crush | 2,000 N/10cm |
| Max. tensile strength during installation | 1,800 N |
| Permanent tensile strength | 600 N |
| Impact test | 20 N·m |
| Torsion test | 5 cycles ±1turn |
| Kink | The cables do not form a kink when a loop is drawn together to a diameter 12 times the cable nominal diameter. |
| Fire Properties | |
| Flame Retardant | In accordance with EN/IEC 60332-3-24 |
| Halogen free | acc. IEC/EN 60754-1/2 |
| Low smoke | acc. IEC/EN 61034-2 |
| The reaction to fire according to the EN 50575 | From 24fo to 192fo is B2ca - s1b, d1, a1 From 216fo to 432fo is B2ca - s1, d1, a1 |
Cable Details
| Number of Fibres | Number of Fibres Per Tube | Nominal Outer Diameter [mm] | Min. Bending Radius, Fixed [mm] | Min. Permitted Bending Radius, During Cable Laying [mm] | Cable Weight [kg/km] | Fire Load [MJ/km] |
| 24 | 12 | 10.4 | 104 | 208 | 98 | 1331 |
| 48 | 12 | 10.4 | 104 | 208 | 105 | 1461 |
| 96 | 12 | 11.8 | 118 | 236 | 145 | 1970 |
| 144 | 12 | 15 | 150 | 300 | 240 | 2718 |
| 288 | 24 | 18 | 180 | 360 | 330 | 4082 |
| 432 | 24 | 18.2 | 182 | 364 | 300 | 5322 |
Downloads
| Datasheet | Download |
