Description

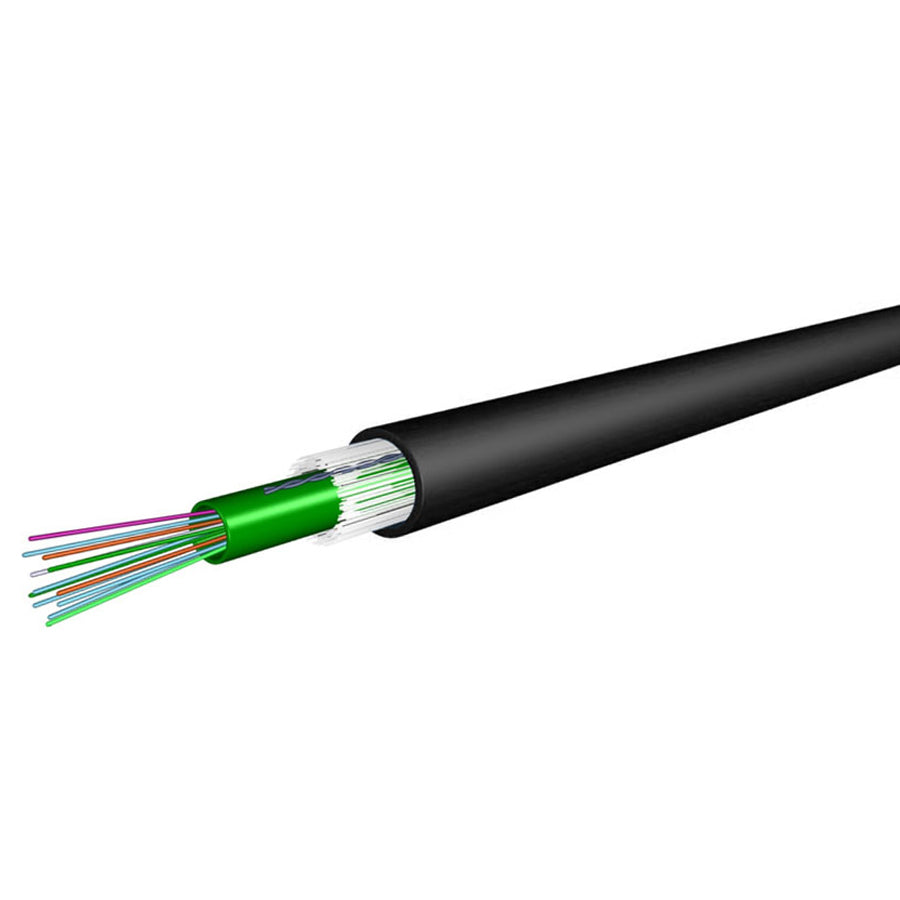

This Draka OS2 single-mode fibre optic cable is a loose tube cable designed for external and internal network infrastructure where reliable long-distance transmission is required. It is typically used in LAN and WAN backbones, telecom access networks, fibre-to-the-building (FTTB) and fibre-to-the-business (FTTBiz) installations.
The compact construction makes it suitable for duct installation, tray routing, and general-purpose outdoor use. Gel-filled loose tubes and water-blocked strength members provide protection against moisture ingress, making it appropriate for exposed or underground environments.
The cable is finished with a UV stabilised FireBur® LSZH sheath, compliant with CPR Class Eca, allowing use where basic fire performance is required while maintaining low smoke and halogen-free characteristics for indoor routing.
This cable is compatible with standard OS2 splicing, termination, and connectivity hardware. Suitable for installers requiring a compact, CPR-compliant fibre cable for duct and external runs, with flexibility to route internally where required.
Specification
| Standards | |
| Compliance | ISO 11801-1, EN 50173-1:2011, IEC 60794-1 |
| Flame Resistance | |
| LSHF (LSZH) | IEC 60332-1-2, IEC 60754-1, IEC 60754-2, IEC 61034-2; Class Eca |

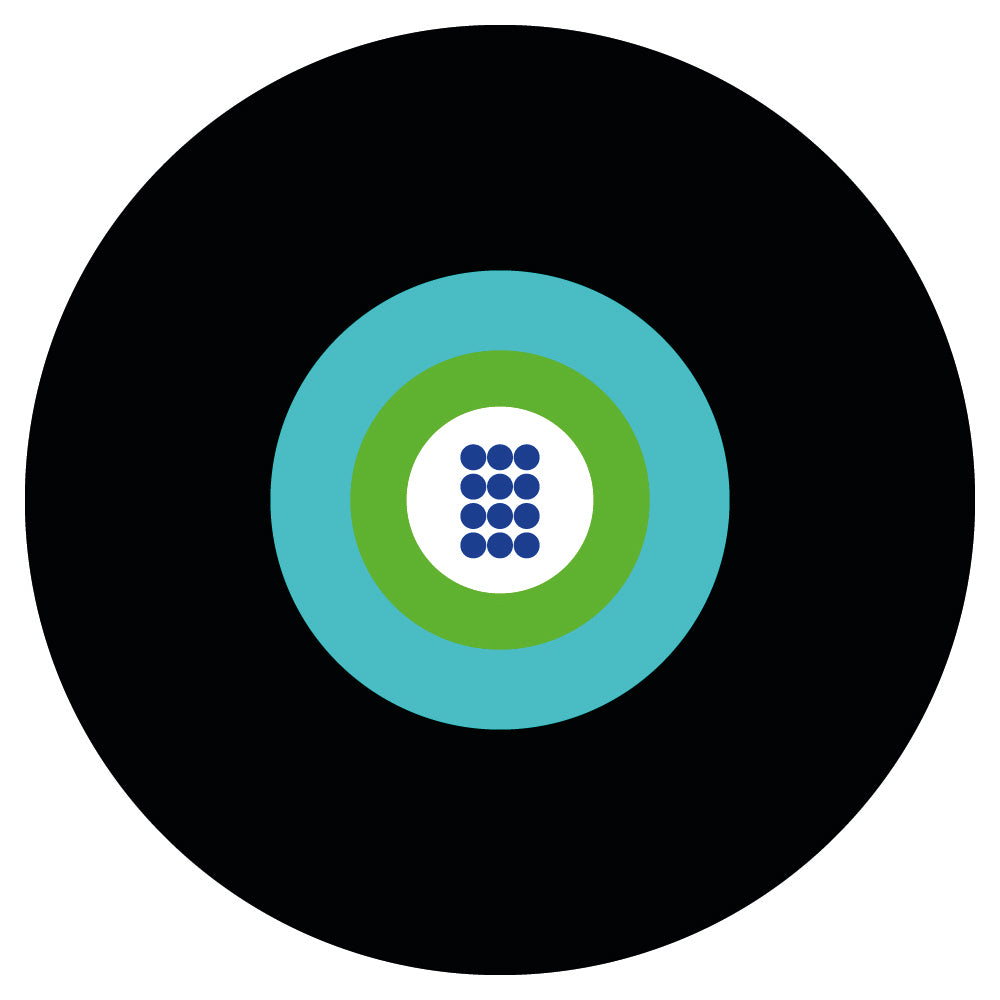

| Construction | |
| Loose tube | Ø2.8 mm gel-filled loose tube with 2 - 24 fibres |
| Strength member | Water-blocked E-Glass fibre elements |
| Sheath | 1.0 mm Black FireBur® sheath, UV stabilised, IEC 50290-2-27 |
| Physical Properties | |
| Nominal outer diameter | 2 - 24 fibres: 5.8 mm |
| Nominal weight | 2 - 24 fibres: 40 kg/km |
| Maximum installation tensile strength | 2000 N (fibre strain ≤ 0.6%) |
| Permanent tensile strength | 750 N (fibre strain ≤ 0.2%) |
| Compressive strength (crush) | 2000 N / 100 mm |
| Impact | 15 Nm (no attenuation change, no broken cable elements) |
| Torsion | 5 cycles ± 1 turn |
| Kink | The cables do not form a kink when a loop is drawn together to a diameter of 100 mm |
| Min. bending radius, unloaded (permanent) | R = 58 mm |
| Min. bending radius, loaded (installation) | R = 116 mm |
| Temperature range | Storage: -40°C to +60°C Installation: -30°C to +40°C Operation: -30°C to +60°C |
| Water penetration | No water on free end |
| Heat of combustion | 2-24 fibres: 630 MJ/km = 0.18 kWh/m |
Downloads
| Downloads | Datasheet |
