Description
This Draka OM4 multi-mode steel wire armoured fibre optic cable is designed for external and internal backbone applications where additional mechanical protection is required. Suitable for LAN and WAN networks, telecom access links, FTTB and FTTO installations, the cable can be installed in ducts, trays and other fixed infrastructure routes.
The loose tube construction uses jelly-filled tubes with waterblocked E-Glass strength members to help protect against moisture ingress and tensile stress during installation. Zinc-coated steel wire armouring provides additional resistance against impact, crushing and rodent damage, making the cable suitable for harsher installation environments.
The cable is manufactured with halogen-free, flame-retardant Afumex® sheathing and complies with CPR Class Eca requirements. It is compatible with OM4 multi-mode systems used in high-speed Ethernet and data centre applications.
Standards compliance includes ISO 11801, EN 50173-1 and IEC 60794-1, supporting use in fibre network installations where recognised industry standards are required.
Specification
| Standards | |
| Compliance | ISO 11801 2nd edition EN 50173-1:2002 IEC 60794-1 |
| Fire Rating | |
| IEC 60332-1-2, CPR Class Eca | Single vertical wire test |
| IEC 60754-1 | No halogens |
| IEC 60754-2 | No acid matters |
| IEC 61034-2 | No dense smoke |

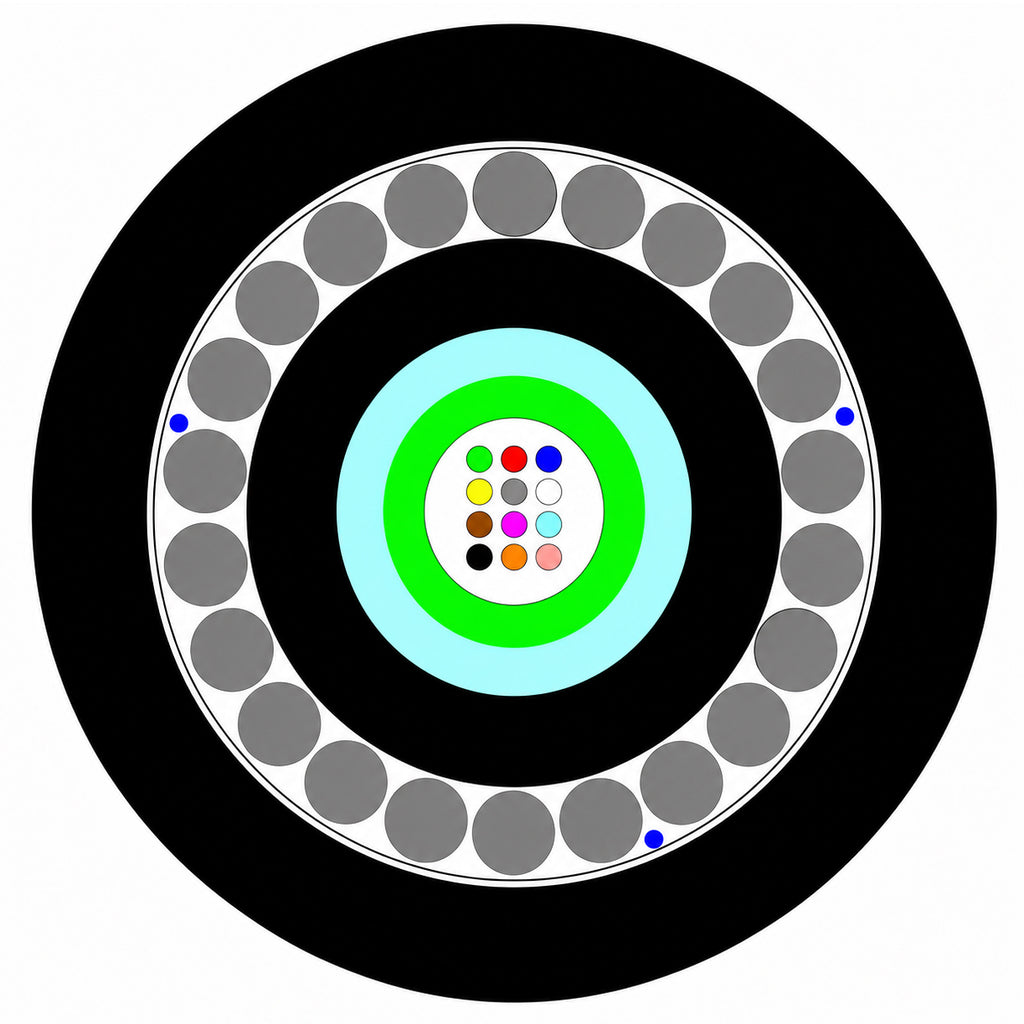

| Construction | |
| Loose tube | Ø2.8 mm jelly filled green colored loose tube with 2 - 12 fibres; Ø3.5 mm loose tube with 24 fibres |
| Strength member | Waterblocked E-Glass fibre elements |
| Ripcord | 1 |
| Inner sheath | 0.8 mm black Afumex®, Halogen free, flame resistant thermoplastic sheathing compound acc. to EN 50290-2-27, UV stabilised |
| Armouring | ø0.9 mm zinc coated steel wires according to IEC 60502 |
| Ripcords | 2 |
| Over sheath | 1.4 mm black Afumex® , Halogen free, flame resistant thermoplastic sheathing compound acc. to EN 50290-2-27, UV stabilised |
|
Physical Properties |
|
| Nominal outer diameter | 2 - 12 fibres: 10.8 mm 16 - 24 fibres: 11.2 mm |
| Nominal weight | 2 - 12 fibres: 215 kg/km 18 - 24 fibres: 230 kg/km |
| Maximum installation tensile strength | 4000 N (fibre strain less than 1/2 of proof test level) |
| Short term tensile strength | 2000 N (fibre strain less than 1/3 of proof test level) |
| Permanent tensile strength | 1000 N (no attenuation change, fibre strain less than 1/4 of proof test level) |
| Compressive strength (crush) | 2000 N |
| Impact | 15 Nm (no attenuation change, no broken cable elements) |
| Torsion | 5 cycles ± 1 turn |
| Kink | The cables do not form a kink when a loop is drawn together to a diameter of 20xD (Cable diameter) mm |
| Minimum bending radius, unloaded | R = 100mm |
| Minimum bending radius, loaded | R = 160 mm |
| Temperature range | Storage: -40C to +60C Installation: -10C to +50C Operation: -40C to +60C |
| Water penetration | No water on free end (core excl. armouring) |
Downloads
| Datasheet | Download |
