Description
This OS2 loose tube fibre optic cable is designed for external and internal installations where durability and flexibility are required, and where termination is typically completed via on-site fusion splicing. It is suitable for backbone links, duct installations and building entry runs where environmental protection and fire performance are both important.

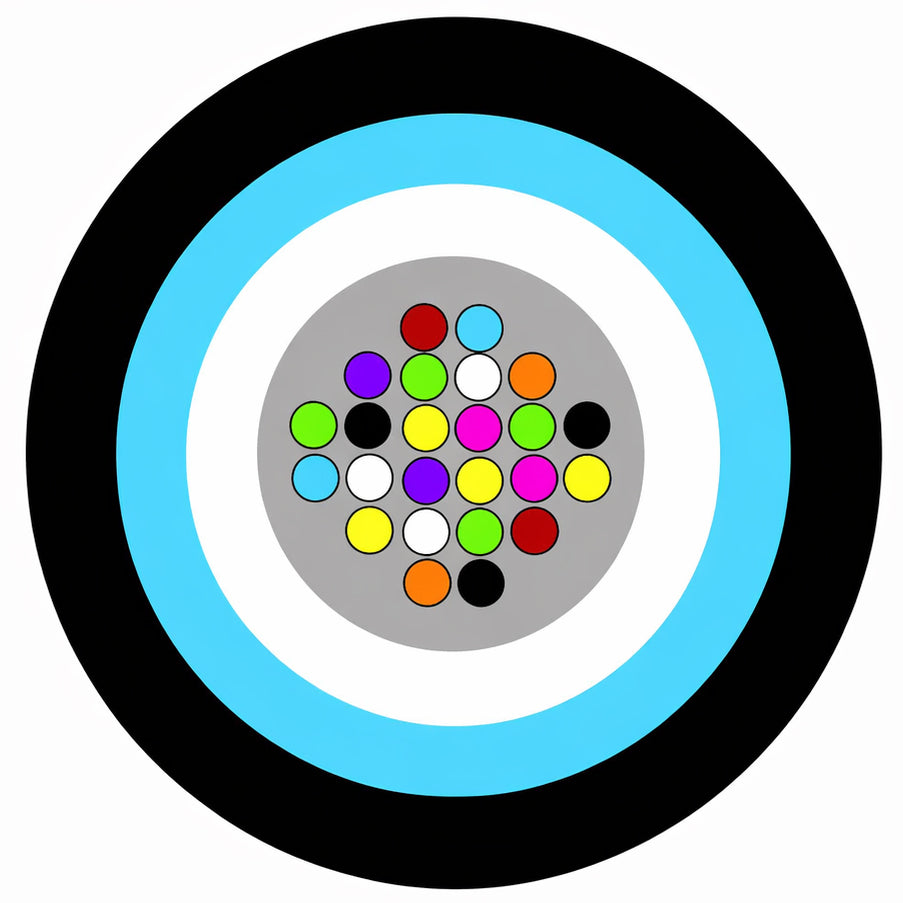

The construction uses a central loose tube containing colour-coded 250μm fibres, allowing straightforward identification during splicing. The tube is reinforced with E-glass strength members to provide mechanical protection, and finished with a black LSZH (Low Smoke Zero Halogen) outer sheath for use in areas where fire safety and low smoke emission are required.
This cable is commonly used in telecoms networks, campus infrastructure and commercial fibre installations requiring OS2 singlemode performance for long-distance transmission.
The cable is moisture resistant and suitable for external routing, including ducts and entry points into buildings.
Compatible with standard fusion splicing equipment and fibre management systems, this cable integrates easily into existing singlemode infrastructure.
Note: Price is per metre, use quantity box to select the length. This cable is cut to order and is non-returnable.
Specification
| Jacket Material | Black FRNC/LSZH |
| Max. Tensile Strength | 1100N |
| Crush Resistance | 2000 N/10cm |
| Impact Resistance | 3 impacts (w/20N.m) |
| Min. Bend Radius | 15 x cable diameter |
| Min. Bend Radius (Load) | 20 x cable diameter |
| Moisture Resistance | Passed |
| Temperature Range | Installation: -5°C to +50°C, Operation: -20°C to +70°C, Storage: -30°C to +70°C |
| Nominal Weight | 49 kg/km |
| Standard Put-up Length | 2100m, 4100m |
| Loose Tube Diameter | 3.0mm |
| Outer Jacket Thickness | 1.3 +/- 0.3mm |
| Cable Outer Diameter | 6.4 +/- 0.5mm |
| LSZH Jacket Conforms To | IEC 60332-1, IEC 61034 and IEC 60754 |
| Reaction to Fire Rating | Eca |
Downloads
| Datasheet | Download |
| Fibre Specifications | Download |
