Description

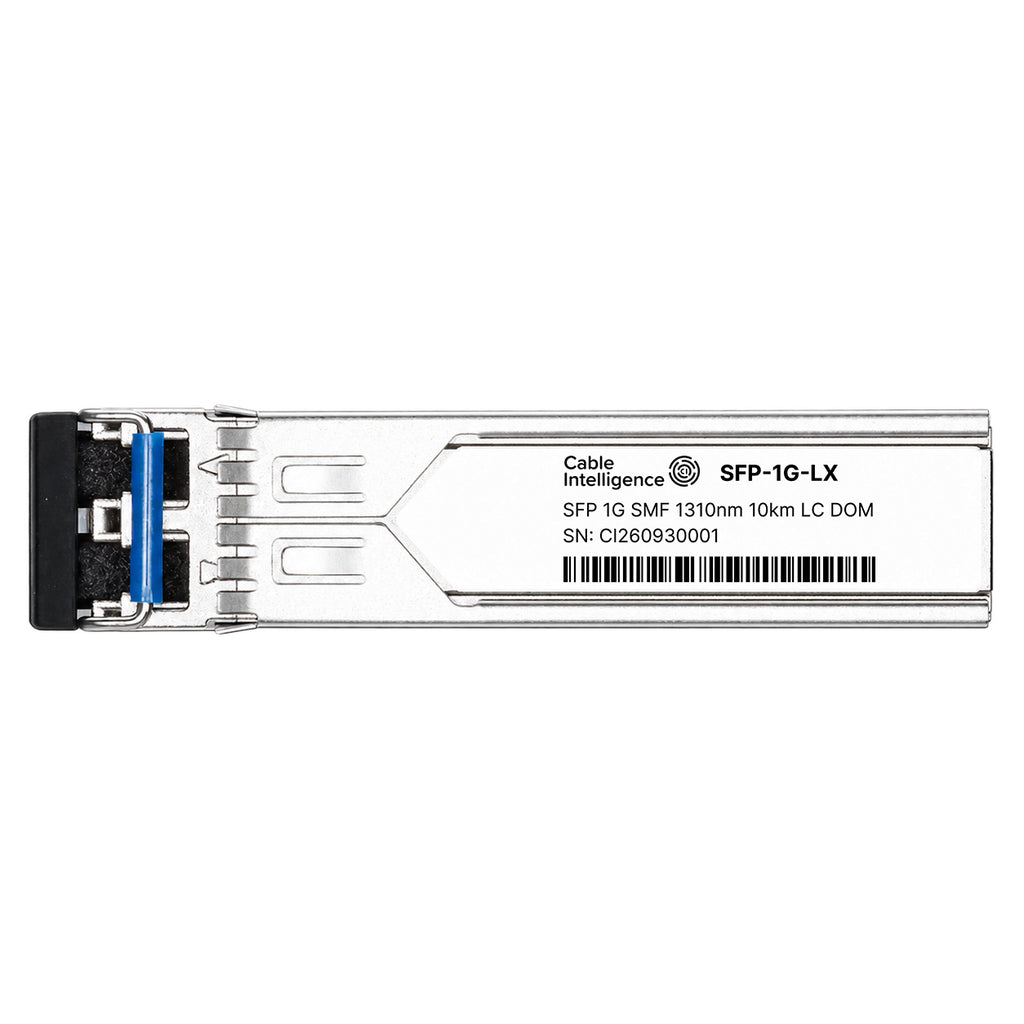

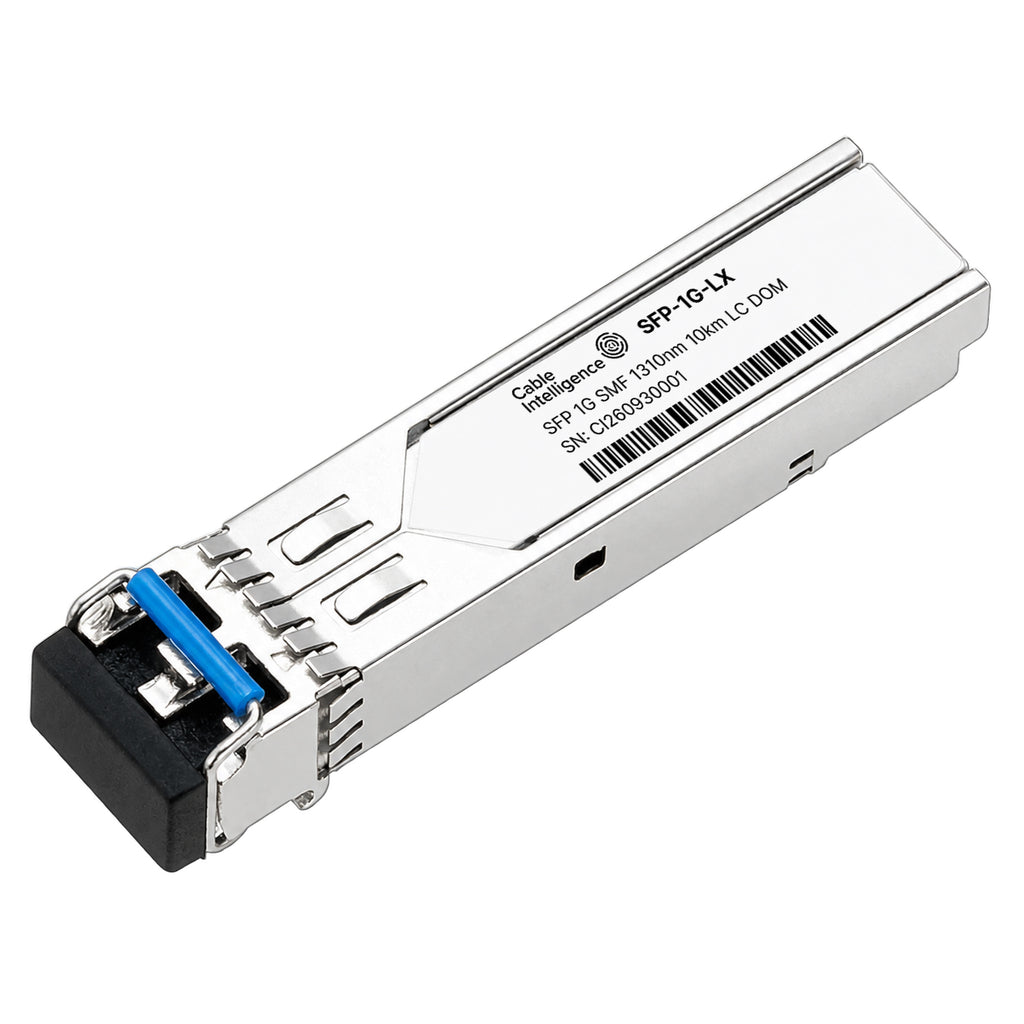

This 1G 1000BASE-LX/LH SFP optical transceiver supports Gigabit Ethernet connections over single-mode fibre at distances of up to 10km. Operating at a nominal wavelength of 1310nm, it uses a duplex LC interface with separate transmit and receive fibres.
Designed for compatible 1G SFP ports, the module is suitable for switch-to-switch links and connections to routers or servers. Typical uses include enterprise fibre uplinks, campus networks and connections between communications rooms where singlemode fibre is required.
The transceiver supports a 1Gbps Ethernet connection with a 1.25Gbps optical line rate. Its compact, hot-pluggable SFP format allows installation and replacement in supported equipment without powering down the host, helping simplify network maintenance and upgrades.
Digital Optical Monitoring (DOM), also known as Digital Diagnostic Monitoring (DDM), is supported for checking transceiver operating information through compatible host equipment. This provides useful diagnostic information when commissioning links or investigating connectivity problems.

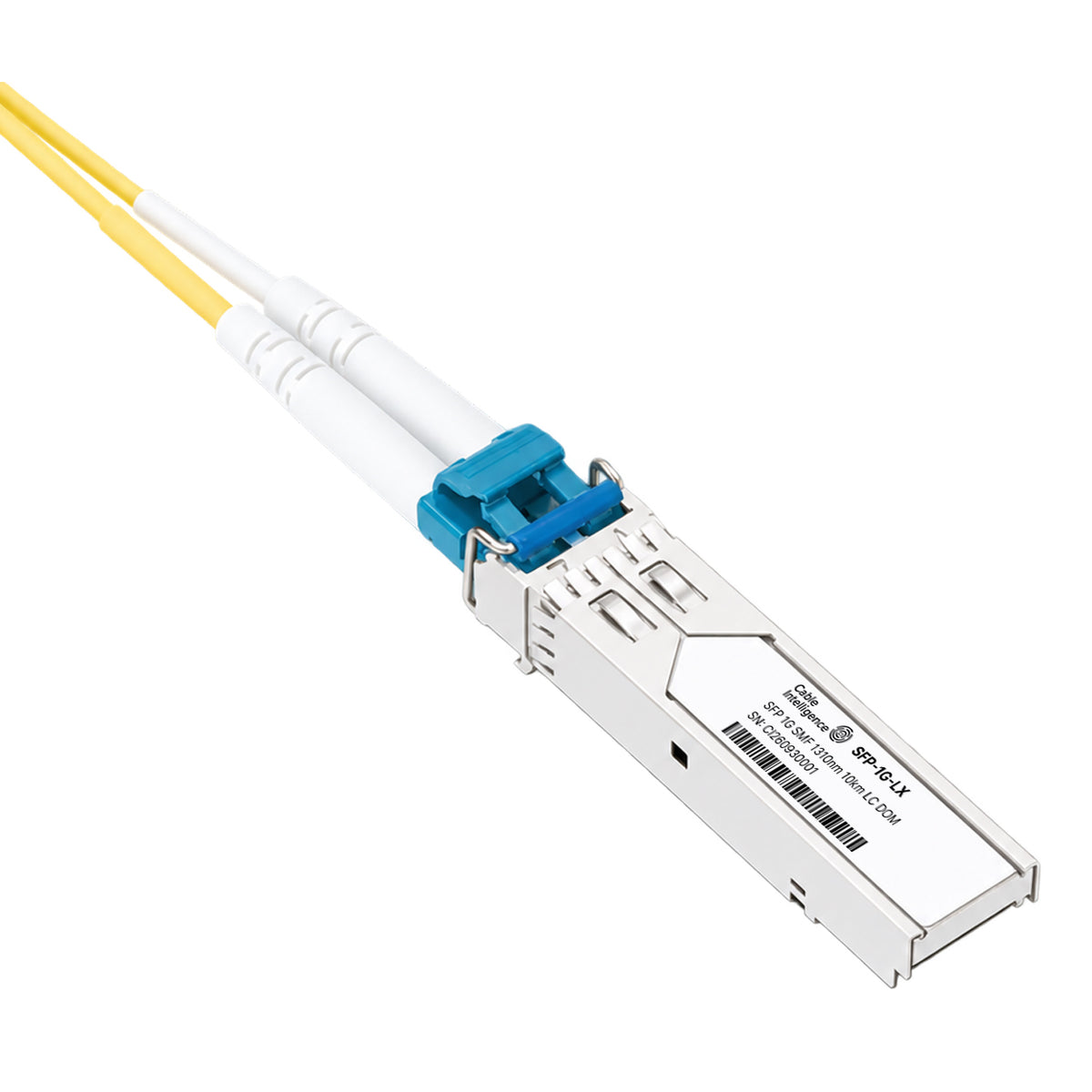

Use with duplex single-mode fibre cabling and a matching Gigabit LX/LH optical interface at the opposite end. The achievable transmission distance depends on the loss of the complete fibre link, including connectors and splices.
Transceivers are coded in-house and dispatched from our UK warehouse. Select the compatibility option required for your equipment. Check that the host port supports 1G optical SFP operation and the selected transceiver coding before installation. If you need help choosing, contact us with your equipment make and model before ordering.
Key Features
- Gigabit Ethernet connectivity: supports 1000BASE-LX fibre links.
- Up to 10km transmission: designed for 9/125µm singlemode fibre.
- 1310nm optics: FP laser transmitter with a PIN photodiode receiver.

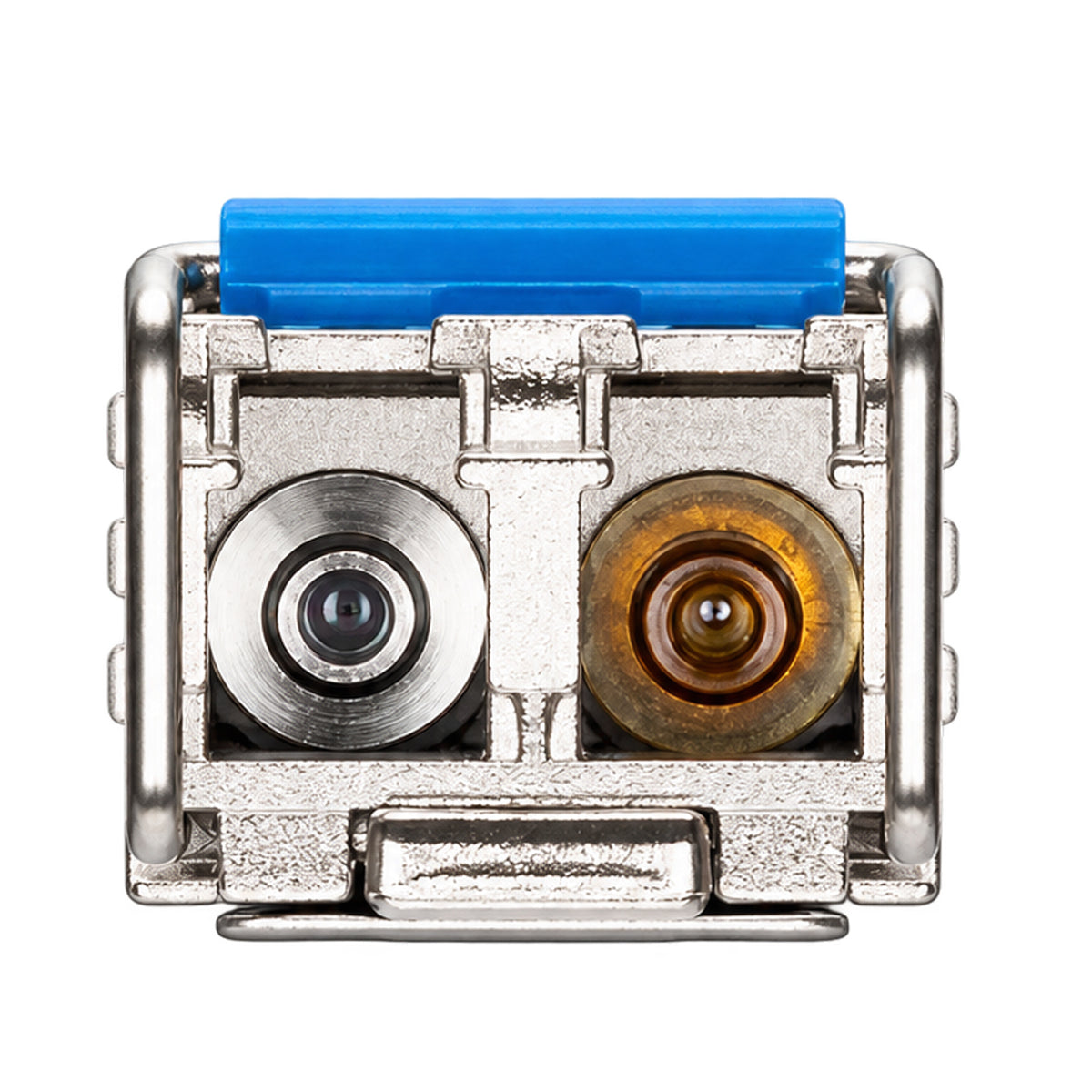

- Duplex LC interface: separate optical connections for transmitting and receiving.
- DOM/DDM support: diagnostic monitoring through compatible network equipment.

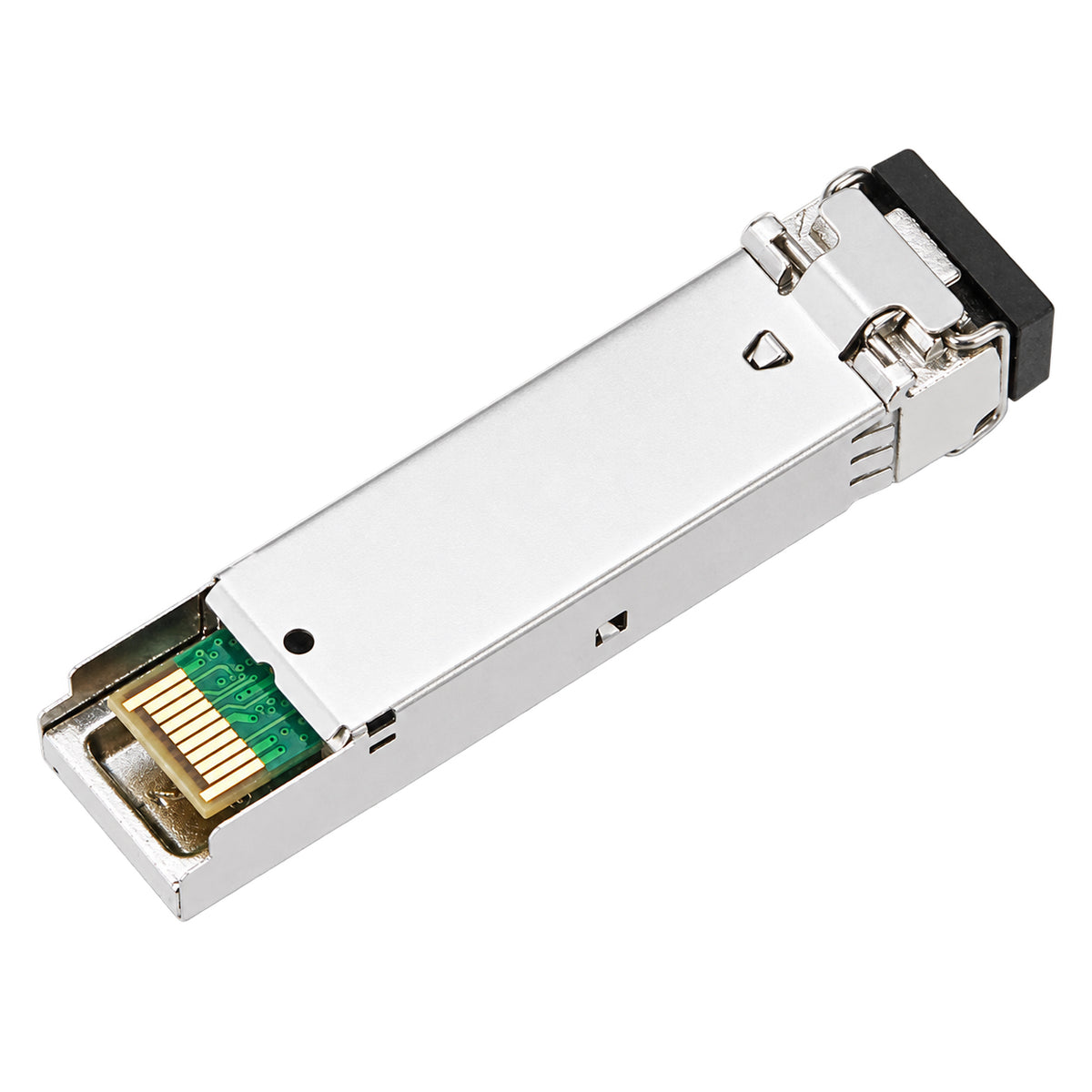

- Hot-pluggable SFP format: supports installation and replacement in operational host equipment.
- Switch, router and server applications: suitable for compatible Gigabit fibre interfaces.
Specifications
| Form factor | SFP |
| Ethernet application | Gigabit Ethernet, 1000BASE-LX |
| Ethernet data rate | 1Gbps |
| Optical line rate | Up to 1.25Gbps |
| Nominal wavelength | 1310nm |
| Maximum transmission distance | 10km, subject to link loss |
| Fibre type | 9/125µm singlemode |
| Optical connector | Duplex LC/UPC |
| Fibre count | 2 |
| Transmitter type | FP laser |
| Receiver type | PIN photodiode |
| Digital diagnostics | DOM/DDM supported |
| Power consumption | <1W |
| Power supply | Single +3.3V |
| Operating temperature | 0°C to +70°C |
| Receiver sensitivity | -24dBm |
| Receiver overload | -3dBm |
| Hot-pluggable | Yes |
| Compliance | RoHS, CE, UKCA, SFP MSA |
| Equipment compatibility | Dependent on selected coding and host support |
Downloads
| Datasheet | Download |
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Applications
Switch uplinks
Longer fibre links between compatible network switches.
Enterprise networks
Building backbones and connections between buildings.
Data centres
Longer links within or between data centre facilities.
Campus networks
Connections between buildings across a campus.
Security & CCTV
Fibre uplinks connecting remote CCTV network switches across larger sites.
Industrial Networks
Links between compatible switches across factories, warehouses and industrial sites.

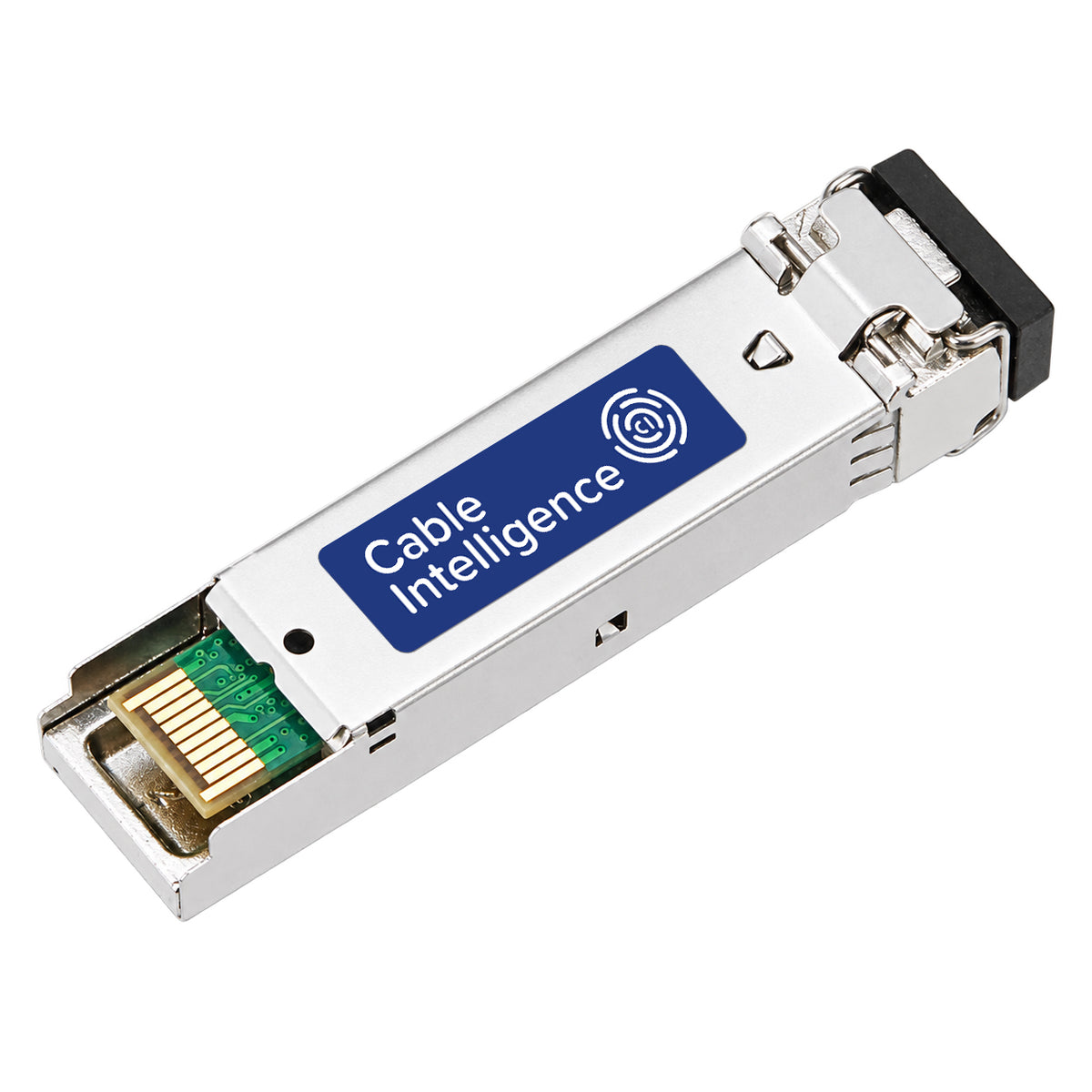

Stand out with custom branding
Make your transceivers easily identifiable!
We can design and print custom labels for your transceivers, incorporating your company logo, part codes, asset references or project details.
Whether you need your own branding or clearer identification for installation and maintenance, we can tailor the label layout to your requirements.
We are able to provide this service free of charge due to our in-house production team.
Contact our team once you place your order to discuss your artwork and the information you’d like included.
Please note: complex artwork production may add 1-2 days to your lead time.
Tested for reliable connectivity
Compatibility, optical performance and stability checks help ensure your transceivers are ready for reliable operation. We perform the following tests on all our compatible 1G LH/LX transceivers for your peace of mind.
Host interoperability
Checks module recognition, link establishment and operating information in the intended host equipment.
Ethernet traffic
Passes Ethernet traffic through the transceiver to check successful transmission and reception at its specified operating speed.
Bit error ratio (BERT)
Compares transmitted and received test patterns to measure the proportion of bits received incorrectly.
Optical eye diagram
Analyses the transmitted optical signal, including average optical power, extinction ratio and signal margin.
Receiver sensitivity
Checks reception as the incoming optical signal is reduced, assessing performance at low received power levels.
Diagnostic verification
Checks that the host equipment can read the module’s diagnostic information and reviews its reported status.
