Description

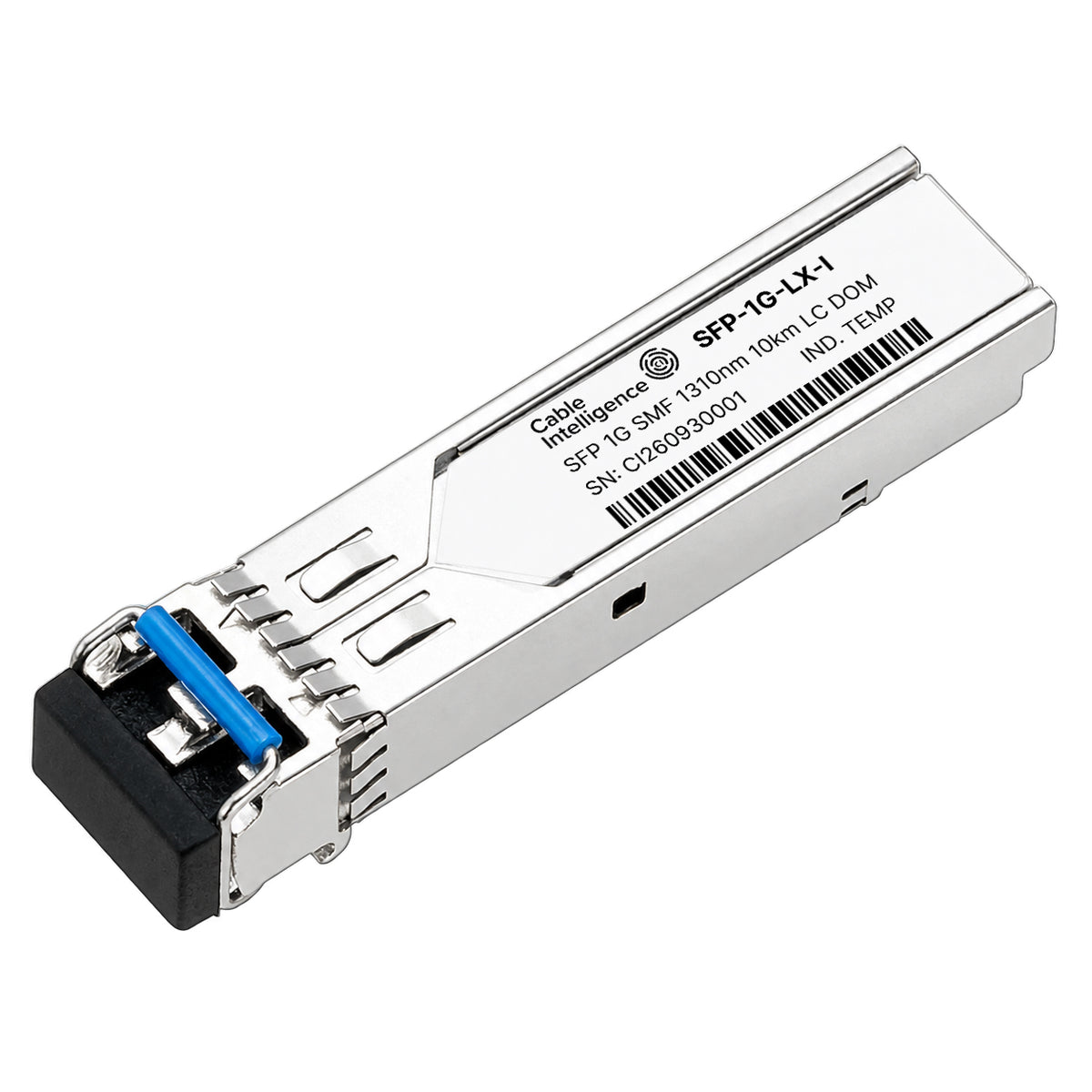

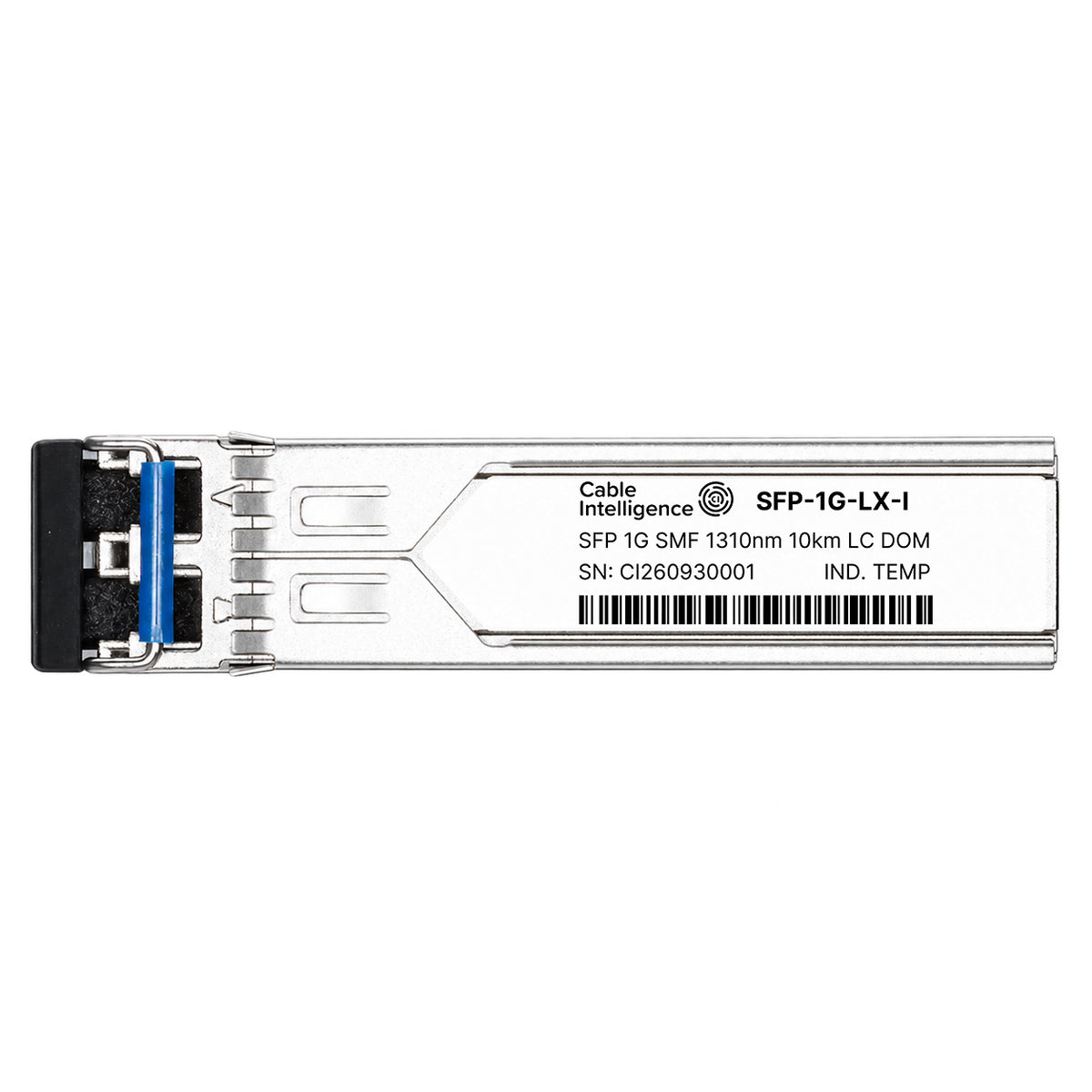

This industrial temperature 1G 1000BASE-LX/LH SFP optical transceiver supports Gigabit Ethernet connections over single-mode fibre at distances of up to 10km. Operating at a nominal wavelength of 1310nm, it uses a duplex LC interface with separate transmit and receive fibres.
Designed for compatible 1G SFP ports, the module is suitable for switch-to-switch links and connections to routers or servers. Its industrial temperature rating makes it suitable for supported equipment in environments with wider temperature variations, including factory networks and outdoor network cabinets, provided operating conditions remain within the specified limits.
The transceiver supports a 1Gbps Ethernet connection with a 1.25Gbps optical line rate. Its compact, hot-pluggable SFP format allows installation and replacement in supported equipment without powering down the host, helping simplify network maintenance and upgrades.
Digital Optical Monitoring (DOM), also known as Digital Diagnostic Monitoring (DDM), is supported for checking transceiver operating information through compatible host equipment. This provides useful diagnostic information when commissioning links or investigating connectivity problems.

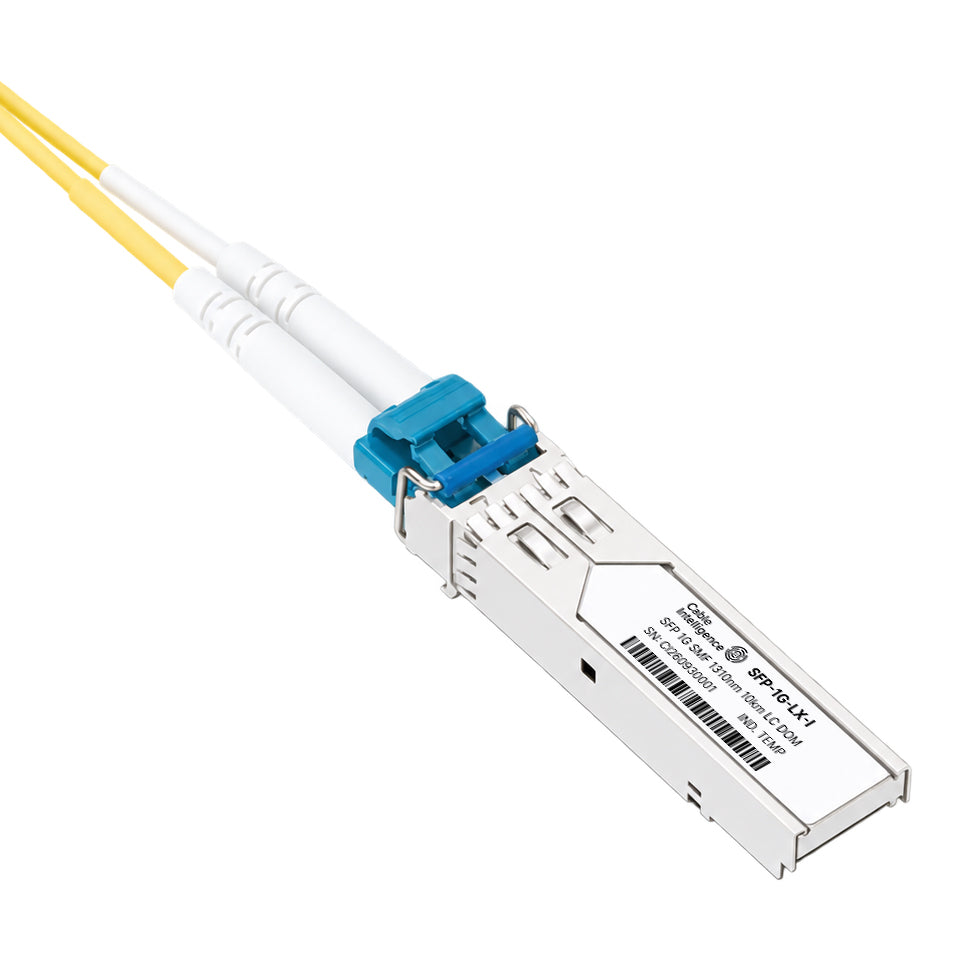

Use with duplex single-mode fibre cabling and a matching Gigabit LX/LH optical interface at the opposite end. The achievable transmission distance depends on the loss of the complete fibre link, including connectors and splices. For industrial applications, ensure the host equipment and other link components are also rated for the installation environment.
Transceivers are coded in-house and dispatched from our UK warehouse. Select the compatibility option required for your equipment. Check that the host port supports 1G optical SFP operation and the selected transceiver coding before installation. If you need help choosing, contact us with your equipment make and model before ordering.
Key Features
- Industrial temperature rating: designed for operation across a wider temperature range than commercial temperature modules.
- Gigabit Ethernet connectivity: supports 1000BASE-LX fibre links.
- Up to 10km transmission: designed for 9/125µm singlemode fibre.
- 1310nm optics: FP laser transmitter with a PIN photodiode receiver.

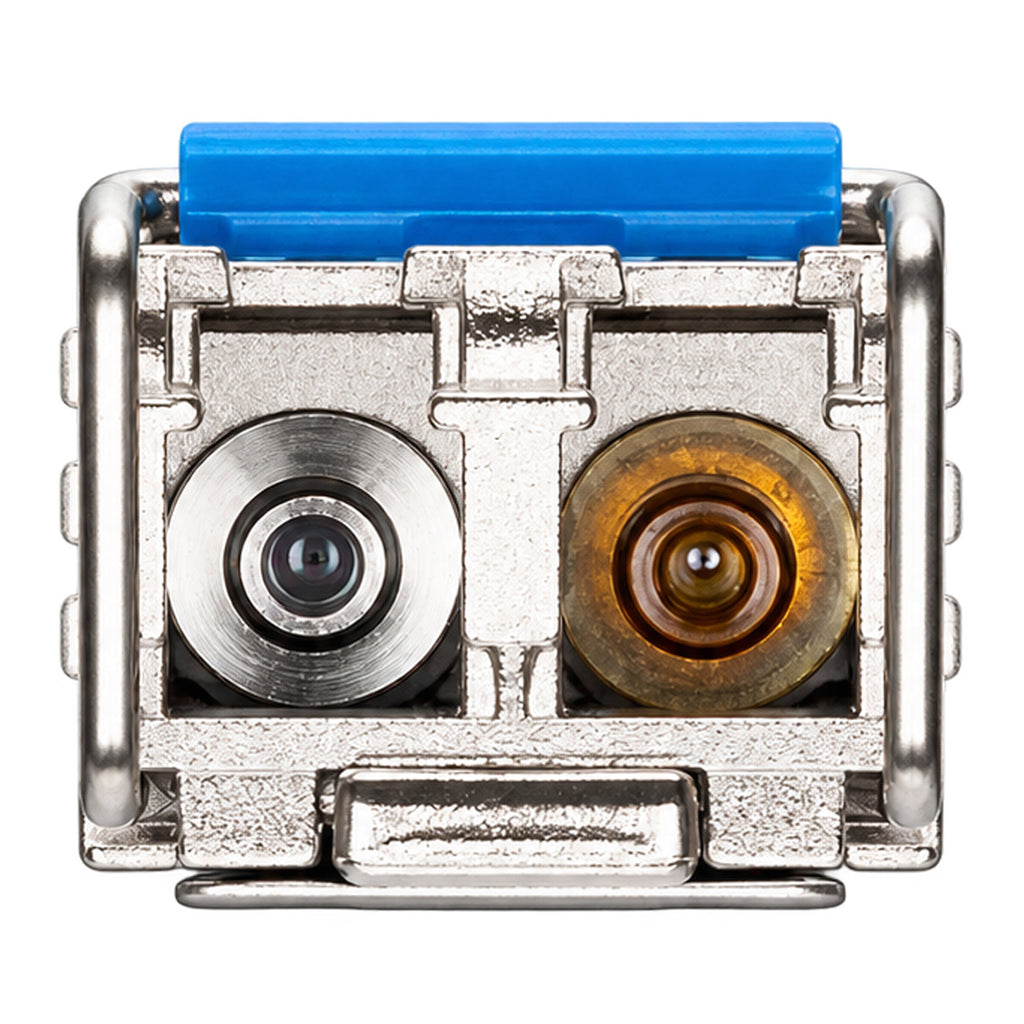

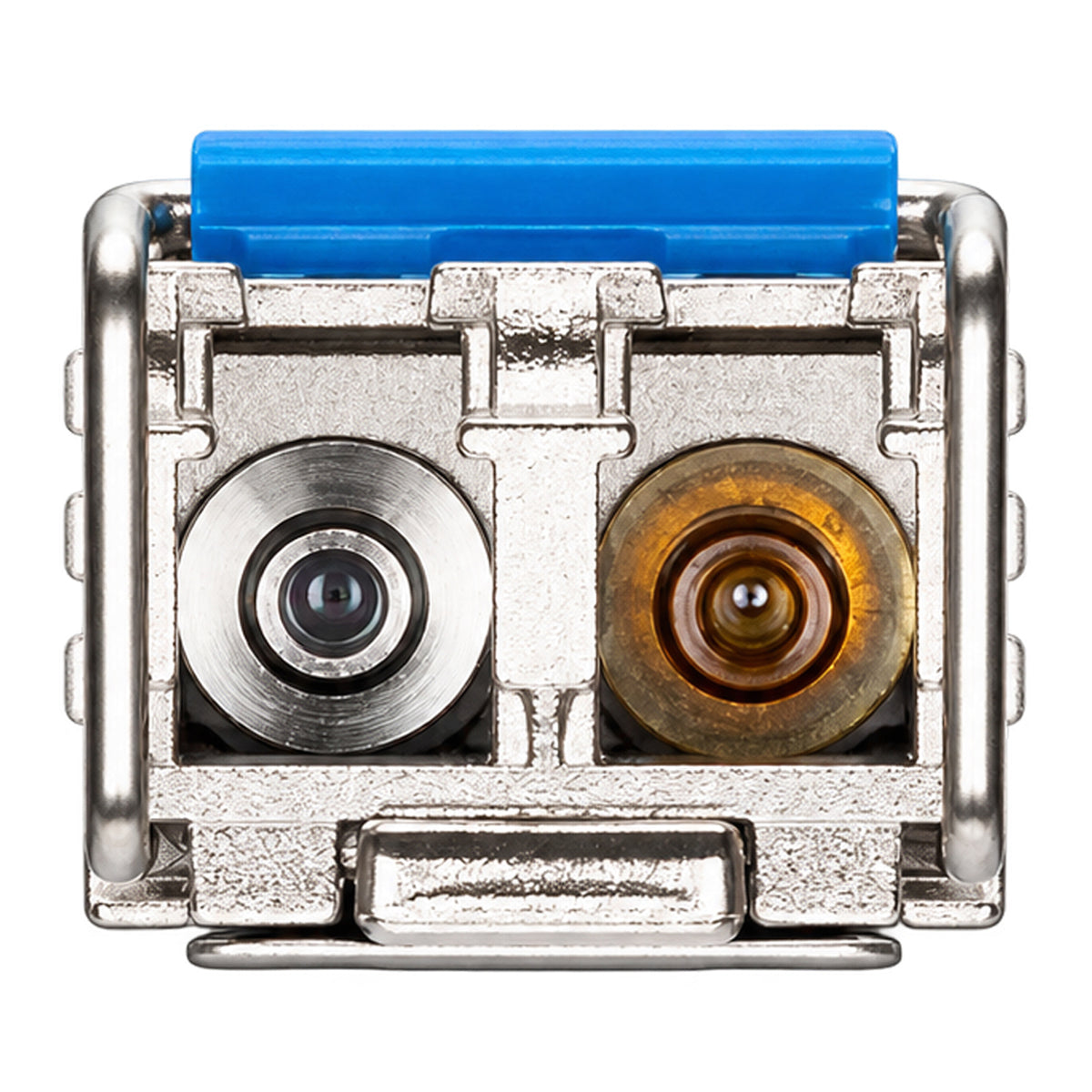

- Duplex LC interface: separate optical connections for transmitting and receiving.
- DOM/DDM support: diagnostic monitoring through compatible network equipment.

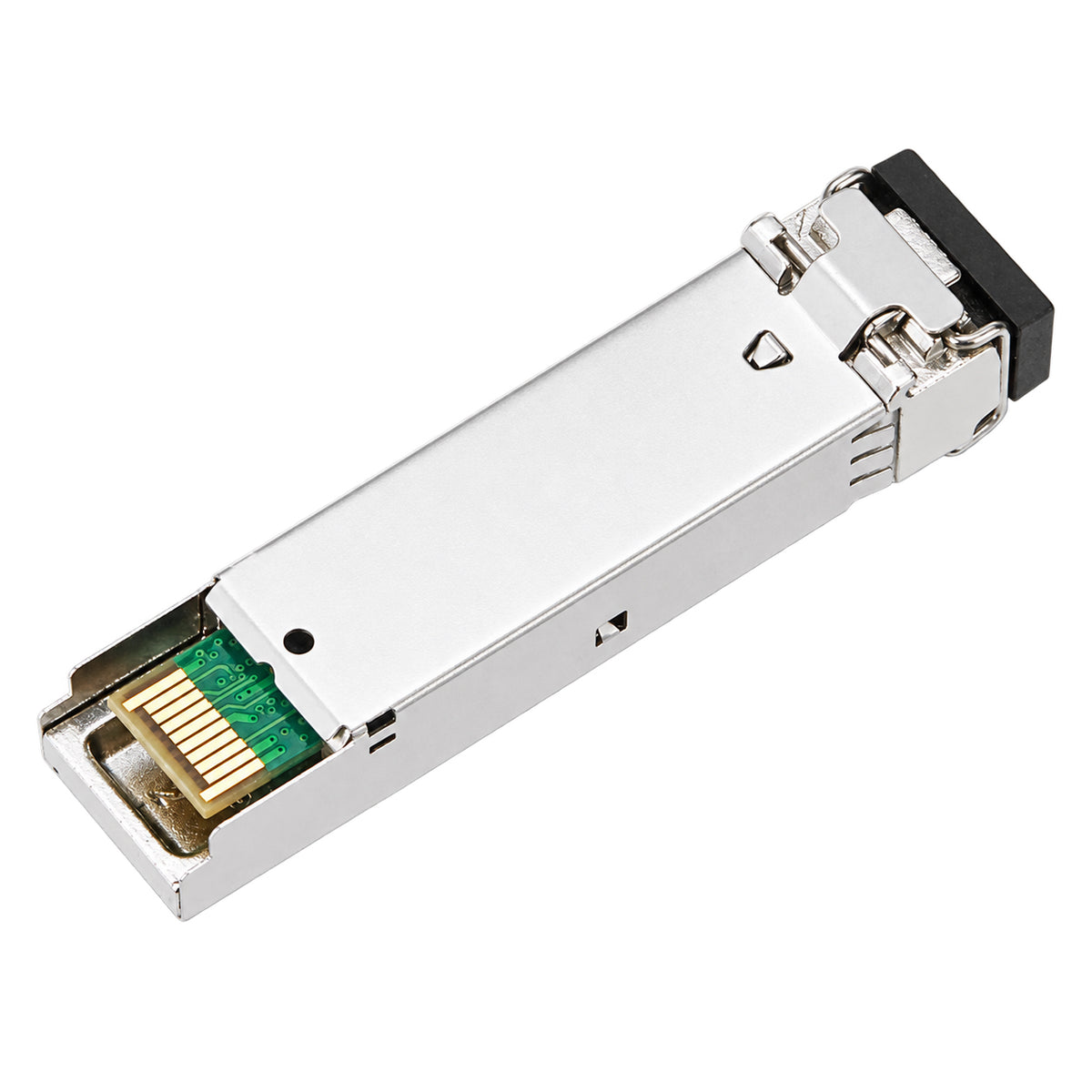

- Hot-pluggable SFP format: supports installation and replacement in operational host equipment.
- Industrial and enterprise applications: suitable for compatible Gigabit fibre interfaces in switches, routers and servers.
Specifications
| Form factor | SFP |
| Ethernet application | Gigabit Ethernet, 1000BASE-LX |
| Ethernet data rate | 1Gbps |
| Optical line rate | Up to 1.25Gbps |
| Nominal wavelength | 1310nm |
| Maximum transmission distance | 10km, subject to link loss |
| Fibre type | 9/125µm singlemode |
| Optical connector | Duplex LC/UPC |
| Fibre count | 2 |
| Transmitter type | FP laser |
| Receiver type | PIN photodiode |
| Digital diagnostics | DOM/DDM supported |
| Power consumption | <1W |
| Power supply | Single +3.3V |
| Temperature grade | Industrial (I-Temp) |
| Operating temperature | -40°C to +85°C |
| Receiver sensitivity | -24dBm |
| Receiver overload | -3dBm |
| Hot-pluggable | Yes |
| Compliance | RoHS, CE, UKCA, SFP MSA |
| Equipment compatibility | Dependent on selected coding and host support |
Downloads
| Datasheet | Download |
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Applications
Industrial Ethernet Networks
Connect compatible industrial switches over single-mode fibre across sites, with links up to 10km.
Factory & Automation Networks
Provide Gigabit fibre connections between compatible switches serving production areas and automation equipment.
Outdoor Network Cabinets
Connect compatible equipment housed in suitable outdoor cabinets where wider temperature variation is expected.
Utilities & Infrastructure
Support fibre links between compatible network equipment at utility sites and infrastructure facilities.
Campus & Building Links
Link buildings across a site using single-mode fibre, including connections through unheated communications areas.
Transport & Roadside Networks
Support Gigabit fibre links between compatible switches in roadside cabinets and transport infrastructure, where temperatures can vary.
Stand out with custom branding
Make your transceivers easily identifiable!
We can design and print custom labels for your transceivers, incorporating your company logo, part codes, asset references or project details.
Whether you need your own branding or clearer identification for installation and maintenance, we can tailor the label layout to your requirements.
We are able to provide this service free of charge due to our in-house production team.
Contact our team once you place your order to discuss your artwork and the information you’d like included.
Please note: complex artwork production may add 1-2 days to your lead time.
Tested for reliable connectivity
Compatibility, optical performance and stability checks help ensure your transceivers are ready for reliable operation. We perform the following tests on all our compatible 1G LH/LX transceivers for your peace of mind.
Host interoperability
Checks module recognition, link establishment and operating information in the intended host equipment.
Ethernet traffic
Passes Ethernet traffic through the transceiver to check successful transmission and reception at its specified operating speed.
Bit error ratio (BERT)
Compares transmitted and received test patterns to measure the proportion of bits received incorrectly.
Optical eye diagram
Analyses the transmitted optical signal, including average optical power, extinction ratio and signal margin.
Receiver sensitivity
Checks reception as the incoming optical signal is reduced, assessing performance at low received power levels.
Diagnostic verification
Checks that the host equipment can read the module’s diagnostic information and reviews its reported status.
