Description

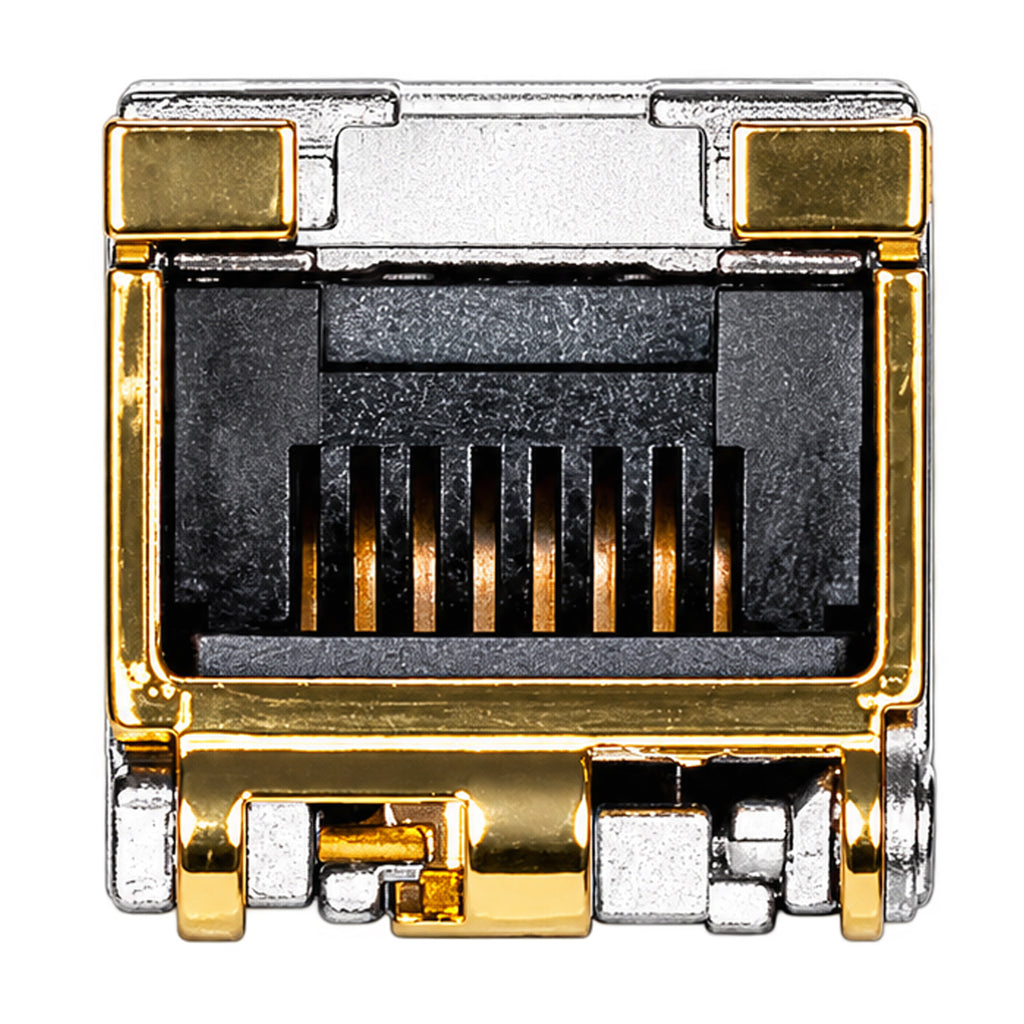

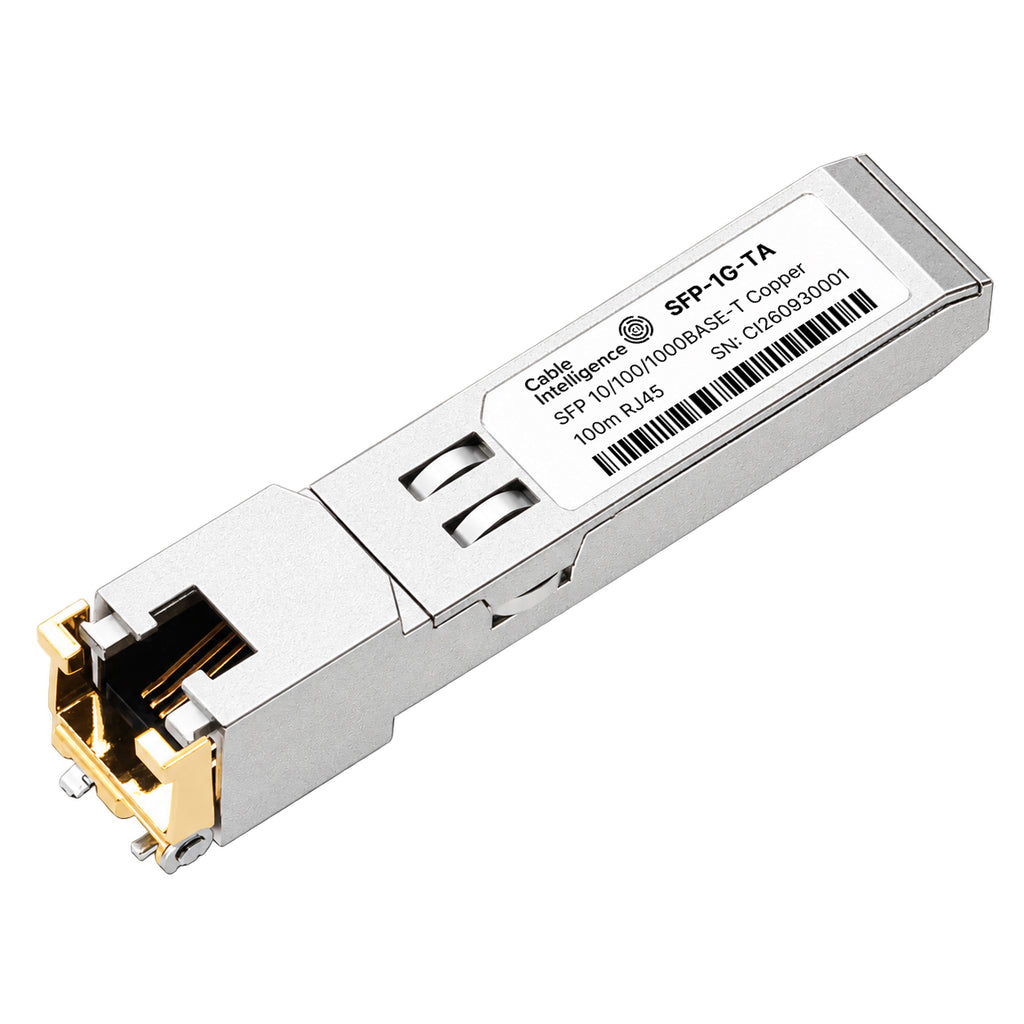

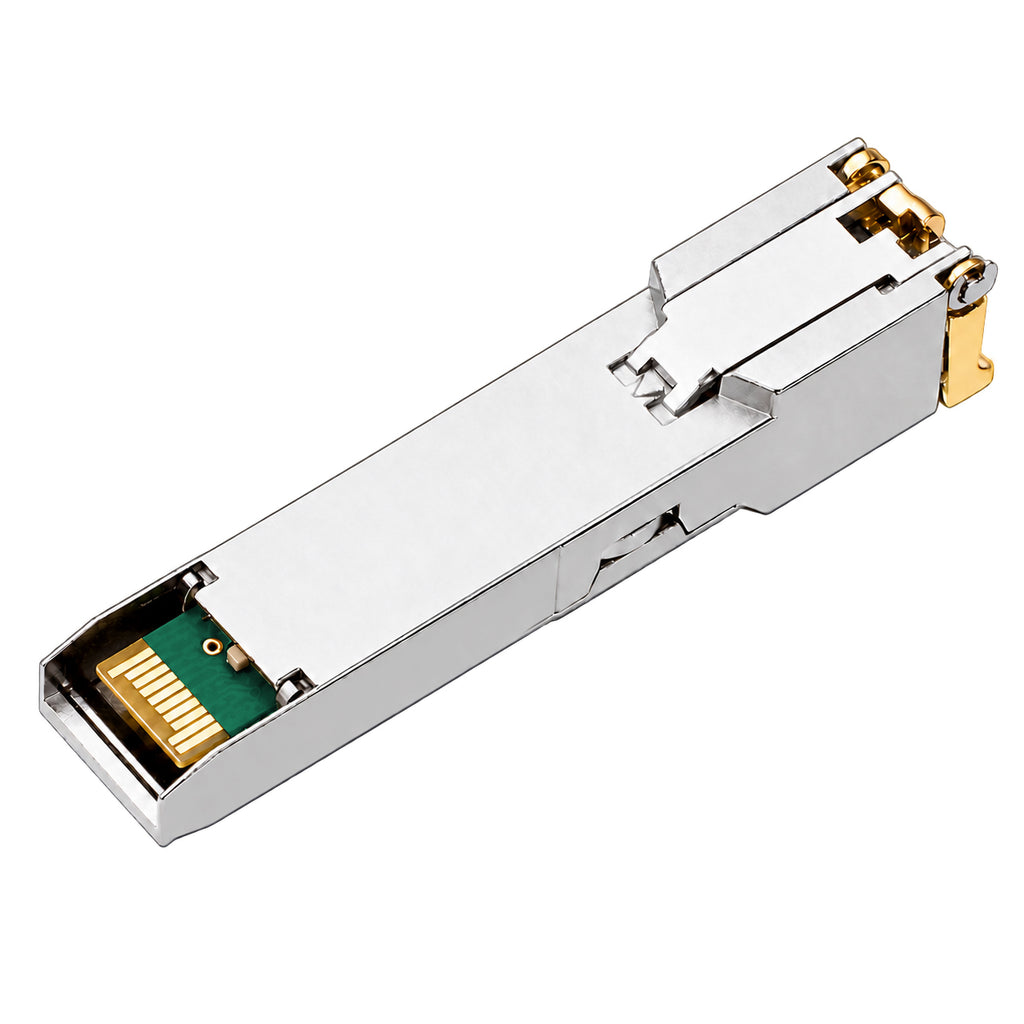

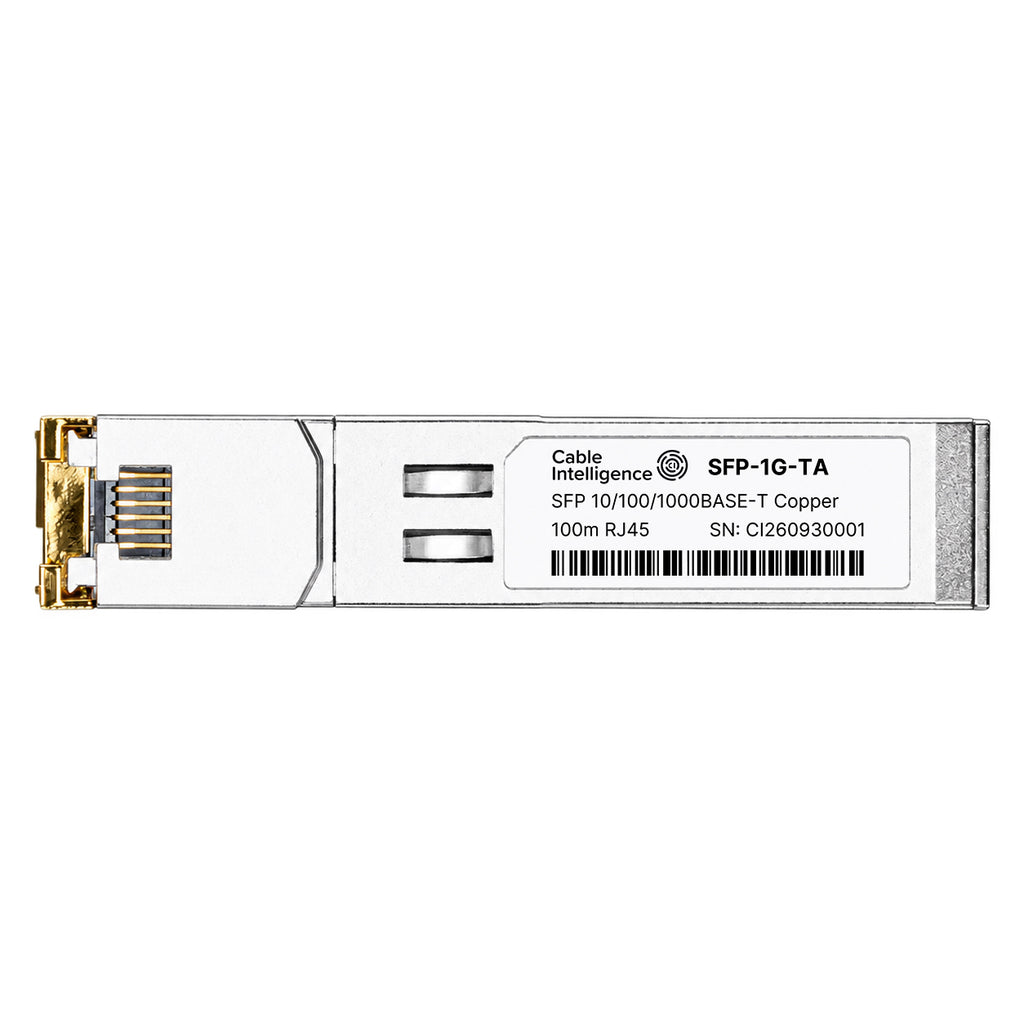

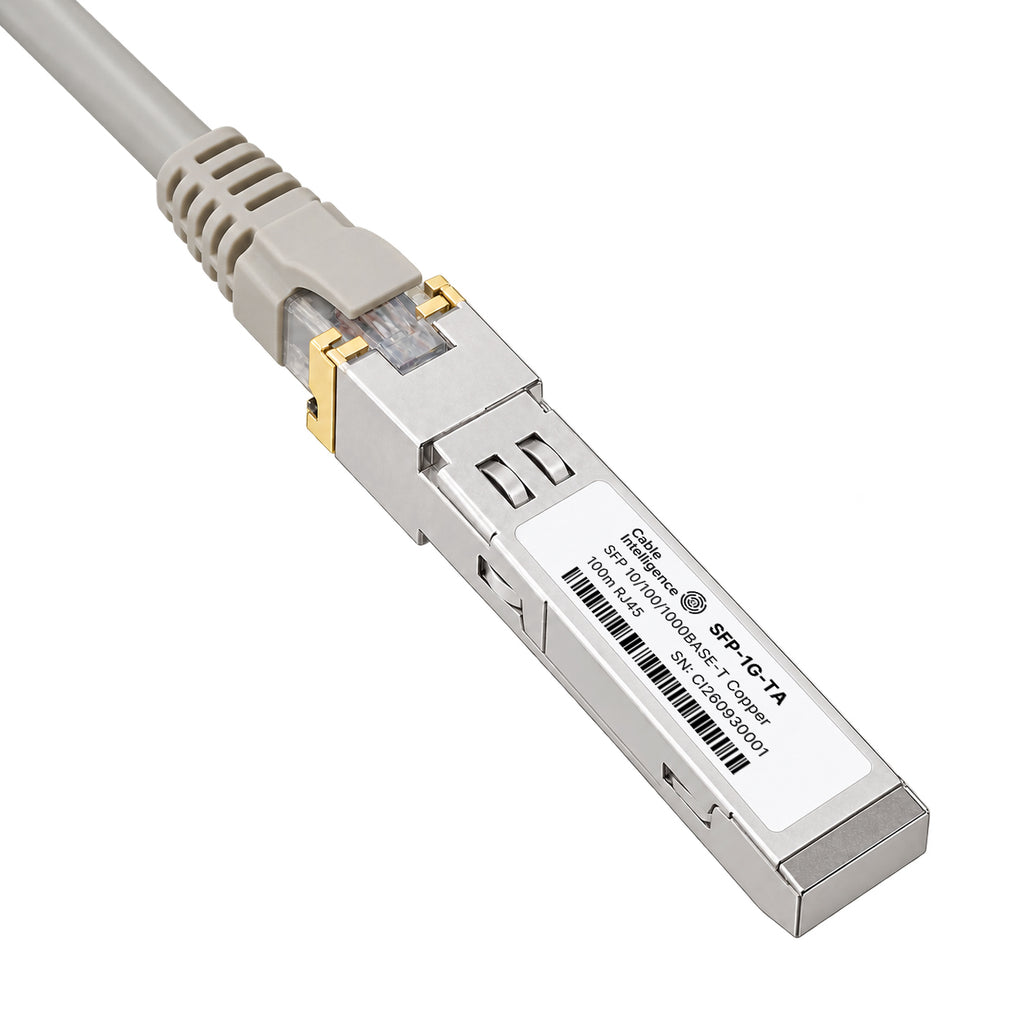

This 10/100/1000BASE-T copper SFP transceiver provides Ethernet connectivity at 10Mbps, 100Mbps or 1Gbps over twisted-pair copper cabling at distances of up to 100m. Its RJ45 interface connects to Cat5e, Cat6 or Cat6a Ethernet cabling, allowing a compatible SFP port to connect to copper network equipment.
Designed for supported SFP ports, the module is suitable for switch-to-switch links and connections to routers, servers and other devices with compatible RJ45 Ethernet interfaces. Typical applications include enterprise networks, data centres and communications cabinets where copper connectivity and support for different Ethernet speeds are required.
The compact SFP format provides an additional RJ45 connection without replacing the host equipment. Its hot-pluggable design allows installation and replacement in supported equipment without powering down the host, helping simplify network maintenance and changes to port connectivity.
The transceiver supports 10BASE-T, 100BASE-TX and 1000BASE-T Ethernet. Auto-negotiation supports selection of a mutually supported connection speed with the connected RJ45 device, subject to the capabilities and configuration of the host equipment. Operation at 10Mbps or 100Mbps requires a host port that supports those speeds with the selected copper SFP.
Use with correctly installed Cat5e or higher-category cabling and a compatible RJ45 Ethernet port at the opposite end. The maximum 100m channel length includes the installed cable and patch leads, with achievable performance dependent on cable quality, termination and installation conditions.
Transceivers are coded in-house and dispatched from our UK warehouse. Select the compatibility option required for your equipment. Check that the host supports a 10/100/1000BASE-T copper SFP, the required connection speed and the selected coding before installation. If you need help choosing, contact us with your equipment make and model before ordering.
Key Features
- 10/100/1000Mbps connectivity: supports 10BASE-T, 100BASE-TX and 1000BASE-T copper Ethernet connections.
- Auto-negotiation: supports connection speed selection with compatible RJ45 equipment, subject to host support.
- Up to 100m reach: over correctly installed Cat5e, Cat6 or Cat6a cabling.
- RJ45 interface: connects to standard twisted-pair Ethernet cabling.
- Compact SFP format: adds copper connectivity to a supported SFP port.
- Hot-pluggable design: supports installation and replacement without powering down compatible hosts.
- Switch, router and server applications: connects supported SFP equipment to compatible RJ45 Ethernet interfaces.
- In-house coding: programmed for the equipment compatibility selected.
Specifications
| Form factor | SFP |
| Ethernet application | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Ethernet data rates | 10Mbps, 100Mbps and 1Gbps, subject to host support |
| Auto-negotiation | Supported, subject to host capabilities and configuration |
| Host interface data rate | Up to 1.25Gbps |
| Maximum transmission distance | 100m channel, including installed cable and patch leads |
| Cable type | Cat5e, Cat6 or Cat6a twisted-pair copper cabling |
| Connector | RJ45 |
| Duplex operation | Full duplex |
| Power consumption | ≤1W |
| Power supply | Single +3.3V |
| Operating temperature | 0°C to +70°C |
| Hot-pluggable | Yes |
| Compliance | RoHS, CE, UKCA, SFP MSA |
| Equipment compatibility | Dependent on selected coding, host interface and supported Ethernet speeds |
Downloads
| Datasheet | Download |
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Applications
Switch uplinks
Gigabit copper connections between compatible switches using Cat5e or higher cabling.
Enterprise networks
Connects supported SFP ports to RJ45 network equipment within offices and communications rooms.
Data centres
Short copper links between compatible switches, servers and other Gigabit Ethernet equipment.
Campus networks
Local copper connections within campus buildings, up to the supported 100m channel length.
Security & CCTV
Connects compatible SFP ports to CCTV network switches or recorders with Gigabit RJ45 interfaces.
Industrial Networks
Copper connections in factory or warehouse communications cabinets and racks.
Stand out with custom branding
Make your transceivers easily identifiable!
We can design and print custom labels for your transceivers, incorporating your company logo, part codes, asset references or project details.
Whether you need your own branding or clearer identification for installation and maintenance, we can tailor the label layout to your requirements.
We are able to provide this service free of charge due to our in-house production team.
Contact our team once you place your order to discuss your artwork and the information you’d like included.
Please note: complex artwork production may add 1-2 days to your lead time.
Tested for reliable connectivity
Compatibility, optical performance and stability checks help ensure your transceivers are ready for reliable operation. We perform the following tests on all our compatible 1G T transceivers for your peace of mind.
Host interoperability
Checks that the transceiver is recognised and operates correctly in the network equipment used for testing.
Link rate verification
Confirms that the copper connection establishes a working link at the specified 1Gbps speed.
Module identification
Checks that the host can read the transceiver’s identification information, including part number and serial number.
Ethernet throughput
Passes traffic through the connection to assess achieved bandwidth during data transfer.
Packet loss
Reviews traffic counters for dropped packets and CRC errors that can indicate transmission problems.
Operational stability
Runs traffic continuously to check for connection interruptions and errors during sustained operation.
