Description

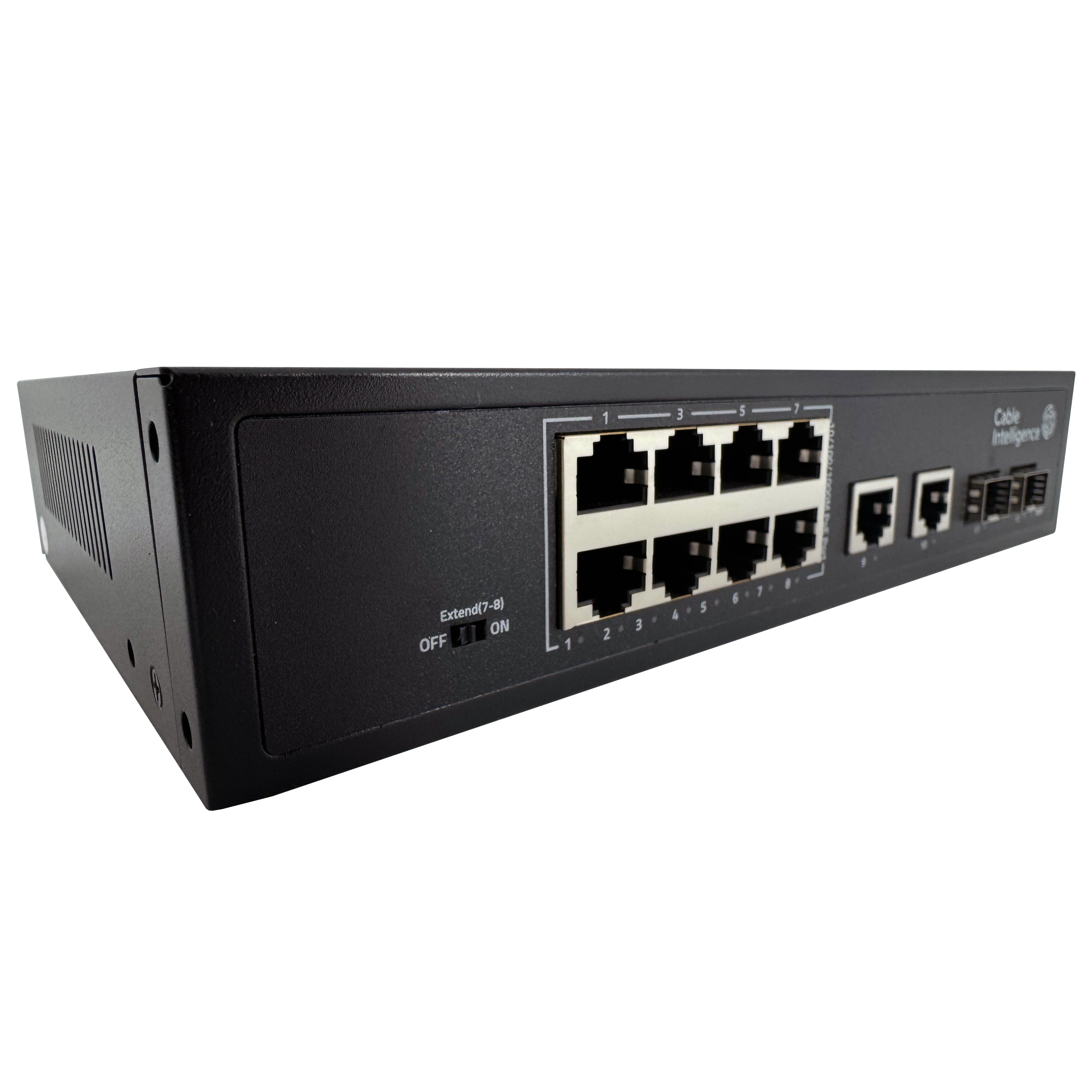

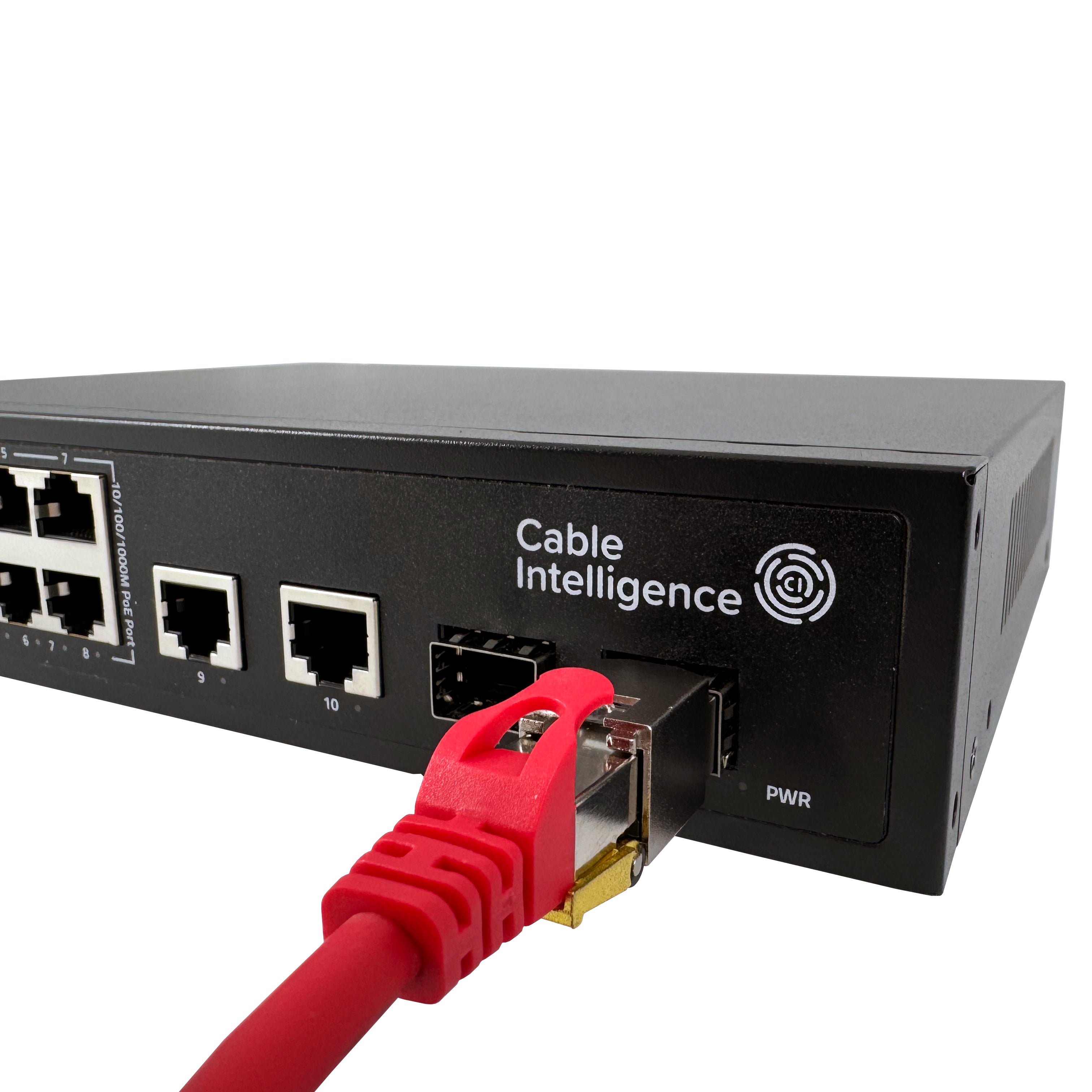

This high-performance 8-port Gigabit PoE switch features 8 × 10/100/1000M PoE ports, 2× Gigabit uplink ports, and 2 × Gigabit SFP ports. It complies with IEEE802.3 standards and supports self-adaptive Ethernet speeds. All 8 ports are PoE enabled.
AI mode enables automatic 10M speed on ports 7-8 in Extend mode, while PoE priority ensures optimal power allocation. With Default and Extend modes selectable via a DIP switch, it offers flexible network management.
Zero-configuration and robust surge and ESD protection (4KV surge, 8KV/6KV ESD) make it reliable for various applications. Panel indicators provide real-time monitoring and fault diagnosis.
This switch is rack-mountable and comes with additional 'ears' to facilitate mounting in 19" cabinets.
Specification
| Power | AC100-240V50/60Hz |
| Ethernet | 8 x Gigabit PoE Ports 2 x Uplink ports 2 x Gigabit SFP Ports |
| Chipset | EN8850DH |
| Bandwidth | 24Gbps |
| Pack forwarded rate | 17.856Mpps |
| Package cache | 48Kbit |
| MAC address | 2K |
| Jumbo frame | 9216 bytes |
| Forwarding mode | Store and forward |
| MTBF | 100000 hours |
| Network protocol | IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab (Gigabit Ethernet) IEEE802.3x (Flow Control) IEEE 802.3z (Gigabit Ethernet Fibre Standard) |
| PoE protocol | IEEE802.3af(15.4W) IEEE802.3at(30W) PoE+ |
| Industry standard | EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD) EN61000-4-5 (Surge) |
| Network medium | 10Base-T: Cat 3, 4, 5 Class or above UTP/STP (≤ 100m) 100Base-TX: Cat 5 Class or above UTP/STP (≤ 100m) 1000Base-TX: Cat 5 Class or above UTP/STP (≤ 100m) |
| Optical medium | Multimode optical fibre: 50/125, 62.5/125, 100/140um Single-mode optical fibre: 8/125, 8.7/125, 9/125, 10/125um |
| Working environment | Working temperature: -10~50°C Storage temperature: -40~70°C Working humidity: 10%~90%, non-condensing Storage humidity: 5%~95%, non-condensing |
| LED indicator | LED Indicator, PWR (Power), 1-10 Green Light (Link&Data) |
| Dimensions | 220x161x44.5mm |
| Voltage | Input Voltage: AC 100-240 V 50-60Hz Supply Power: 52V / 5.76A |
| Power | Non POE board power: maximum 15W POE power: maximum 180W |
