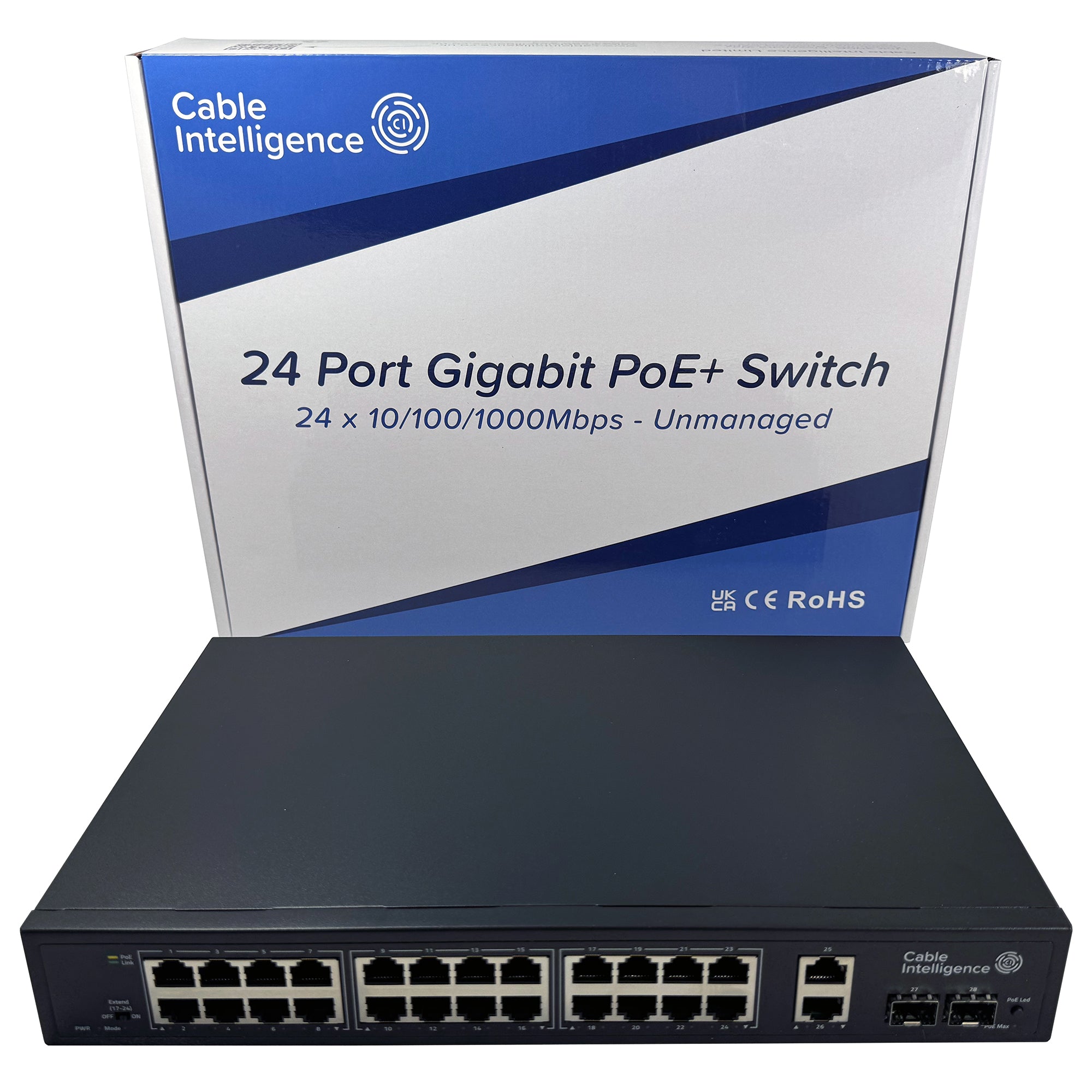

This high-performance 24-port Gigabit PoE switch features 24 × 10/100/1000M PoE ports, 2 × Gigabit uplink ports, and 2 × Gigabit SFP ports. It complies with IEEE802.3 standards and supports self-adaptive Ethernet speeds. All 24 ports are PoE enabled.
AI mode enables automatic 10M speed on ports 17–24 in Extend mode, while PoE priority ensures optimal power allocation. With VLAN, Default, and Extend modes selectable via a DIP switch, it offers flexible network management.
Zero-configuration, intelligent flow control, and robust surge and ESD protection (4KV/2KV surge, 8KV/6KV ESD) make it reliable for various applications. Panel indicators provide real-time monitoring and fault diagnosis.
This switch is rack-mountable and comes with additional 'ears' to facilitate mounting in 19" cabinets.
Specification
| Power |
AC100-240V50/60Hz |
| Ethernet |
24 x Gigabit PoE Ports
2 x Uplink ports

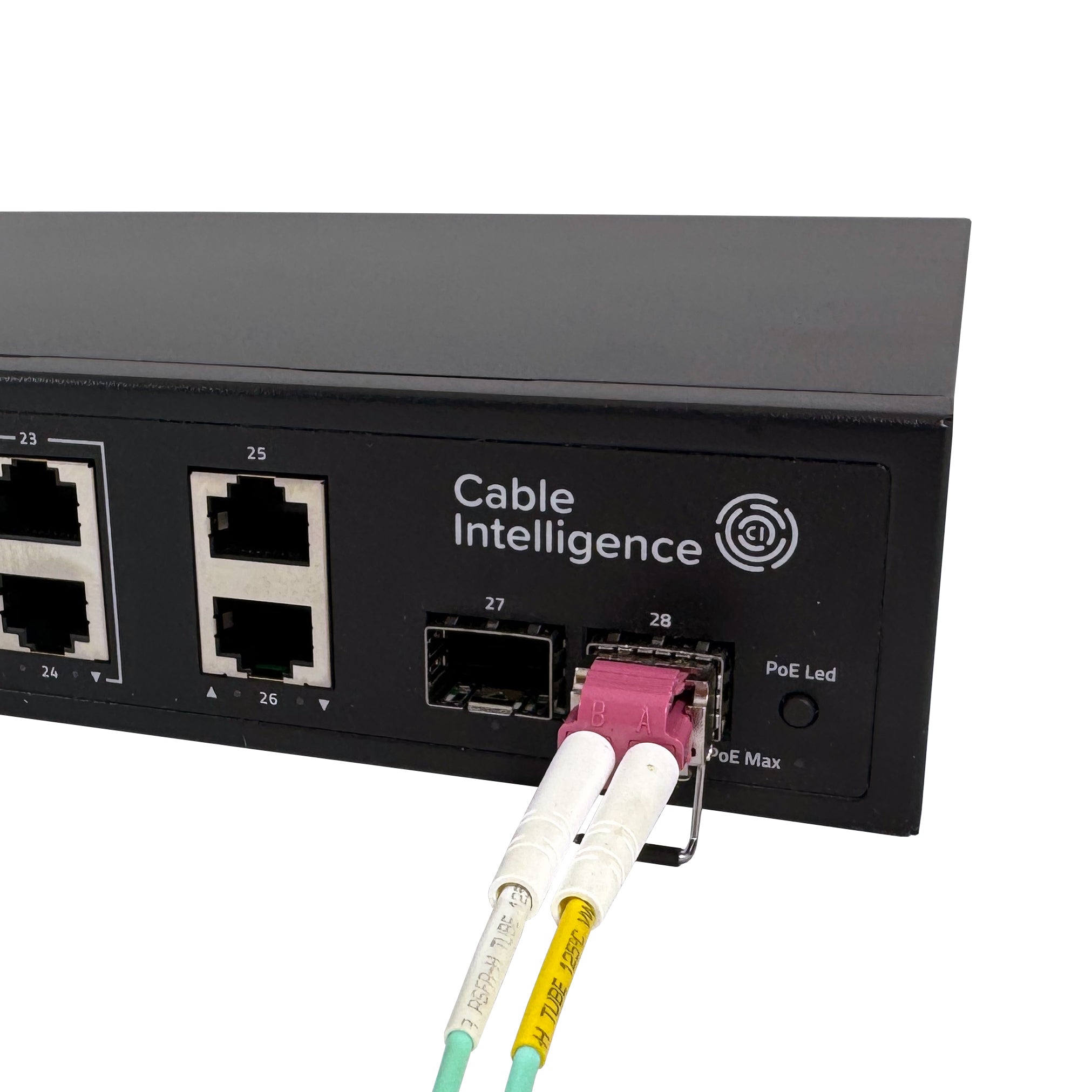

2 x Gigabit SFP Ports
|
| Chipset |
EN8850DH, RTL8238B |
| Bandwidth |
56Gbps |
| Pack forwarded rate |
41.644Mpps |
| Package cache |
3Mbit |
| MAC address |
8K |
| Jumbo frame |
9216 bytes |
| Forwarding mode |
Store and forward |
| MTBF |
100000 hours |
| Network protocol |
IEEE802.3 (Ethernet)
IEEE802.3u (Fast Ethernet)
IEEE802.3ab (Gigabit Ethernet)
IEEE802.3x (Flow Control)
IEEE 802.3z (Gigabit Ethernet Fibre Standard)
|
| PoE protocol |
IEEE802.3af(15.4W)
IEEE802.3at(30W) PoE+
|
| Industry standard |
EMI: FCC Part 15 CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD)
EN61000-4-5 (Surge)
|
| Network medium |
10Base-T: Cat 3, 4, 5 Class or above UTP/STP (≤ 100m)
100Base-TX: Cat 5 Class or above UTP/STP (≤ 100m)
1000Base-TX: Cat 5 Class or above UTP/STP (≤ 100m)
|
| Optical medium |
Multimode optical fibre: 50/125, 62.5/125, 100/140um
Single-mode optical fibre: 8/125, 8.7/125, 9/125, 10/125um
|
| Working environment |
Working temperature: -10~50°C
Storage temperature: -40~70°C
Working humidity: 10%~90%, non-condensing
Storage humidity: 5%~95%, non-condensing
|
| LED indicator |
LED Indicator, PWR (Power), 1-28 Green Light (Link&Data), 1-24 (Yellow Light), POE Led Key |
| Dimensions |
320x207x44mm |
| Voltage |
Input Voltage: AC 100-240 V 50-60Hz
Supply Power: 52V / 5.76A
|
| Power |
Non POE board power: maximum 15W
POE power: maximum 180W
|
