| Brady Part Code |
M210-Data-kit UK
|
| Size - Width (mm) |
114.30 mm
|
| Size - Height (mm) |
241.30 mm |
| Size - Depth (mm) |
63.50 mm |
| Weight (kg) |
0.75 kg
|
| Display Size |
55.88 mm |
| Minimum Label Height (mm) |
6.35 mm |
| Min. Label Width (mm) |
6.40 mm |
| Dimensions |
114.30 mm (W) x 241.30 mm (H) x 63.50 mm (D) |
| Materials Supported |
Heat-shrink Polyolefin, Nylon Cloth, Paper, Polyester, Polypropylene, Self-laminating Polyester, Self-laminating Vinyl, Vinyl
|
| Colour |
Yellow, Black
|
| Auto Shut Off |
10 minutes
|
| Battery Type |
Optional AA Battery, Rechargeable Lithium-ion Battery
|
| Battery Weight |
96.8 g |
| Built-in Symbols |
215 |
| Language Support |
Croatian, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Hungarian, Italian, Norwegian (Bokmål), Polish, Portuguese, Romanian, Slovak, Slovenian, Spanish, Swedish, Turkish |
| Calibration |
Automated through Smart Cell
|
| Connectivity Options |
None
|
| Custom Labels Available |
No |
| Cutter |
Single Hand Manual Actuate, Straight Cut, With label retention
|
| Display Type |
Monocolour LCD Screen
|
| Interface Type |
ABc Keypad |
| Internal Memory Capacity |
16 MB (2 MB available for storage, stores 12 labels)
|
| Barcode Symbologies |
Code 39, Code 128, Data Matrix, QR code
|
| Keyboard Type |
ABC |
| Operating Humidity Range |
20%-90% (non-condensing) |
| Operating Temperature |
4°C - 43°C |
| Stand Alone Printing |
Stand-alone
|
| Power Source |
AC Adaptor, Batteries, Rechargeable Battery
|
| Power Supply Voltage |
110 - 240 V |
| Printing Wizards |
Flags, Patch Panel, Terminal Block, Wire Wrap
|
| Recharge Time |
2.5 hours
|
| Shipped With Battery |
Yes |
| Storage humidity |
10%-90% (non-condensing) |
| Storage Temperature |
-18°C - 43°C |
| Print Technology |
Thermal Transfer |
| Print Speed (mm/sec) |
10.00 mm/s
|
| Printing Functions |
Auto Format, Date/Time Stamp, Fixed Length, Justification, Multi-copy, Serialisation, Vertical
|
| Colour Capability |
Monocolour |
| Resolution (dpi) |
203 dpi |
| Max. Label Width (mm) |
19.05 mm |
| Max. Liner Width (mm) |
22.22 mm
|
| Recommended Usage per Day |
100 |
| Max. Print Width (mm) |
16.00 mm
|
| Max. Print Length (mm) |
914.40 mm |
| Text Sizes (pt) |
6 - 40 pt
|
| Font Styles |
Brady Standard Font
|
| Symbol Categories |
Arrows, Datacom, Electrical, Greek, Home Electrical, International, Miscellaneous, Warning
|
| Number of Stock Parts |
90+ standard parts |
| On Screen Indicators |
Battery Life, Ribbon and label part number recognition, Ribbon Remaining, Supply Remaining
|
| Device Indicators |
Bluetooth indicating lights: pulsing blue = broadcasting signal; solid blue = device connected or paired, Error indicating lights: pulsing orange = error, Power indicating lights: solid green = 51-100% battery life; solid orange = 21-50% battery life; solid red = 11-20% battery life; flashing red = 1-10% battery life; flashing green = charging |
| Print Rotation |
No |
| Drop Test |
Resistant to 1.8 metre drops
|
| Serialisation |
Simple & Single Advanced
|
| Smart Cell |
Yes |
| Continuous vs Die Cut Labels |
Continuous, Die-cut |
| B- Numbers supported |
B-342, B-423, B-427, B-430, B-461, B-488, B-499, B-595, B-7425
|
| Compatible Media |
M21- |
| Min. Label Length (mm) |
22.23 mm |
| Min. Liner Width (mm) |
11.51 mm |
| What's Included |

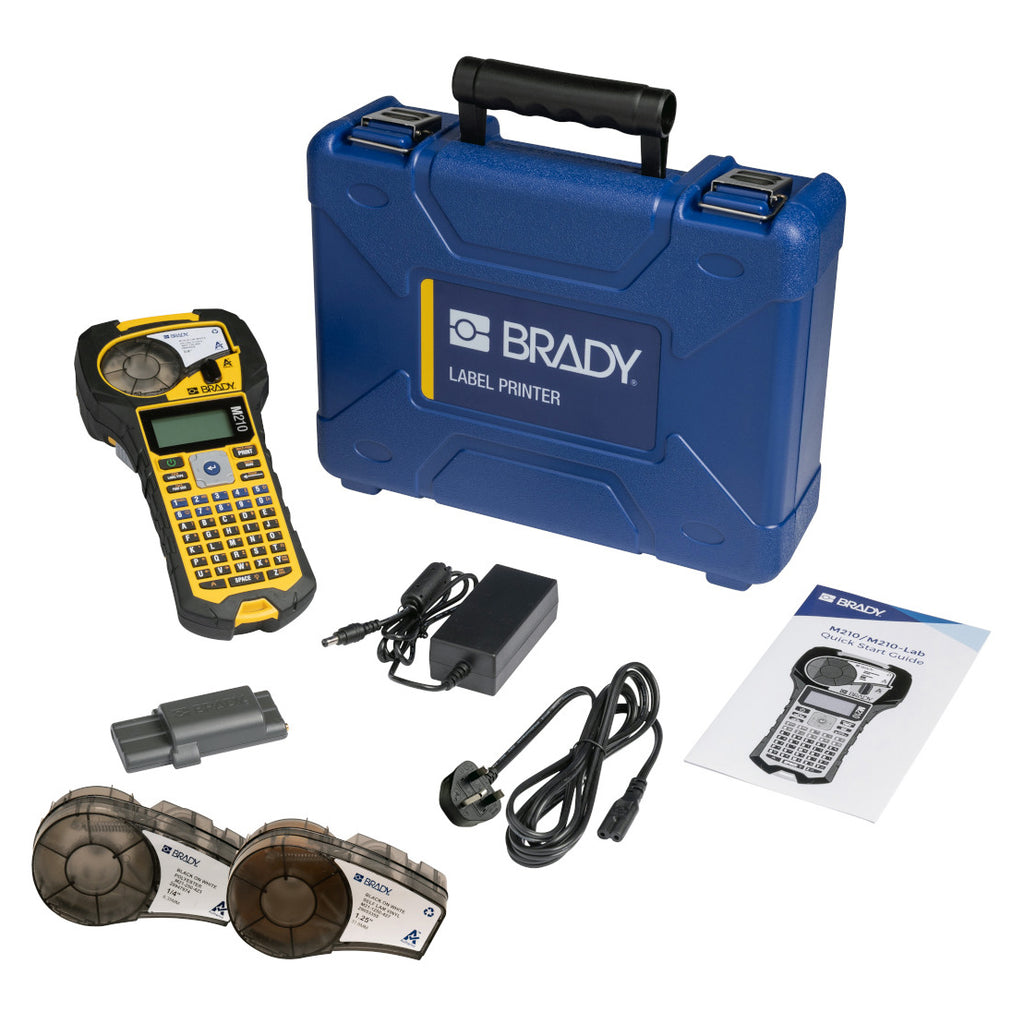

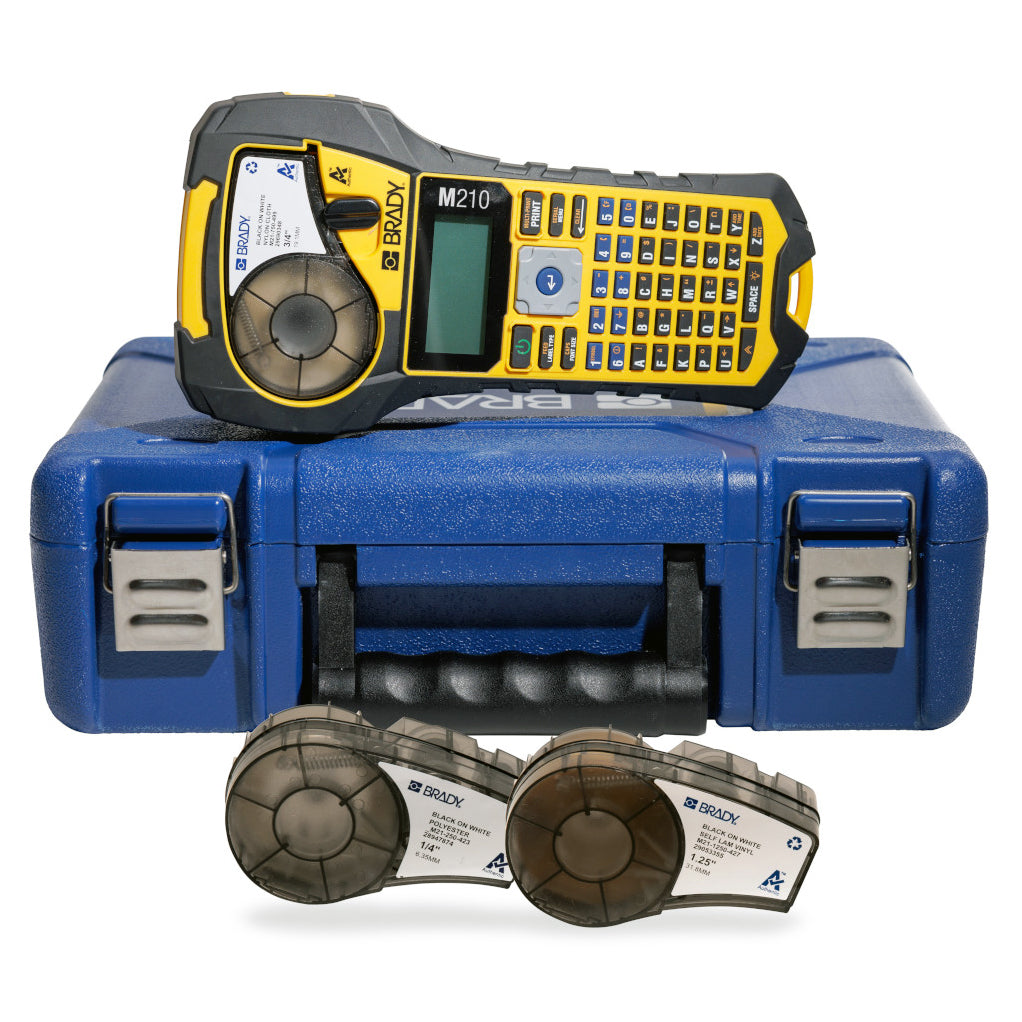

This kit comes in a hard case holding a M210 Printer, a Li-ion Battery, a UK Power Cord, M21-1250-427, M21-250-423 and a M21-750-499 Label Cartridge |
| UNSPSC |
45101520 |
| RoHS Compliance Status |
Compliant with Directive 2011/65/EU and 2015/863
|
| REACH SVHC Status |
Part contains an SVHC
|
