Description
The M210 Portable Label Printer is an all-in-one labeller for voice/datacom, electrical and general industrial teams. Offering drop-lock-and-go cartridges, plus a rechargeable Lithium-ion battery, plus protective rubber bumpers, adds up to the brains and brawn needed to take on the day-to-day rigours of any job.
- Engineered long-lasting material quality: prints durable, true-sized 6-19 mm wide identification to maximise amount of data
- Adjust the length of the labels using the high performance continuous material
- Fulfill your requirements with up to 7 different industry-specific materials that last
- Extremely rugged and durable: drop-tested printer, super rugged with moulded rubber bumpers provide optimal protection from falls
- Ergonomic cutter and label grabber, holding the label after cutting, preventing it from falling out
- Easy to use: ABC keypad, graphics library, hot keys and menu functions for fast label creation. Multi-functional accessory with magnet, flashlight and retractable printer stand for easy handling
- Smart Cell Technology for automatic label setup and automatic formatting for wire wraps, terminal blocks, patch panels, cable flags and general labels
Updated name. Elevated experience
Design, create and print independently via an intuitive keypad. Reuse and adapt locally saved labels, and create from scratch with on-board label design wizards.
- Intuitively design, create and print with a standalone portable printer
- Save label designs on the printer for later re-use
- Quickly create new labels with on-board label design wizards
- Easily review the printer and label cartridge status on-screen
Label it once
Pre-sized and continuous labels in 90+ cartridges, filled to the brim with reliable, tested and dedicated label materials that stay attached and remain legible on every surface and in any environment.
- Easily print pre-sized or continuous labels in quality 203 dpi prints
- Select from 90+ compatible cartridges with our reliable, industrial-grade label materials
- Dedicated labels stick and stay attached to cable and component surfaces, and resist influences from cold, heat, moisture, weathering and other factors. Technical data sheets are available for each material.
Tough and easy going
Swiftly change cartridges with a drop-lock-print system in a lightweight printer that can take a fall and shocks without blinking.
- Swiftly switch label cartridges with a drop-lock-print system
- Easy handling thanks to a lightweight, 0.7 kg portable design
- Survives 1.8 metre falls
- Resists military specification shocks
Specifications
| Brady Part Code | M210-KIT UK |
| Size - Width (mm) | 114.30 mm |
| Size - Height (mm) | 241.30 mm |
| Size - Depth (mm) | 63.50 mm |
| Weight (kg) | 0.75 kg |
| Display Size | 55.88 mm |
| Minimum Label Height (mm) | 6.35 mm |
| Min. Label Width (mm) | 6.40 mm |
| Dimensions | 114.30 mm (W) x 241.30 mm (H) x 63.50 mm (D) |
| Materials Supported | Heat-shrink Polyolefin, Nylon Cloth, Paper, Polyester, Polypropylene, Self-laminating Polyester, Self-laminating Vinyl, Vinyl |
| Colour | Yellow, Black |
| Auto Shut Off | 10 minutes |
| Battery Type | Optional AA Battery, Rechargeable Lithium-ion Battery |
| Battery Weight | 96.8 g |
| Built-in Symbols | 215 |
| Language Support | Croatian, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Hungarian, Italian, Norwegian (Bokmål), Polish, Portuguese, Romanian, Slovak, Slovenian, Spanish, Swedish, Turkish |
| Calibration | Automated through Smart Cell |
| Connectivity Options | None |
| Custom Labels Available | No |
| Cutter | Single Hand Manual Actuate, Straight Cut, With label retention |
| Display Type | Monocolour LCD Screen |
| Interface Type | ABc Keypad |
| Internal Memory Capacity | 16 MB (2 MB available for storage, stores 12 labels) |
| Barcode Symbologies | Code 39, Code 128, Data Matrix, QR code |
| Keyboard Type | ABC |
| Operating Humidity Range | 20%-90% (non-condensing) |
| Operating Temperature | 4°C - 43°C |
| Stand Alone Printing | Stand-alone |
| Power Source | AC Adaptor, Batteries, Rechargeable Battery |
| Power Supply Voltage | 110 - 240 V |
| Printing Wizards | Flags, Patch Panel, Terminal Block, Wire Wrap |
| Recharge Time | 2.5 hours |
| Shipped With Battery | Yes |
| Storage humidity | 10%-90% (non-condensing) |
| Storage Temperature | -18°C - 43°C |
| Print Technology | Thermal Transfer |
| Print Speed (mm/sec) | 10.00 mm/s |
| Printing Functions | Auto Format, Date/Time Stamp, Fixed Length, Justification, Multi-copy, Serialisation, Vertical |
| Colour Capability | Monocolour |
| Resolution (dpi) | 203 dpi |
| Max. Label Width (mm) | 19.05 mm |
| Max. Liner Width (mm) | 22.22 mm |
| Recommended Usage per Day | 100 |
| Max. Print Width (mm) | 16.00 mm |
| Max. Print Length (mm) | 914.40 mm |
| Text Sizes (pt) | 6 - 40 pt |
| Font Styles | Brady Standard Font |
| Symbol Categories | Arrows, Datacom, Electrical, Greek, Home Electrical, International, Miscellaneous, Warning |
| Number of Stock Parts | 90+ standard parts |
| On Screen Indicators | Battery Life, Ribbon and label part number recognition, Ribbon Remaining, Supply Remaining |
| Device Indicators | Bluetooth indicating lights: pulsing blue = broadcasting signal; solid blue = device connected or paired, Error indicating lights: pulsing orange = error, Power indicating lights: solid green = 51-100% battery life; solid orange = 21-50% battery life; solid red = 11-20% battery life; flashing red = 1-10% battery life; flashing green = charging |
| Print Rotation | No |
| Drop Test | Resistant to 1.8 metre drops |
| Serialisation | Simple & Single Advanced |
| Smart Cell | Yes |
| Continuous vs Die Cut Labels | Continuous, Die-cut |
| B- Numbers supported | B-342, B-423, B-427, B-430, B-461, B-488, B-499, B-595, B-7425 |
| Compatible Media | M21- |
| Min. Label Length (mm) | 22.23 mm |
| Min. Liner Width (mm) | 11.51 mm |

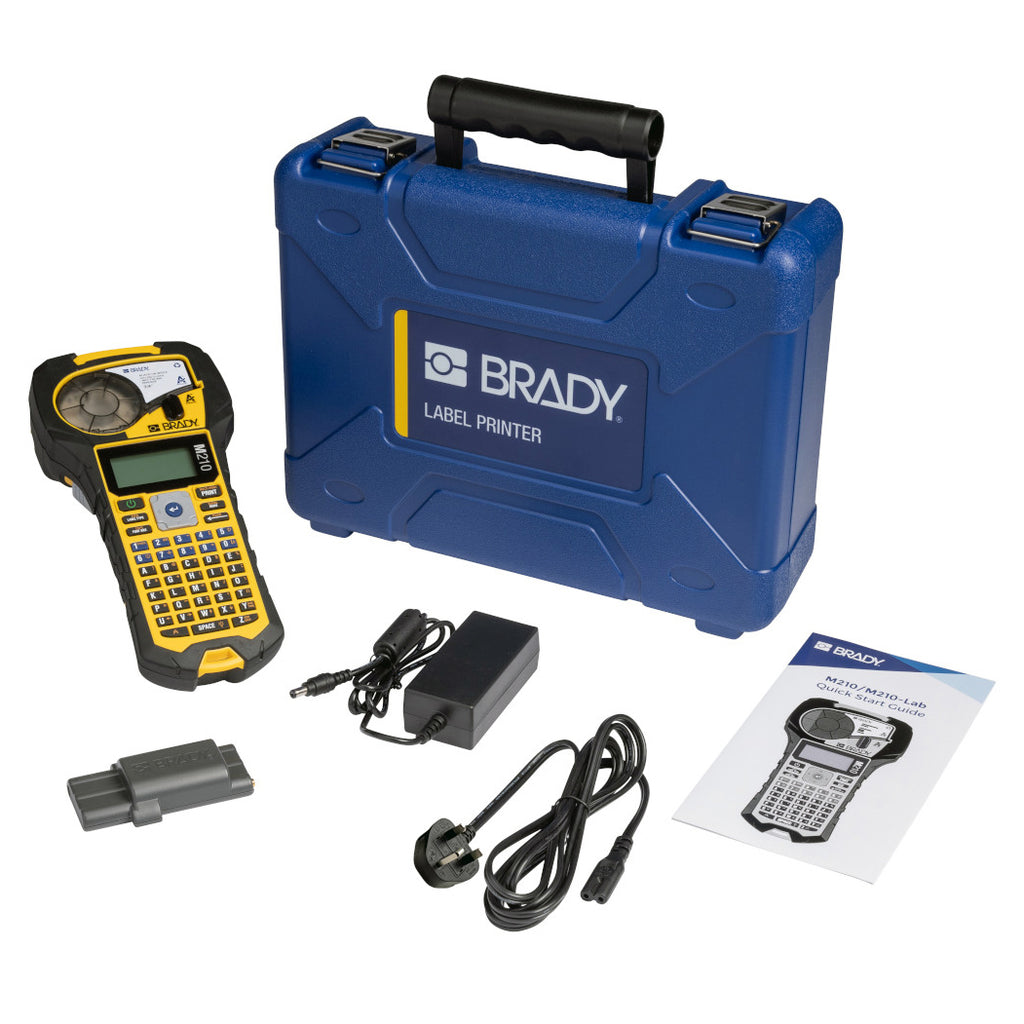

| What's Included | This kit comes in a hard case holding a M210 Printer, a Li-ion Battery, a UK Power Cord and a M21-750-499 Label Cartridge. |
| UNSPSC | 45101520 |
| RoHS Compliance Status | Compliant with Directive 2011/65/EU and 2015/863 |
| REACH SVHC Status | Part contains an SVHC |
