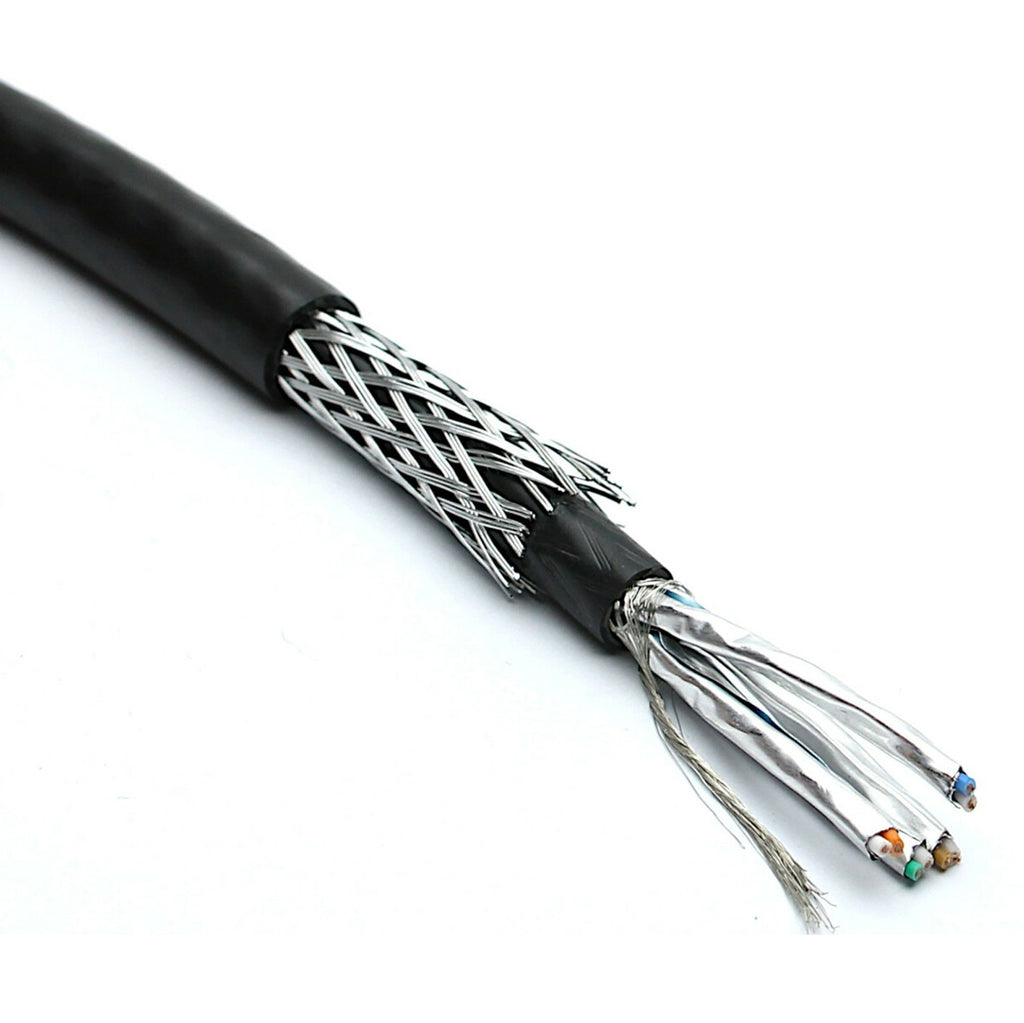

This Excel Cat6A cable screened S/FTP PE steel wire braid armoured external grade is manufactured to meet and exceed the ISO, CENELEC and TIA standards, supplied on 500m drums.
It is designed for harsh environments such as ship and offshore applications, features 23AWG solid conductors, foam PE insulation, AL/Mylar individual screen, drain wire, aluminium magnesium wire braiding overall screen, LSZH inner jacket, galvanised steel wire braiding armour and PE outer jacket.
This delivers Class EA/Augmented Cat6A link performance over distances of up 90m which supports the applications including 10GBASE‐T, 10 Gigabit Ethernet. Each cable consists of 4 pairs individually wrapped with high-quality, strong, aluminium/polyester foil tape providing screening for each pair.
The foil configuration ensures separation of the pairs that ensures the performance and the individual pairs are set to different lay lengths to ensure optimum performance.
Specification
| Conductor Material |
Copper |
| Conductor surface |
Bare |
| AWG Size |
23 |
| Conductor category |
Class 1 = Solid |
| Total number of cores |
8 |
| Stranding element |
Pairs |
| Specification core insulation |
Polyethylene (PE) |
| Core identification |
Colour |
| Overall screening |
Braiding |
| Conductor screening |
Foil |
| Outer sheath material |
Polyethylene (PE) |
| Outer sheath colour |
Black |
| Flame retardant according to IEC 60332-1-2 |
Yes |
| Reaction-to-fire class according to EN 13501-6 |
Fca |
| Outer diameter approx. |
11.5mm |
| Min. permitted bending radius, moving application with forced guidance |
95mm |
| Installation temperature range |
-20 to 60C |
| NVP value |
74% |
| Max. tensile strength during installation |
100kN |
