Description

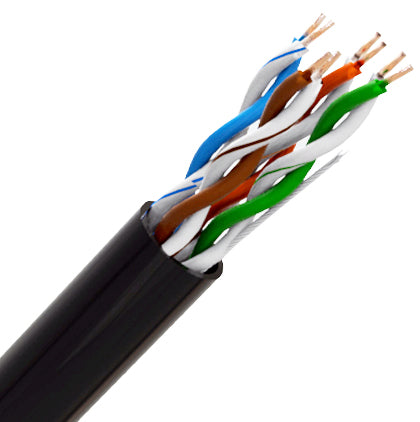

The CQR Professional External Cat5e UTP Cable is a solid copper outdoor data cable supplied in a 305m reel for external and underground network installations. Designed with a black PE (polyethylene) outer sheath, it is suitable for environments where additional resistance to moisture, UV exposure and general outdoor conditions is required.
This Cat5e cable is commonly used for external Ethernet runs between buildings, IP CCTV systems, gate entry systems, wireless access points and other outdoor network connections. The solid copper conductors support reliable data transmission for structured cabling and network infrastructure applications.
The unscreened UTP construction makes it suitable for standard external network installations where shielding is not required. The cable is compatible with Cat5e RJ45 modules, patch panels, data outlets and networking hardware.
The solid conductor construction is intended for fixed installation work rather than patch lead manufacture. Suitable for use in standard Cat5e network systems supporting data, voice and IP-based services.
Specification

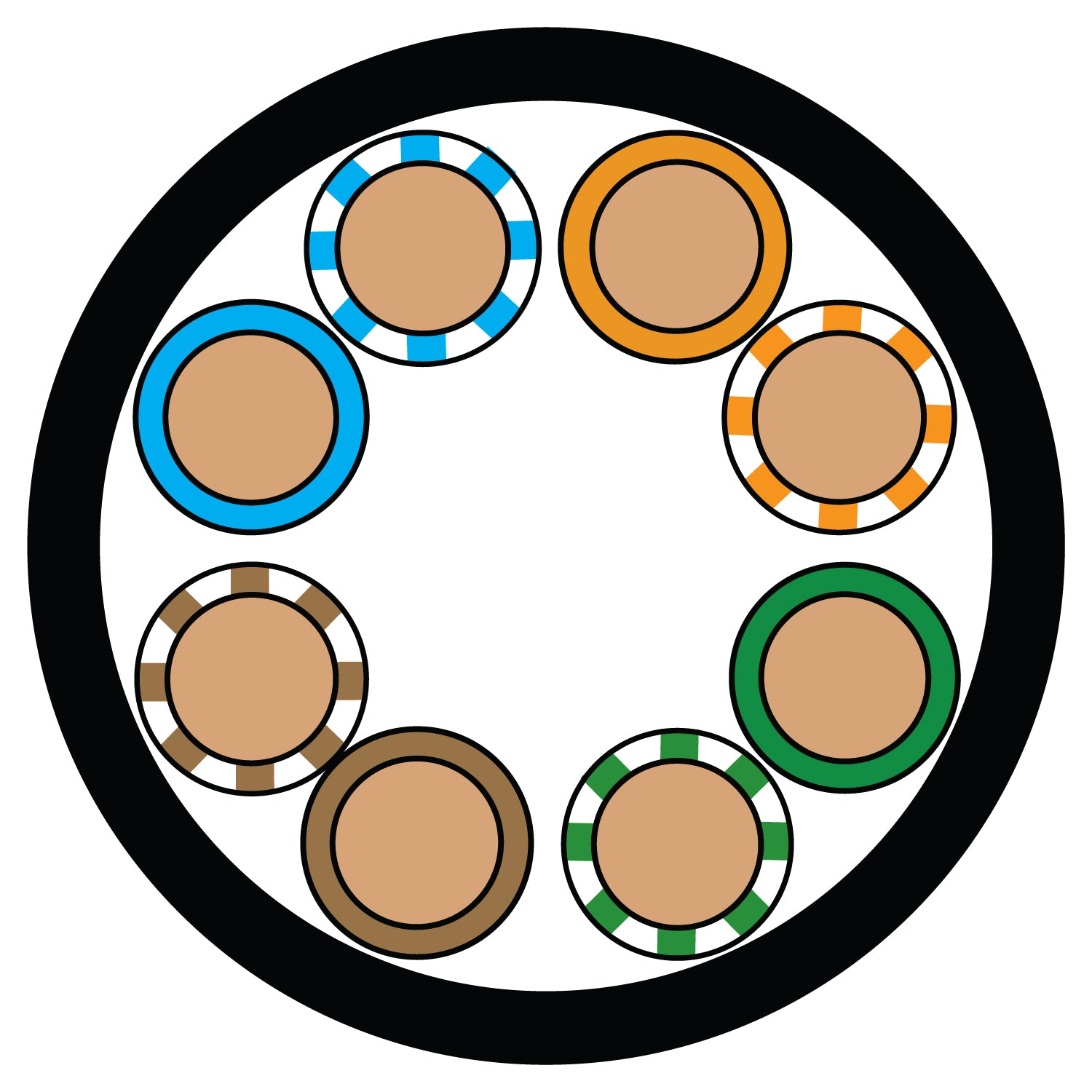

| Number of cores | 8 |
| Multi or solid | Solid |
| Euroclass | Fca |
| Length (mtrs) | 305 |
| Sheathing | PE |
| Sheathing colour | Black |
| Screened | No |
| Conductor type | Copper |
| Conductor size | 0.47 |
| Number of strands in core | 1 |
| Insulation material | HDPE |
| Insulation colour | BL-BL/WH-OR-OR/WH-GR-GR/WH-BR-BR/WH |
| Insulation resist @ 20C | 5000 |
| Nylon rip cord colour | White |
| Nominal diameter | 5 |
| Operating temperature | -10C to +80C |
| Maximum voltage | 50V |
Downloads
| Datasheet | Download |
| Declaration of Performance | Download |
