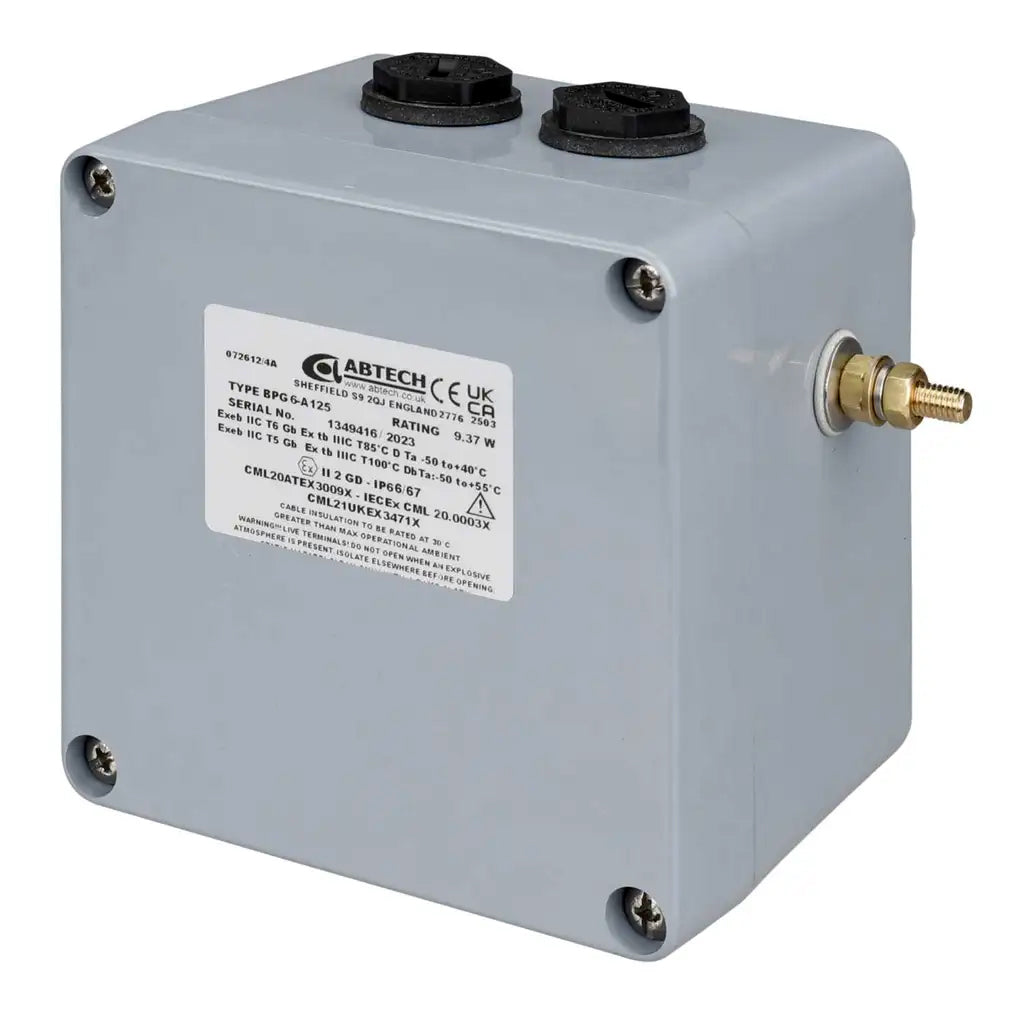

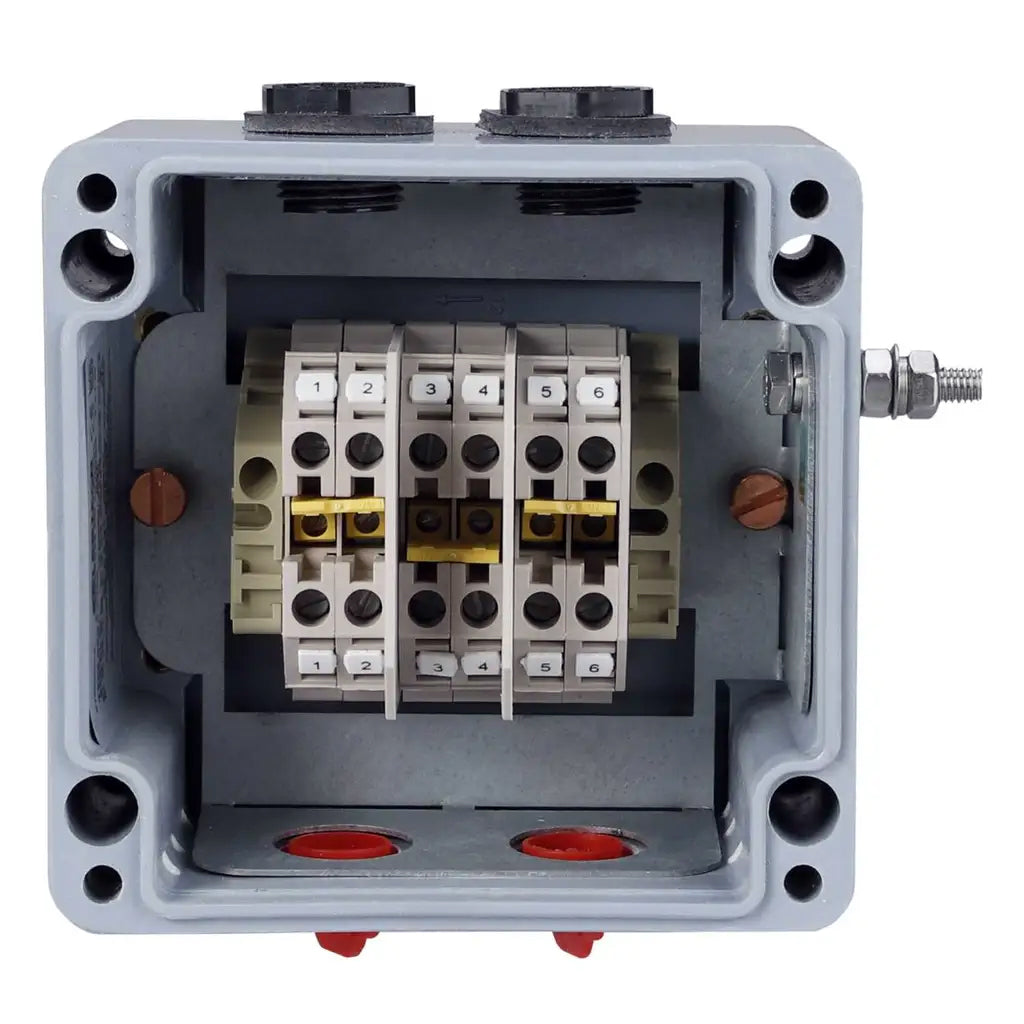

Fully Ex-certified GRP junction box with 6 x WDU 2.5mm terminals (linked in pairs), dual ATEX & IECEx approved for -50°C to +55°C (T5) and -50°C to +40°C (T6). Features pre-drilled plugged entries, Zintec earth plate, and external stainless steel earth stud. Supplied with M20 blanking and travel plugs.
Specification
Cable Entry |
4 x M20
|
Certification Code
|
Ex eb IIC T Gb (Increased Safety), Ex ta IIIC T°C Da (Dust Ignition)
|
Colour
|
Grey |
Depth |
90mm |
Dimensions |
(H)120 mm x (W)122 mm x (D)90 mm
|
IP Rating
|
IP66 / IP67
|
Material
|
GRP |
Number of Terminals
|
6 |
Standards |
CML 20ATEX3009X, IECEx CML 20.0003X, CML 21UKEX3471X
|
Terminal Capacity
|
6mm²
|
Terminal Type
|
Screw |
Weight |
1.14kg
|
Zone Rating
|
Zone 1 Zone 2 Zone 21 Zone 22
|
