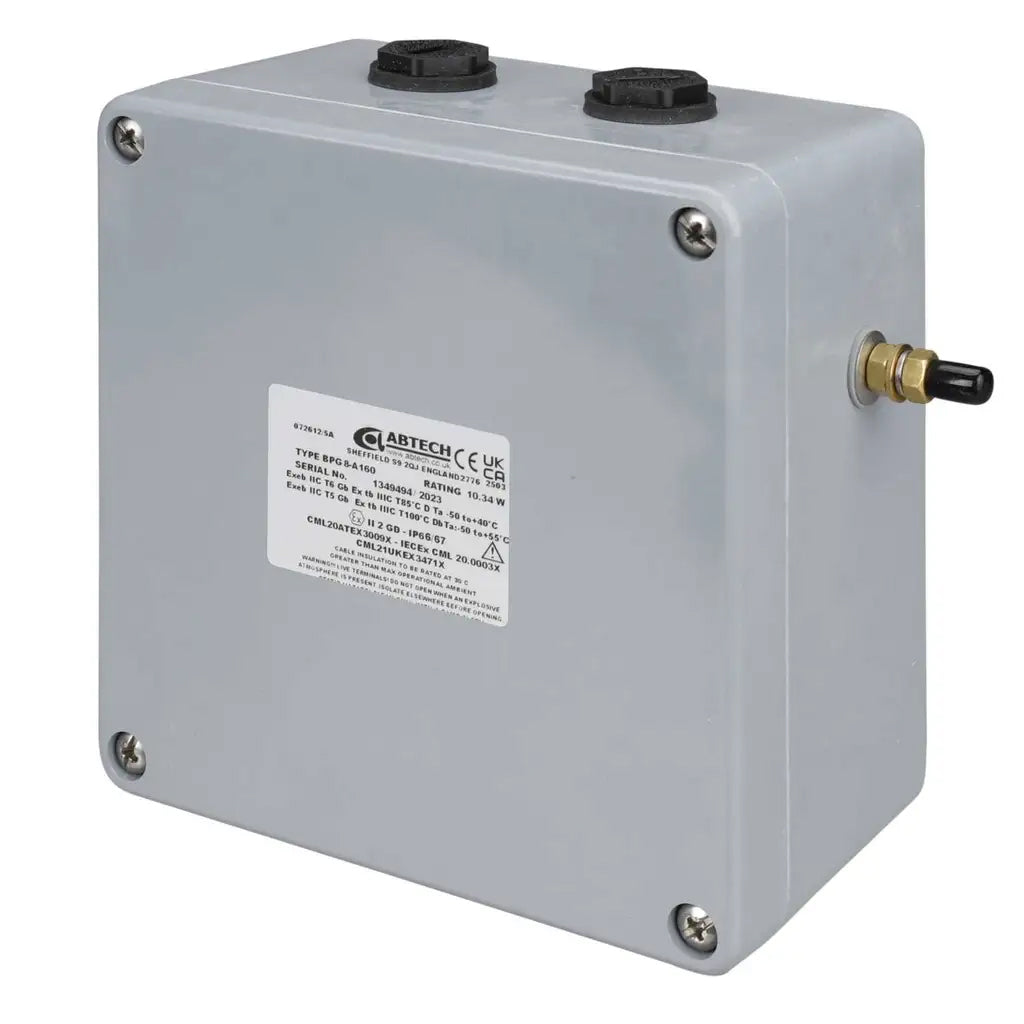

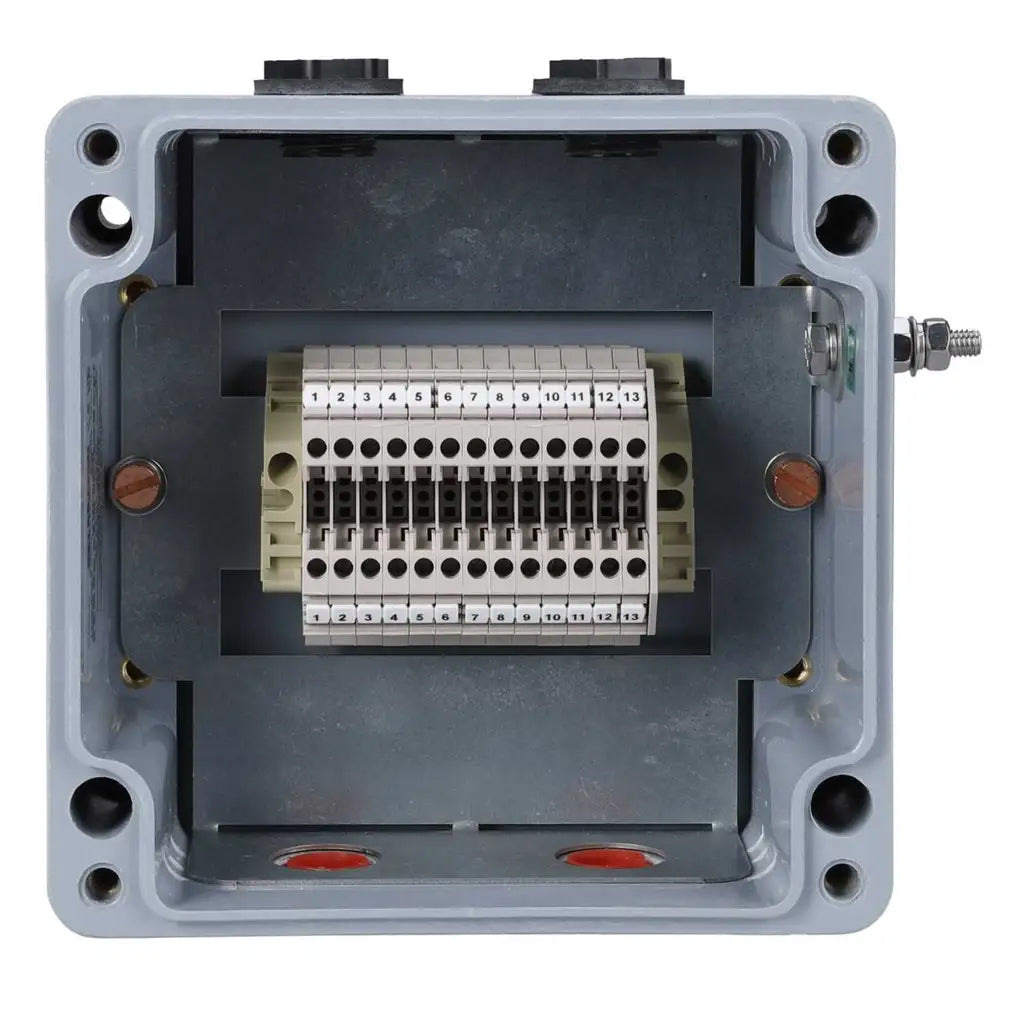

Fully Ex-certified GRP junction box with 13 x WDU 2.5mm terminals (linked in pairs), pre-drilled plugged entries, and internal linking. Dual ATEX & IECEx approved for -50°C to +55°C (T5) / -50°C to +40°C (T6). Includes Zintec earth plate, stainless steel earth stud, and M20 blanking & travel plugs.
Specification
Cable Entry
|
4 x M20
|
| Colour |
Grey |
| Dimensions |
(H)160 mm x (W)160 mm x (D)90 mm |
| IP Rating |
IP66 / IP67
|
| Material |
GRP |
| Terminal Type |
Screw |
| Weight |
1.74kg |
| Certification Code |
Ex e IIC T6/T5 Gb, Ex tb IIIC T85°C/T100°C
|
| Number of Terminals |
13 |
| Terminal Capacity |
2.5mm²
|
| Zone Rating |
Zone 1 Zone 2 Zone 21 Zone 22
|
