Description

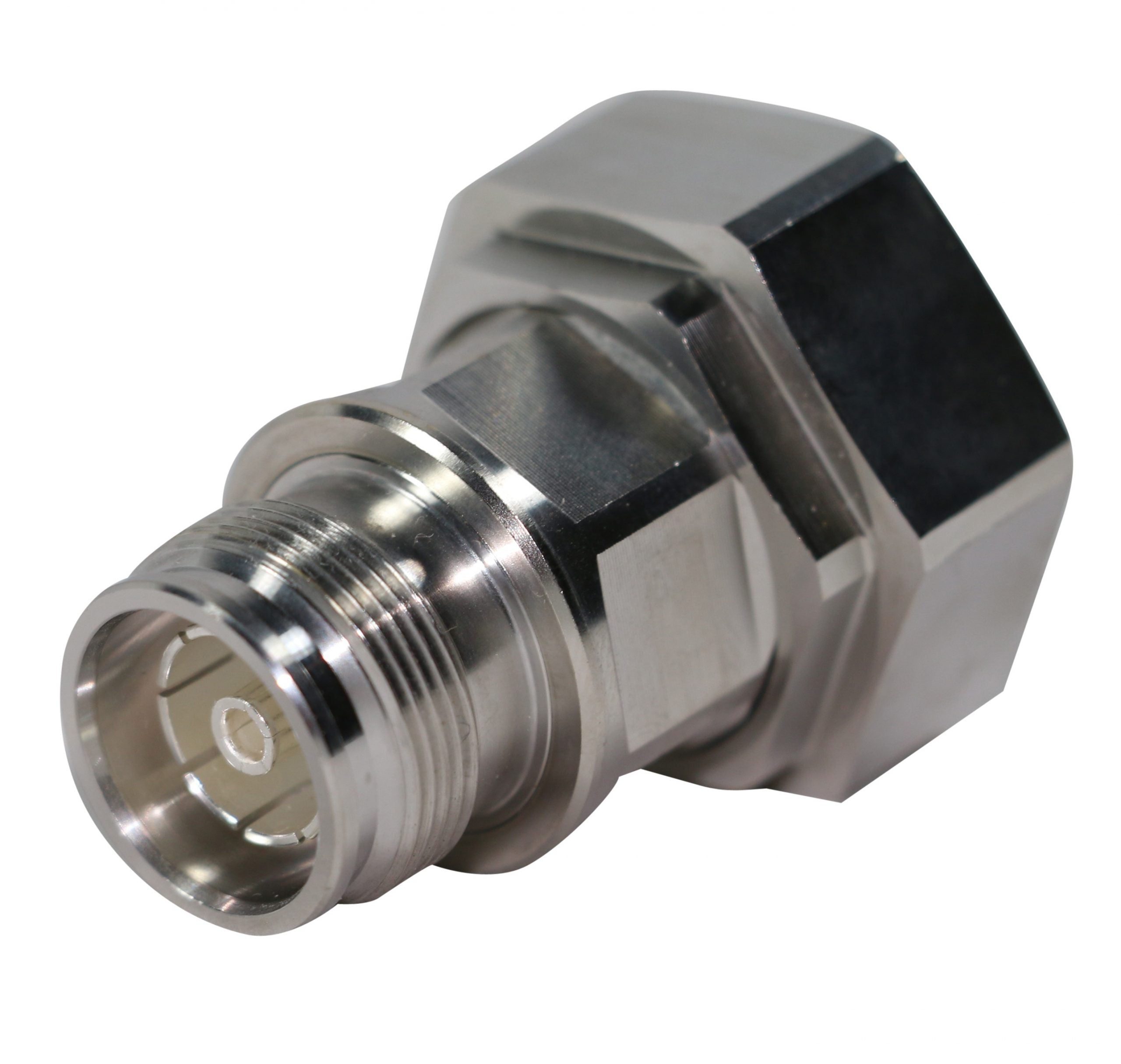

This 7/16 DIN Male - 4.3/10 DIN Female Adapter provides the ideal solution to join both a 7/16 DIN Female & 4.3/10 Male connector and pass RF/Microwave frequencies to 3GHz, whilst offering an industry-leading low VSWR performance of 1.2:1 Maximum.
Note: This product may be subject to a longer lead time.
Electrical Specifications
| Impedance | 50Ω |
| Frequency Range | DC-3GHz |
| VSWR | ≤1.12 (DG-3GHz) |
| Withstand Voltage | 2000V rms |
| Working Voltage | 1700V rms |
| Insulation Resistance | >10000MΩ |
Mechanical Specifications
| Temperature Range | -55 / +155 °C |
| Mating Cycles | >500 |
| Connector A | 7/16 DIN Male |
| Connector B | 4.3/10 Female |
Material Specifications
| Item | Base Material | Plating |
| Body & Coupling Nut | Brass | Alballoy (Tri-Metal) |
| Centre Conductor | Phosphor Bronze | Silver |
| Gasket | Silicone Rubber | N/A |
| Insulator | PTFE | N/A |
