Description
This 24AWG 10 pair screened cable is a Belden 9510 equivalent, designed for low voltage signal and control applications where reliable data transmission and interference protection are required.
Commonly used in building management systems, control panels, instrumentation, and security or access control installations, this cable provides consistent performance in environments where electromagnetic interference may be present. The overall foil screen with drain wire helps maintain signal integrity across longer runs.
The cable features stranded tinned copper conductors for improved flexibility and corrosion resistance, making it suitable for fixed installation with some routing complexity.
Specification
| Physical Characteristics | |

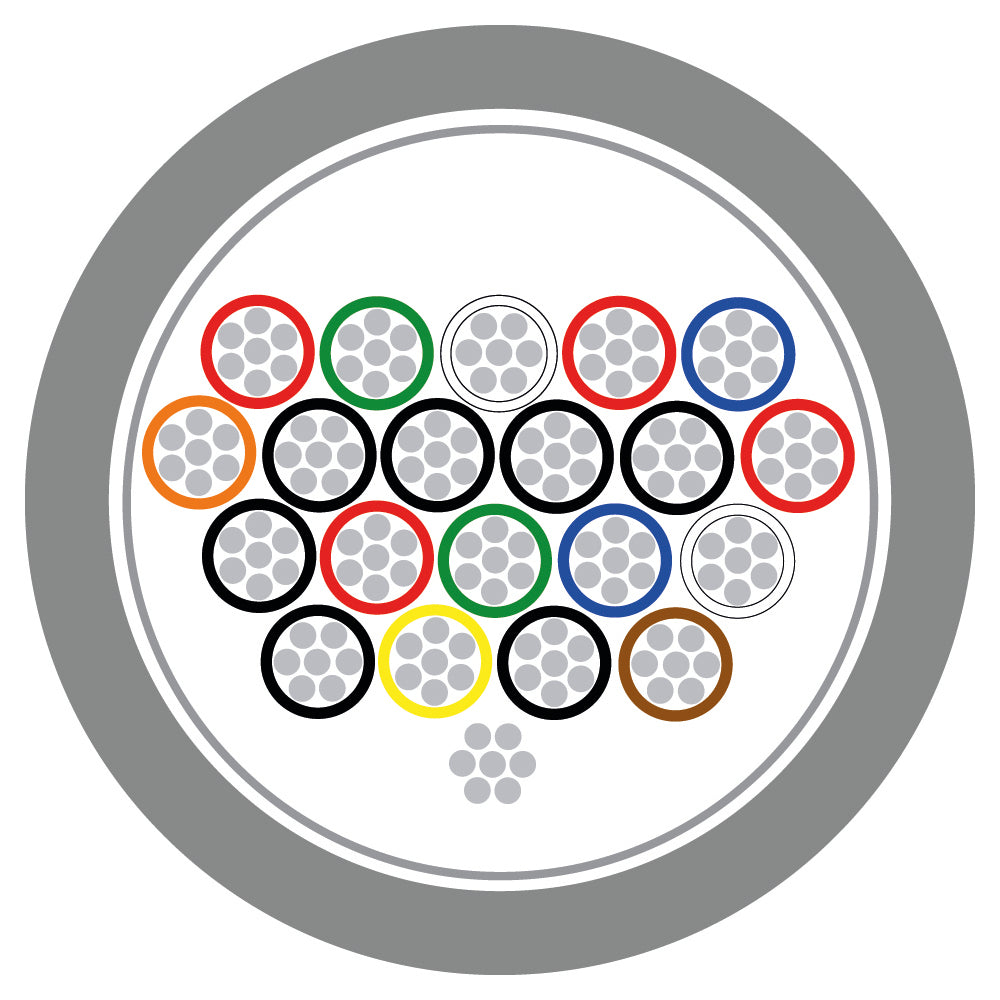

| Conductor | Stranded Tinned Copper Wire |
| Size | 24AWG (8/0.19) |
| Number of Pairs | 10 Pair |
| Insulation | PVC (0.32mm) Ø1.25mm |
| Screening | Overall Aluminium Foil Screen [24AWG Drain Wire] |
| Outer Sheath | Grey Ø9.40mm |
| Electrical Characteristics | |
| Conductor DC Resistance | 83.6 [Ω/km] |
| Rated Temperature | -20°C to 80°C |
| Rated Voltage | 600V |
| Insulation Resistance | >200 [MΩ/km] |
| Capacitance Core to Core | 98pF/mtr |
| Capacitance Core to Screen | 164 pF/mtr |
| Colour Code | |
| Pair 1 | Black/Red |
| Pair 2 | Black/White |
| Pair 3 | Black/Green |
| Pair 4 | Black/Blue |
| Pair 5 | Black/Yellow |
| Pair 6 | Black/Brown |
| Pair 7 | Black/Orange |
| Pair 8 | Red/White |
| Pair 9 | Red/Green |
| Pair 10 | Red/Blue |
Each pair is colour coded for straightforward identification during installation, supporting faster termination and reduced wiring errors.
The LSZH outer sheath meets Euroclass Eca requirements, making it suitable for use in public buildings and enclosed spaces where reduced smoke and low toxicity are important considerations.
This cable is compatible with standard control and instrumentation systems requiring Belden 9510 type specification, offering a cost-effective alternative without compromising on performance or compliance.
Downloads
| Datasheet | Download |
