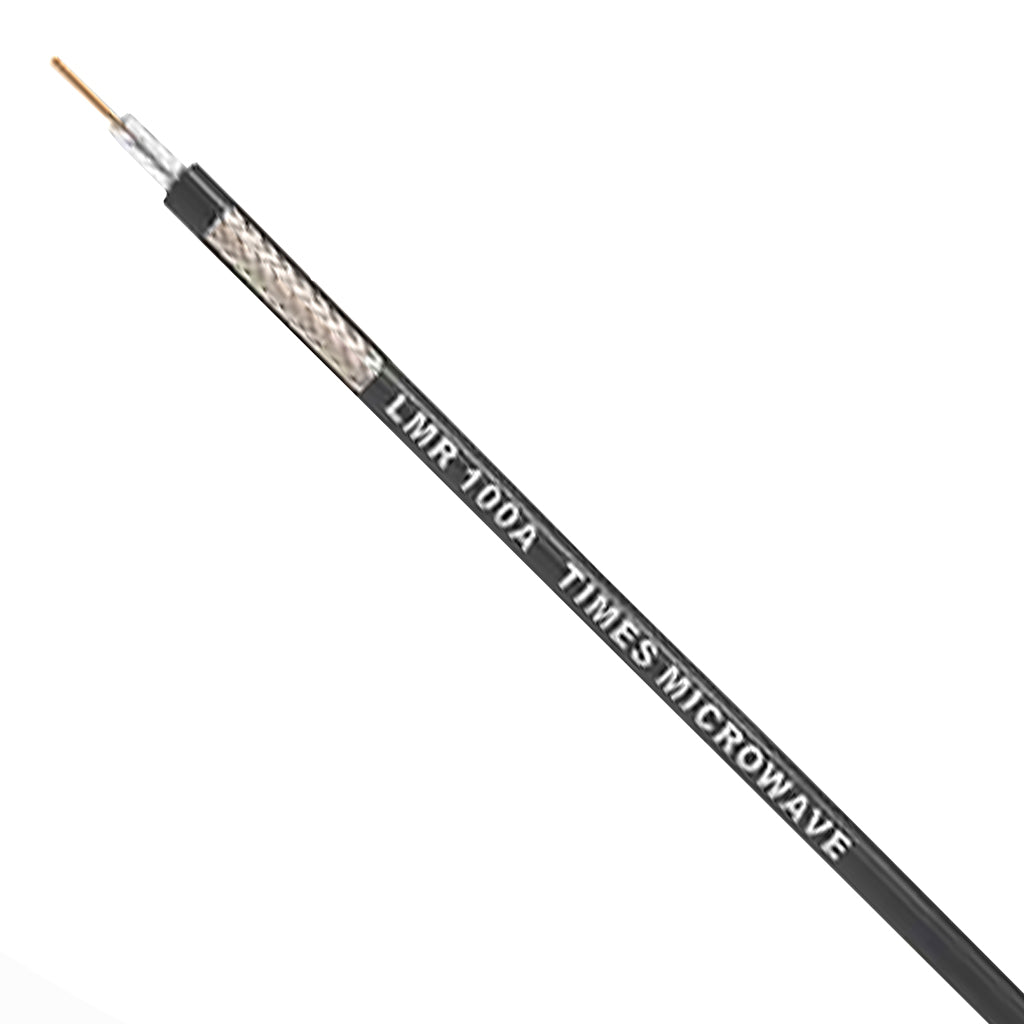

Description
This LMR-100A-FR coaxial cable is designed for low-loss indoor/outdoor applications. It is a low-smoke zero-halogen, fire retardant cable that can be used for in-building runs that can be routed anywhere except air handling plenums.
The cable is UL/NEC & CSA rated ‘CMR’ and ‘FT4’ respectively, meets FAA FAR25 requirements and is MSHA-P for mining applications.
Note: May be subject to a longer lead time.
Specification
| Jacket | FRPE |
| Overall Diameter (mm) | 2.79 |
| Weight Kg/m | 0.014 |
| Operating Temp.°C | -40 to +85 |
| Min. Bend Radius (mm) | 6.35 |
| Bending Moment (Nm) | 0.014 |
| Max Frequency (GHz) | 6 |
| Impedance (ohms) | 50 |
