Description
This 24AWG 4 core screened cable is a Belden 9534 equivalent designed for signal and control wiring in building services, industrial control systems and low-voltage instrumentation applications. The cable uses stranded tinned copper conductors with an overall aluminium foil screen and drain wire to reduce electrical interference, making it suitable for environments where signal integrity is important.
The LSZH (Low Smoke Zero Halogen) outer sheath is rated to Euroclass Eca, making it suitable for installation in public buildings and areas where reduced smoke and toxic emissions are required in the event of fire.
Typical uses include:
- Control and instrumentation circuits
- Building management systems (BMS)
- Industrial control panels
- Data and signal transmission in electrically noisy environments
- Low-voltage automation systems
The overall foil screen with a 24AWG drain wire helps protect signals from electromagnetic interference (EMI), which is important in installations near power cables, motors or other sources of electrical noise.
Specification
| Physical Characteristics | |
| Conductor | Stranded Tinned Copper Wire |
| Size | 24AWG (7/0.19) |
| Number of Cores | 4 Core |
| Insulation | PVC (0.29mm) Ø1.15mm |

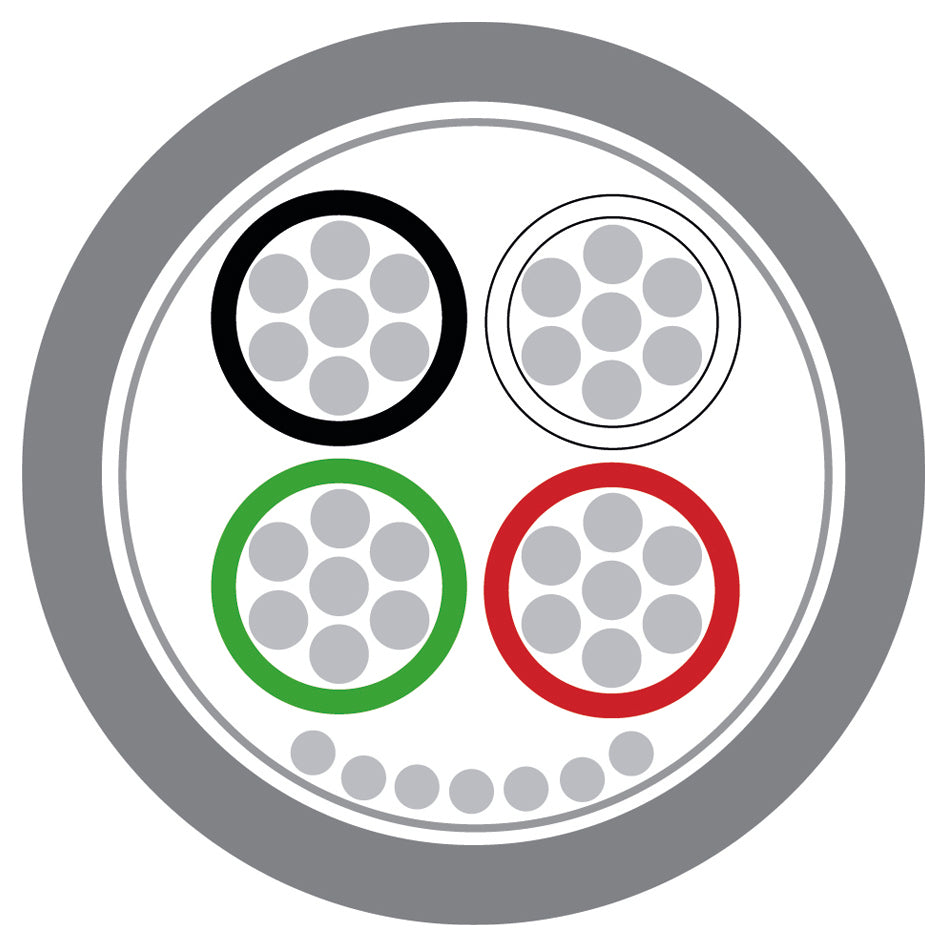

| Screening | Overall Aluminium Foil Screen [24AWG Drain Wire] |
| Outer Sheath | Grey Ø4.70mm |
| Electrical Characteristics | |
| Conductor DC Resistance | 93.8 [Ω/km] |
| Rated Temperature | 80°C |
| Rated Voltage | 600V |
| Insulation Resistance | >200 [MΩ/km] |
| Capacitance Core to Core | 108pF/m |
| Capacitance Core to Screen | 213pF/m |
| Colour Code | |
| Core 1 | Black |
| Core 2 | White |
| Core 3 | Red |
| Core 4 | Green |
This cable provides a practical alternative to Belden 9534 for installations requiring screened multi-core signal cable with LSZH sheath and Eca fire classification.
