Description
This 1 pair screened control cable is manufactured as an equivalent to Belden 9501 and is intended for low-voltage signal, control and instrumentation wiring where protection from electrical interference is required.

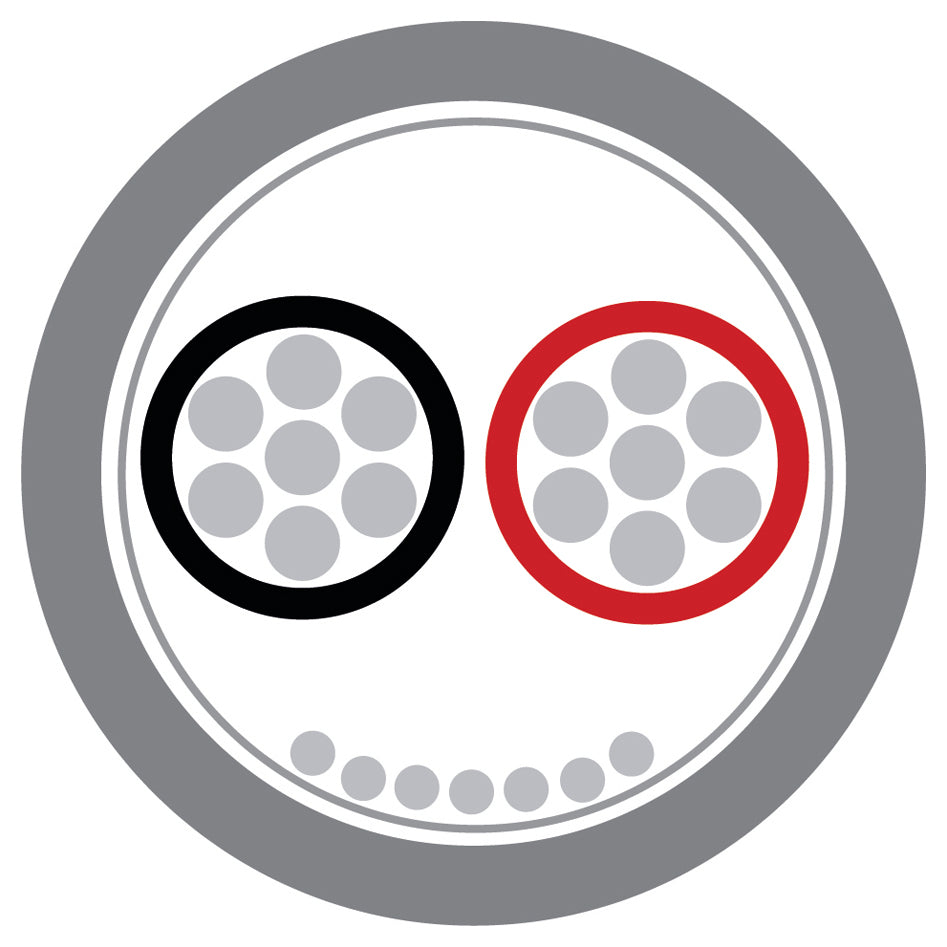

The cable uses 24AWG stranded tinned copper conductors, providing good flexibility for routing within panels, containment systems and equipment racks. An overall aluminium foil screen with a 24AWG drain wire helps reduce the effects of electromagnetic interference (EMI), supporting stable signal transmission in electrically noisy environments.
A Low Smoke Zero Halogen (LSZH) outer sheath rated to CPR Euroclass Eca supports installation in buildings where reduced smoke and halogen emissions are required in the event of fire. The compact 4.00mm overall diameter allows the cable to be easily installed in control panels, trunking or cable trays.
Specification
| Physical Characteristics | |
| Conductor | Stranded Tinned Copper Wire |
| Size | 24AWG (8/0.19) |
| Number of Pairs | 1 Pair |
| Insulation | PVC (0.32mm) Ø1.25mm |
| Screening | Overall Aluminium Foil Screen [24AWG Drain Wire] |
| Outer Sheath | Grey Ø4.00mm |
| Electrical Characteristics | |
| Conductor DC Resistance | 83.6 [Ω/km] |
| Rated Temperature | -20°C to 80°C |
| Rated Voltage | 600V |
| Insulation Resistance | >200 [MΩ/km] |
| Capacitance Core to Core | 98pF/mtr |
| Capacitance Core to Screen | 164 pF/mtr |
| Colour Code | |
| Pair 1 | Black/Red |
This cable provides a direct functional alternative to Belden 9501, commonly specified for screened signal and control wiring in commercial and industrial installations.
