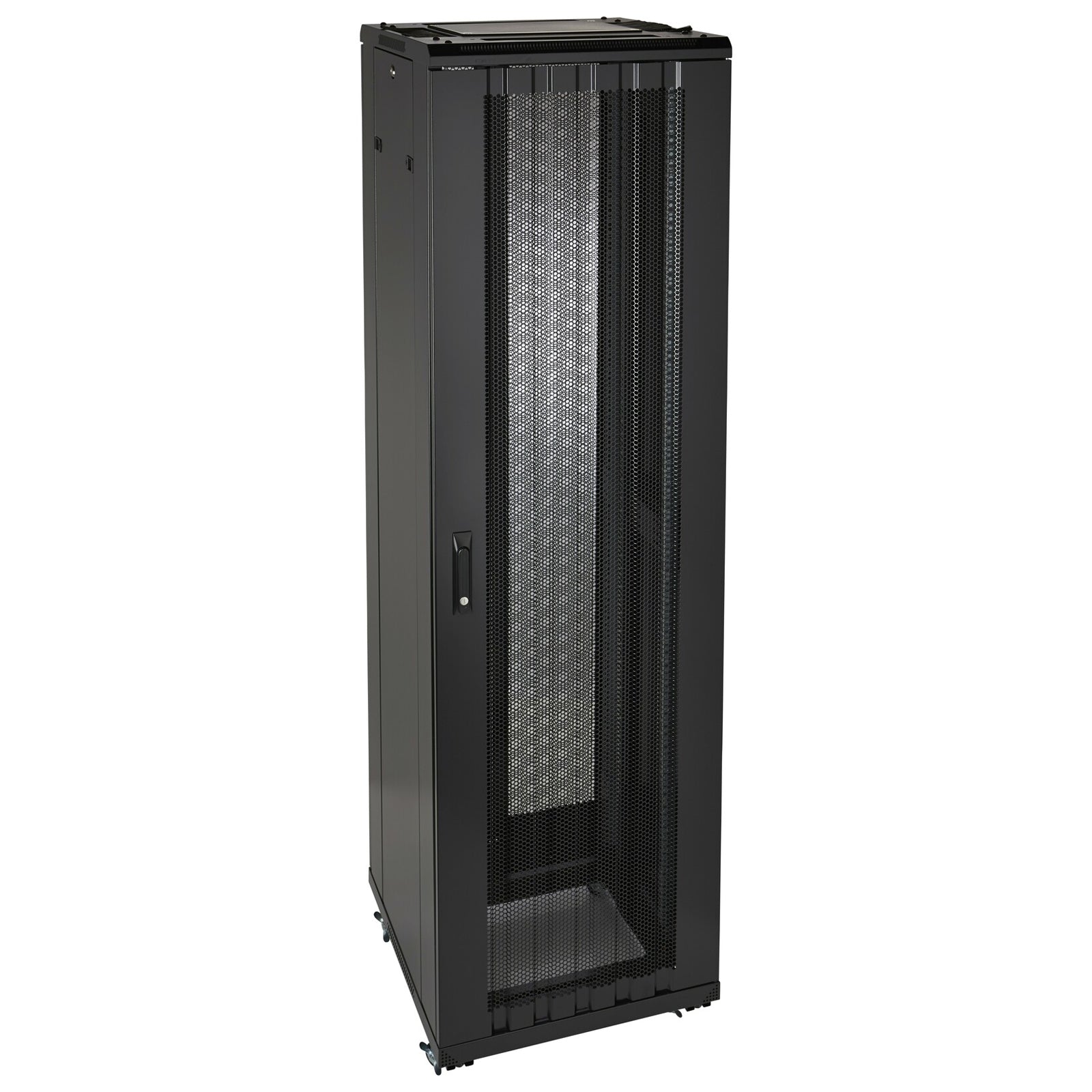

This 42U (186.69cm) premium floor-standing server rack is suitable for a wide range of applications within the data, security, audio visual and telecommunications industries.
It features 19" profiles marked with U height position, a large cutout in the base for cable entry and a brush strip cable entry in the roof and base of the rack.
The front & rear door is of single vented style.
The product comes supplied with baying kit, levelling feet and heavy duty lockable castors as standard.
Specification
| Mounting profile |
Front and rear |
| Type of profile rail |
L-shaped |
| Number of doors |
2 |
| Type of ventilation |
Passive |
| Width |
600mm |
| Height |
2070mm |
| Depth |
600mm |
| Modular spacing |
19 inch |
| Number of rack units |
42 |
| Max. load capacity |
800kg |
| With roof plate |
Yes |
| With earthing |
Yes |
| With front door |
Yes |
| Front door material |
Steel |
| Front door locking system |
One point |
| With rear door |
Yes |
| Rear door material |
Steel |
| Rear door locking system |
One point |
| Side panels included |
Yes |
| With vertical cable management |
No |
| Material |
Steel |
| Type of surface |
Powder coated |
| Colour |
Black |
| RAL number |
9004 |
| IP Rating |
IP20 |
