Description

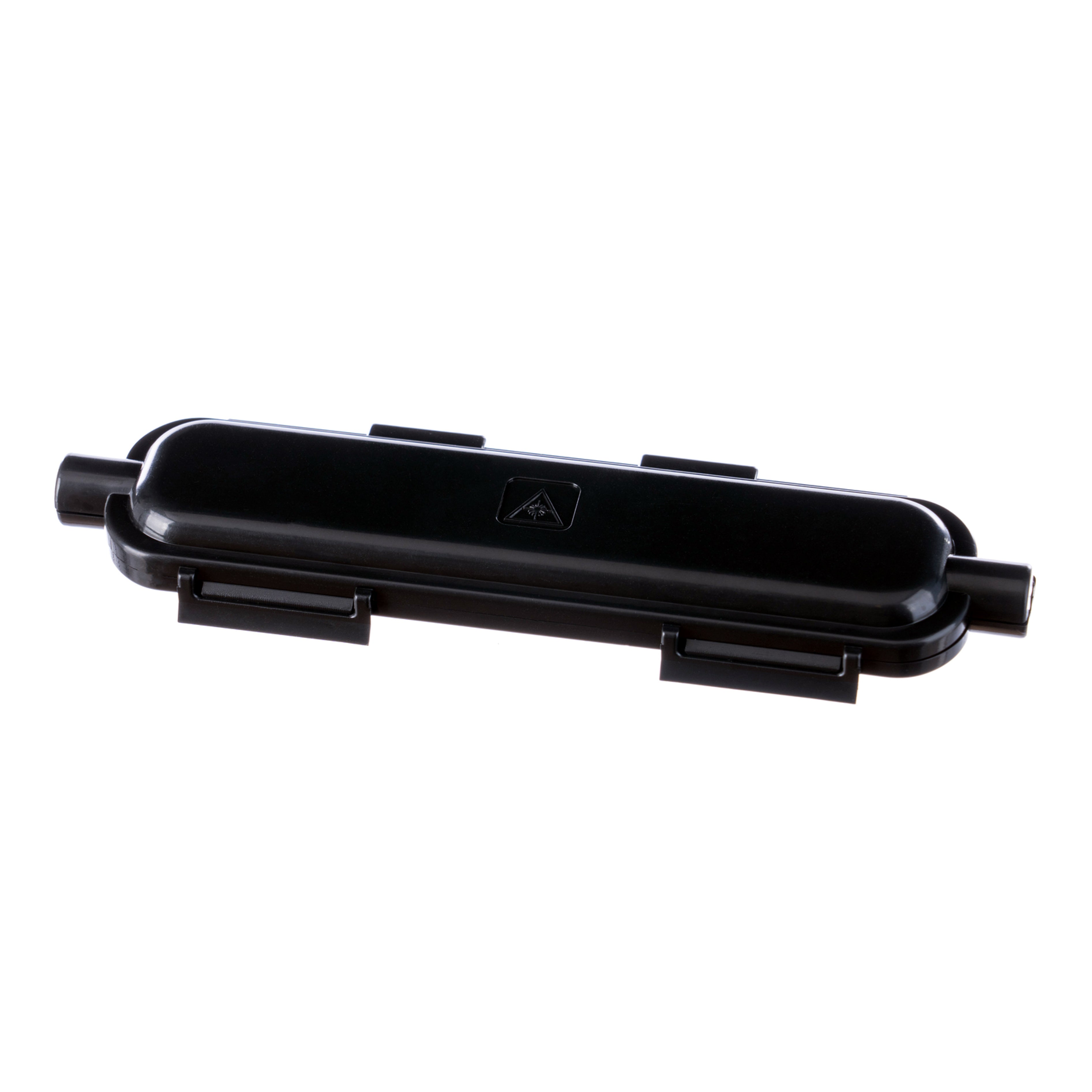

This 1-Fibre SC simplex drop cable enclosure is capable of housing a single SC connection.
The enclosure can hold both a heat shrink splice between two drop cables or a drop cable terminated with SC connections. It is designed to be compatible with both flat and round drop cables.
Features
| Water-proof design, IP65 rated |
| Integrated with cable termination and management rods |
| Constructed of high quality industrial ABS plastic |
| Buckled locking, easy to install and remove |
Specifications
| Fibre capacity | 1 |
| Drop cable diameter (mm) | Ø3 2 x Ø3 |
| Material | ABS |
| Dimensions (mm) (L x W x H) | 160 x 46 x 17 |
| Splice protectors (mm) | 45 (Ø2mm) |
| SC adaptor capacity | 1 |
| Colour | Black |
| UV resistance (hours) | 500 |
| NSS (hours) | 48 |
| Impact rating | IK06 |
| IP rating | IP65 |
| Operating temperature (ºC) | -40 to +60 |
| Storage Temperature (ºC) | -45 to +65 |
Downloads
| Datasheet | Download |
